Aperture error test
Print Profile(1)
Description
The diameter of the holes printed after each filament change is difficult to control and requires repeated testing. With this, you no longer have to worry, making it easy to test the hole diameter error values of different filaments.

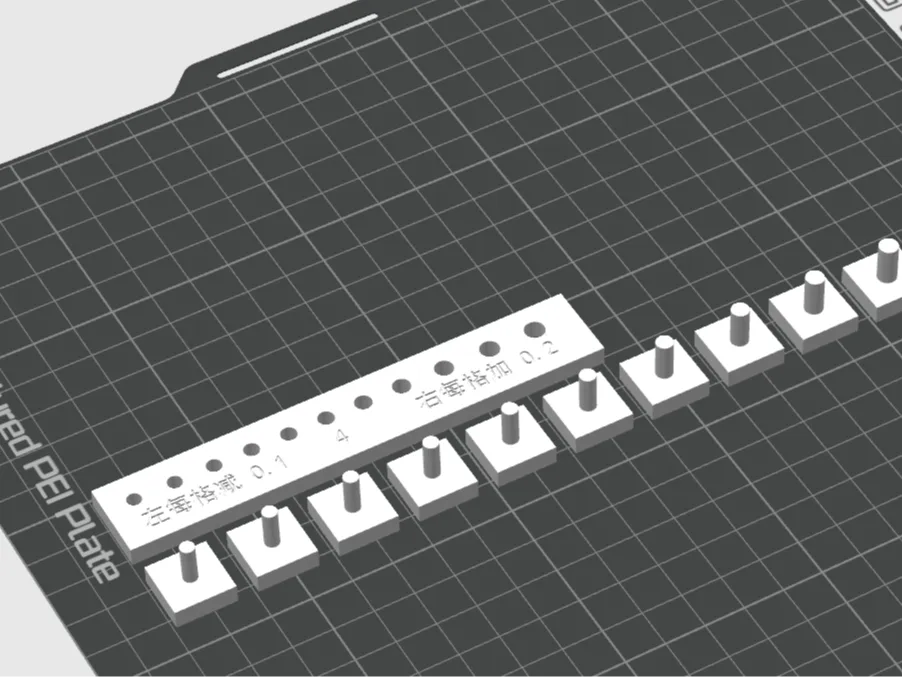

The central value of the aperture plate is 4 mm. Each grid to the left decreases by 0.1mm, and each grid to the right increases by 0.2.

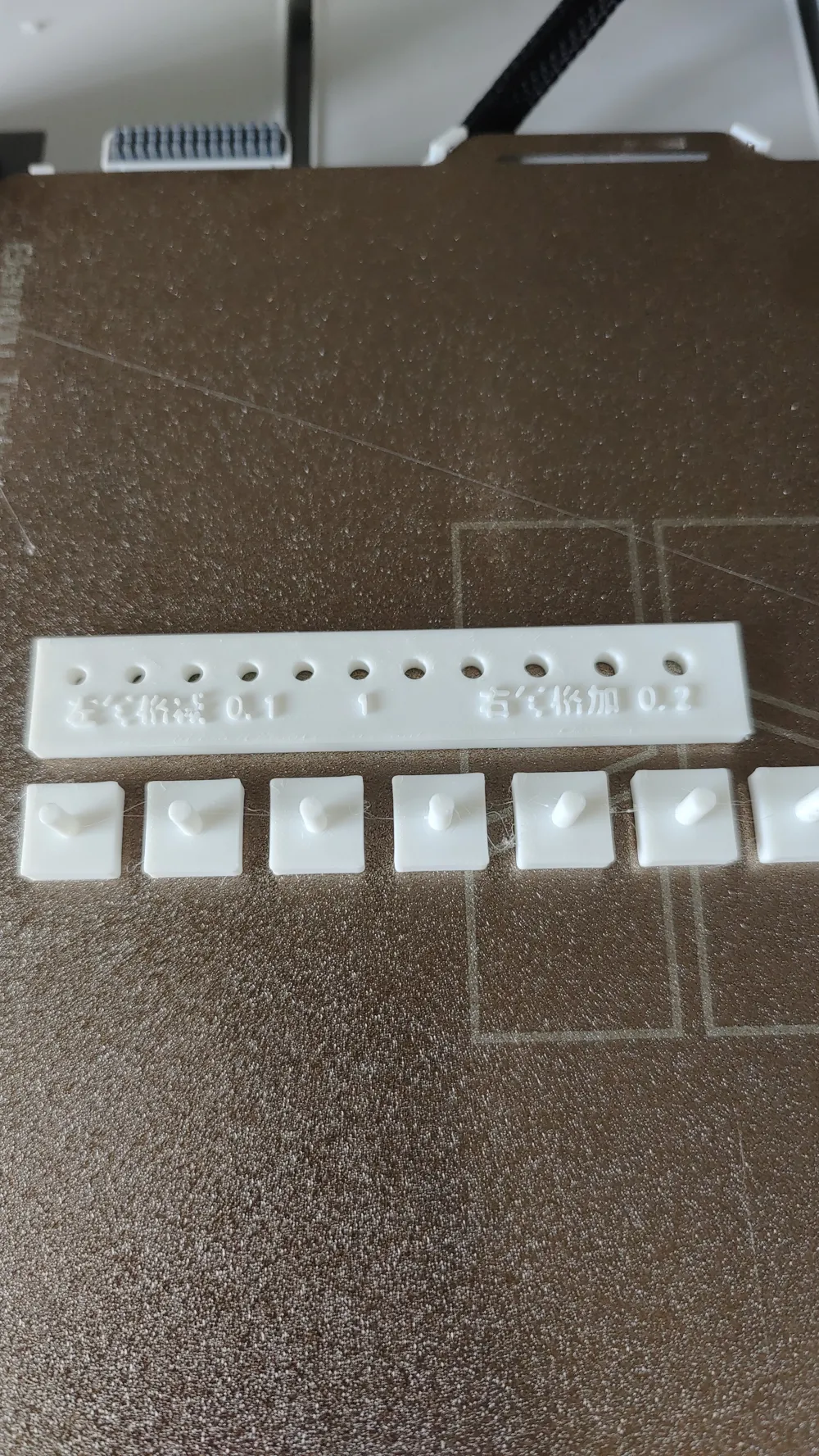

The test pillars from smallest to largest are 3.5, 3.6, 3.7, 3.8, 3.9, 4, 4.2, 4.4, 4.6, 4.8, 5 (specifications are marked at the bottom of the test pillars).

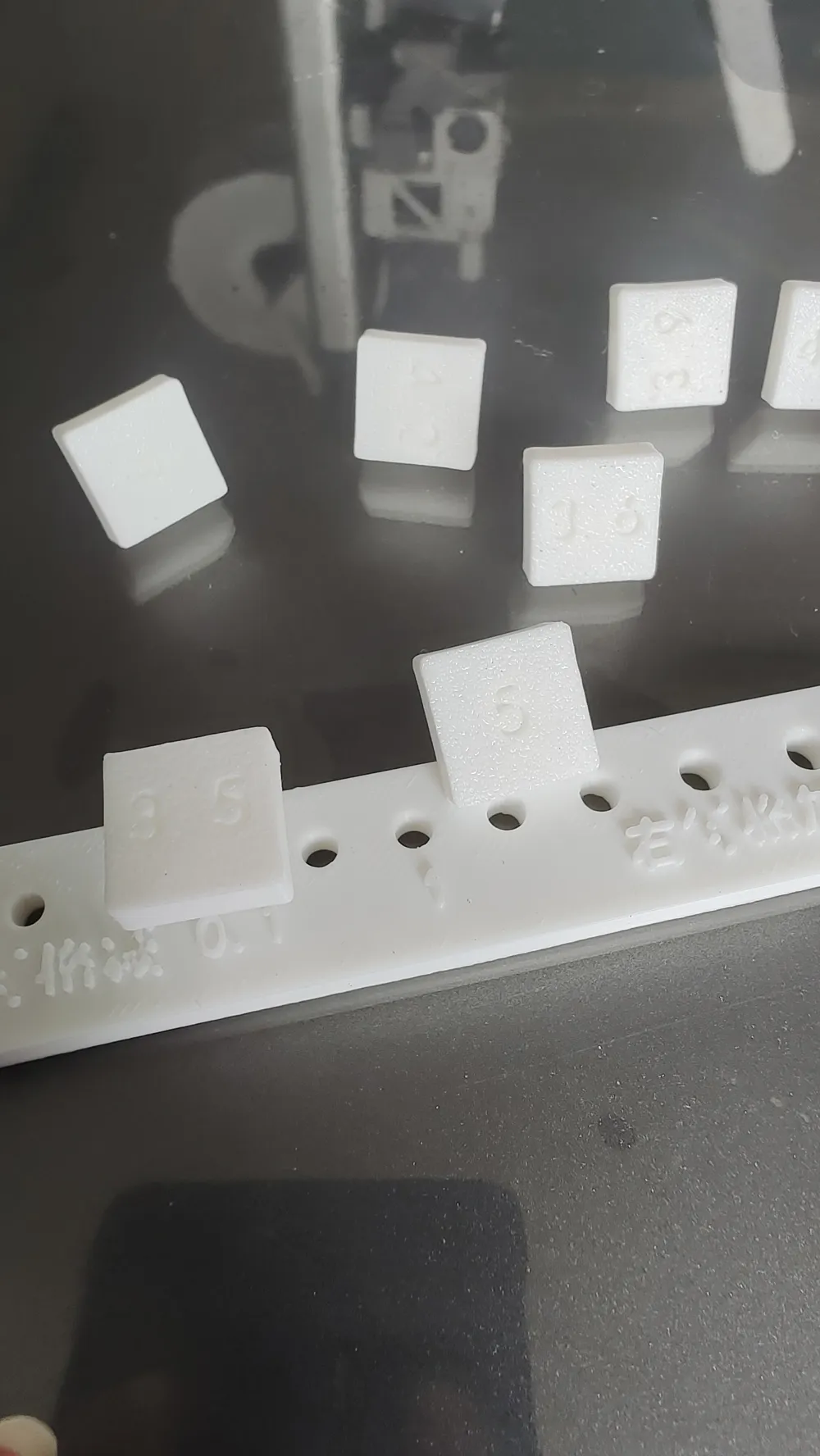

By matching the actual printed product with the holes on the test plate, the corresponding error can be easily found.
