H2S BUFFER GUIDE
Print Profile(2)
Bill of Materials
- 3M VBA Double Face Tape x 1: 1/2" Wide Double Face Tape
Description

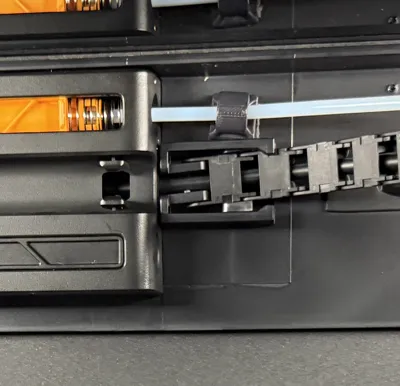

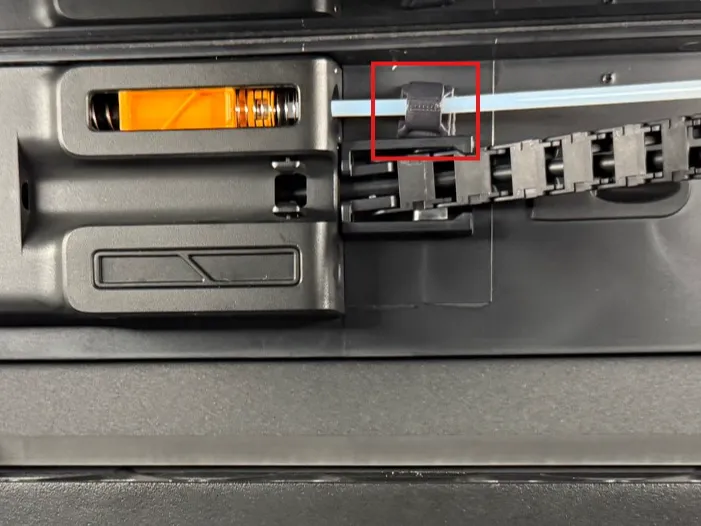

I was Having an issue printing in the front left corner of my H2S. The PTFE Tube was pulling and kinking creating an error AMS Overload.
I took the PTFE Tube from the AMS and the one from the inside of machine and measured and cut the AMS one 2" Longer and swapped them out but still got the AMS Overload message.

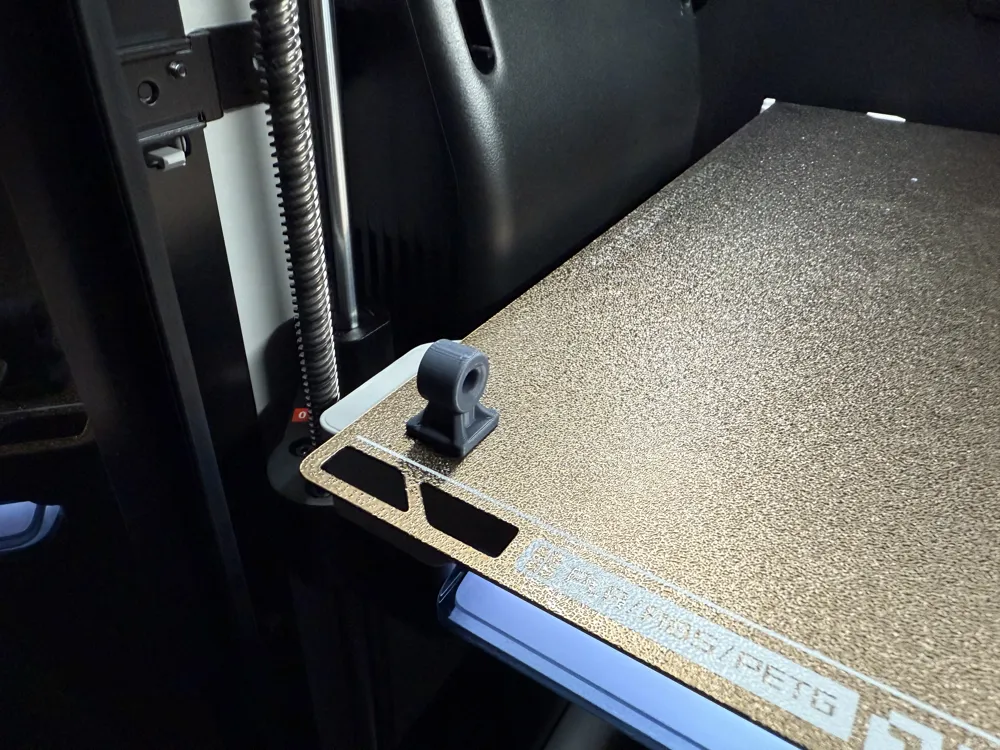

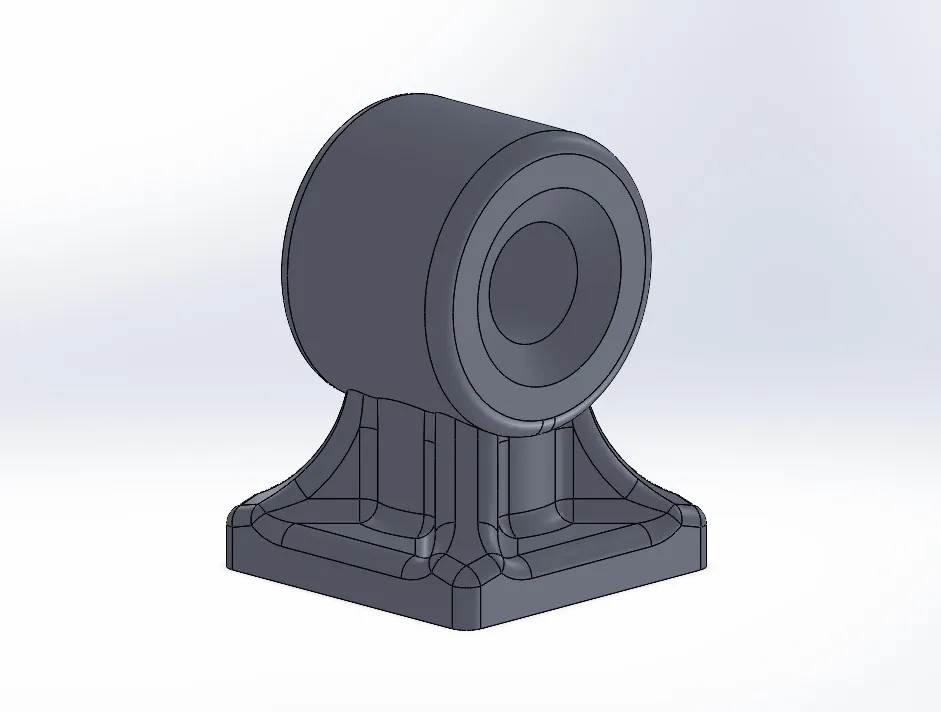

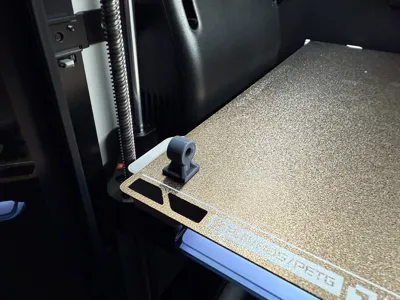

So, I created this Buffer Guide for the PTFE Tube. The hole in the guide is concentric with the hole in the Buffer; I applied it with 3M VBA Double Face Tape that can be found on Amazon.
I printed the part out of ASA so it could handle the heated chamber.
3M VBA Tape: https://a.co/d/hQ58miS
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
