Door catch

Print Profile(0)


Add the first print profile to earn points

Boost
24
67
3
1
88
13
Released

Description

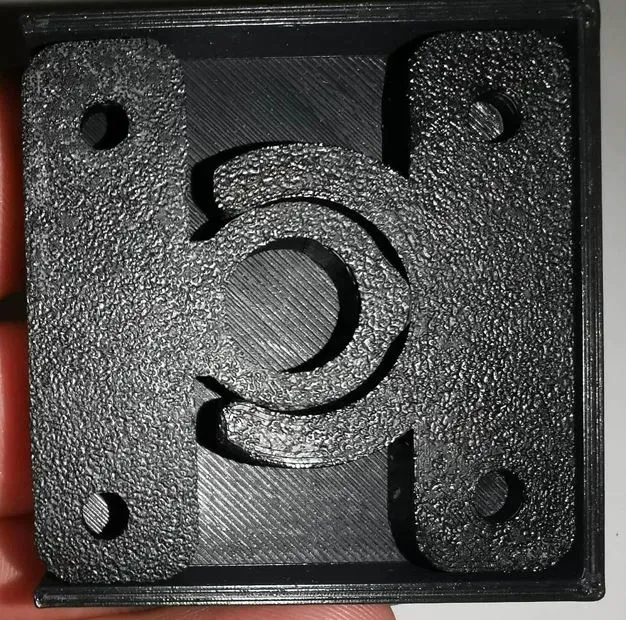

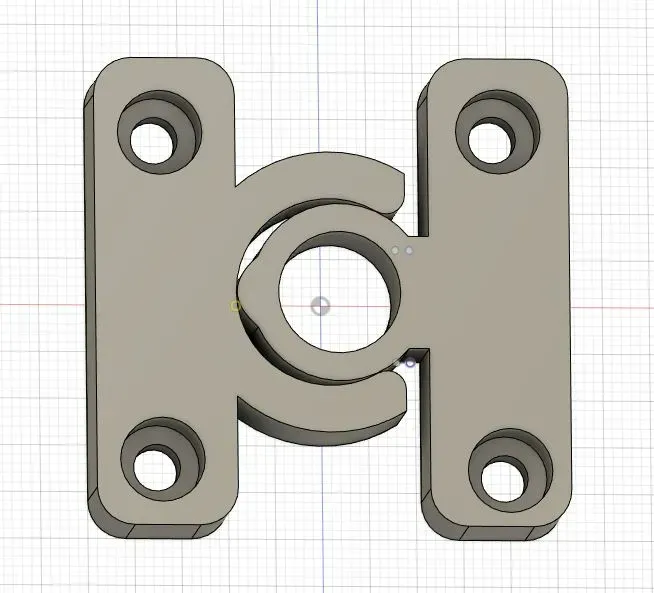

I have this weird cabinet that needs door catches mounted on the face of the door so i made one with a cover for aestetics.

The cover is just to press it in after you screw the door catch on. Make sure you are accurate on both parts of the door catch when mounting.

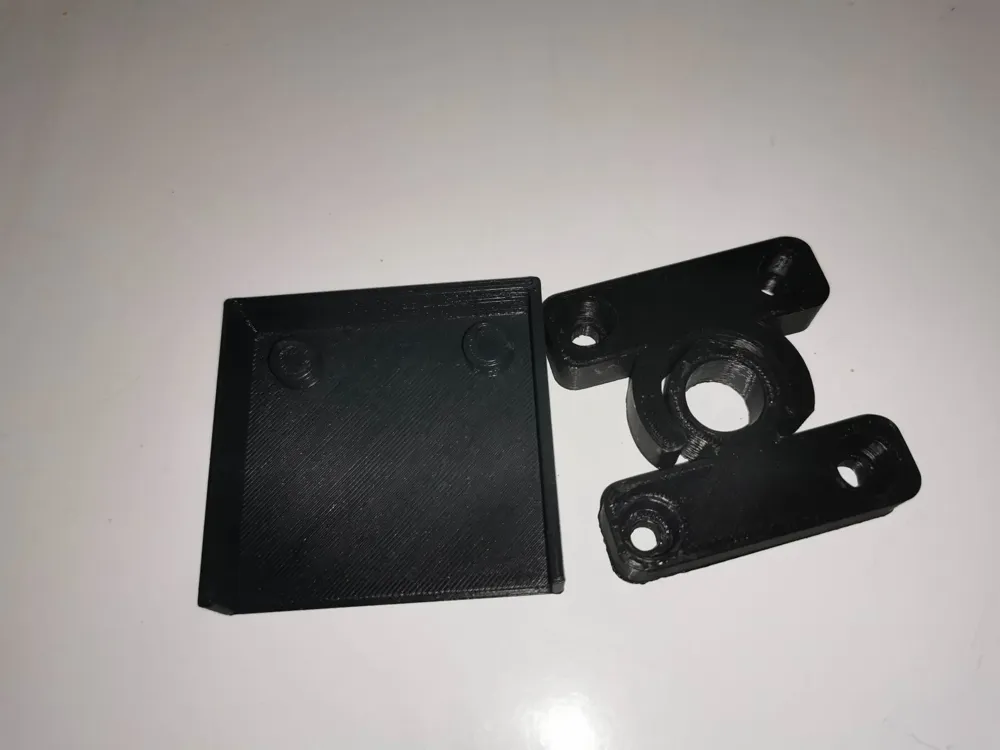

The cover is pressed onto Body1 stl.

Suggestions to print :

5 walls, top, bottom layers
atleast 40% infill - Gyroid, Cubic,..
Any material above PLA.

If you want the door catch thinner, just shrink the part in the Z direction.
