Geometric wall-mounted self-watering planter/flowerpot by J3n

J3n

Household>Decor

Print Profile(2)

All

P1P

P1S

X1 Carbon

X1E

Self-watering wall planter 0.2 mm layer, 4 wals, 15 % infill

Designer

10.3 h

2 plates

3.0(1)

Brim, Supports, Reoriented mounting clip

12.7 h

2 plates

5.0(1)

Boost

Released

Description

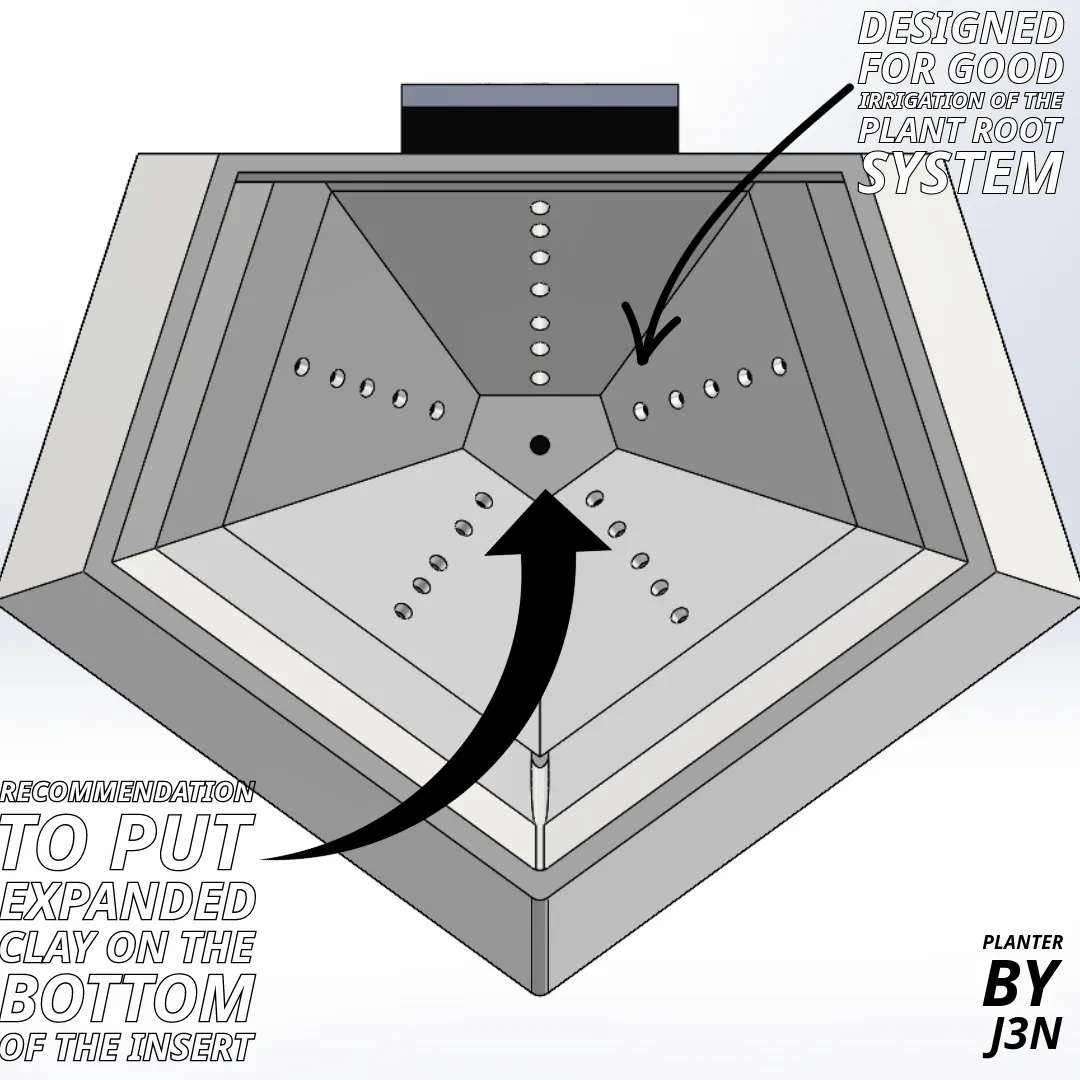

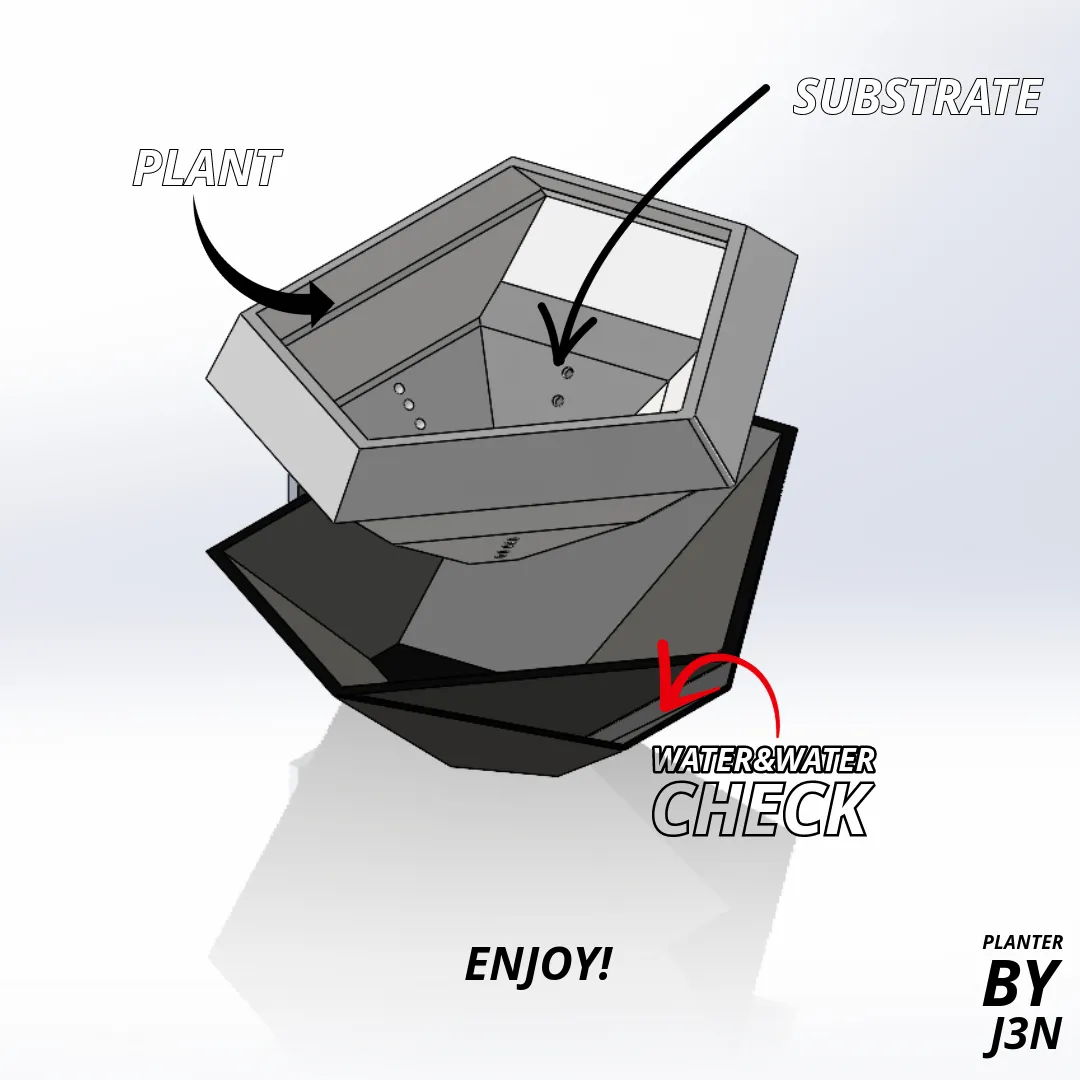

Geometric wall-mounted self-watering planter (hanging) with quick water control and refilling. Designed to ensure perfect irrigation of the plant root system.

For printing, I recommend using the attached files in STEP format. No supports needed.

Printing recommendations:

- Use PETg, ABS or ASA, do not use PLA.

- set a minimum of 4 walls and 10 - 15% infill to ensure the water permeability of the pot

Enjoy! I will be glad if you share your colour combinations!

Assembly instructions

Note:

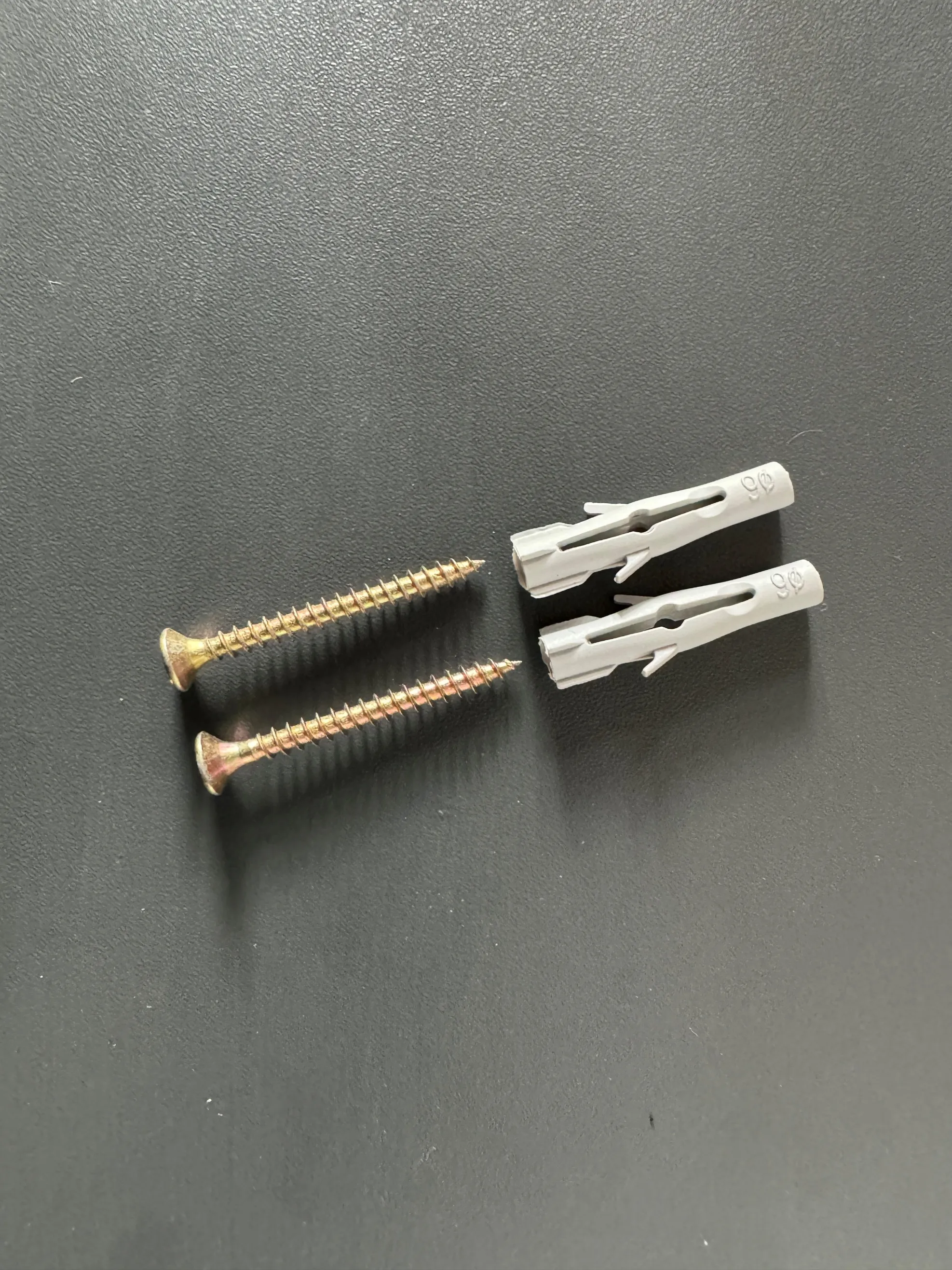

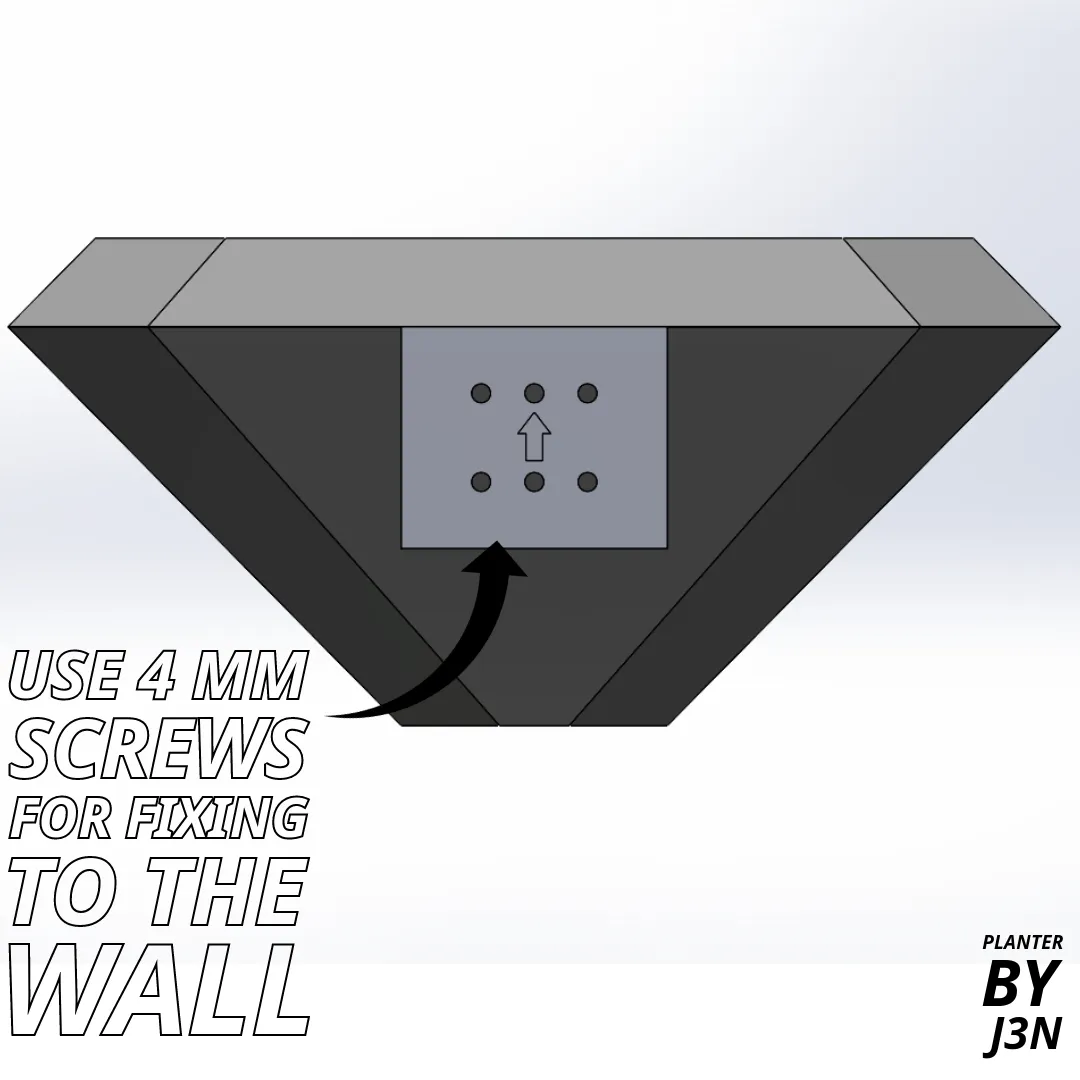

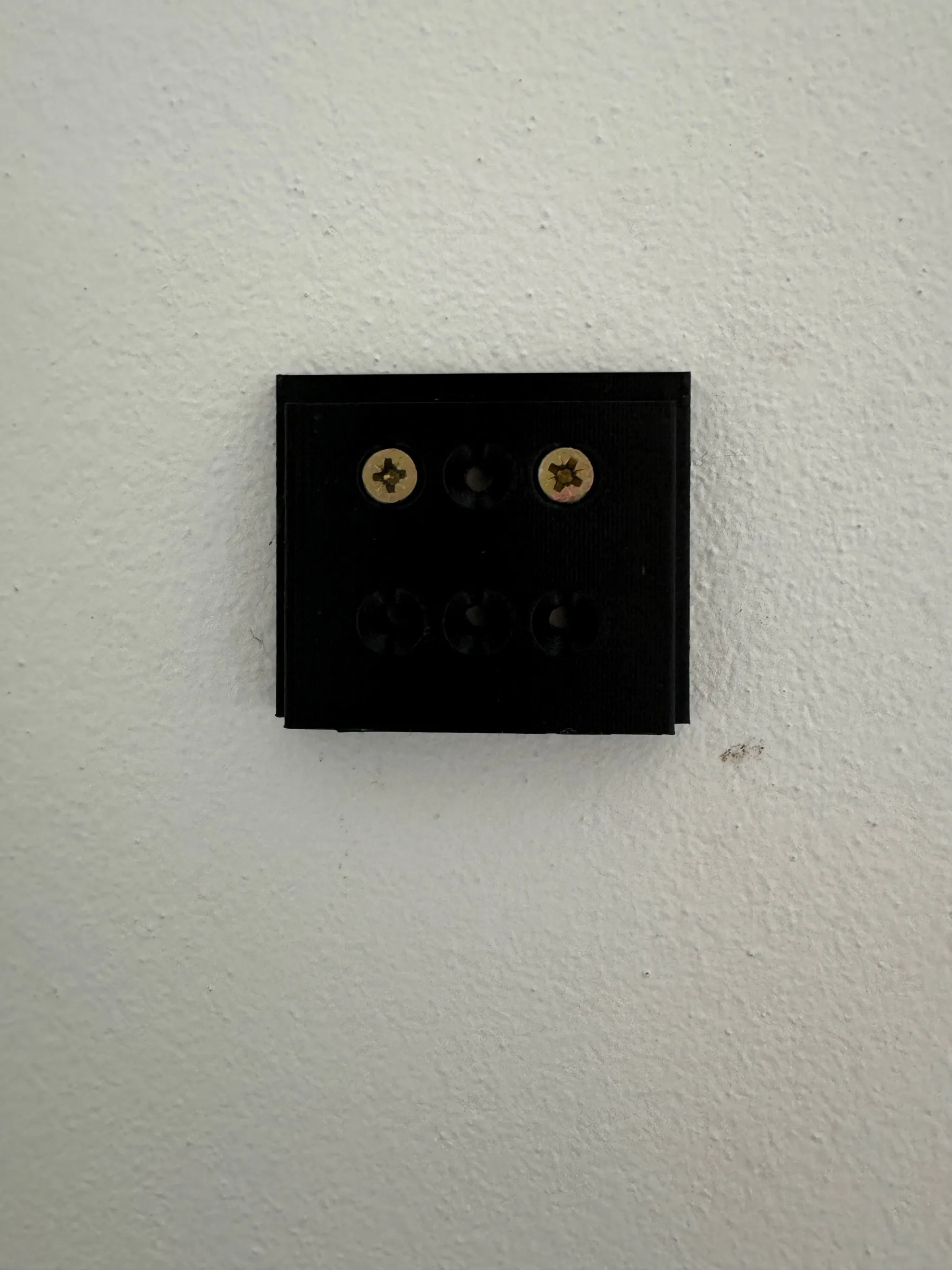

I used two 6x30 mm dowels and two 4x40 mm screws for fixing to the wall.

Obsah obrázku interiér, kolíček na prádloPopis byl vytvořen automaticky

Obsah obrázku zeď, Vypínač, Obdélník, interiérPopis byl vytvořen automaticky

Documentation (1)

Assembly Guide (1)

wall_planter_info_4a170c3c-5d10-49c5-8986-5ba7c6773a64.pdf

Comment & Rating (3)

@SprocketStudios

Print Profile

Self-watering wall planter 0.2 mm layer, 4 wals, 15 % infill

Other Issues:The design is nice but the print profile needs tweaking to get a good print. I uploaded the modifications I ended up using, the most important of which was to change the orientation of the "clip" in the back so it will print cleanly.

The designer has replied

@_j3n_

Hi, thanks for the heads up. The wall clip was oriented wrong in the profile, I missed it. There is no need to throw away the material for the supports, the small bottom area will be printed well from the view (bottom) side, and the substrate will cover the rest ;)
