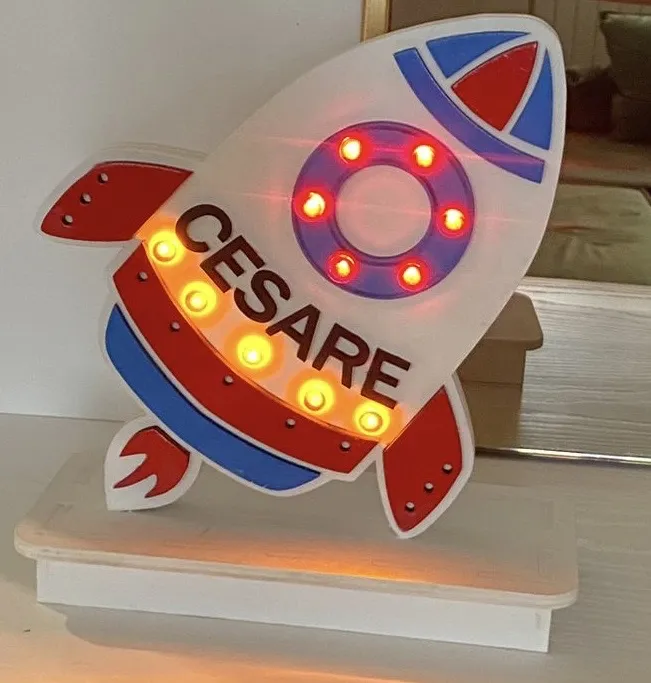

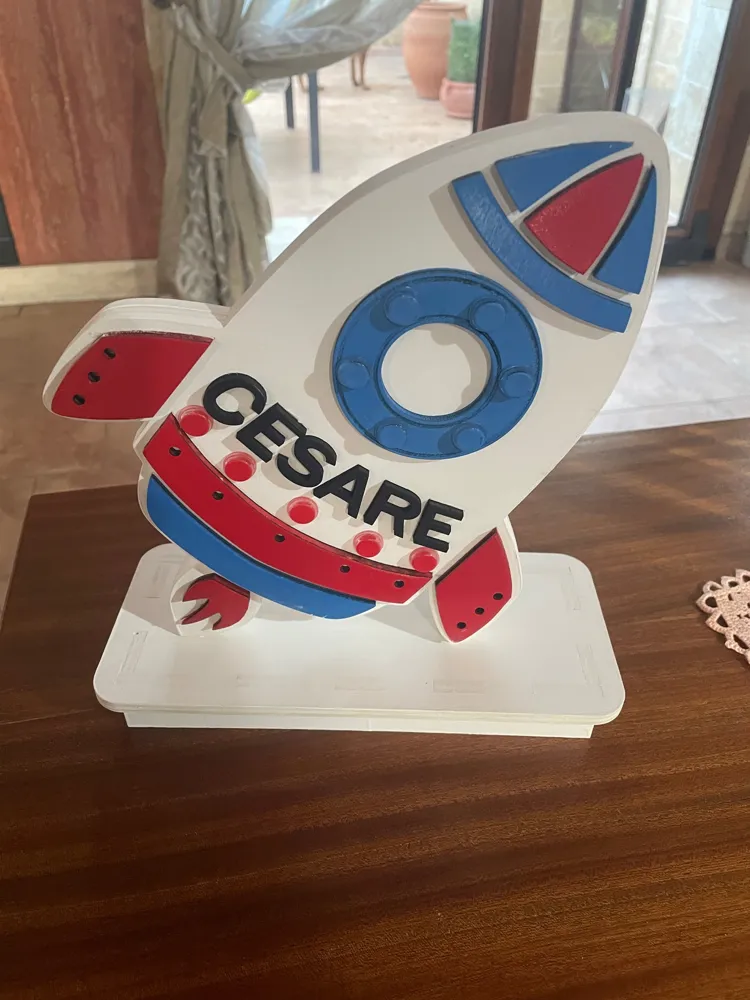

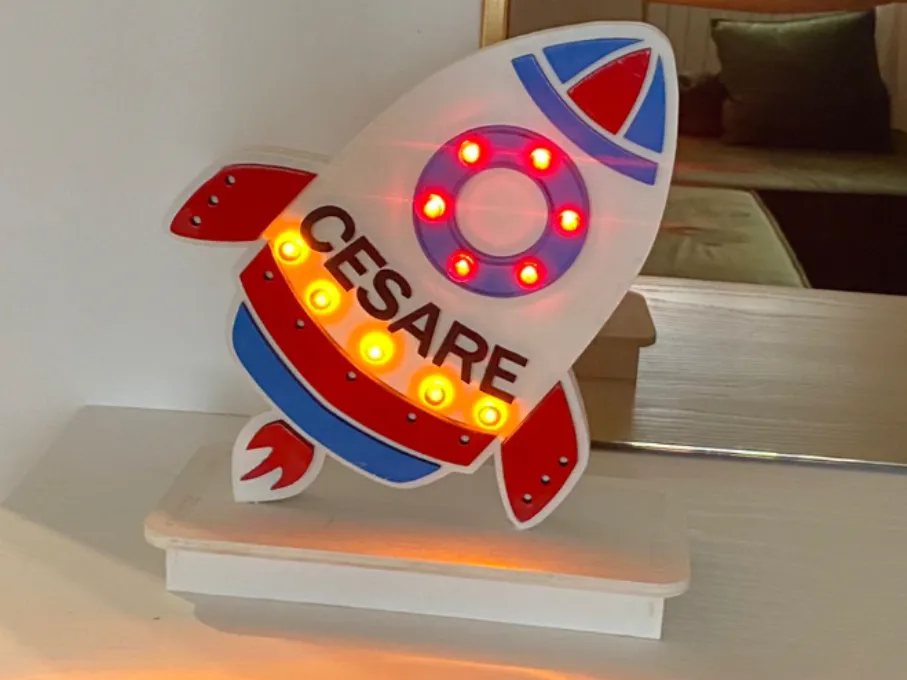

Rocket Lamp

Rocket Lamp is a customizable decoration with any Name

It was made with three layers of 6mm poplar plywood for the rocket body and base and 4mm for the decorations and name (any plywood thickness can be used by simply modifying the joints on the base), 11x 2V LEDs (all connected in parallel, each with a 150 ohm resistor), 1x AA battery holder for three batteries and 1x mini switch

After cutting all the pieces I proceeded to paint everything with colors of my liking and glued the decorations onto the body Afterwards I fixed all the LEDs with hot glue, soldered in parallel (remember to leave the two + and - wires longer to exit the joint with the base to hide everything inside) and glued the rear body pieces with wood glue Finally I proceeded with the assembly of the base, gluing the battery holder underneath with hot glue, and connecting the two LED wires to the battery pack and the switch
