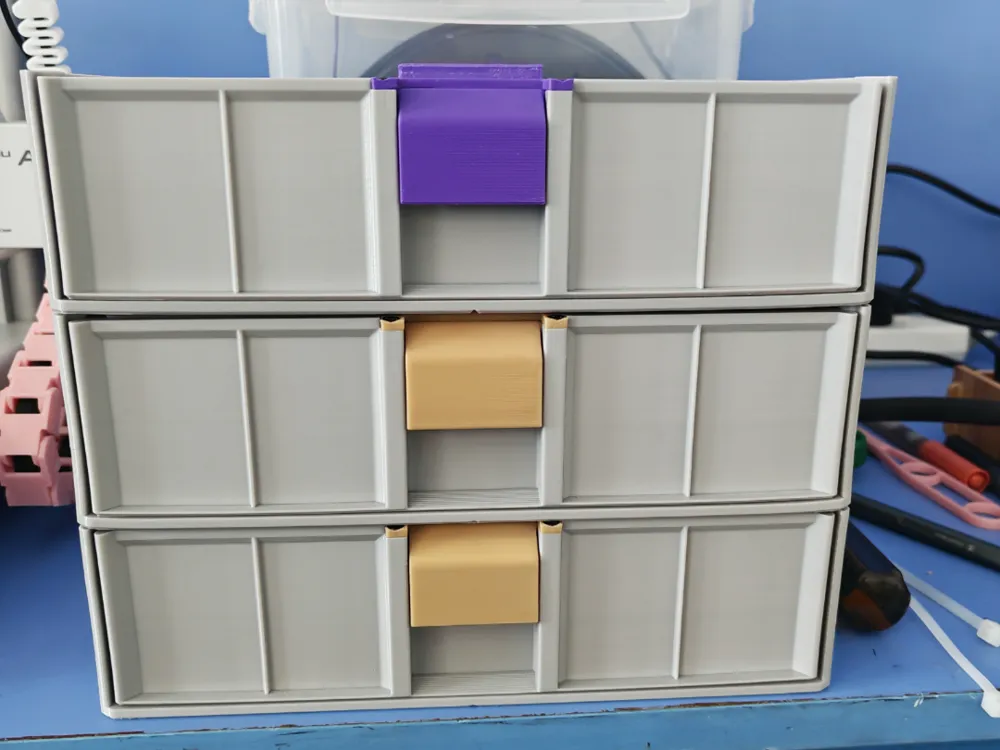

Stackable Drawer

I've printed many drawer organizers, but they either have a simple structure where the drawer pulls right out without a stop, or they have a good structure but are too small to hold much.

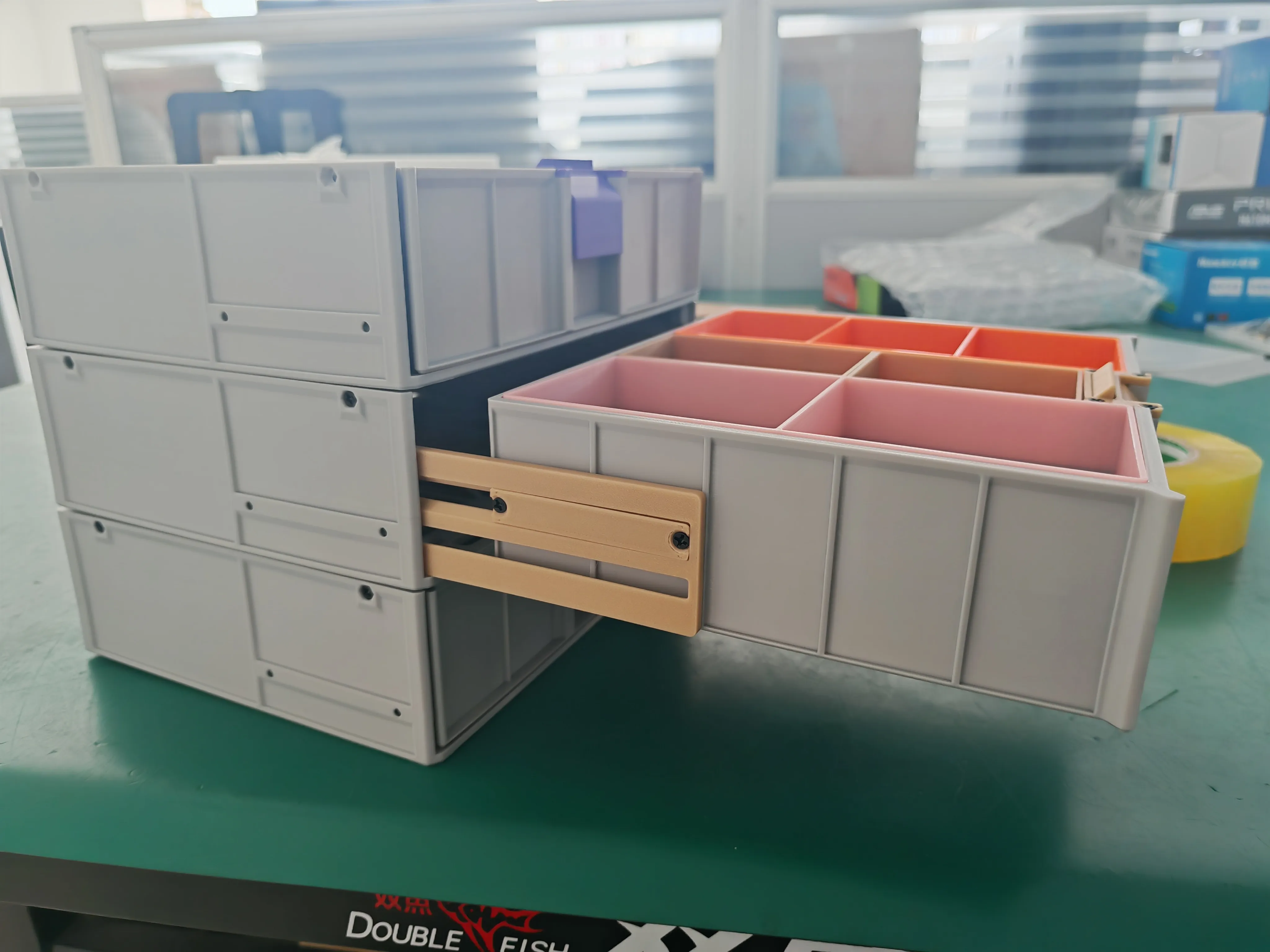

So I started learning 3D modeling myself and designed a drawer. It has rails so the entire drawer can be pulled out without falling off.

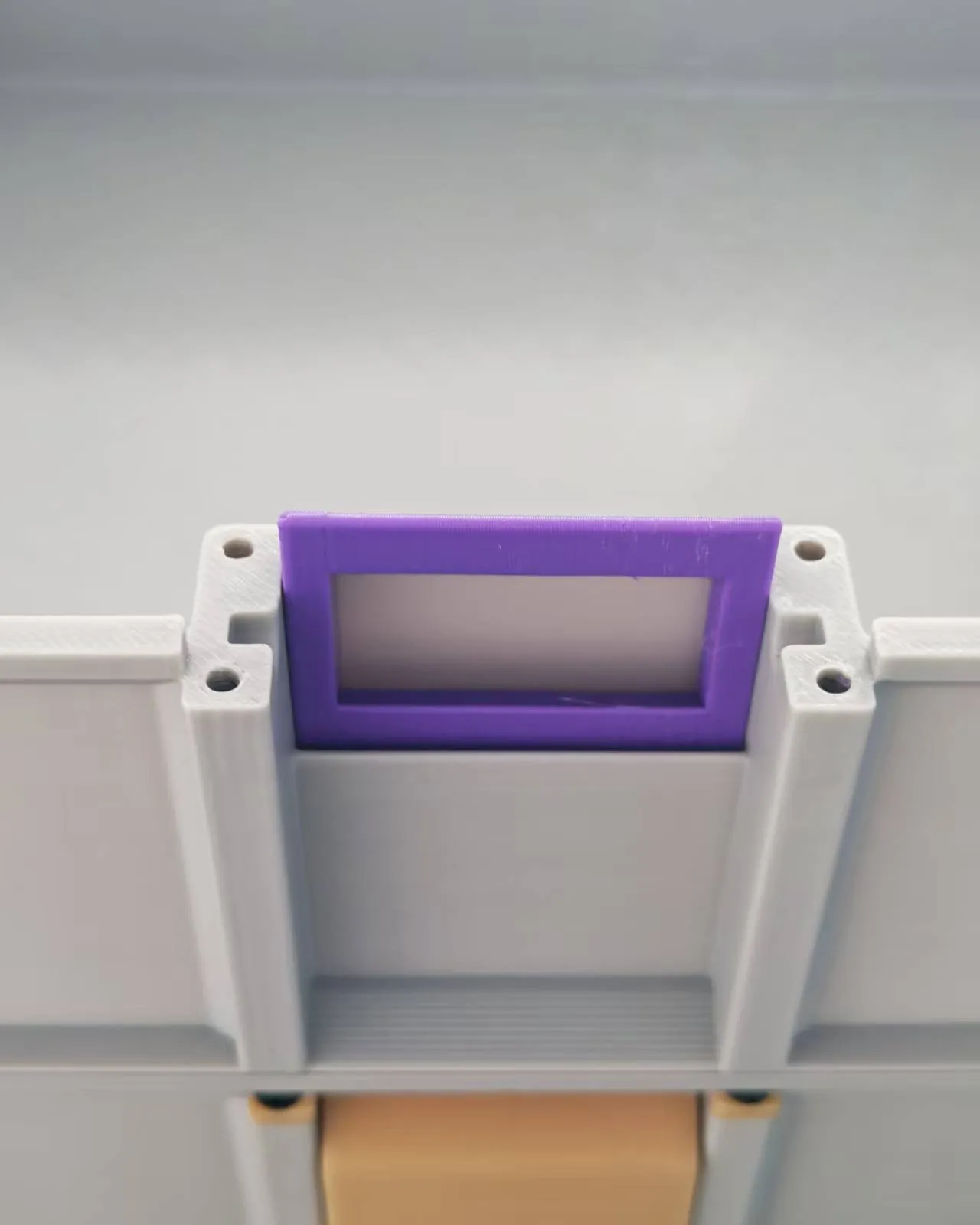

Sometimes when pulling out a middle drawer, other drawers might come out. So I added a mechanism that unlocks when pulling the drawer and locks when closing it (I don't really know what this mechanism is called).

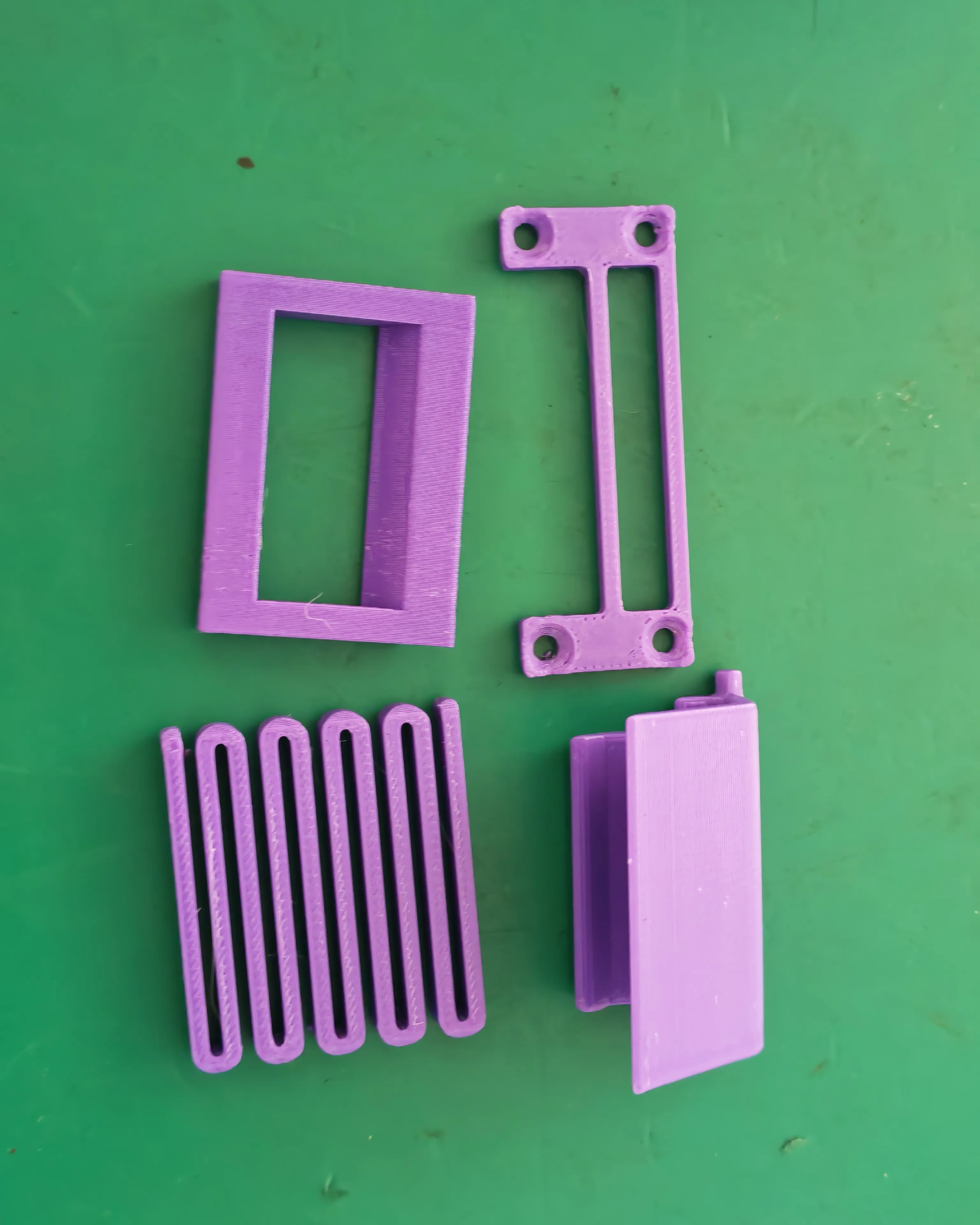

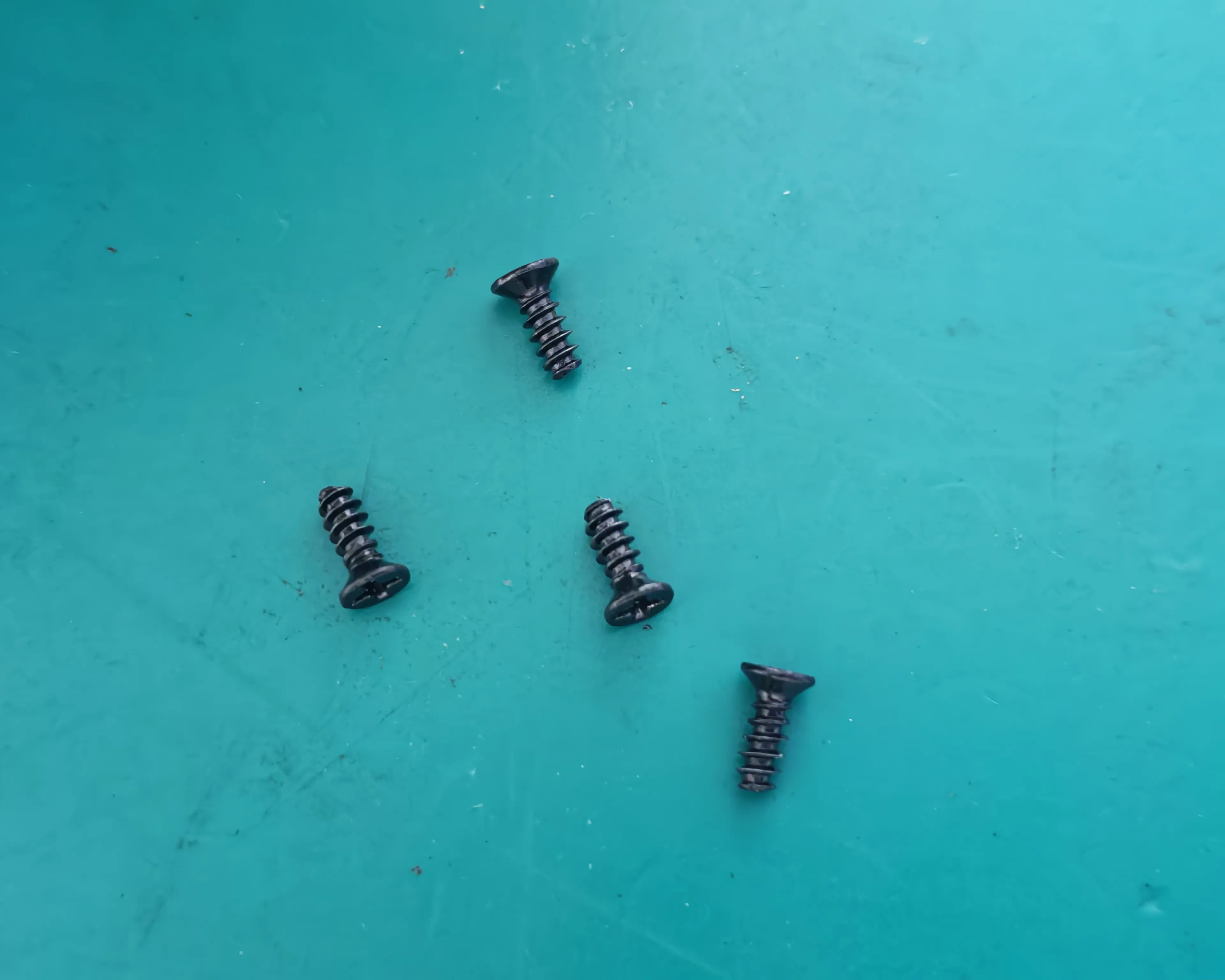

This mechanism is also very simple to install, it has 4 parts and 4 screws. The screws are M3*8 countersunk tapping screws.

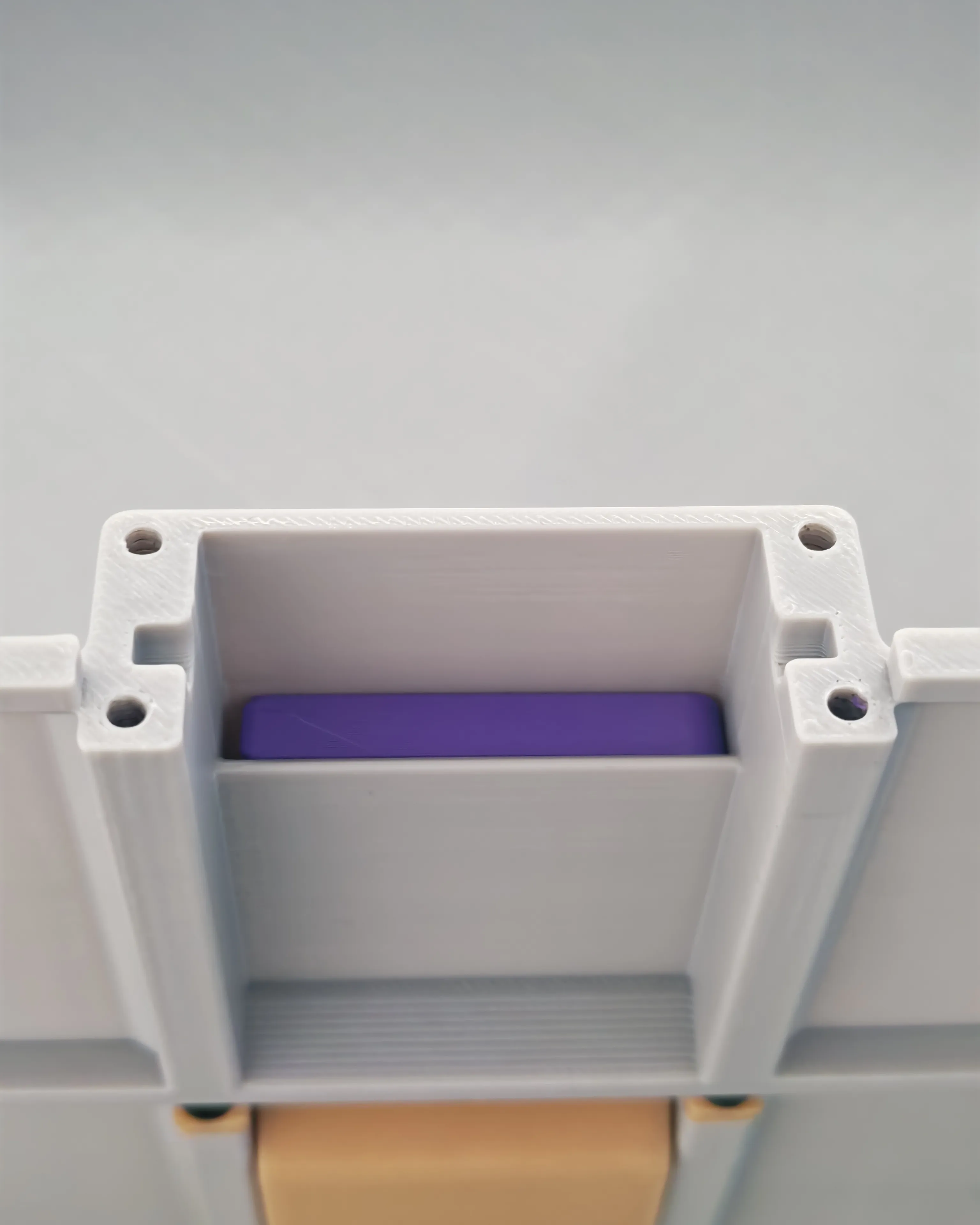

Step one, place the spring into the drawer slot.

Step two, place the latch onto the spring, minding the direction.

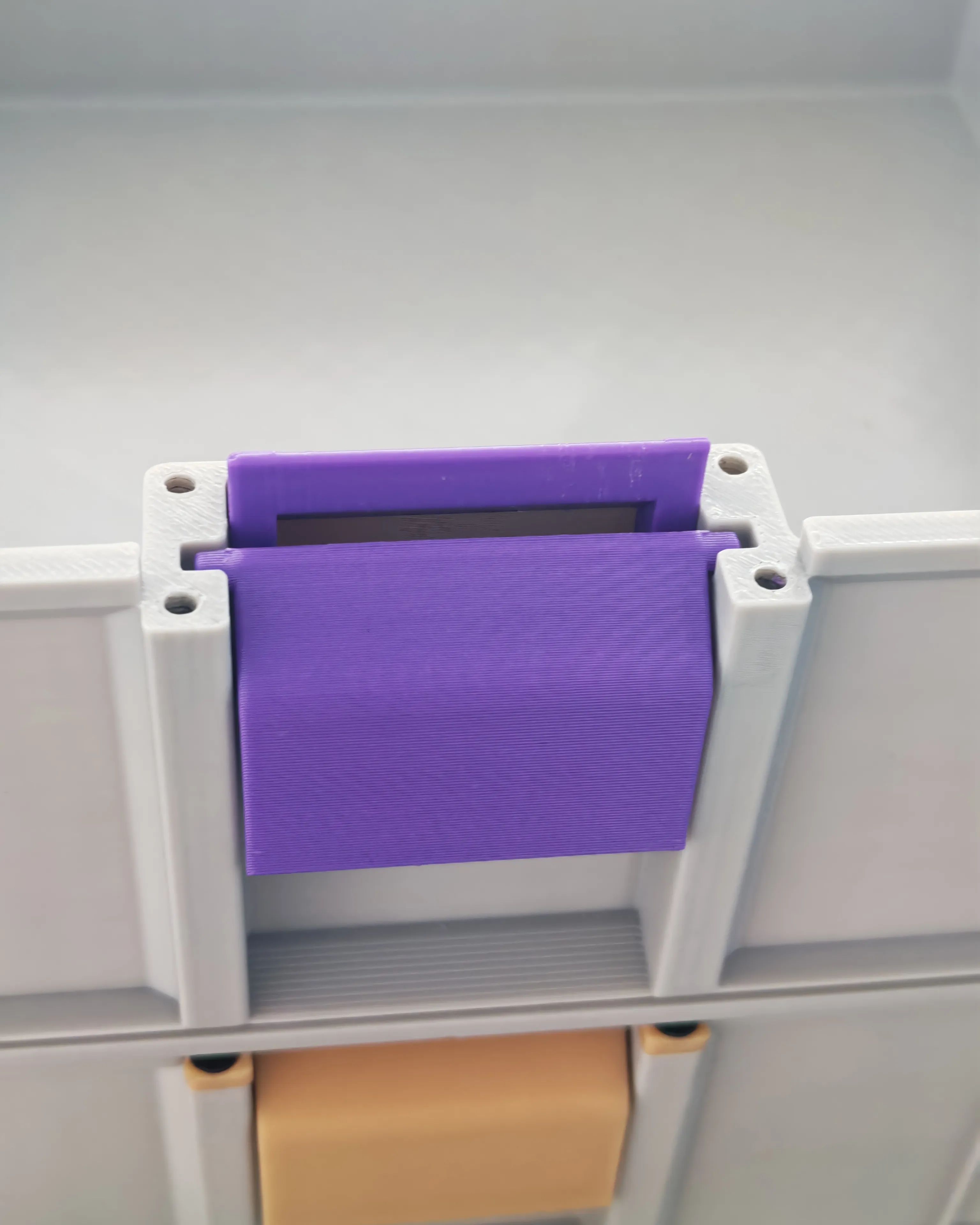

Step three, place the inner side of the handle into the latch's groove, and the two shafts into the two drawer slots.

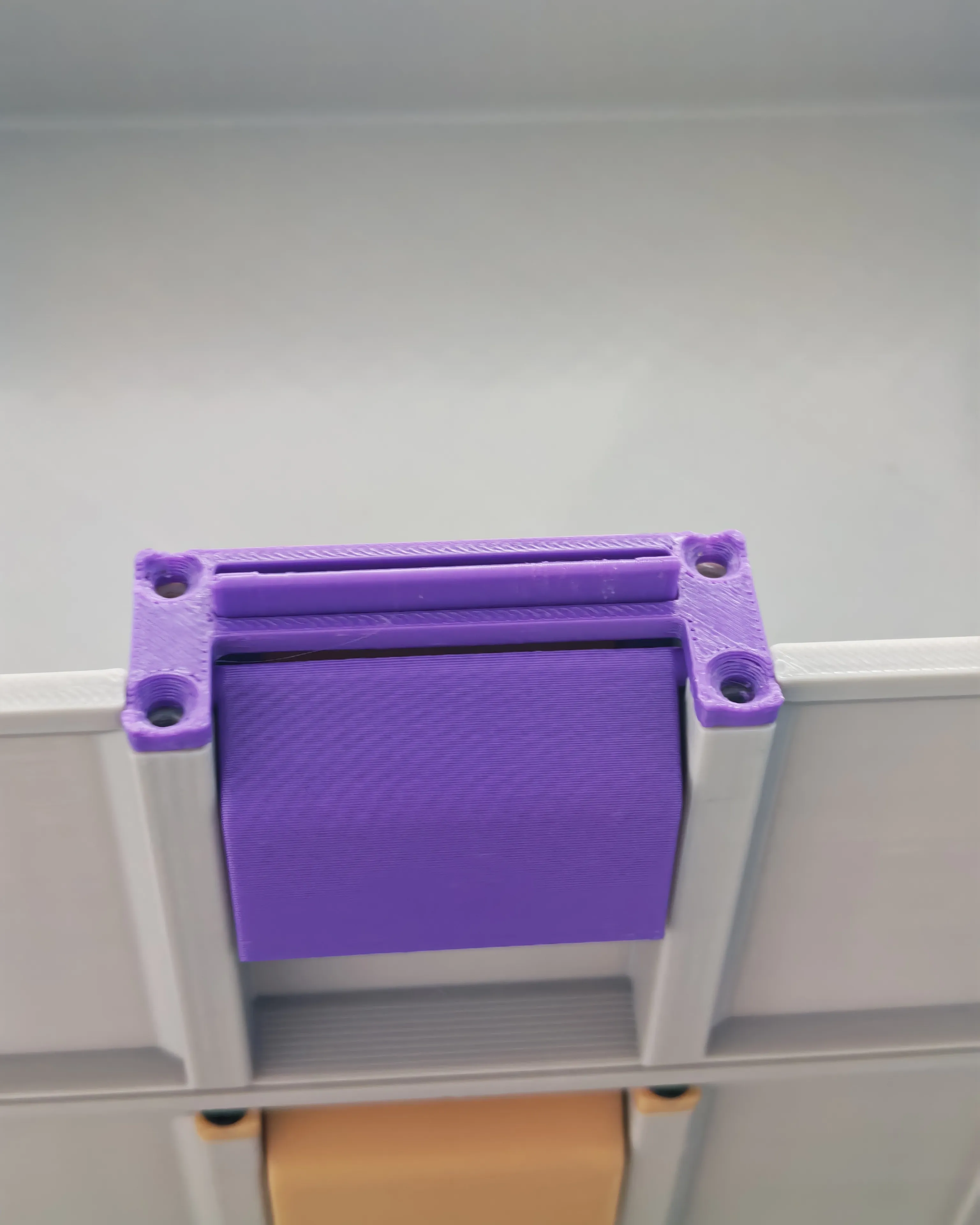

Step four, close the lid and tighten the screws.

Installation is very simple.

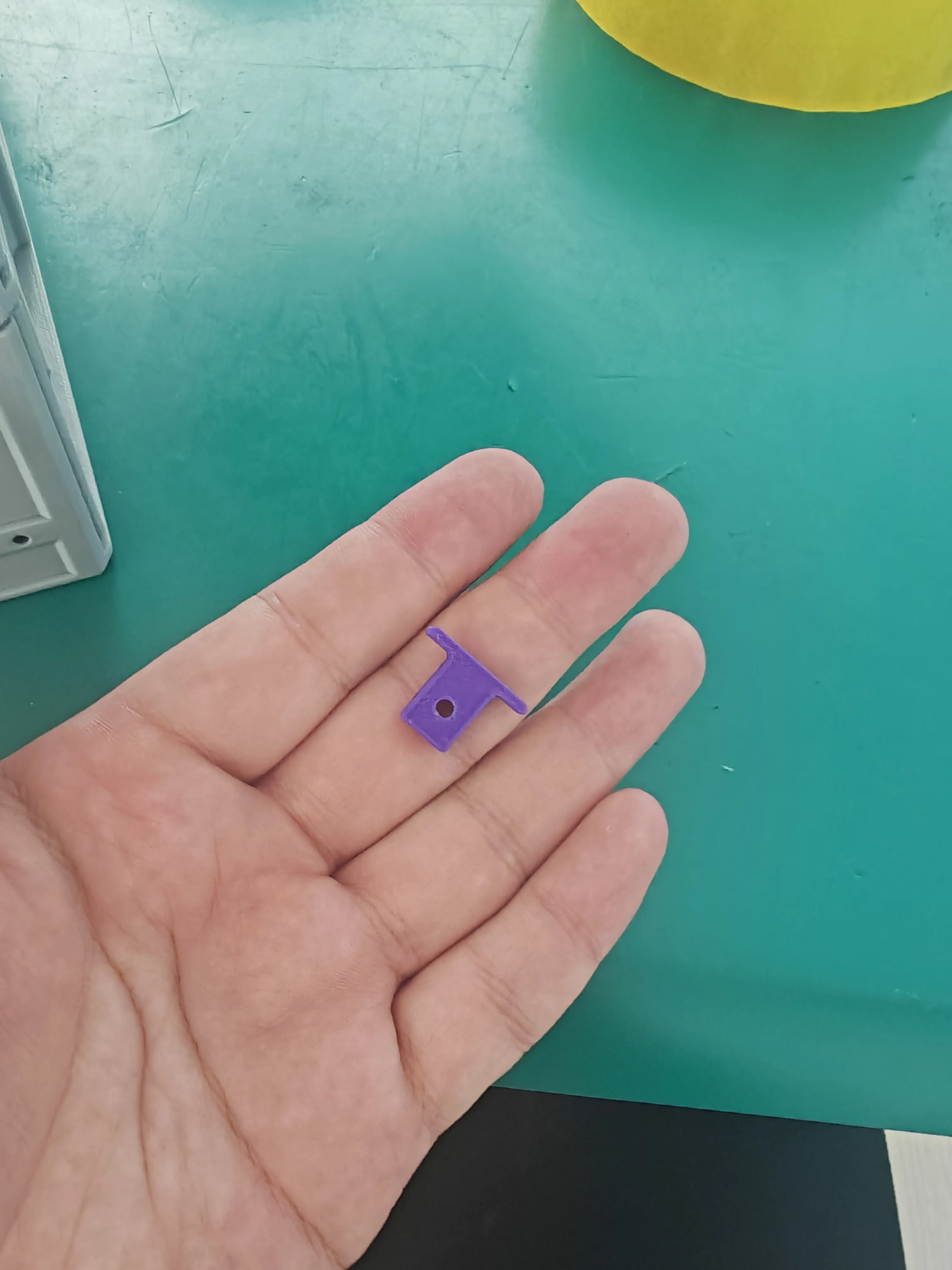

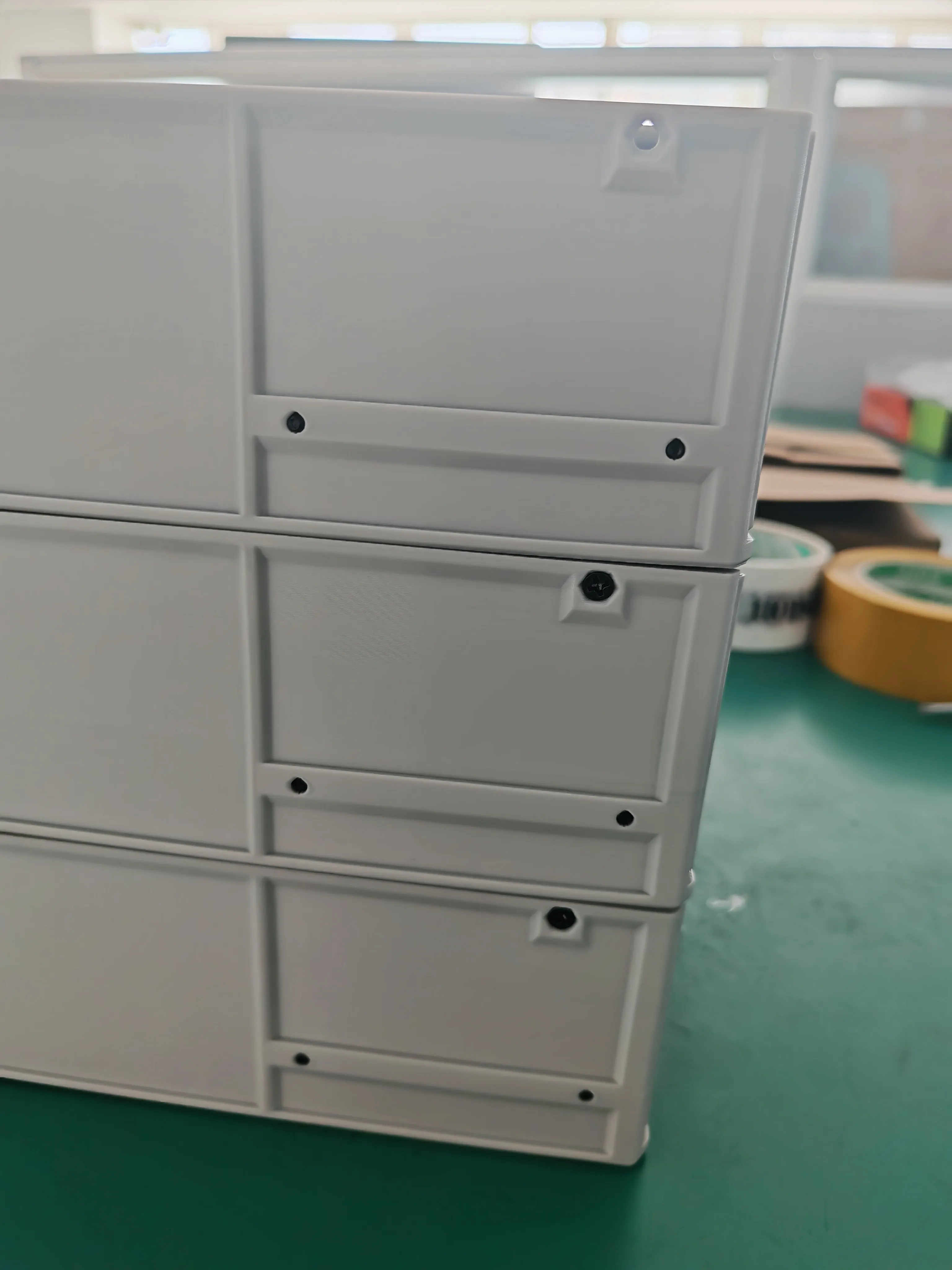

For stacking, use connectors and then tighten the screws, which are also M3*8 countersunk tapping screws.

Each layer requires 12 M3*8 countersunk tapping screws.

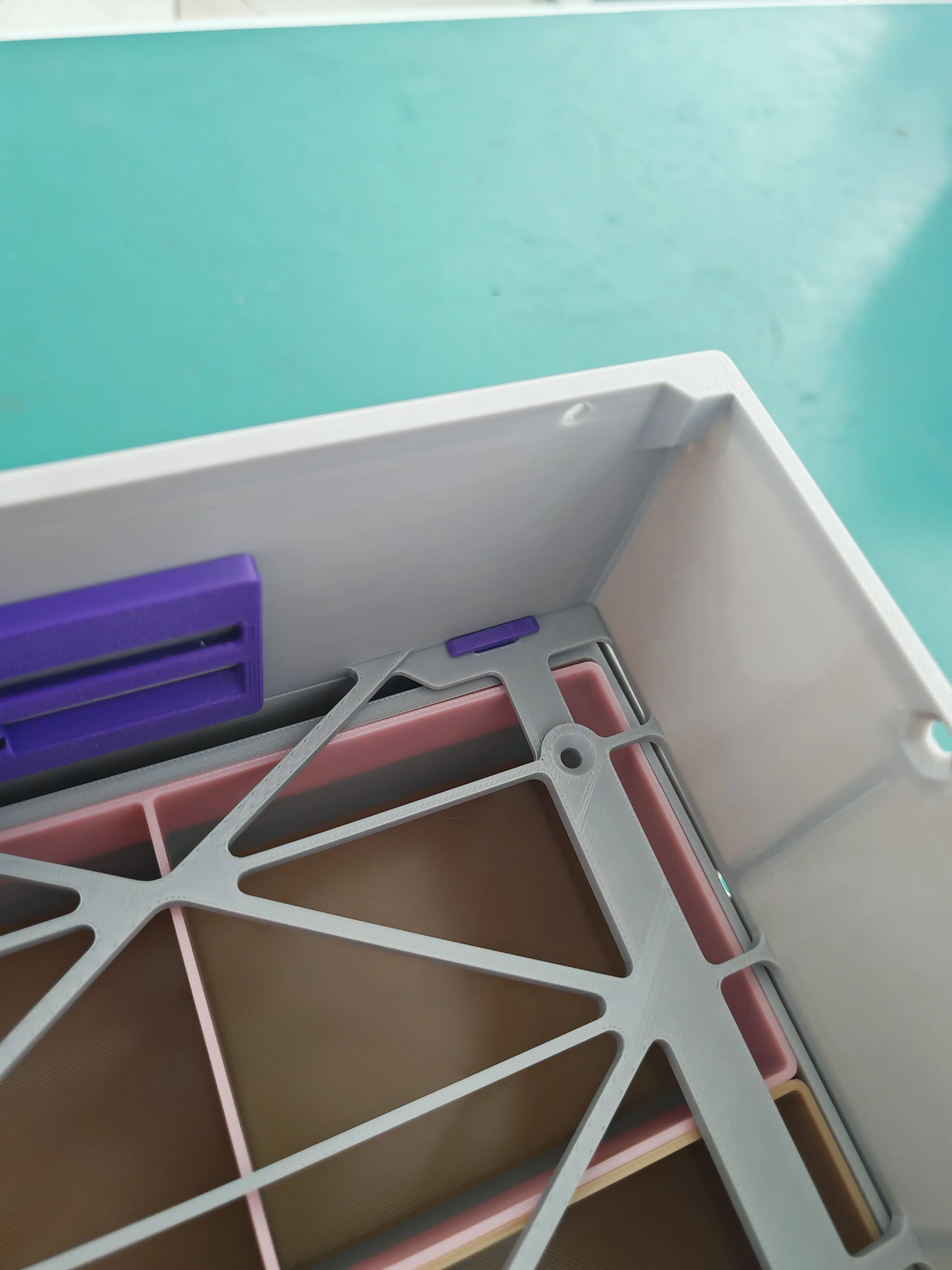

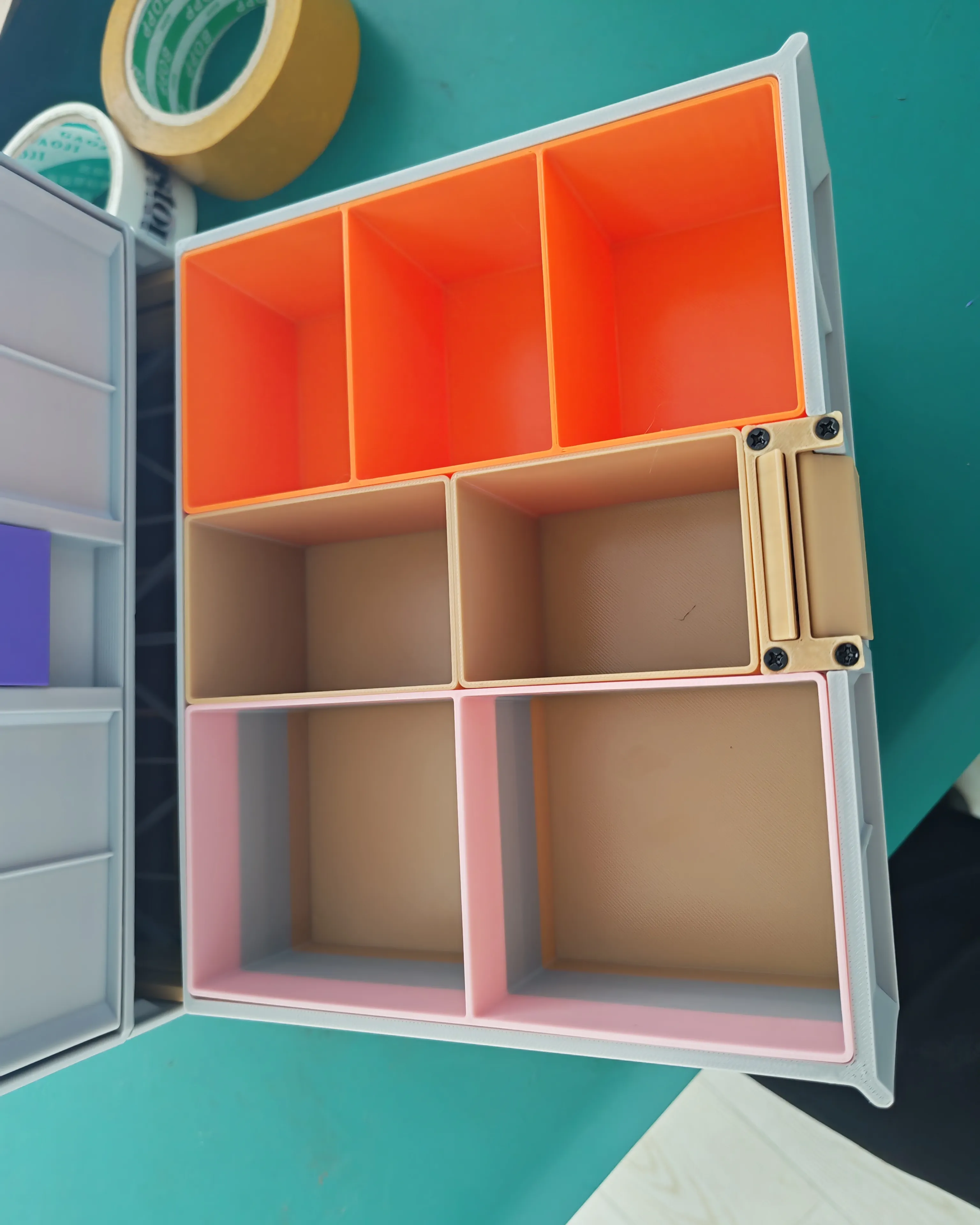

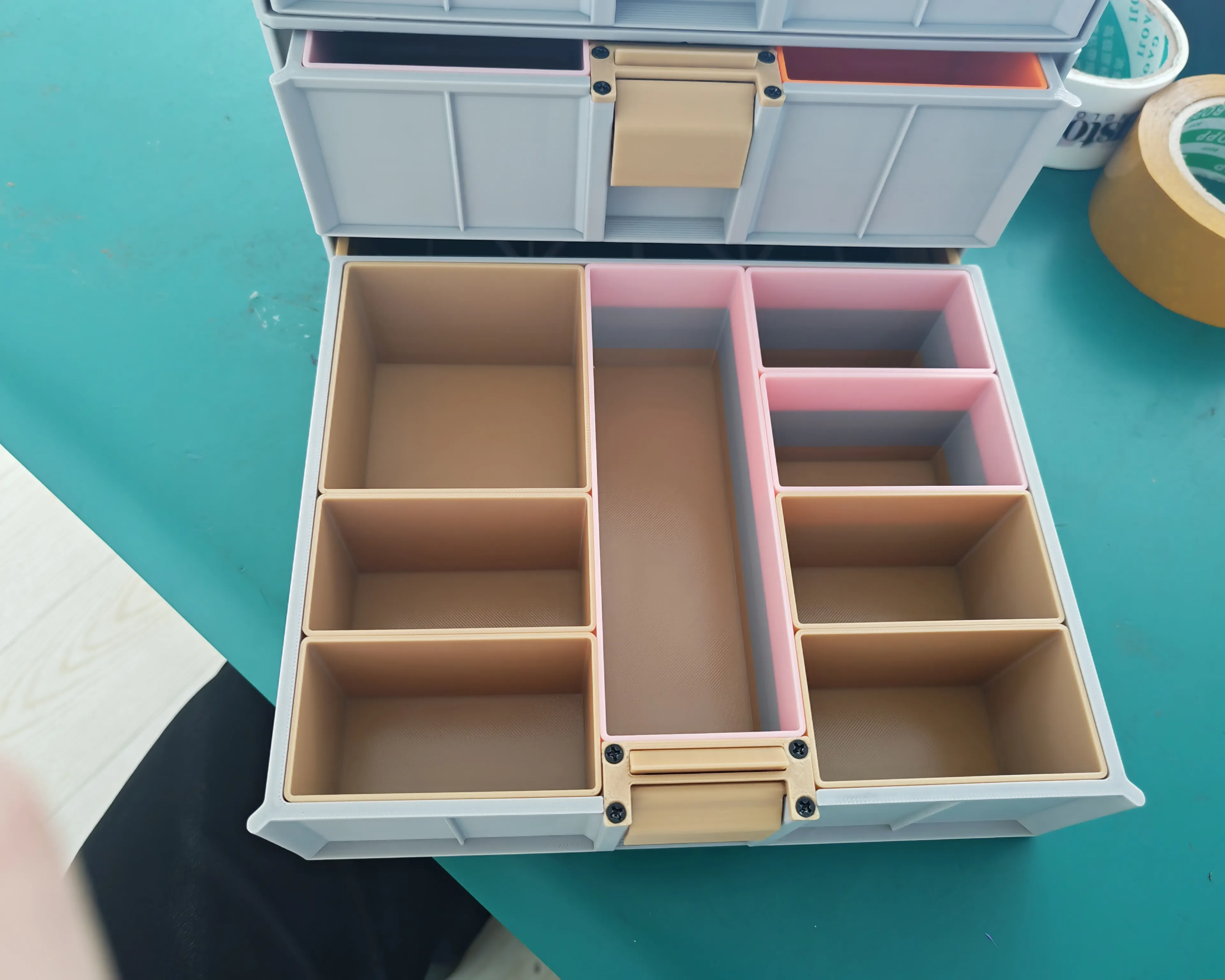

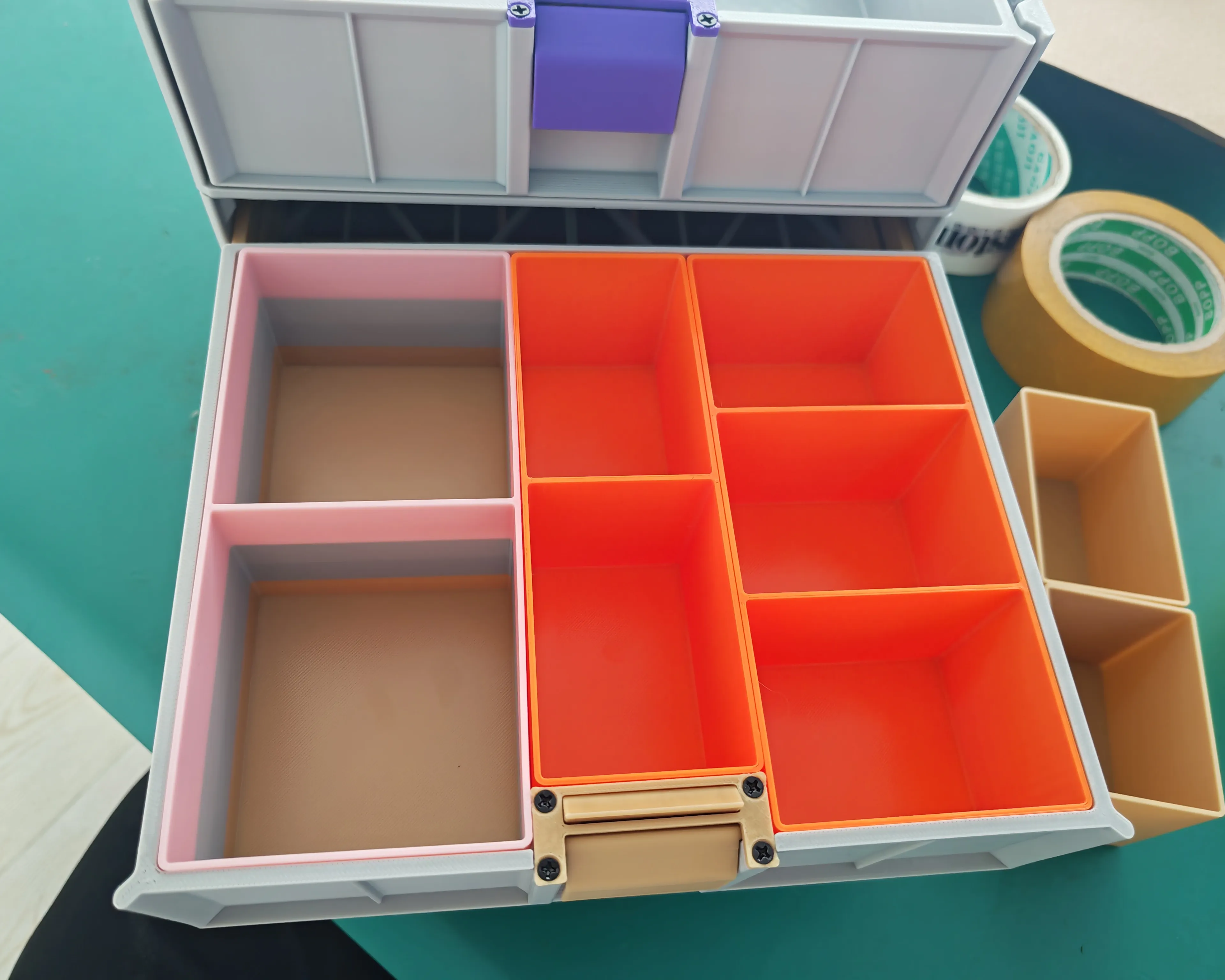

I also designed parts organizers for the drawers, in many styles.

Feel free to download and print, and provide feedback. I will gradually make improvements.
