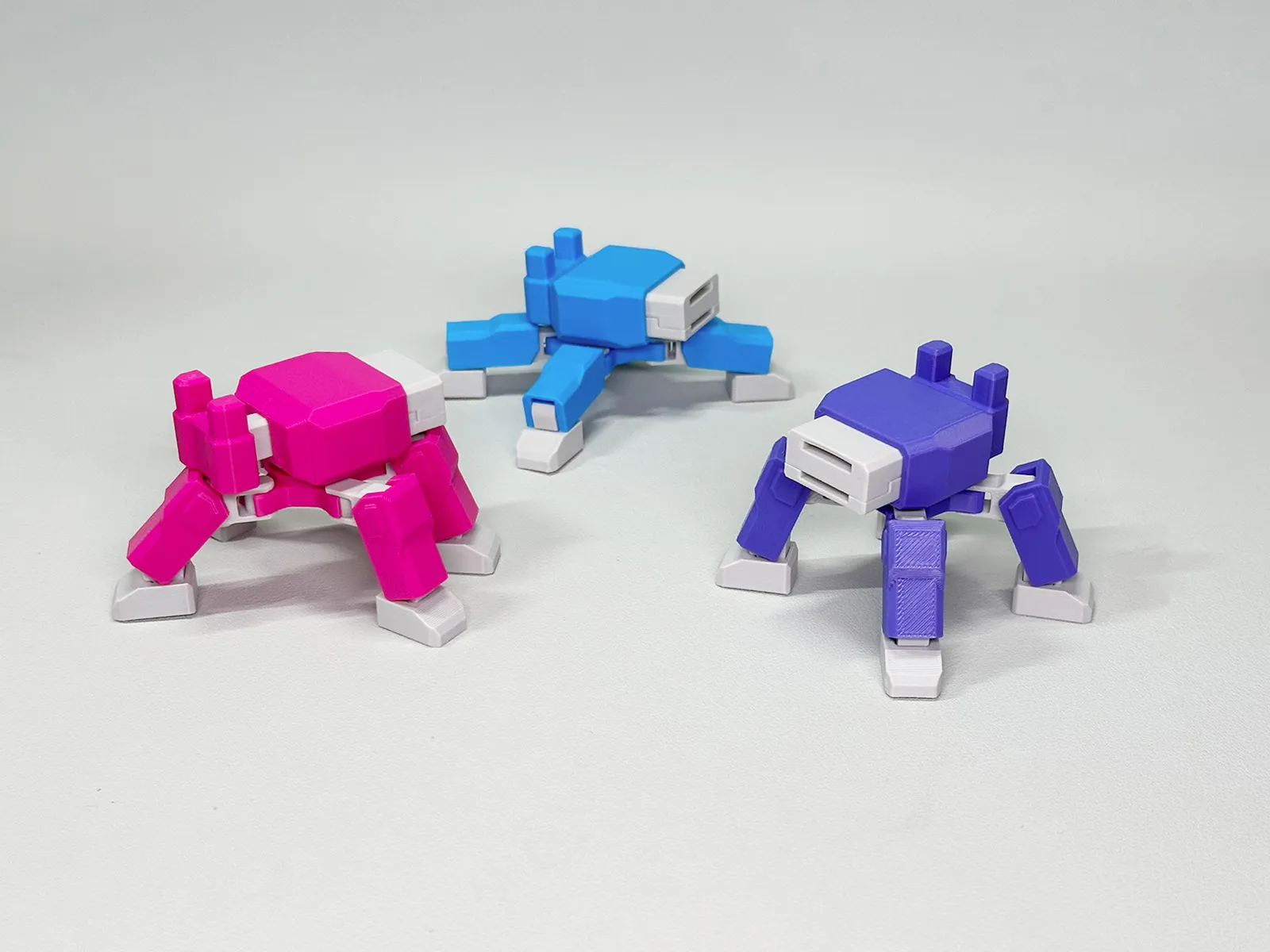

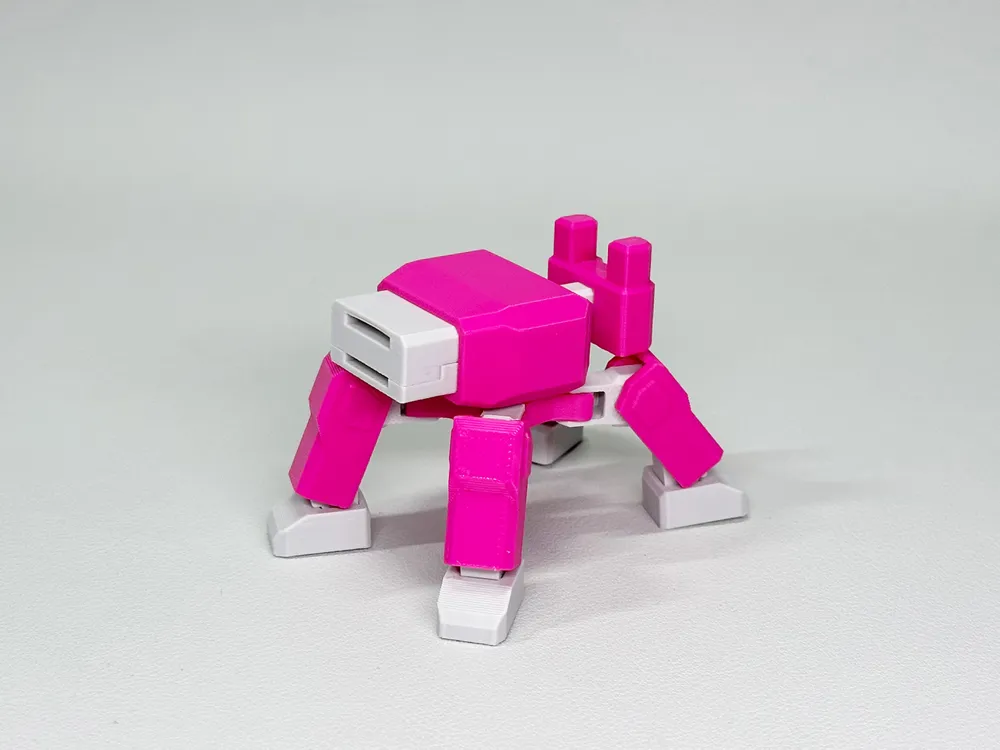

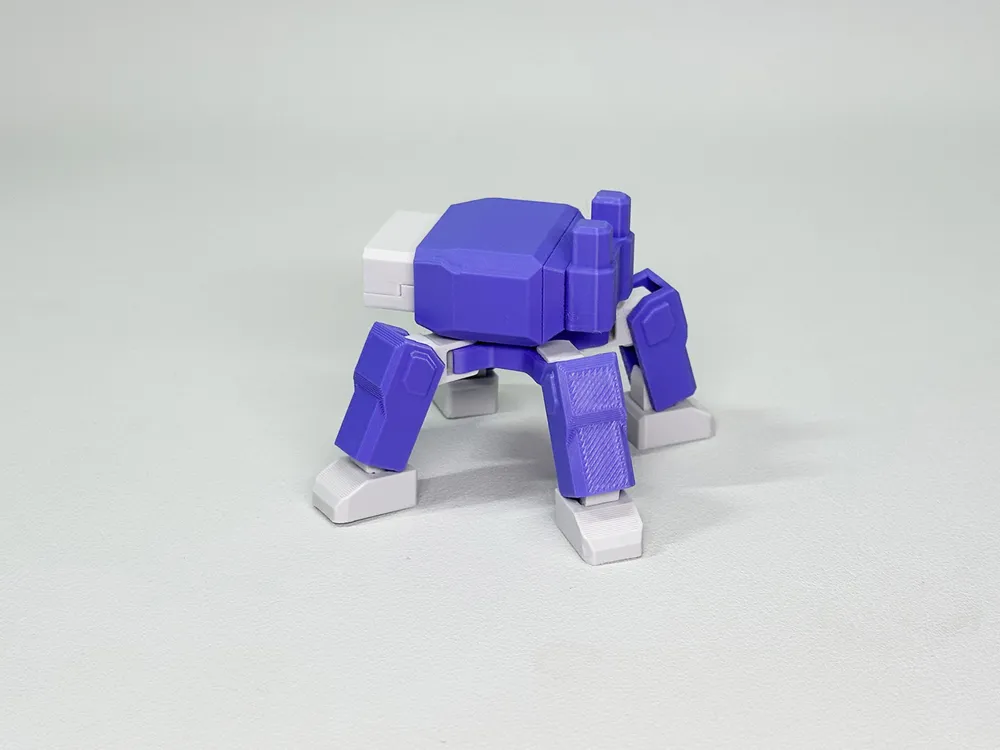

After finishing the CyberBrick Mini Tank, I got an inspiration, so I'd like to bring you a new design - the Micro Bean Robot.

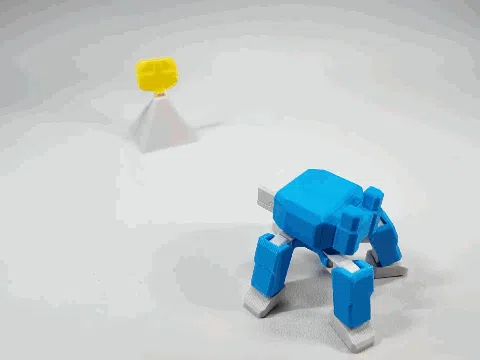

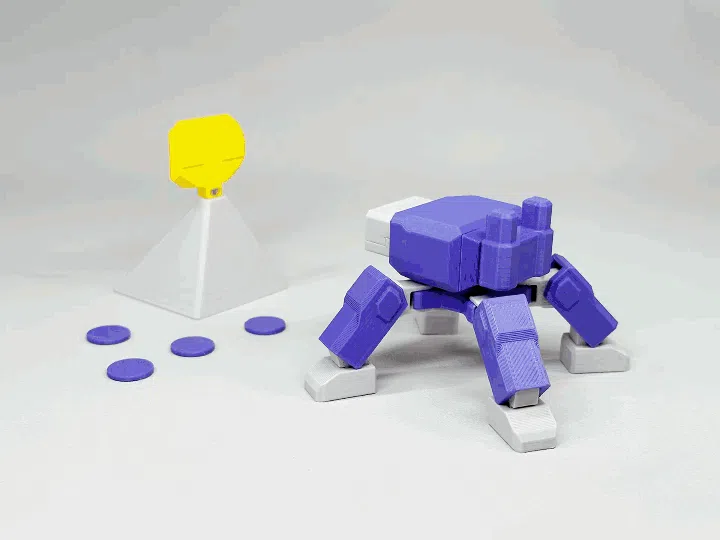

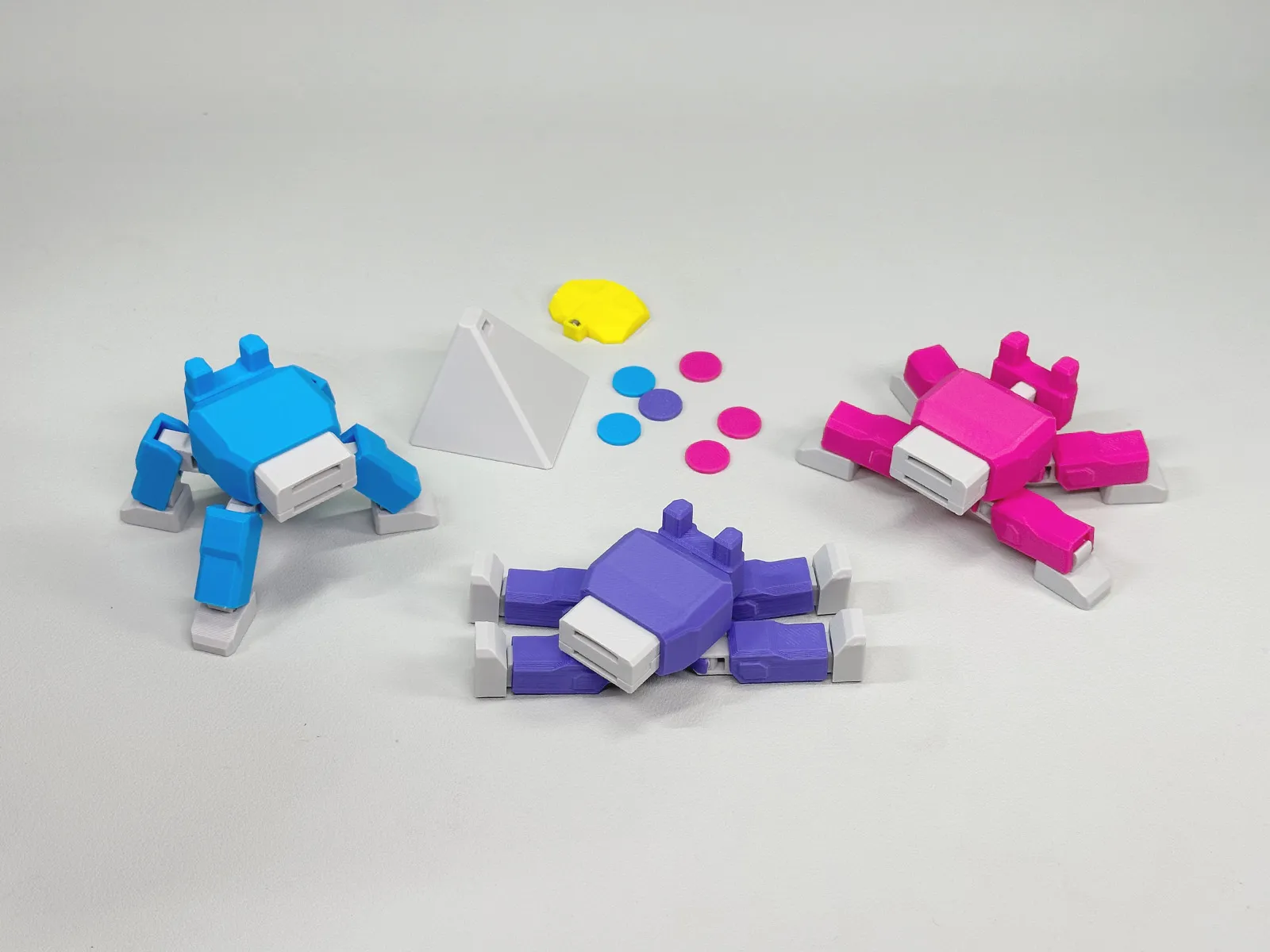

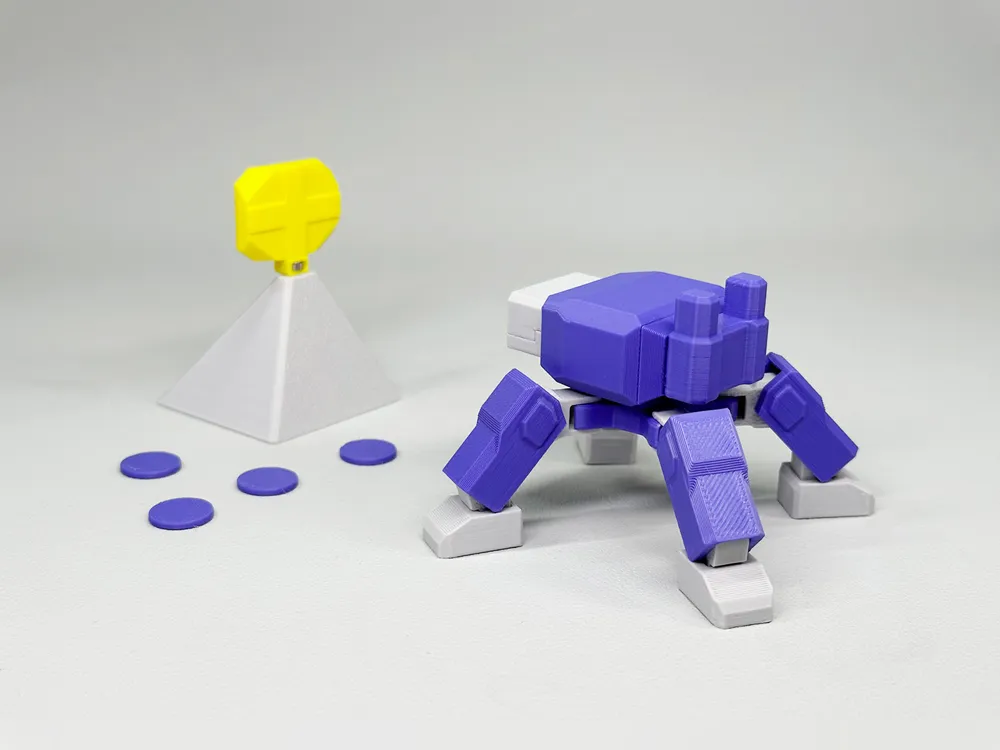

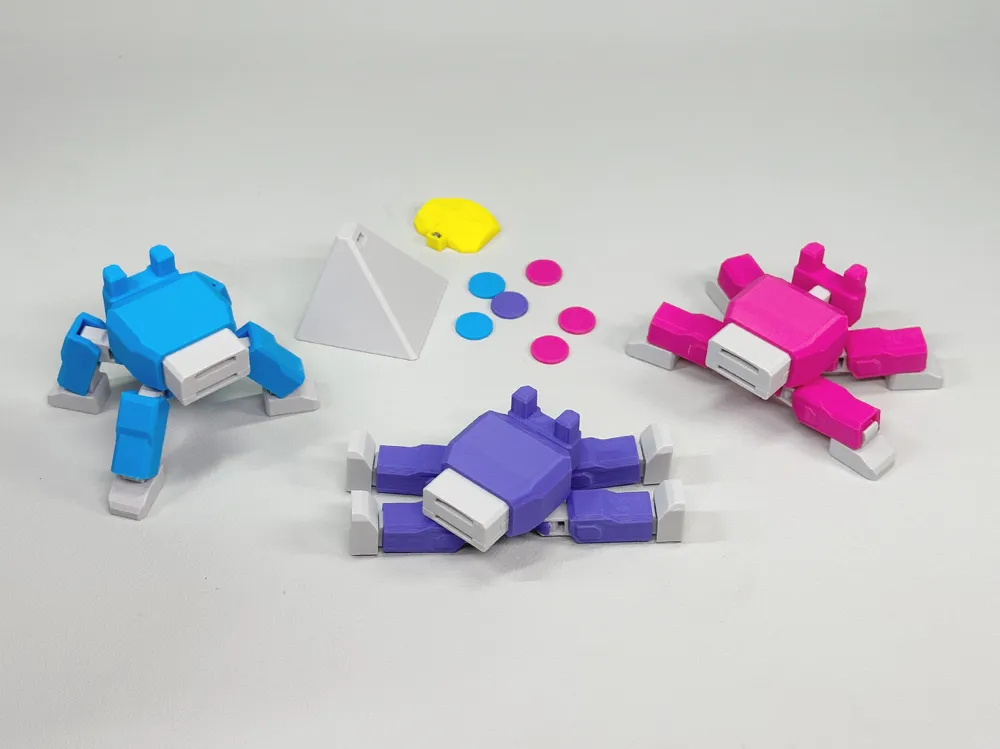

Just like the Mini T, it can launch small disc. Furthermore, it has a function similar to Empty Magazine Hold. When there is no small disc left (maximum of 5 discs), its tail will automatically rebound. The assembly is simple, please refer to the assembly Guide for detailed instructions.
No support is required for 3D printing, and no tools like glue are needed for assembly. However, some steps call for a bit more force, so you can press against a hard surface such as a tabletop for leverage.
To activate the Empty Magazine Hold function, you need to prepare 2 round magnets of 4x2mm. These magnets are available at maker's supply stores, or they are already included in the CyberBrick kit. If you don't have these magnets, it will only disable the automatic rebound function when there are no disc left, with no other adverse effects on the robot's overall performance.
