9-Key Macropad with Encoder and OLED Screen
This project is a DIY 9-key macropad, equipped with:
- MX mechanical switches (compatible with standard keycaps),
- a rotary encoder (convenient for volume control or scrolling),
- and a 0.91" OLED screen to display information (volume, status, messages…).

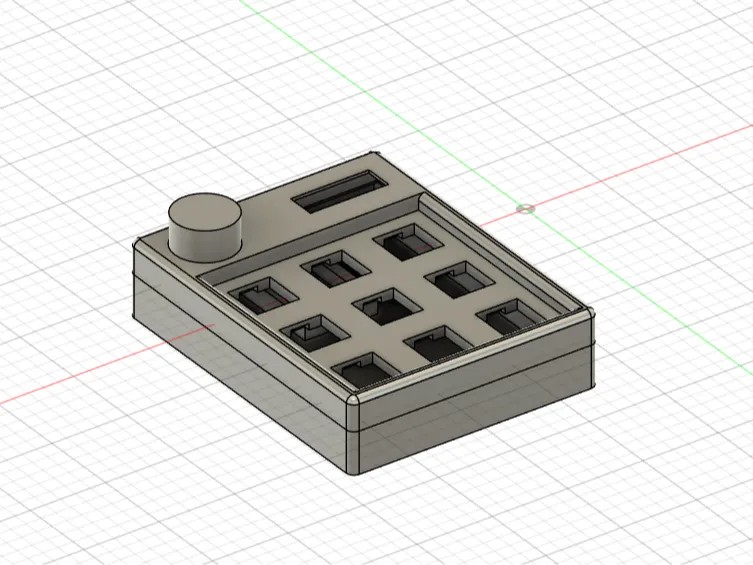

The case is entirely 3D printed and designed to be compact, ergonomic, and modular.
It works with an Arduino Pro Micro, which allows it to emulate a USB keyboard (HID) and assign custom shortcuts or macros.
📺 Watch the full project video here :
