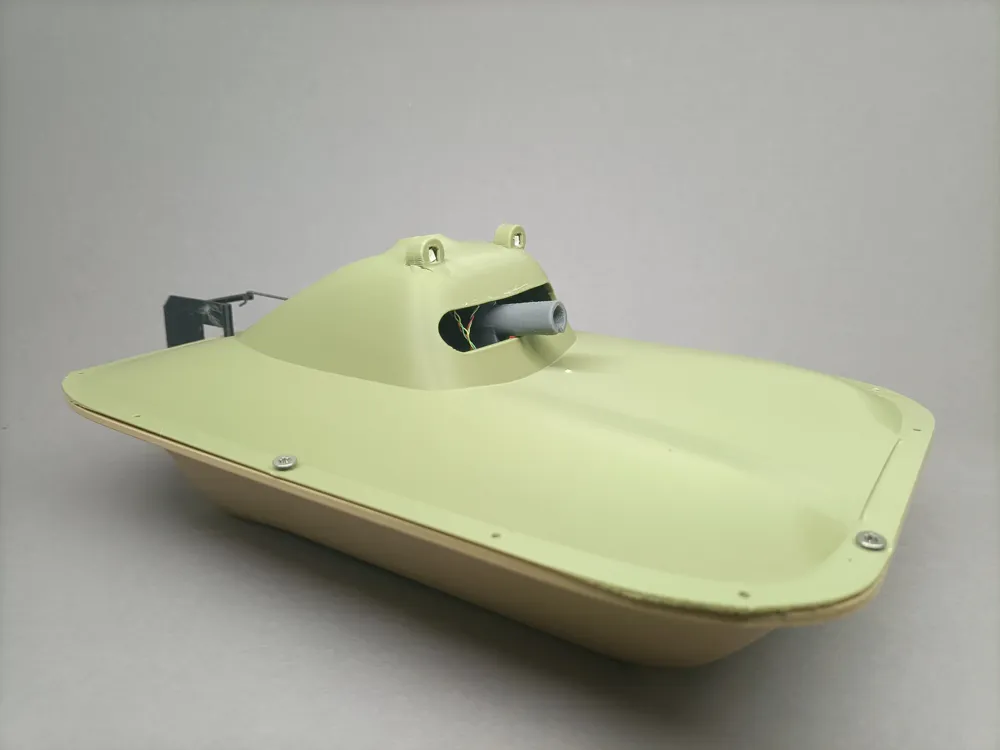

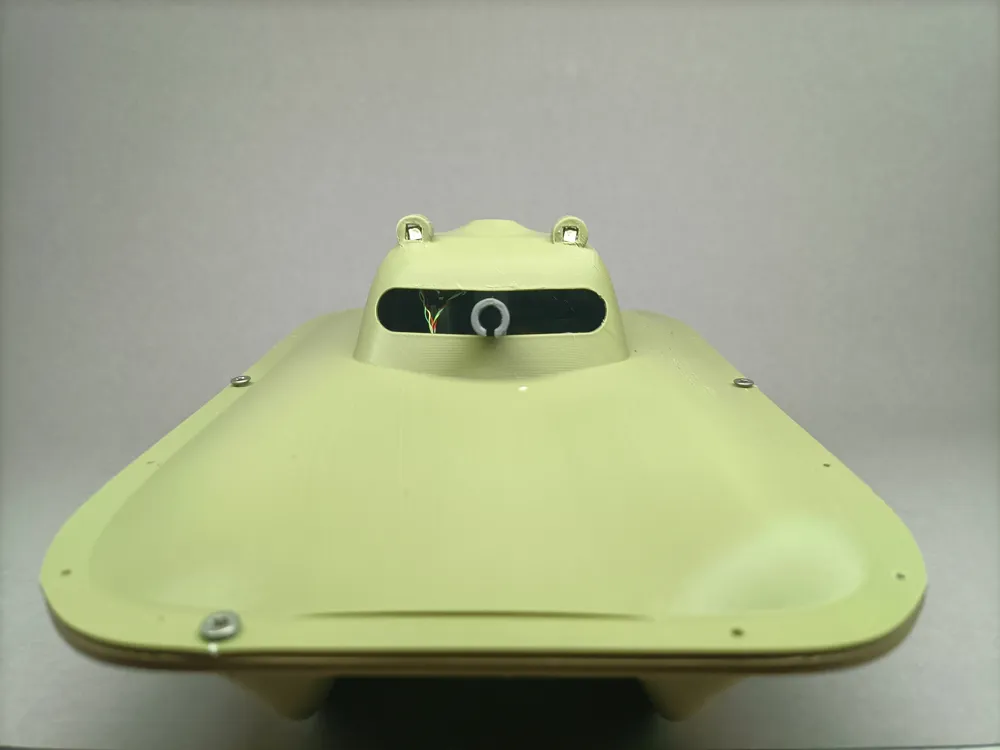

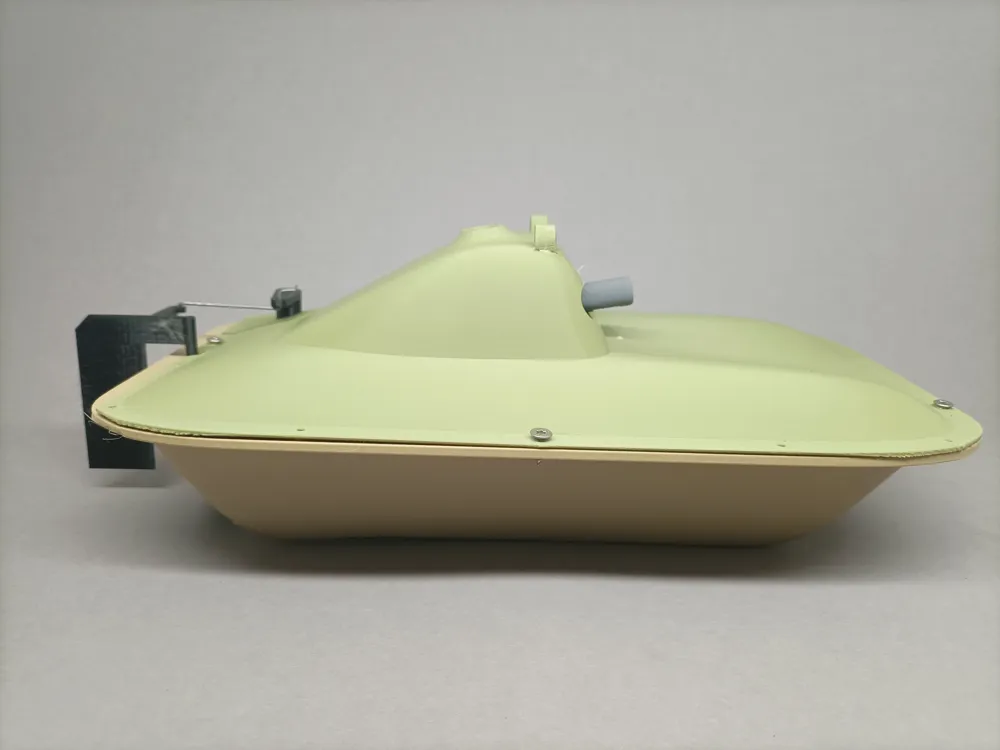

I am sharing with you, an OPEN base for RC boat, compatible with CyberBrick.
it has functional caliber 6mm cannon, compatible with ball bearings, or Airsoft bb's.
There are Fusion, STEP, and 3mf files included for your convenience.
Feel free to implement changes and post post it on makerworld.
I'm sure some things can be done better, but I'm quite happy with the results.
Unfortunately, as for now it is not available for A1 mini series printer, but I am working on scaling it down.

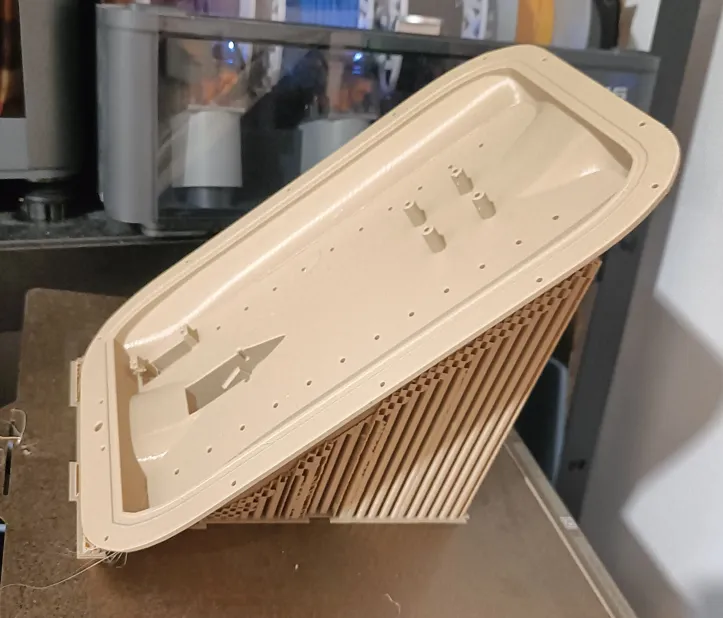

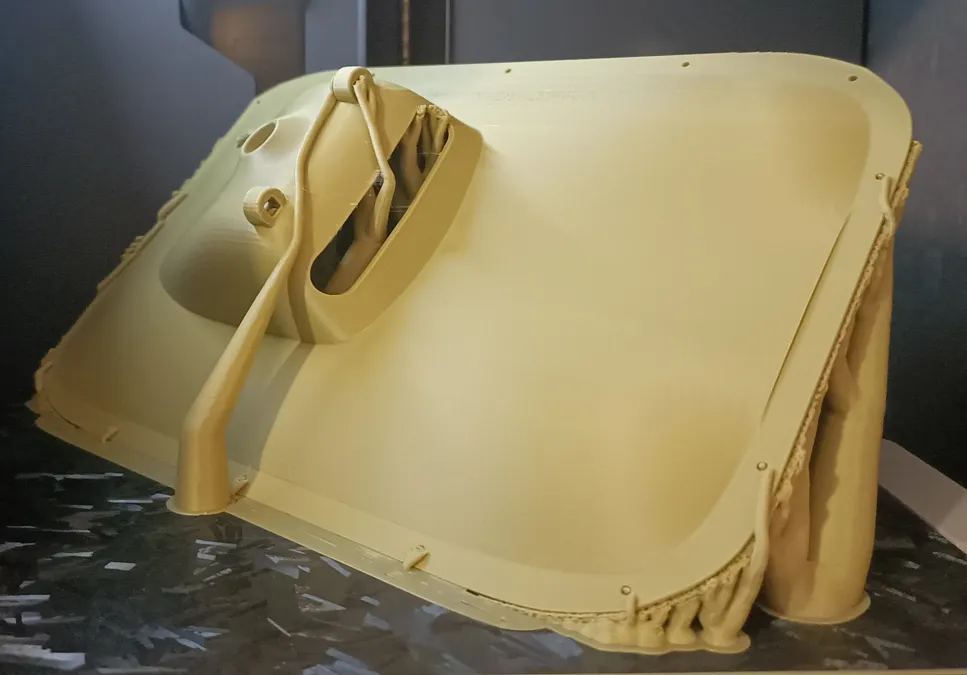

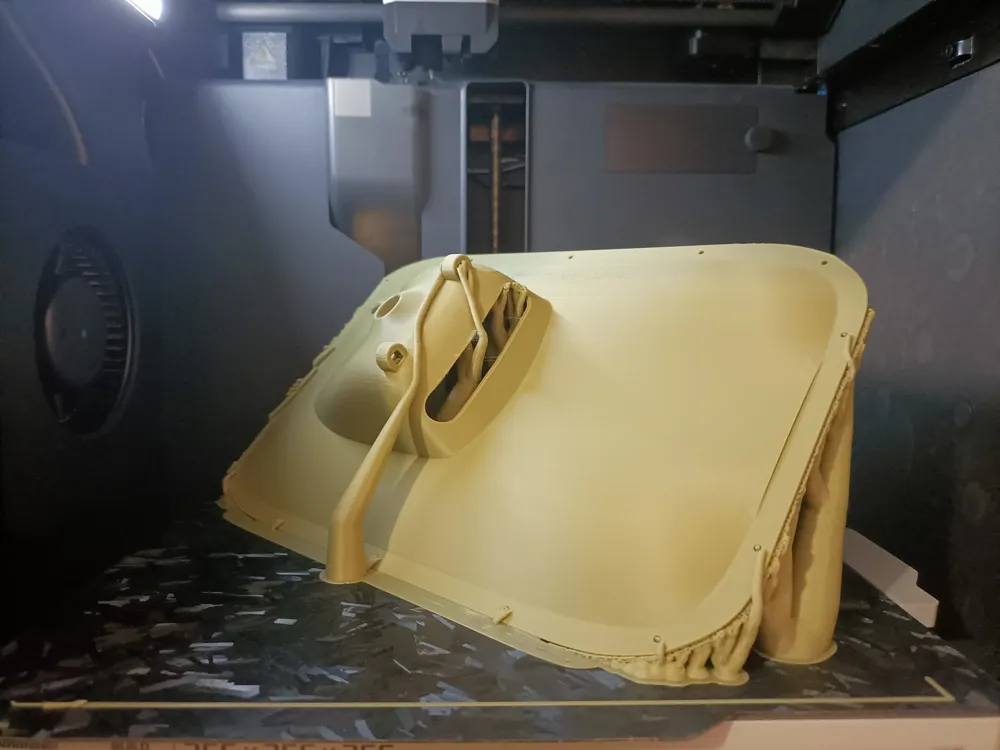

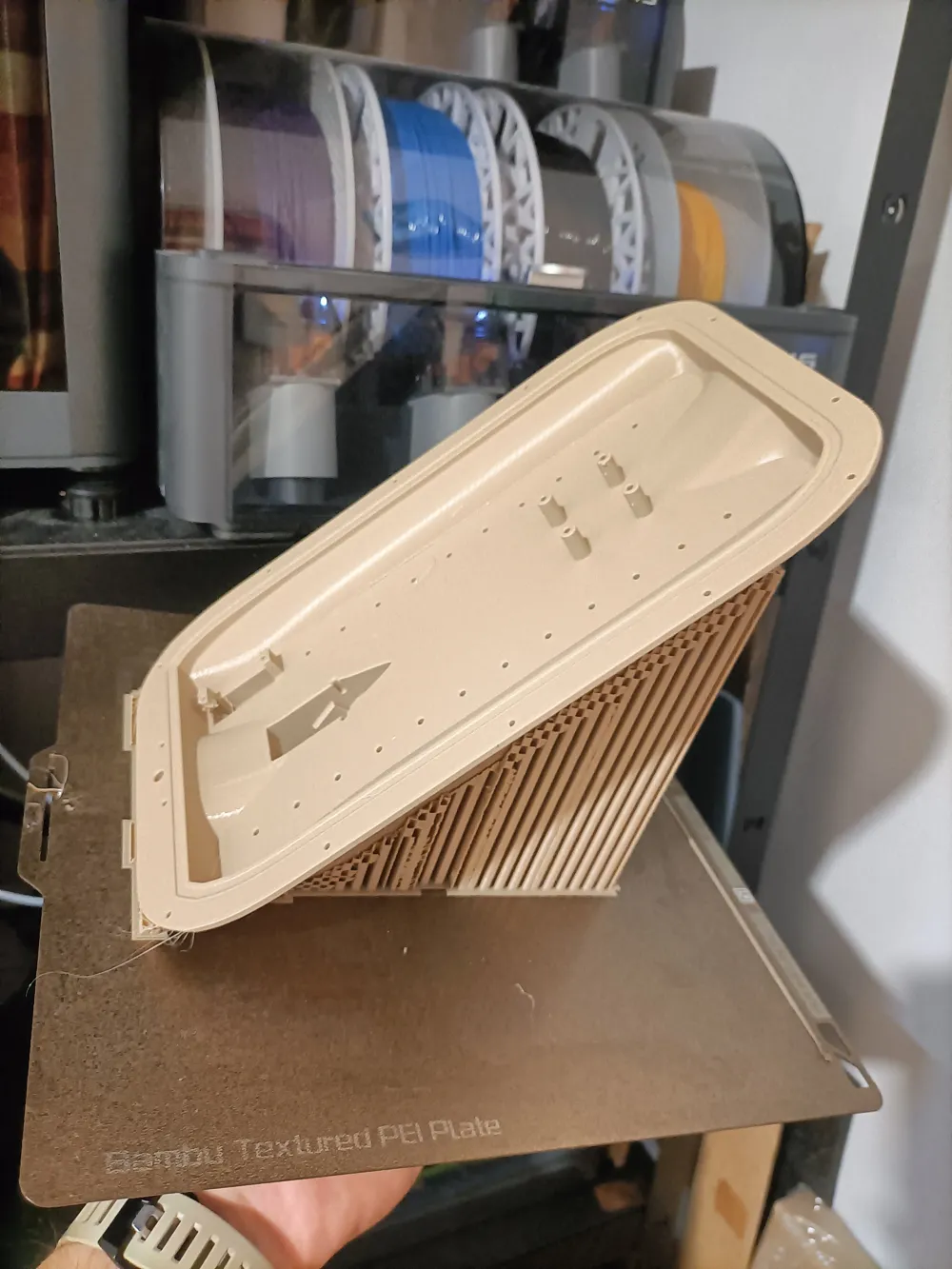

There Are minimum supports used for the top and bottom part, but since I wanted it to by “aerodynamic”, I can't avoid all the supports.

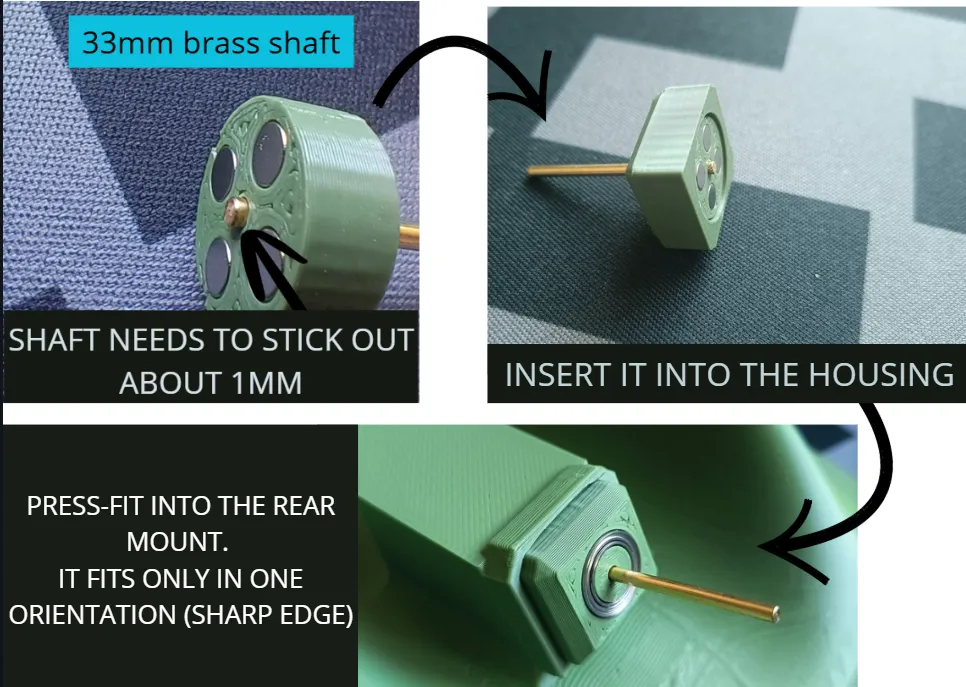

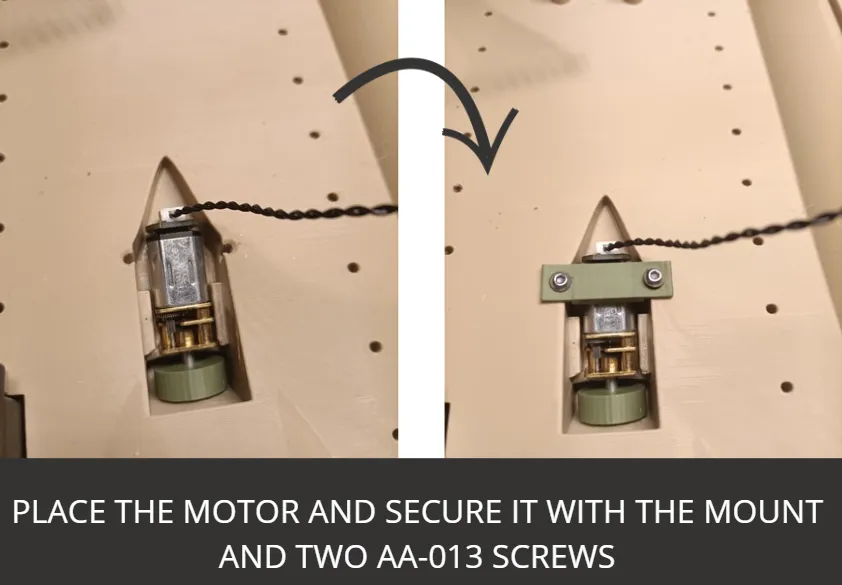

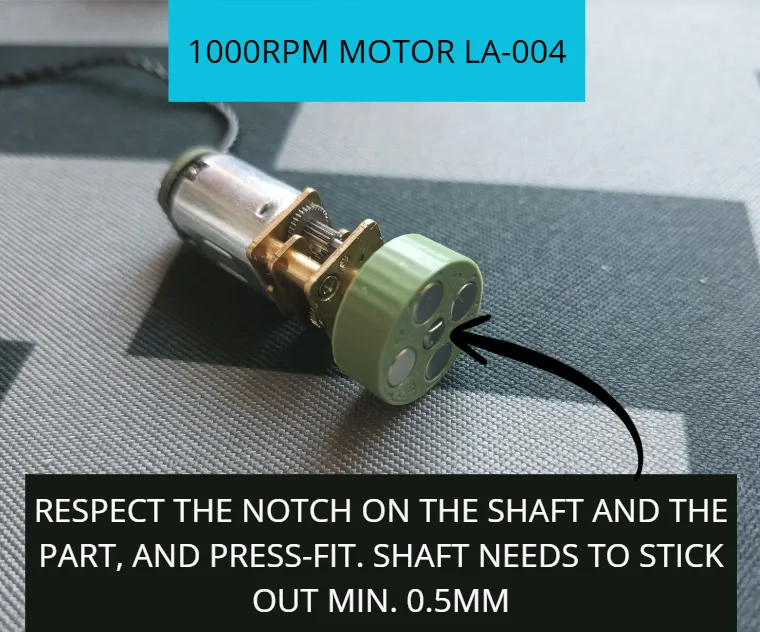

Start the assembly from the rear engine.

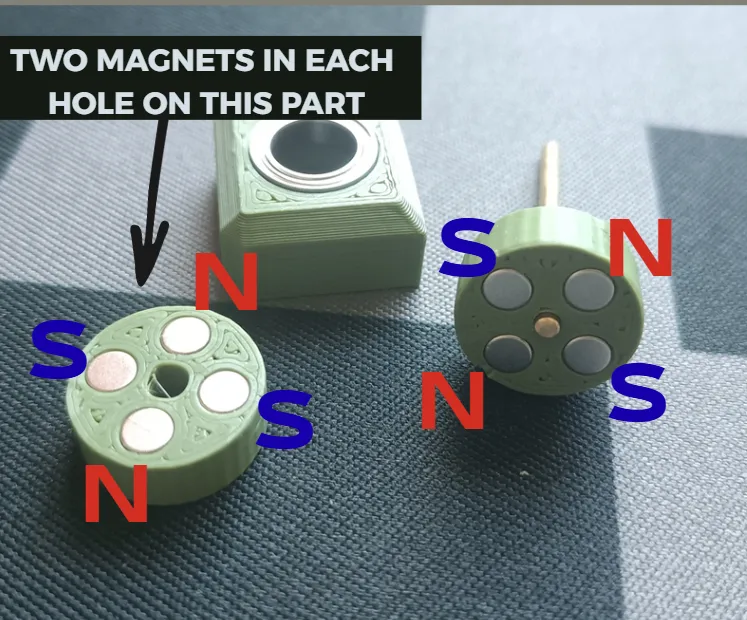

To make the bottom watertight, I decided to use magnetic coupler for the motor. You will need 12 4x2mm round magnets in total.
on the outside magnets are stacked for more “grip”. They are in two pairs, one facing North, and one facing South.

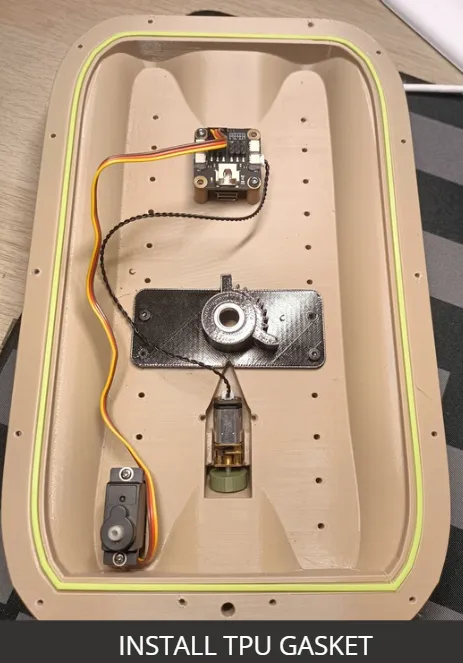

STEP 2

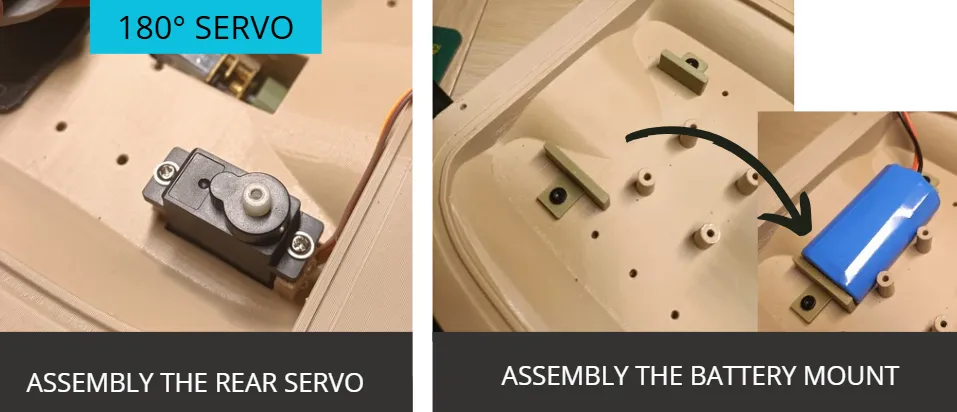

STEP 3
STEP 4

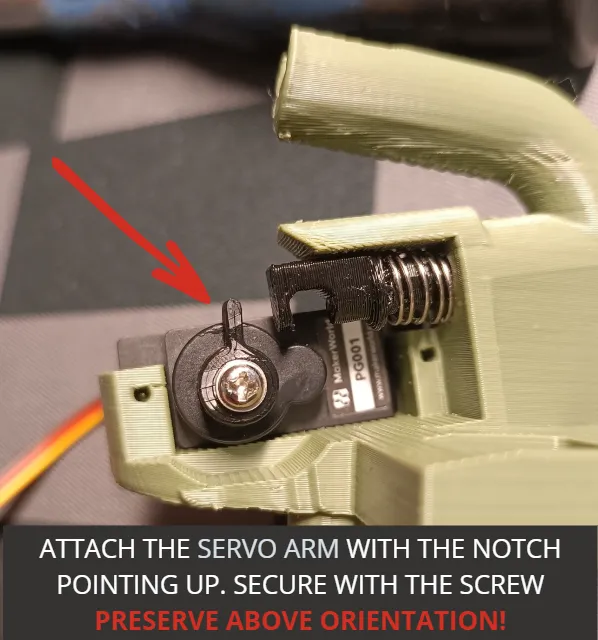

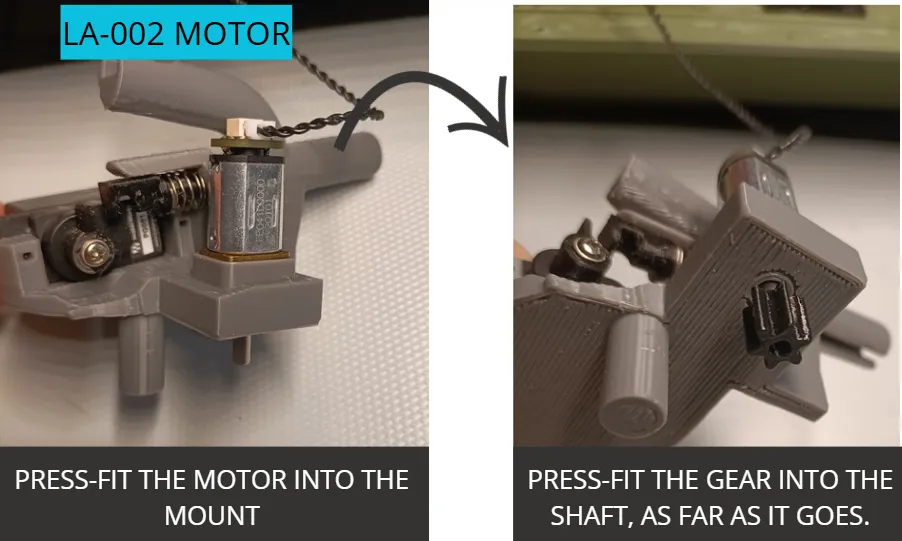

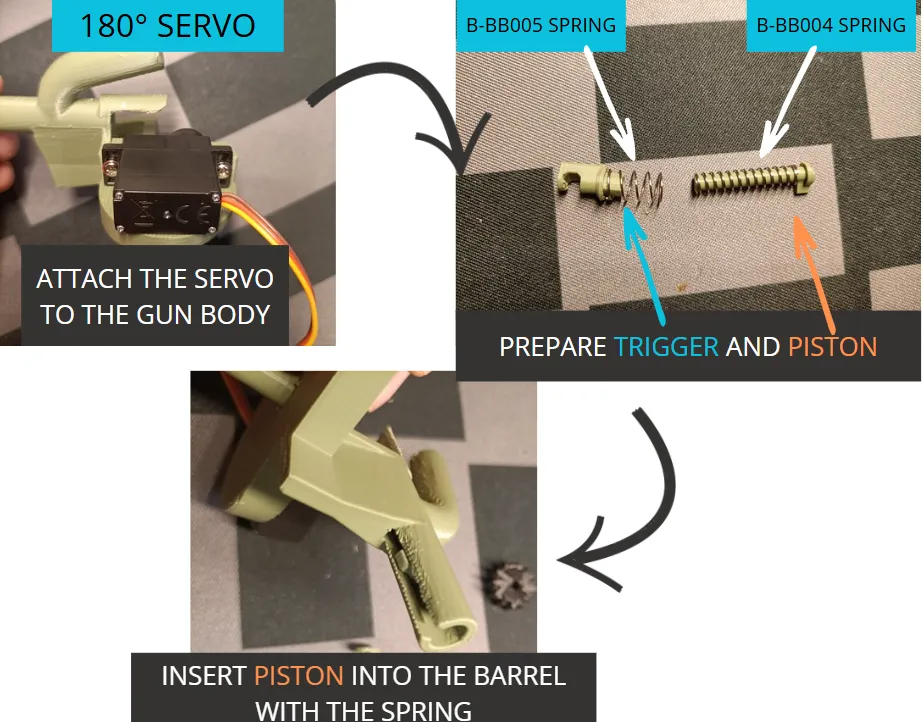

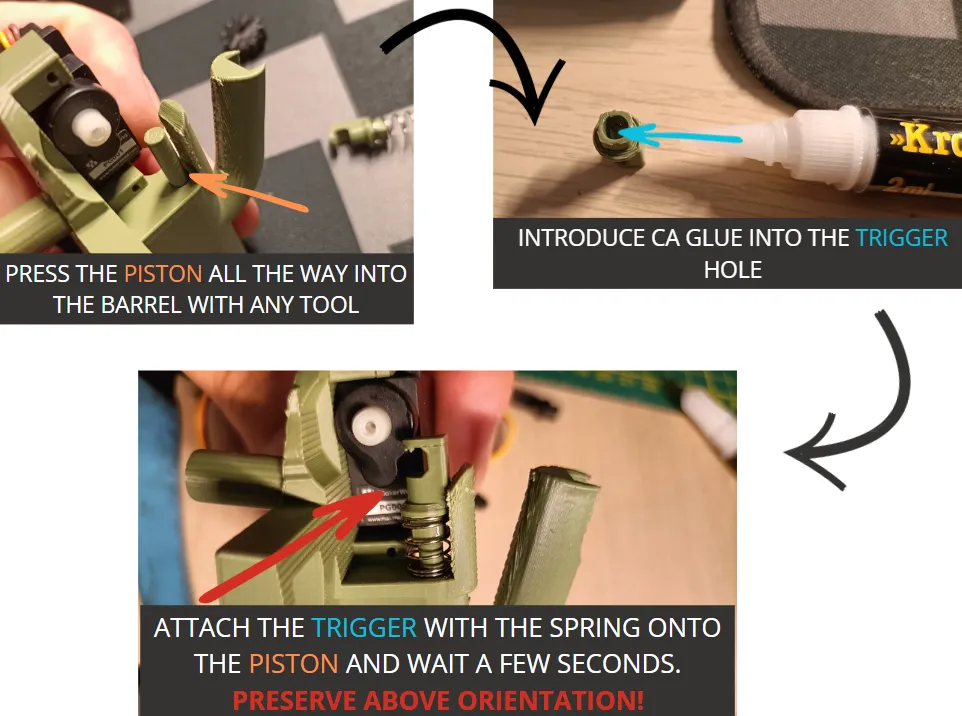

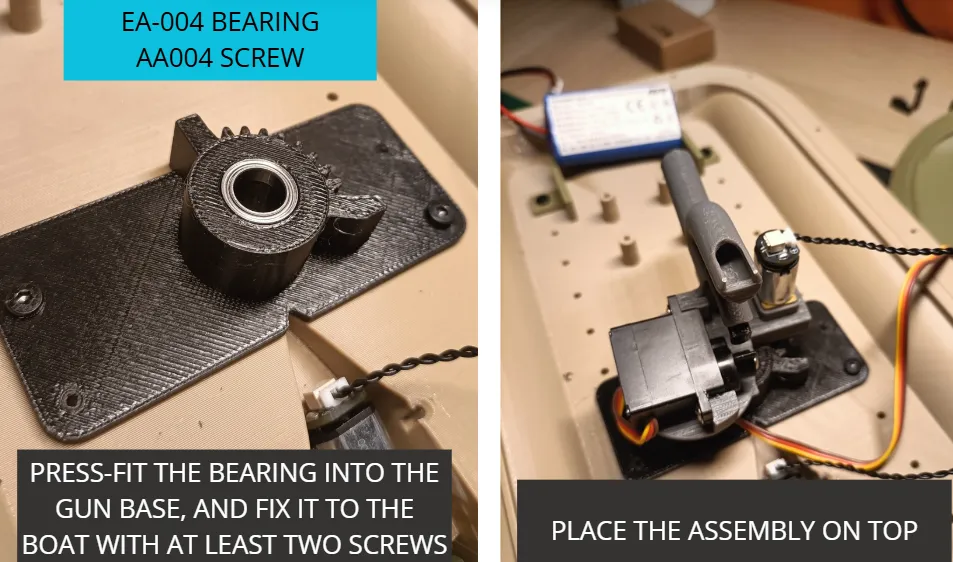

STEP 5 - GUN ASSEMBLY
STEP 6
STEP 7
STEP 8

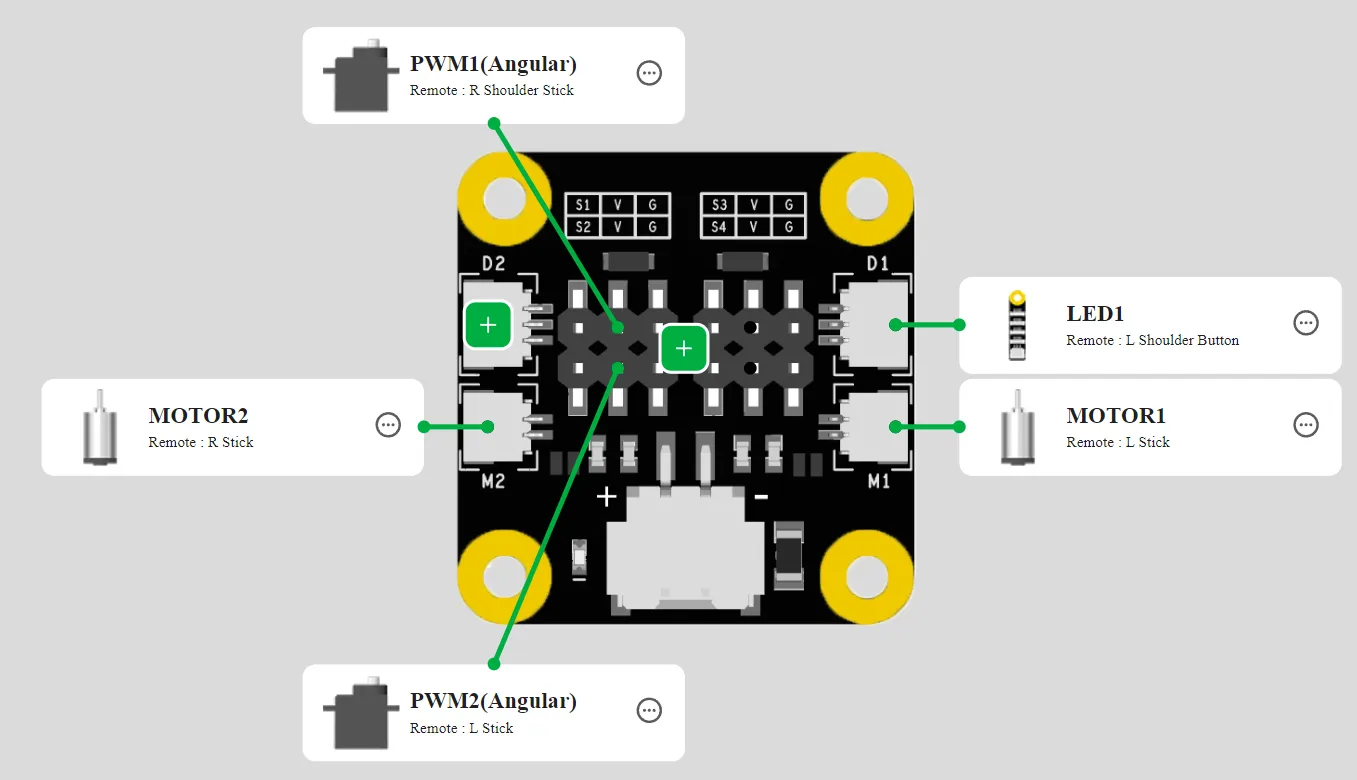

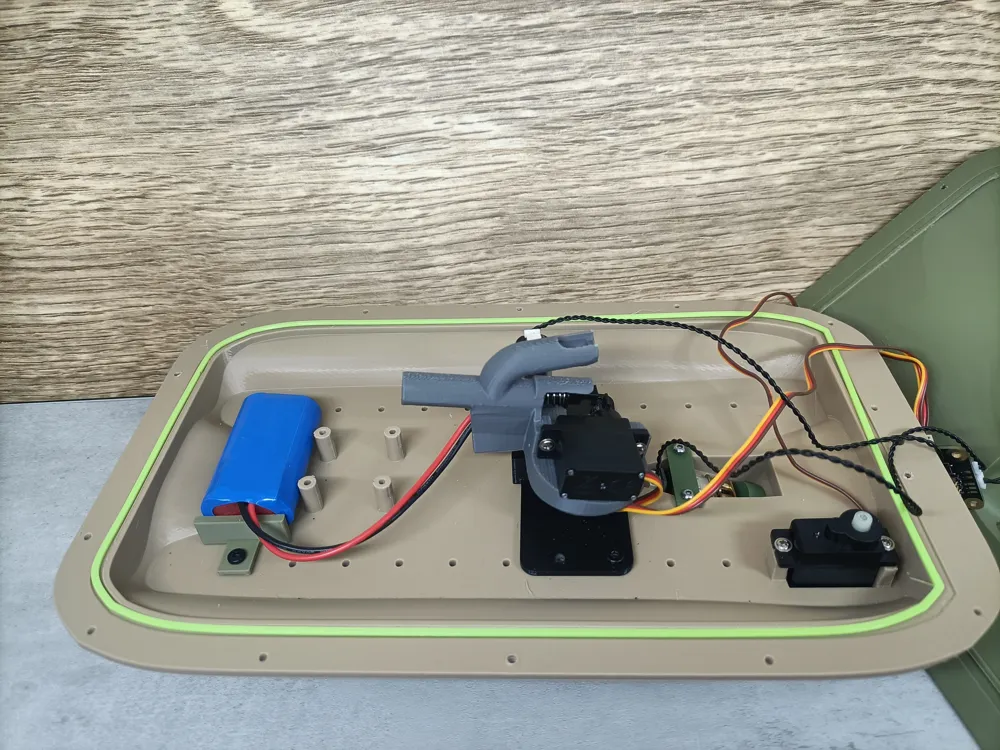

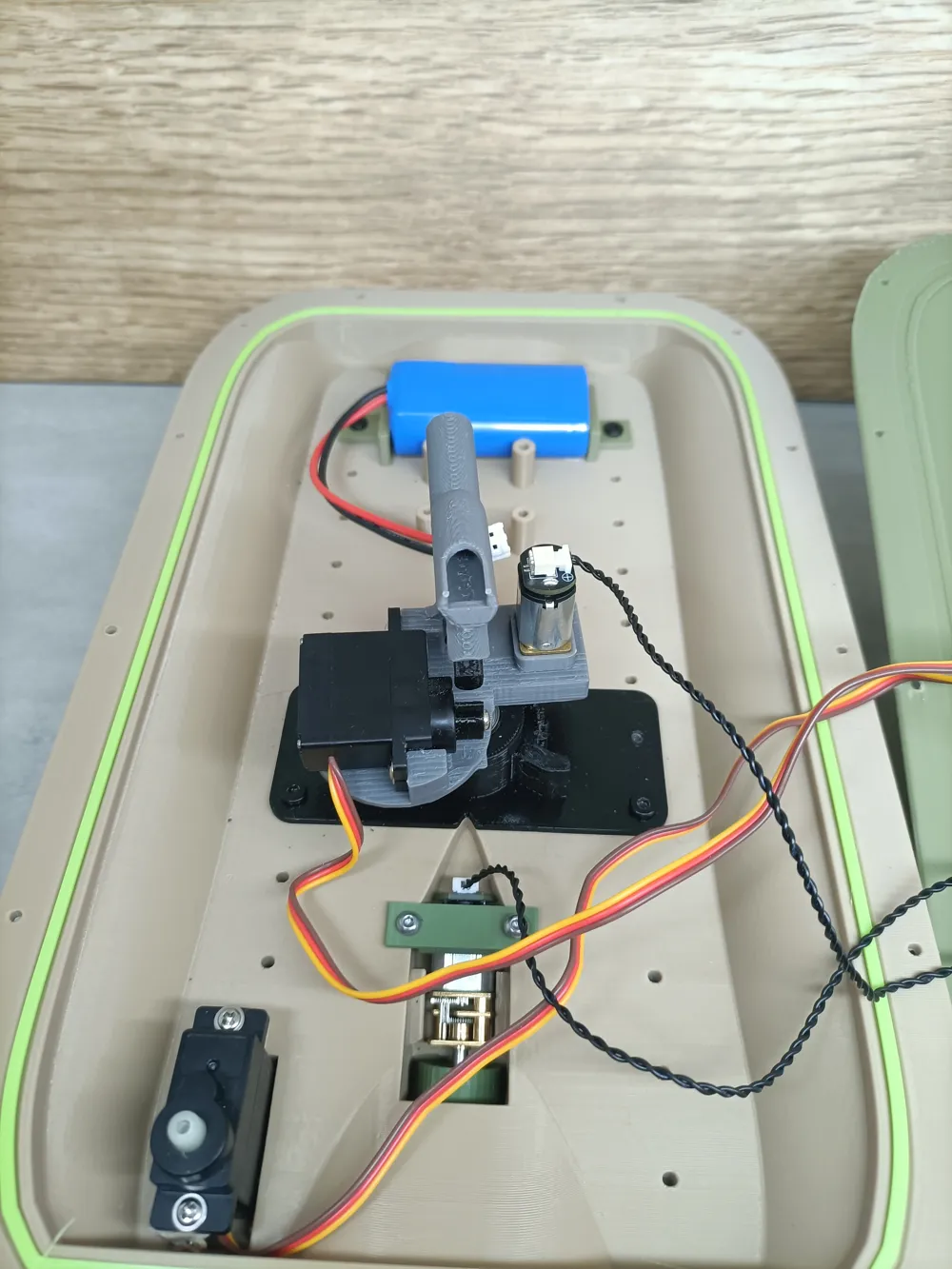

WIRING

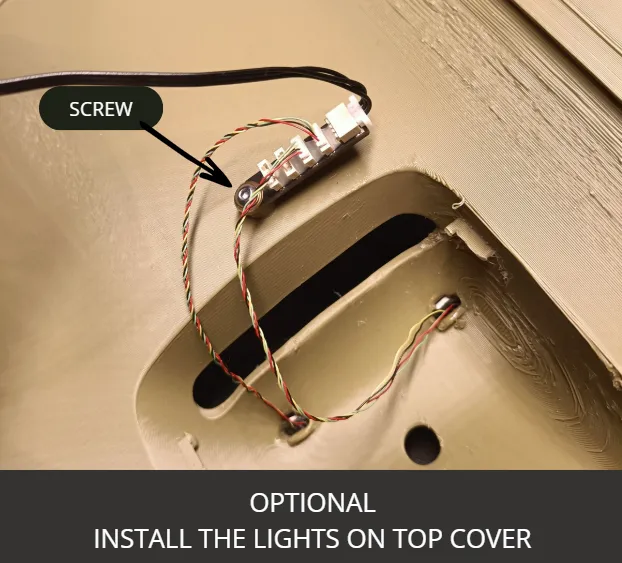

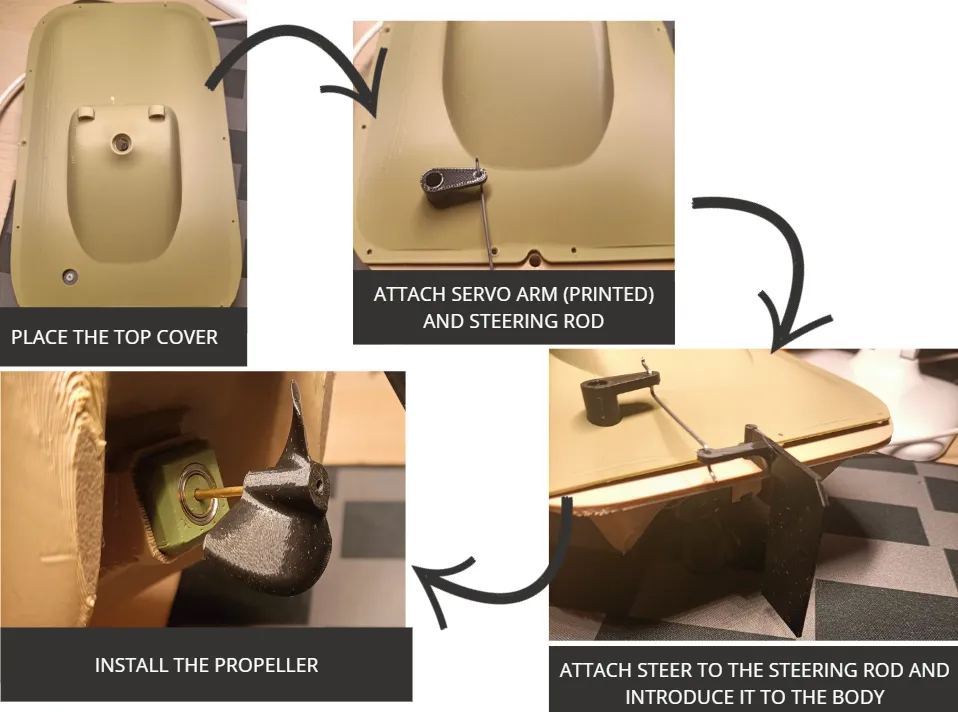

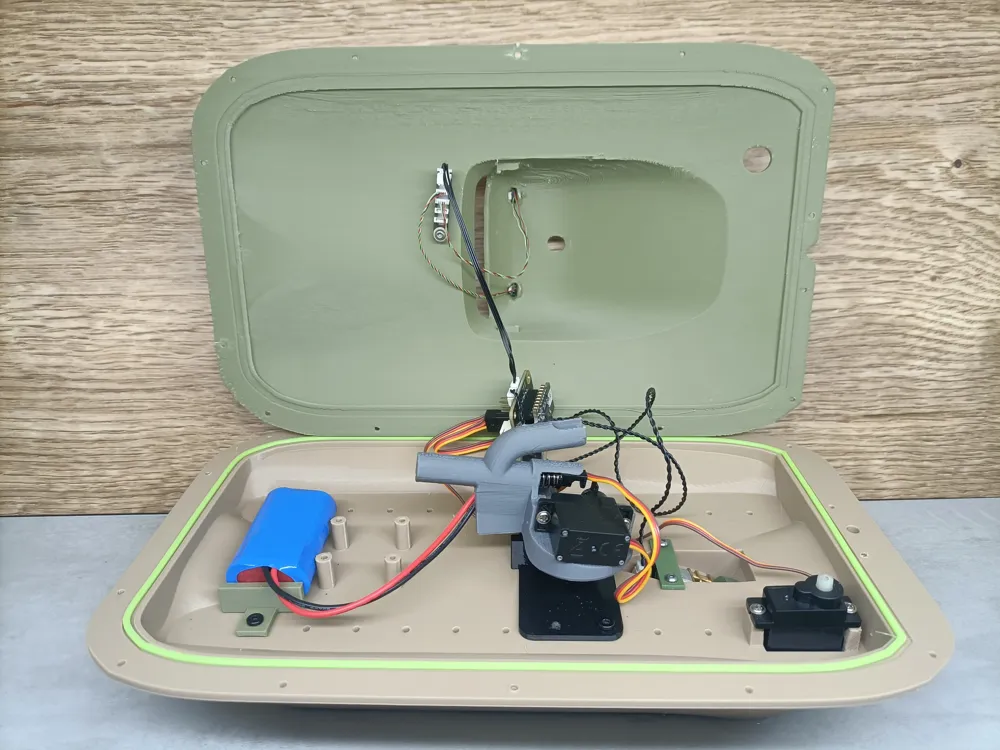

FINAL STEPS
then just tighten the top cover to the body on a few self-tapping screws and you are good to go.
