Gridfinity drawer socket set
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.9 h
1 plate
Open in Bambu Studio
Boost
5
13
0
0
2
0
Released
Description
Content has been automatically translated.

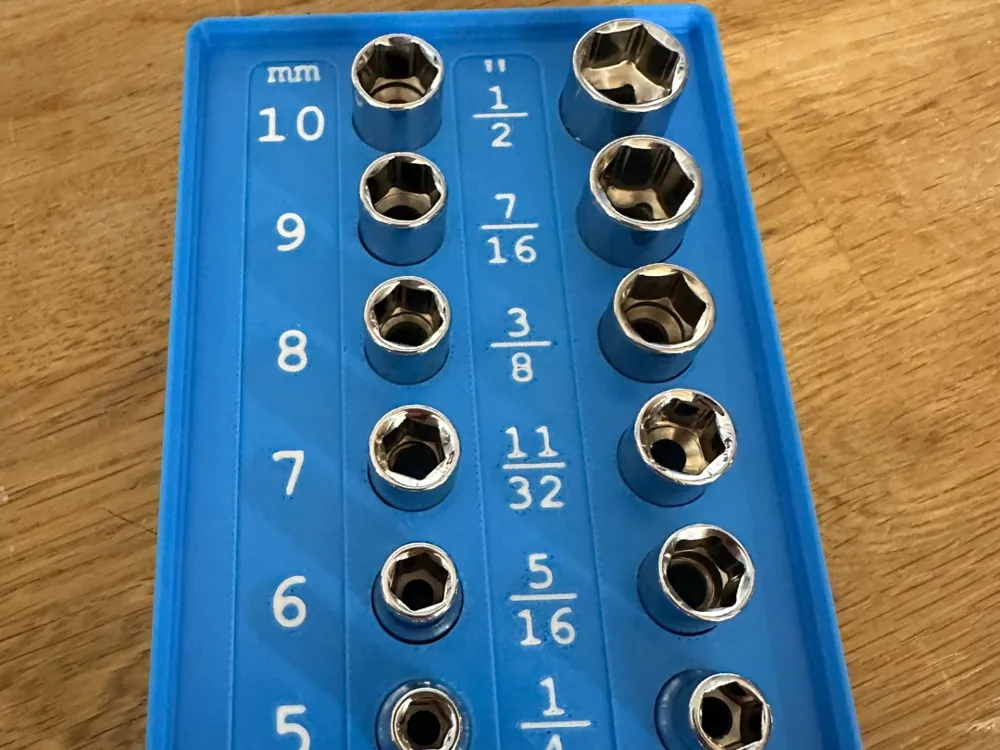

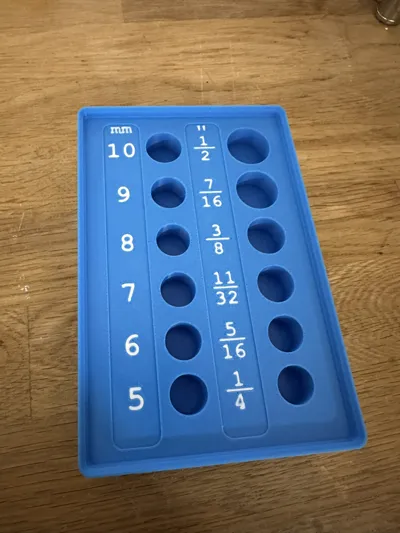

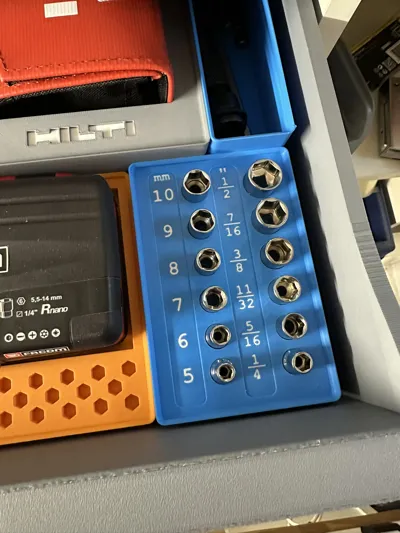

Gridfinity box for socket set
5x mm sockets - 10 to 5mm
5x inch sockets - 1/2 to 1/4 "
1/4" square hole
Outer dimensions of the sockets are
10 - 13.75mm
9 - 12.75mm
8 - 11.75mm
7 - 11.70mm
6 - 11.50mm
5 - 11.50mm
1/2" - 17.0mm
7/16" - 15.95mm
3/8" - 13.75mm
11/32" - 12.76mm
5/16" - 11.70mm
1/4" - 11.53mm
Text added in Bambu Studio
