Mesh-detect case

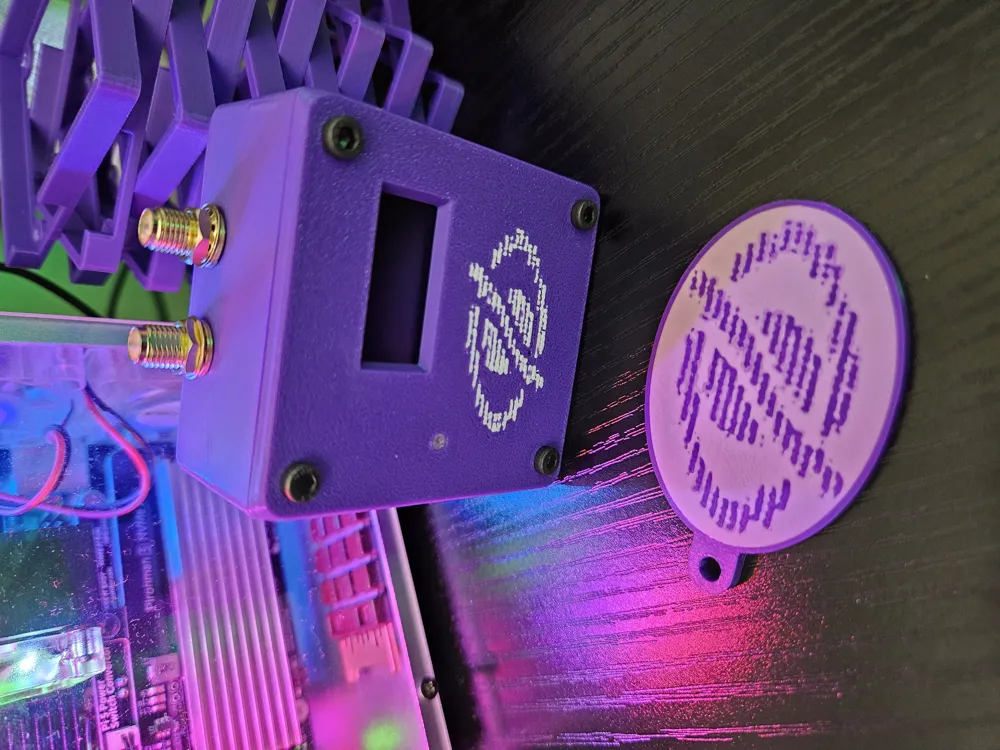

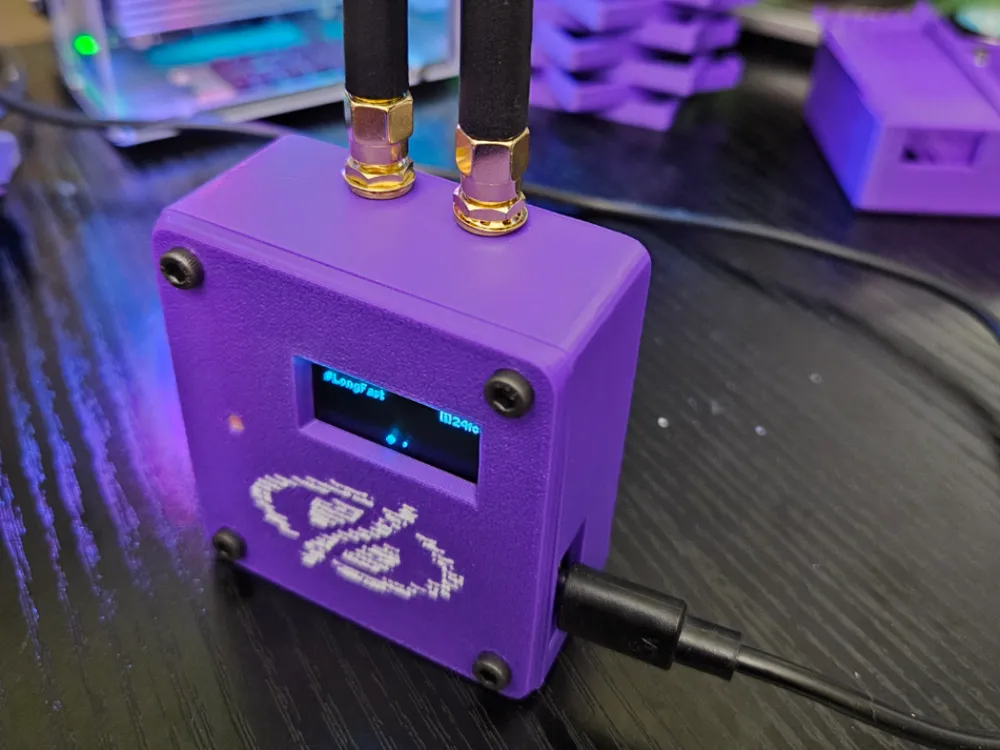

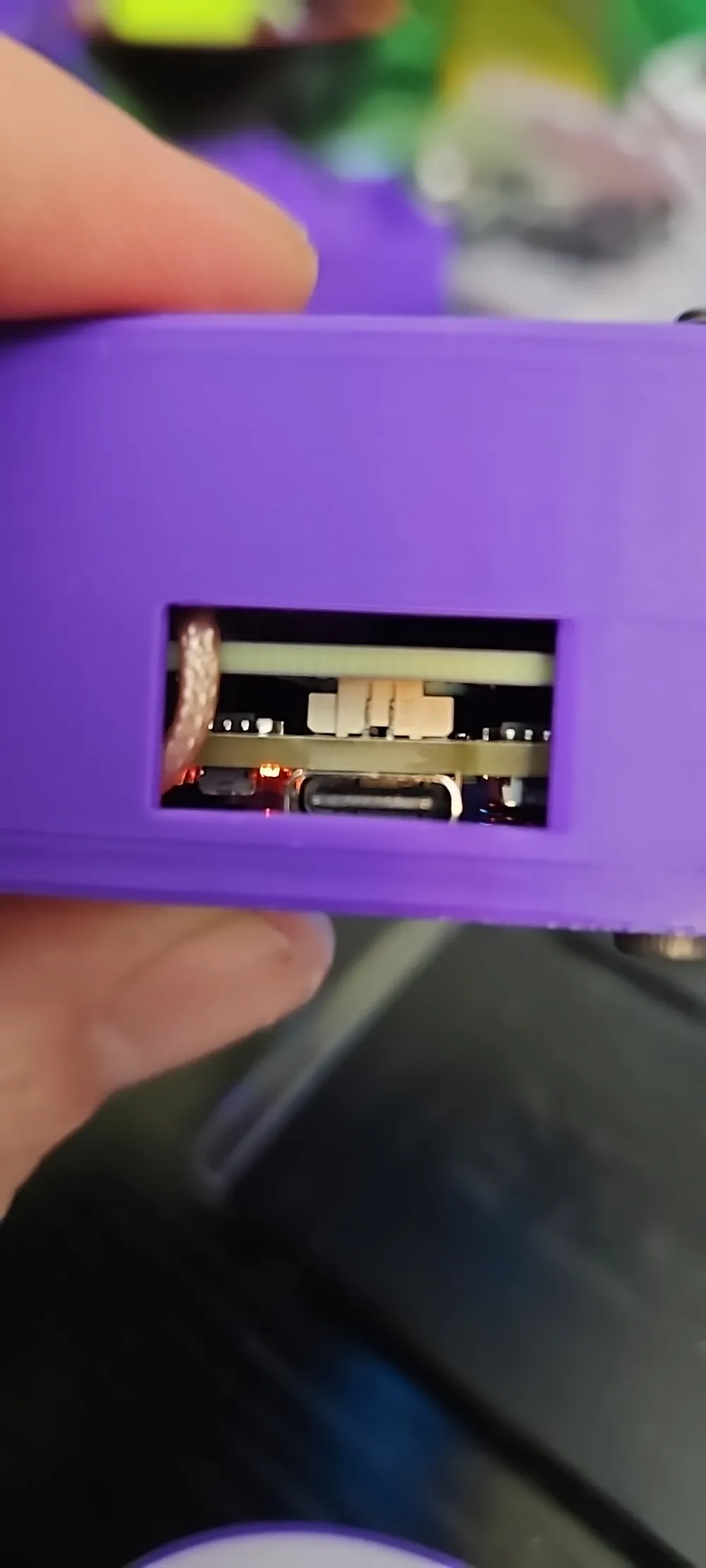

This is a case for the Mesh-detect device that was created by Colonel Panic, the case allows for 2 externally mounted SMA antennas while protecting the mesh-detect and still having access to the USB ports, LEDs, and Screen.

Mesh-detect: https://github.com/colonelpanichacks/mesh-detect Created by: Colonel Panic


Printed in Purple and White PLA as well as Translucent PETG for the LED indicator on Bambu A1 using a .4mm nozzle.

Build steps:
1. Press fit in 4 M3 hex nuts into the backside of the case in the designated spaces.
2. Attach external antenna to the back housing. run the cables out the USB ports for now.
3. Place the board in the case, with the seeed usb port going in first, being  mindful of the antenna cables. place the board in.
4. feed the antenna wires back in over the board (see last image) and then plug in antenna to each board.

5. start m3 bolts through face place, get them to a little over have way in, then line the bolts up with the mesh board mount holes, and screw in until case closed, be sure not to over tighten!
----------------------------------------------------------------------------------------------------
Uses 4 M3 bolts 25m in length to fasten

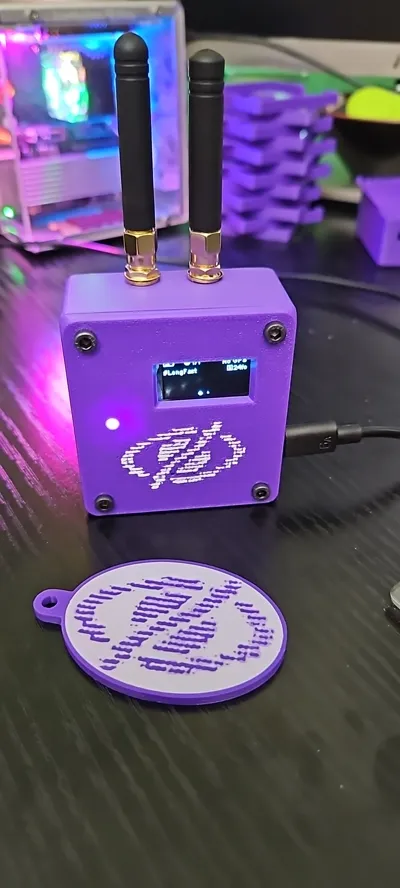

Print the tiny LED plug in clear or translucent and plug into the hole on the back side of the faceplace, put a dab of superglue on the lip to keep it in place. This will allow the LED colors to be seen outside the case.
