Warrior

Cartoon - Warrior – Standing Figure

Description:

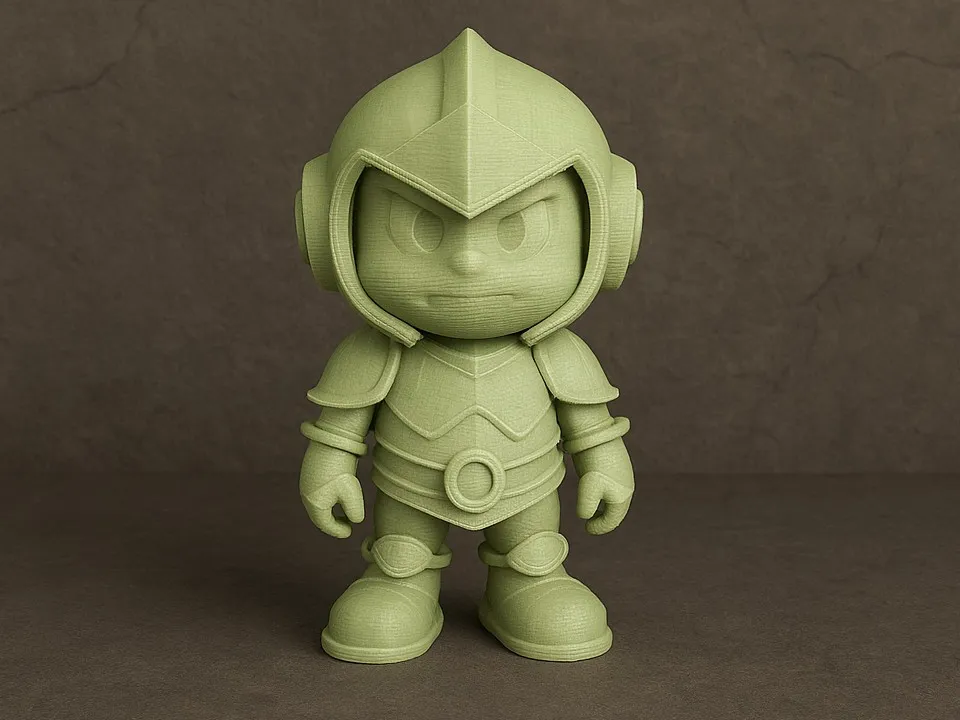

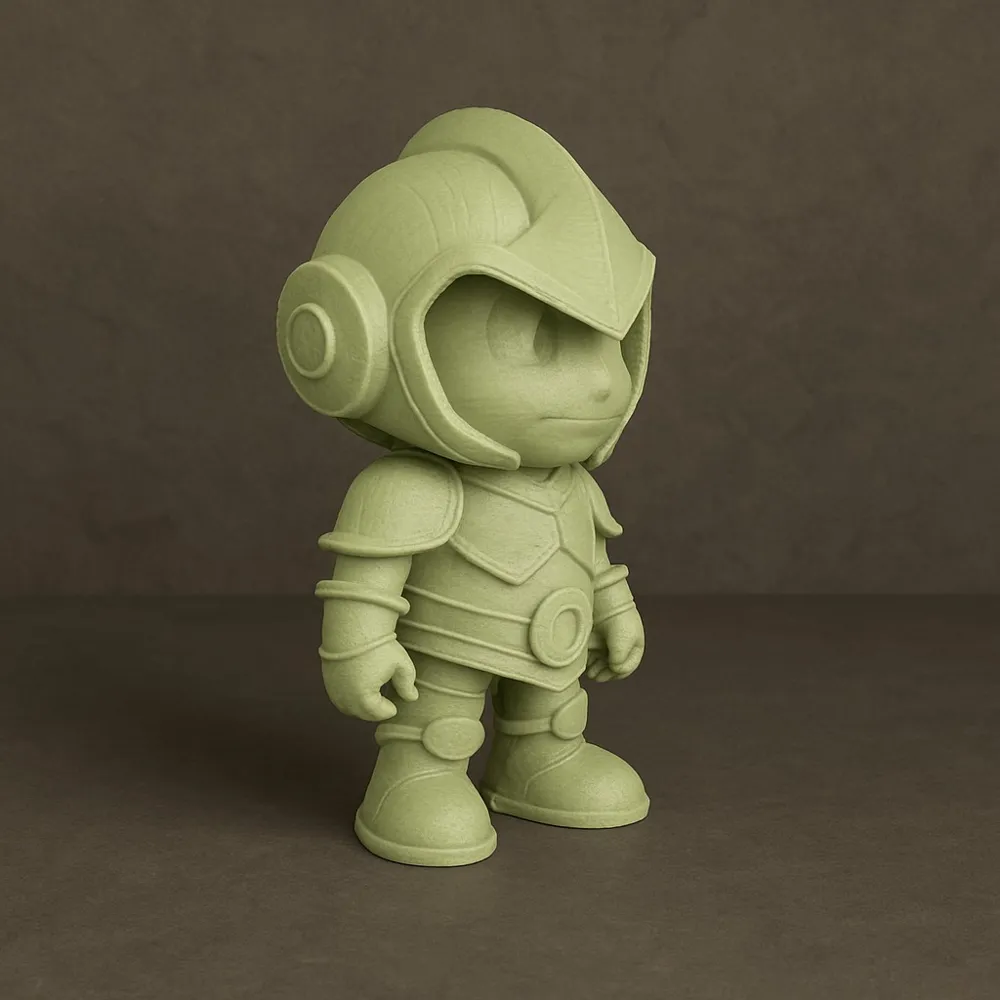

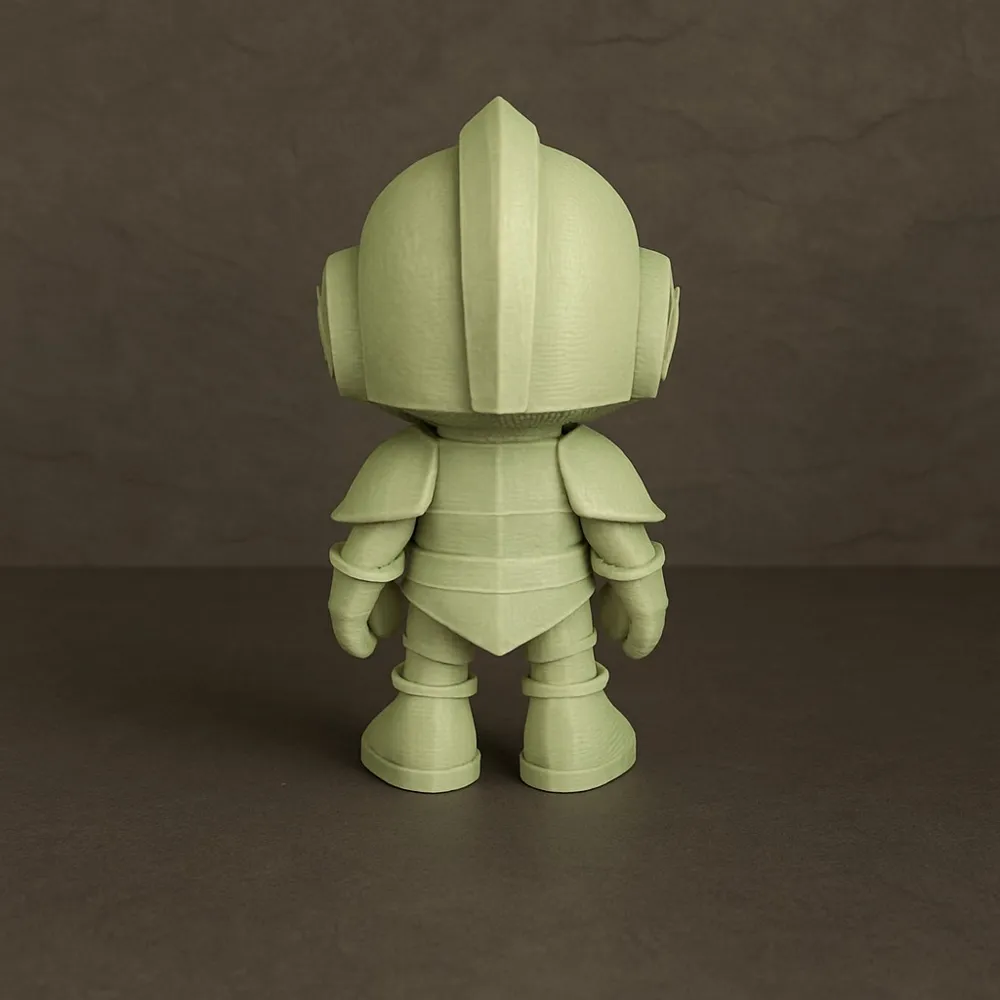

This 3D printed figure depicts a cartoon-style Warrior in an upright pose. Ideal as a decoration, collector's item, or gift. The figure is designed to be easily produced on common FDM 3D printers.

Print Details

Layer thickness: 0.2 mm (fine detail level, good balance between quality and print time)

Nozzle diameter: 0.4 mm

Filament consumption: approx. 22.28 m PLA (≈ ~66–70 g, depending on filament density)

Material recommendation: PLA or PETG

Support: Depending on orientation, support structures may be required (especially under arms and cap)

Infill (Filling): 15% recommended for stability

Recommended Print Settings (for Elegoo Neptune 3 Pro)

Nozzle temperature: 210 °C (PLA)

Heated bed: 60 °C

Print speed: 50 mm/s for fine details

Fan: 100% from Layer 3

Retraction: 5 mm at 25 mm/s (Bowden system)
