Storage server case
Print Profile(1)
Bill of Materials
- Heat inserts + Screws x 1: https://de.aliexpress.com/item/1005005467831636.html?spm=a2g0o.order_list.order_list_main.195.5f095c5fKSqtO8&gatewayAdapt=glo2deu
- Hex screws x 1: https://www.amazon.de/dp/B0CNVP5P4C?th=1
- Sata plug x 8: https://de.aliexpress.com/item/1005006196209007.html?spm=a2g0o.order_list.order_list_main.5.58465c5ftxbnw5&gatewayAdapt=glo2deu
- Sata extension (example) x 1: https://www.amazon.de/dp/B094Q3VW4S?th=1
- Motherboard screws x 4:
- Fans (example) x 3: https://www.amazon.de/dp/B07HC782D5?th=1
- HDD or SSD screws x 4: Per storage drive
- Motherboard (example) x 1: https://www.amazon.de/dp/B0DY4QPHWP?th=1
- Power supply (example) x 1: https://www.amazon.de/dp/B07V8RNCH6?th=1
- Power supply screws x 4:
Description
Storage server case

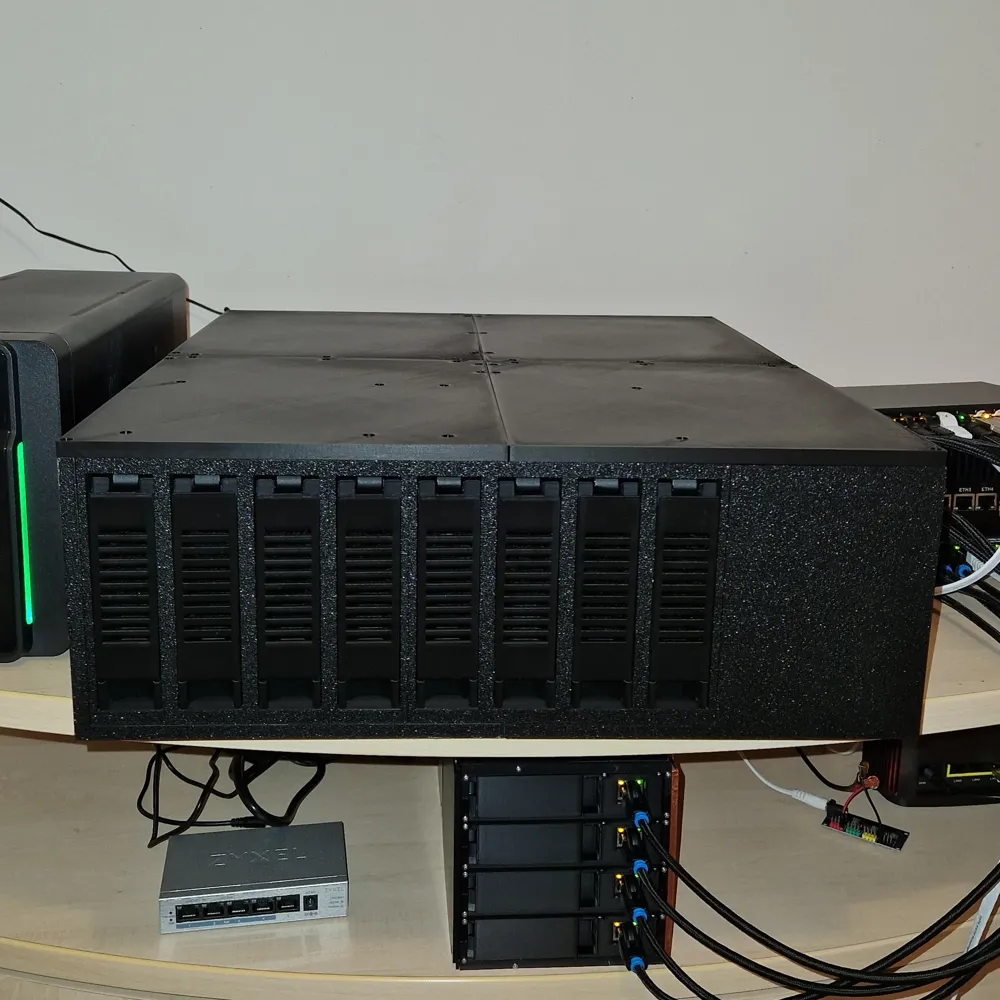

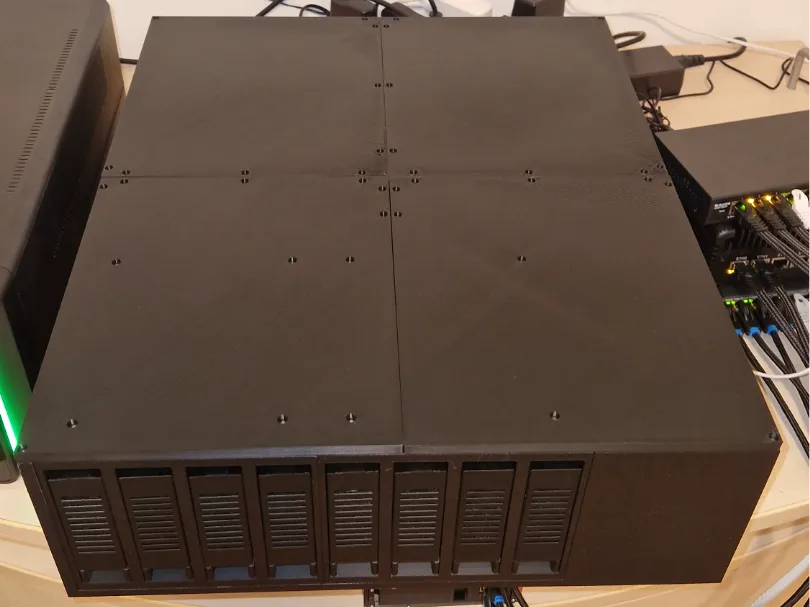

This 3D-printed storage server case is designed to accommodate up to 8 HDDs or SSDs, providing a practical and space-efficient solution for building your own storage system. The modular design allows for straightforward assembly and customization.
Parts marked as (example) may differ in appearance, but their dimensions should remain the same, to ensure compatibility with the 3D printed parts.
ATTENTION: Due to the size of the case, filament warping or shrinkage may significantly affect tolerances. Turning off the auxiliary fan can improve part accuracy.

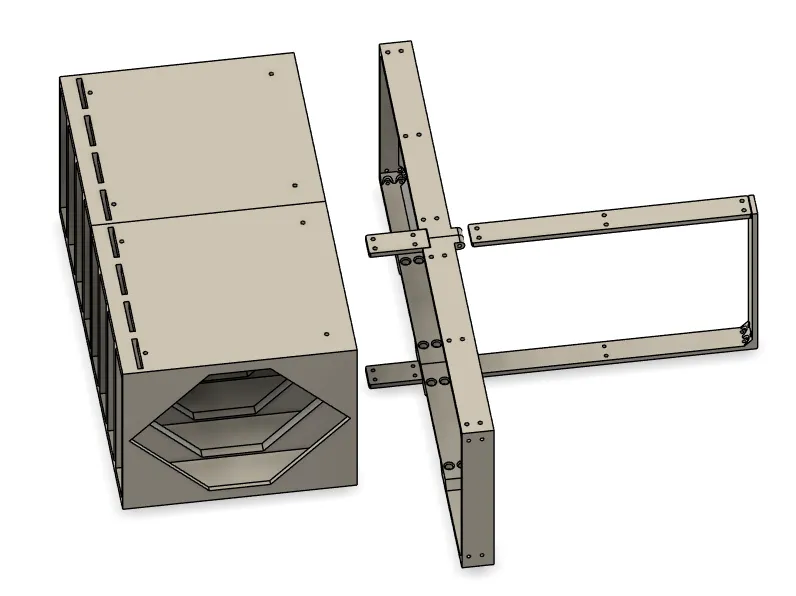

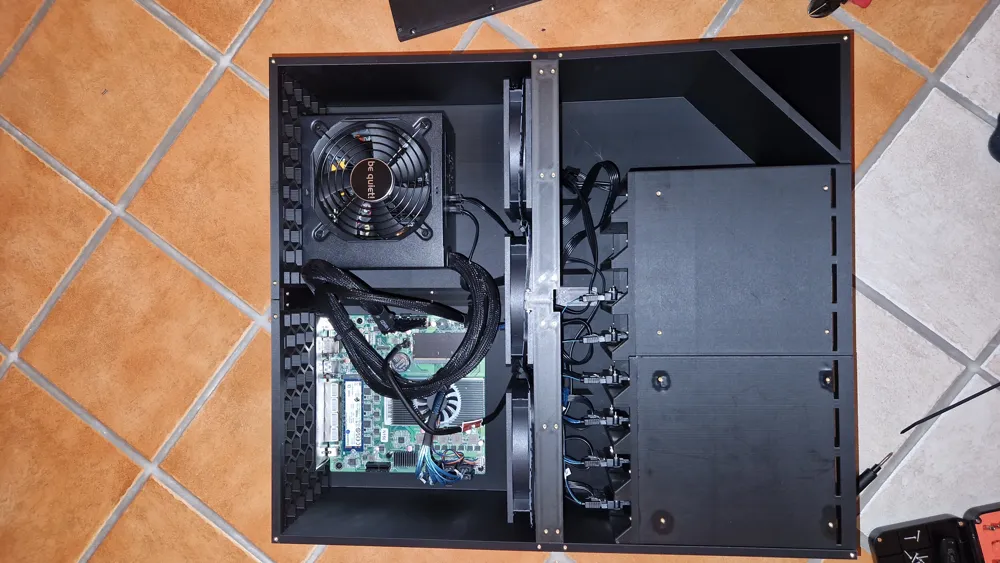

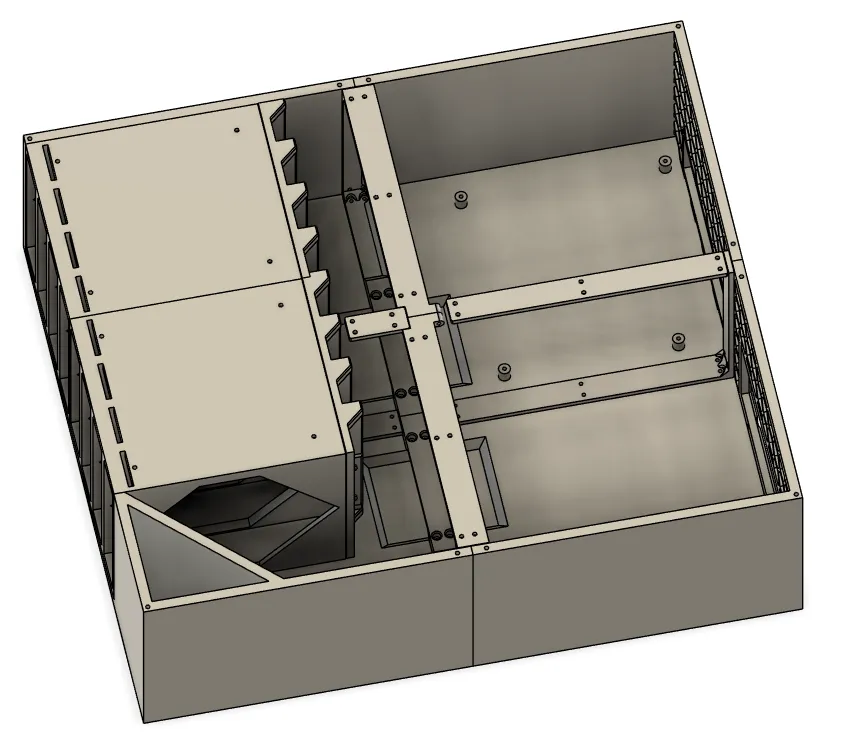

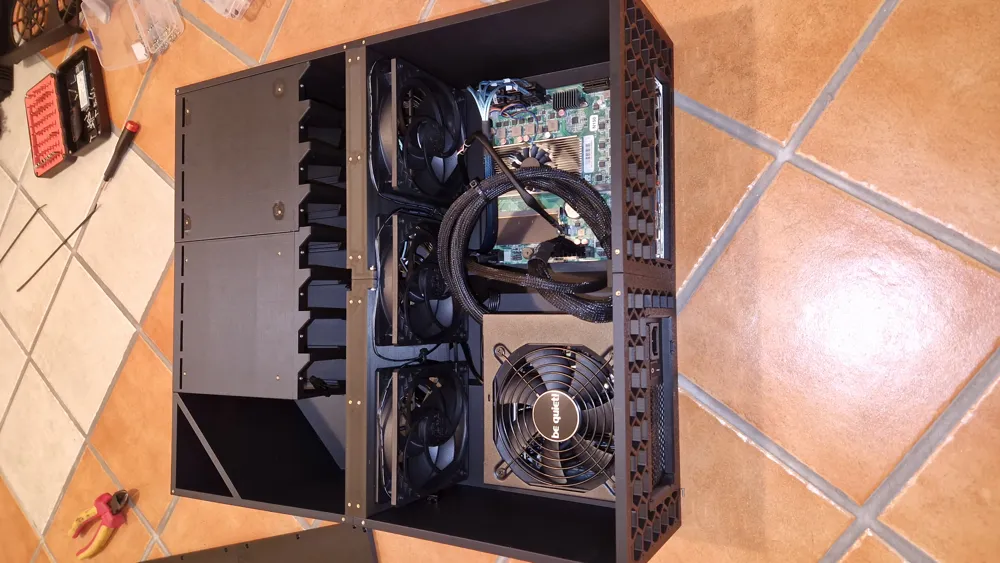

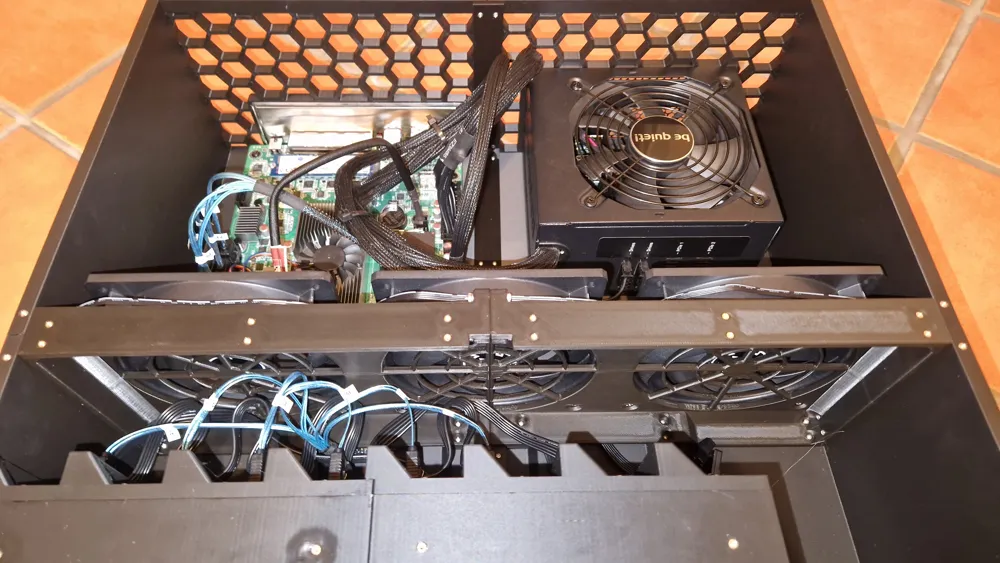

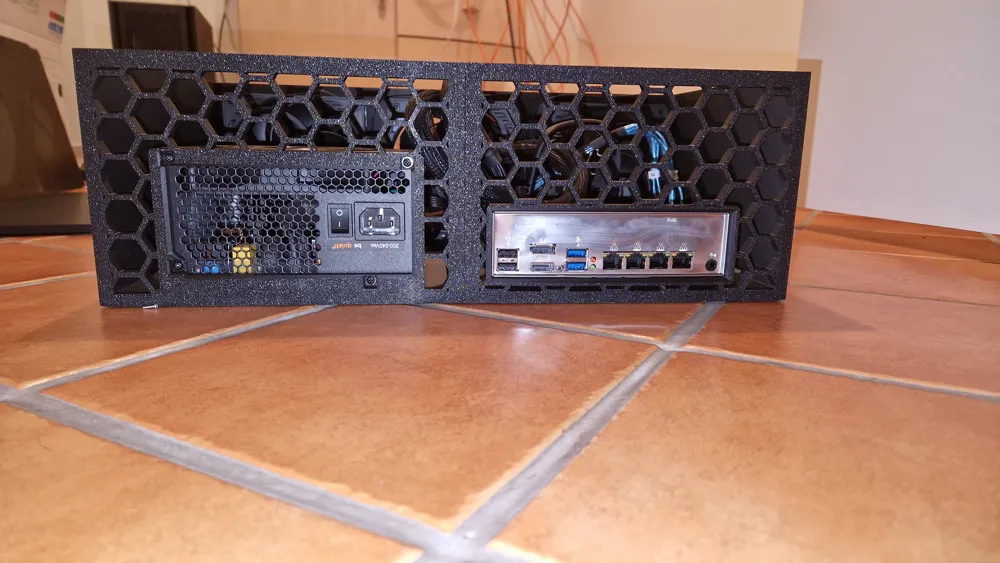

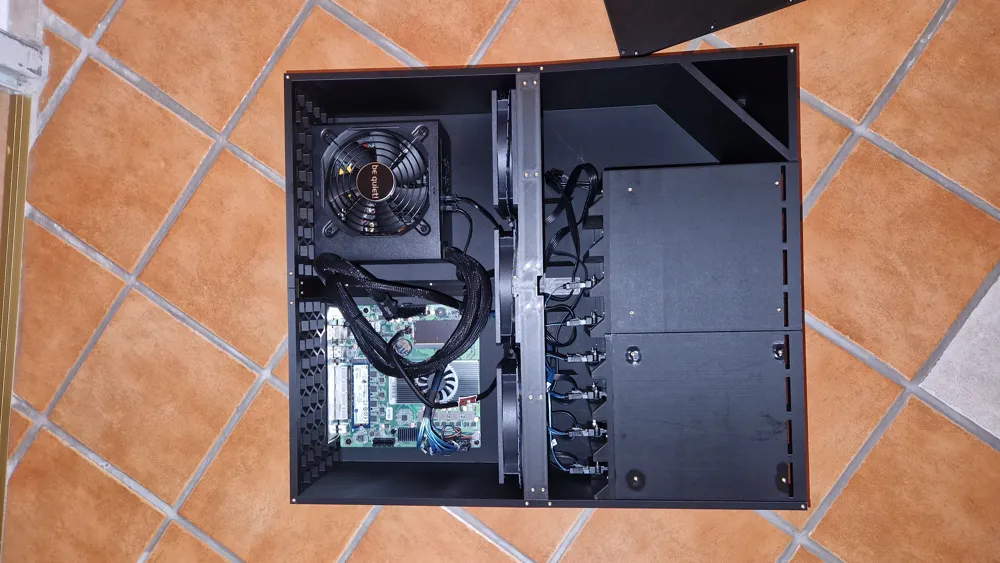

For assembly instructions have a look at the included pictures.
For optimal cooling performance, it is recommended to fill all 8 drive slots with carrier slides to maintain balanced airflow throughout the case.
