Tail backplate
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
40 min
1 plate
2.5mm thickness PETG
Designer
37 min
1 plate
Open in Bambu Studio
Boost
35
109
6
0
48
30
Released
Description
Content has been automatically translated.

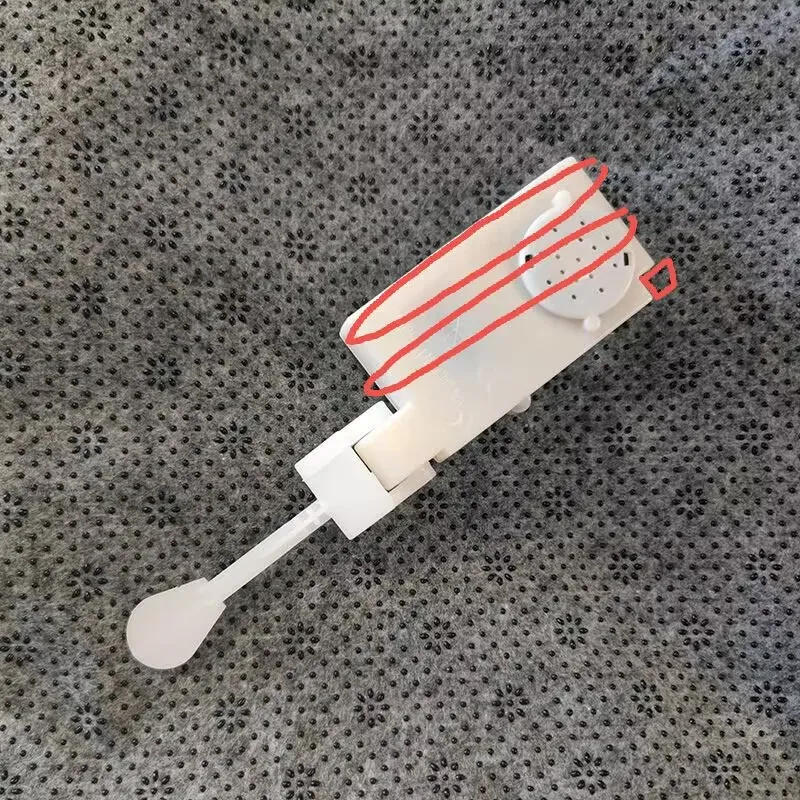

The fixing method is as shown in the figure, with two zip ties passing through the horizontal holes to secure it If you are concerned about it falling off, you can roughen the side of the movement casing near the tail with sandpaper If the movement shape is the same as in the figure, you can clip the small block onto the backplate, resting against the indentation on the side of the motor closest to the body After securing, you can also use fabric to attach the side of the movement to the backplate for added stability
