Warning Signs - Lab Style (AMS not required) by JulesPrint3D

JulesPrint3D

Art>Signs & Logos

Print Profile(4)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

Designer

2.6 h

9 plates

4.9(26)

Upside/Down, 1 Plate, 0.2mm layer, 2 walls

Designer

1.6 h

1 plate

5.0(13)

Upside/Down, 1 Sign per Plate, 0.2mm layer, 2 walls

Designer

3.6 h

9 plates

4.9(9)

1 Plate, 0.2mm layer, 2 walls (no ams required)

Designer

1.4 h

1 plate

4.5(2)

Boost

335

492

534

461

Released

Description

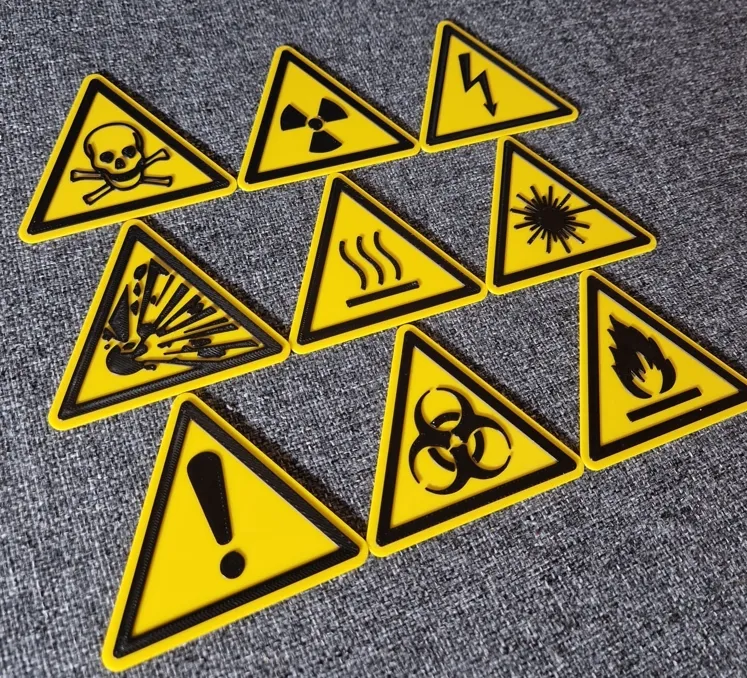

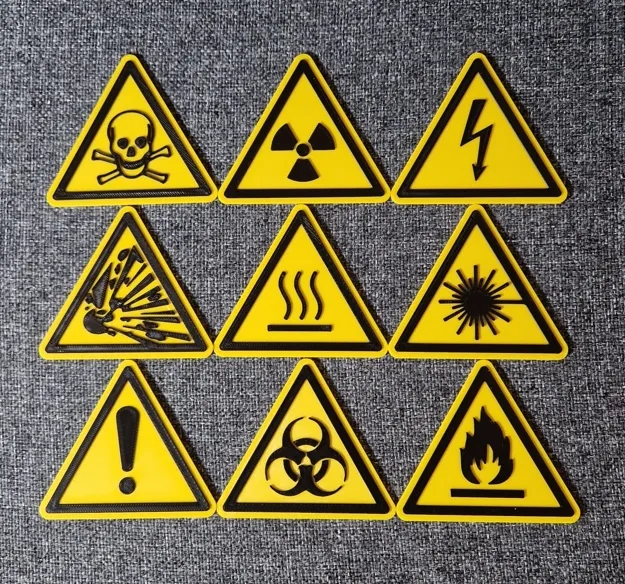

9 diffrent Warning Signs

Sign dimensions: 76 x 67 x 1,6mm

Model is Scalable

~ 17min print time per sign

_________________________________________________________________

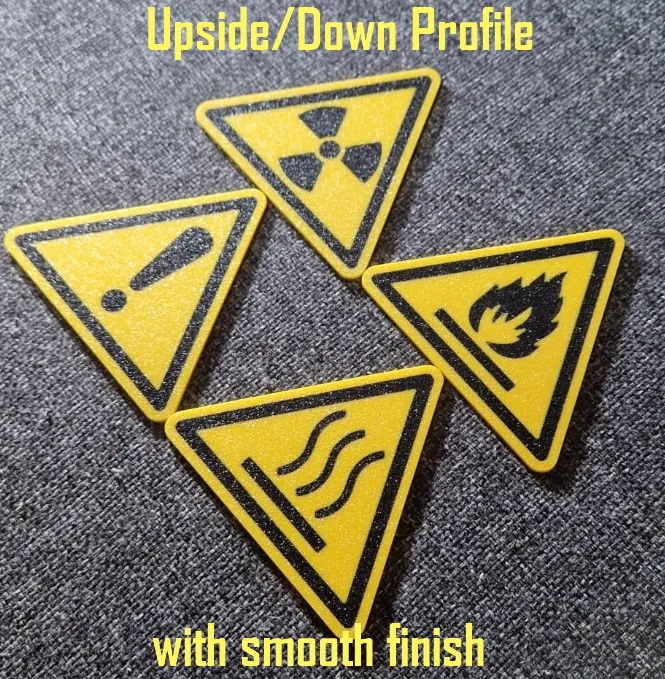

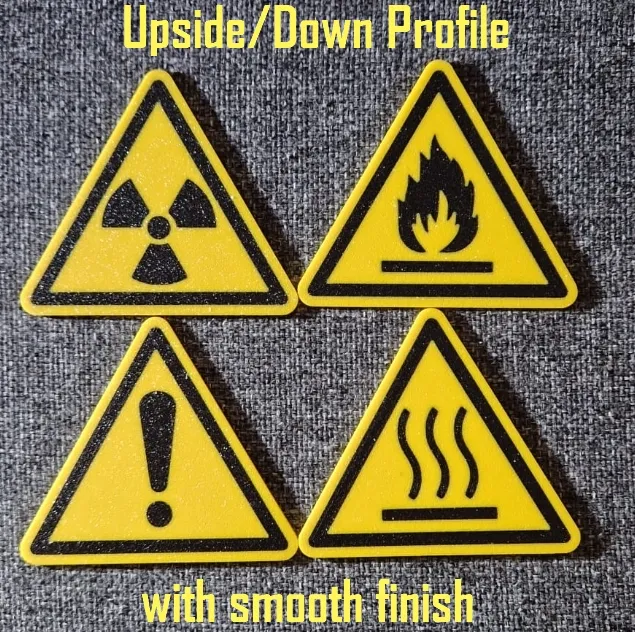

EDIT: Added upside/down profile for better finish. (AMS required)

~23min print time per sign

_________________________________________________________________

Check out my other designs:

You don't have AMS?

Set Layer 1-5 Yellow, Layer 6-8 Black

Slice the model first, on the right side where you can move the layer line up and down, right click on the ‘+’, filament change, then reslice.

Comment & Rating (50)

@riso20411

Print Profile

Upside/Down, 1 Sign per Plate, 0.2mm layer, 2 walls

good :D

@Trickstyle

Print Profile

Upside/Down, 1 Sign per Plate, 0.2mm layer, 2 walls

came out really nicely sliced directly on my X1

@jsvojtka

Print Profile

Upside/Down, 1 Sign per Plate, 0.2mm layer, 2 walls

Love it!

(Edited)

@Tim.Technik

Print Profile

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

@user_66273497

Print Profile

Upside/Down, 1 Plate, 0.2mm layer, 2 walls

@BogusSquare

Print Profile

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

@cpt.balu

Print Profile

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

@Xerxes

Print Profile

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

Nice and useful signs

@user_526983664

Print Profile

1 Sign per Plate, 0.2mm layer, 2 walls (no ams required)

works perfect <3

@HardStryker

Print Profile

1 Plate, 0.2mm layer, 2 walls (no ams required)

Had a strange issue with the biohazard symbol where the symbol was floating above the plate, i.e. there was one layer right above the plate where the biohazard symbol did not print, until the next layer up. The layer would symbol would still print, but it had bad adhesion to the plate and would fall off would normal handling. I think it has something to do with the fact that the little parts of all the symbols were like separate parts or objects, that weren't welded to the plate object.
