Description
Configurable Pipe Reducer
This fully parametric model lets you create smooth, round pipe reducers tailored to your exact needs. Perfect for prototyping, plumbing mockups, dust collection systems, or any project where two different pipe diameters need to be joined with a clean transition.
Features
- Customizable Lengths
- Define the straight entry length
- Define the tapered connection length
- Define the straight exit length
- Flexible Diameters
- Entry inner & outer diameter
- Exit inner & outer diameter
- Smooth Transition
- Automatically generates a seamless, conical taper between entry and exit for unrestricted flow
- Precision Control
- Adjustable mesh resolution for smoother prints
- Independent wall sizing when setting both inner & outer diameters
Typical Uses

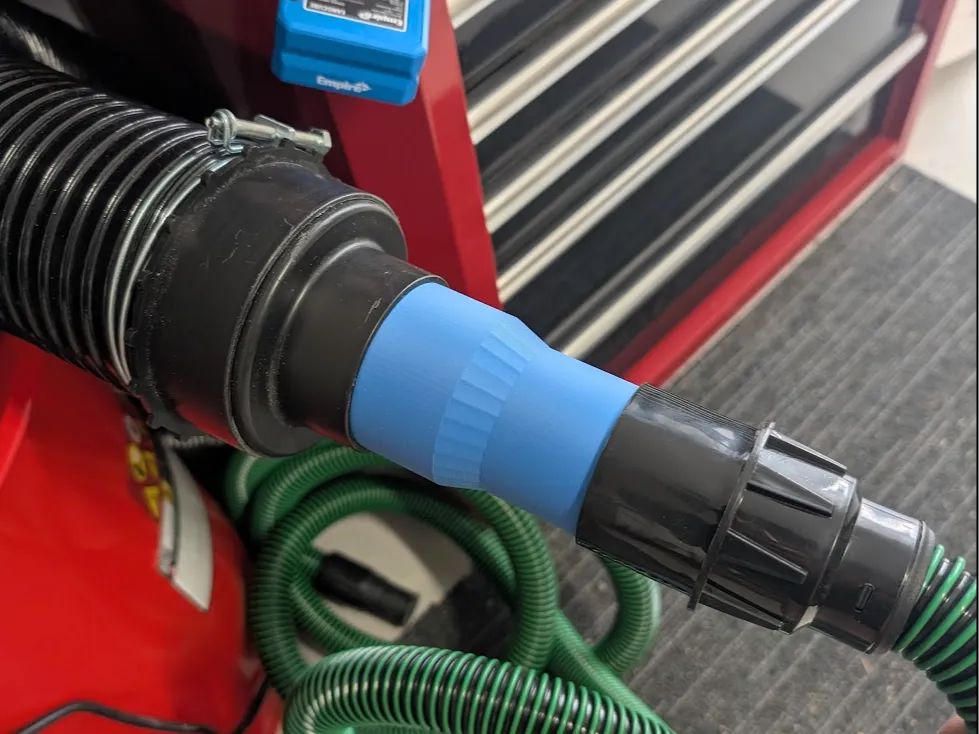

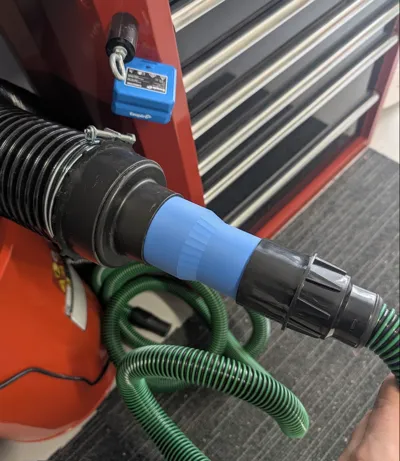

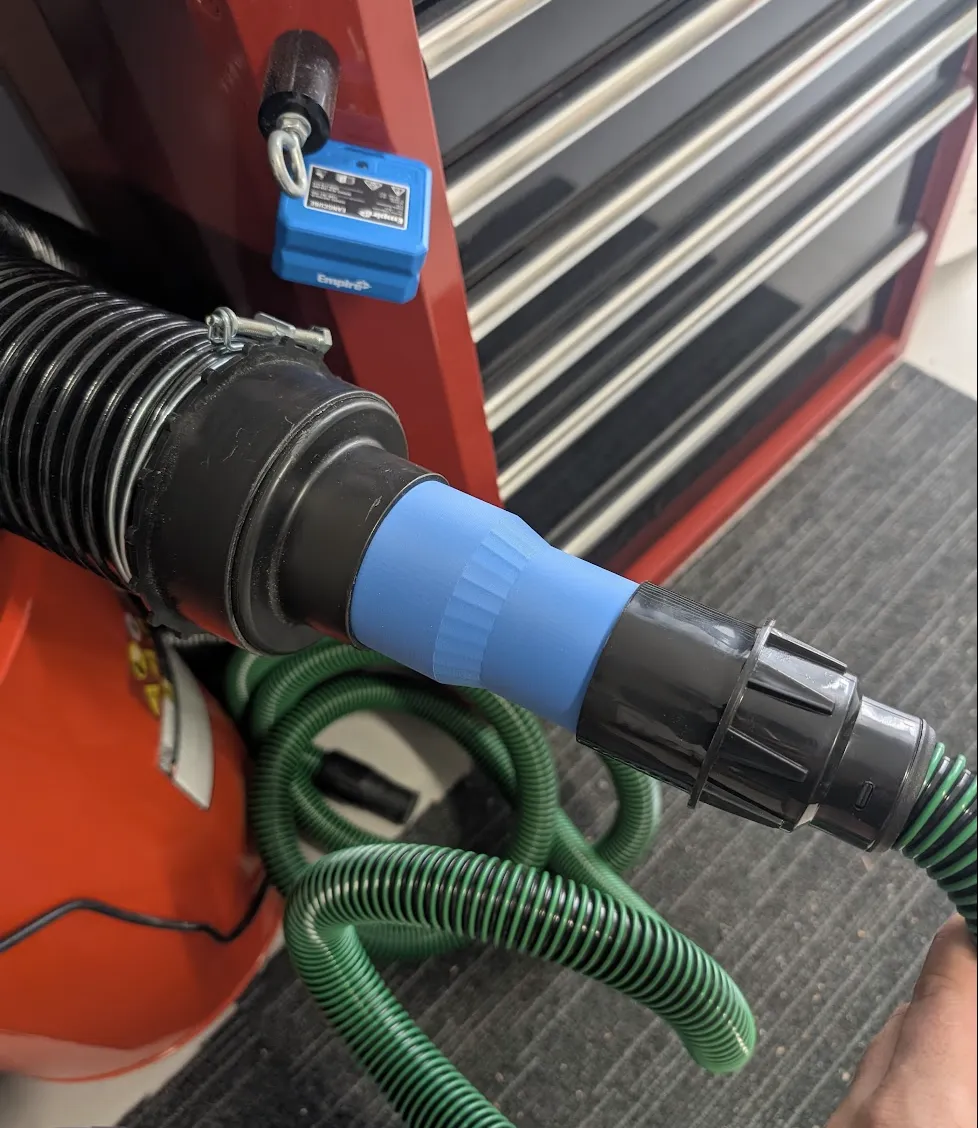

- Pipe adapters for workshop dust extraction
- Reducers for experimental airflow projects
- Joining mismatched tubing or hoses
- Prototyping parts before machining or casting
Printing Notes
- Designed hollow with adjustable inner/outer diameters
- Print vertically for best circular accuracy
- Use higher perimeter counts or thicker walls if reducer will be under pressure
