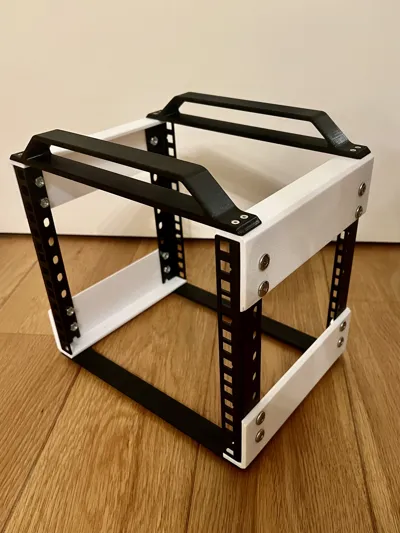

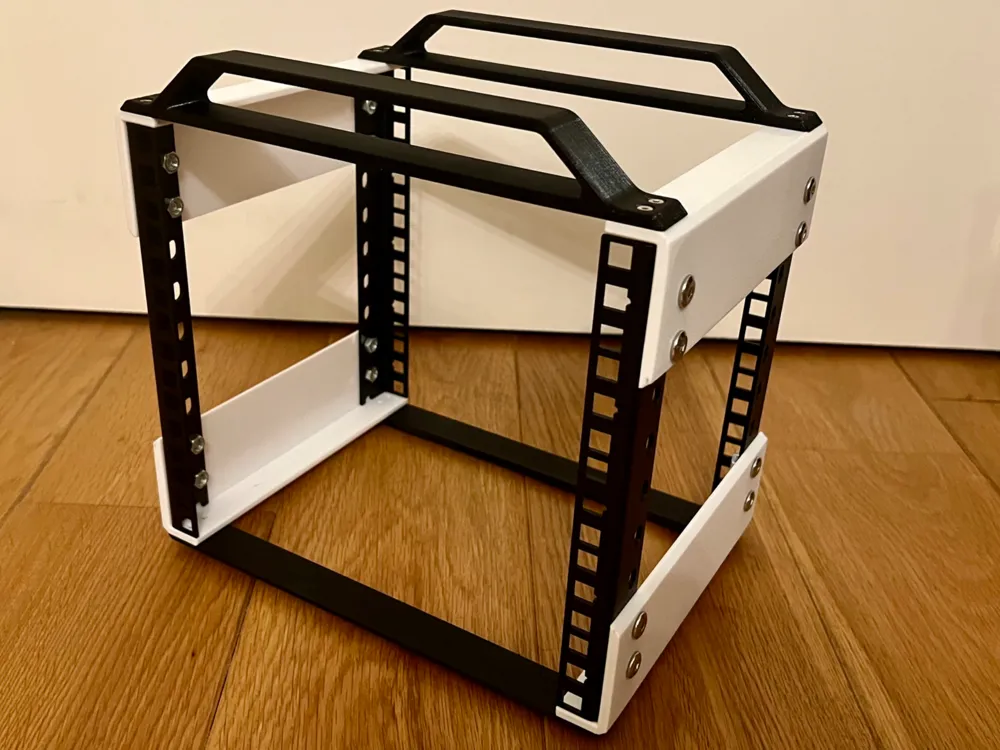

A simple 10" rack that uses metal rack rails and 3D printed parts.
The 4 metal rails needed are the HMF 668xx, which exist from 3U to 12U on Amazon.
You'll also need 16 M3 heat-set inserts, 16 M3x8 DIN7991 screws, 16 DIN934 M6 nuts, and 16 M6x10 Flat Head Hex Socket Screws
(The heat set insert could be substituted with M3 nuts and longer screws)
