Description

Content has been automatically translated.
Show original

Are you looking for a particular color Do you need a lighter or darker filament Have fun creating, experimenting with custom colors as you like



In this model, I have uploaded 2 main profiles

  • The Test profile allows you to mix your colors using a few grams of your filaments to understand which and how much filament to use to best satisfy your creativity
  • including the mix to use, you can switch to the A1 mini - Multicolor Filament profile for the final printing of the filament

In addition to these 2, I have also uploaded various pre-set profiles for quick printing even from Bambu Handy. Other profiles will be updated and added gradually



Print instructions

both main print profiles contain 2 different objects mix1 and mix2

  • The first object (mix 1) is divided into 11 parts. Before starting printing, it is advisable to change the color of each part according to your needs. This can be done by switching to the “Objects” tab in Bambu Studio and selecting the various colors
  • Once printed and the various colors aggregated with mix 1, printing of mix 2 is recommended for good mixing and homogeneity of the filament

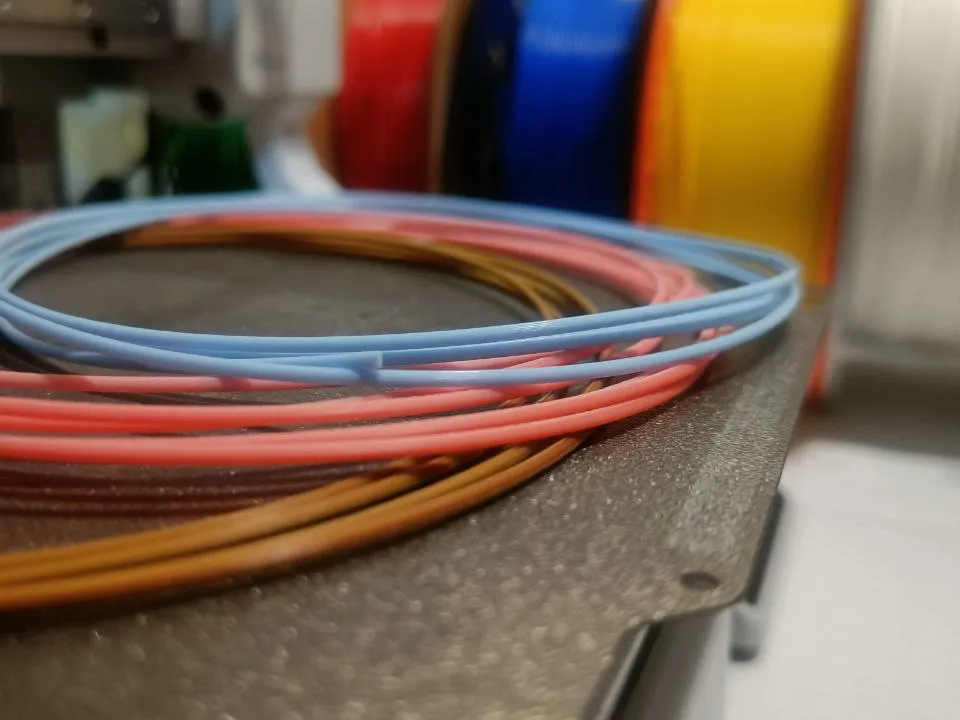

The result of printing mix2 is a filament with a length of 5.4 meters and just over 13 grams

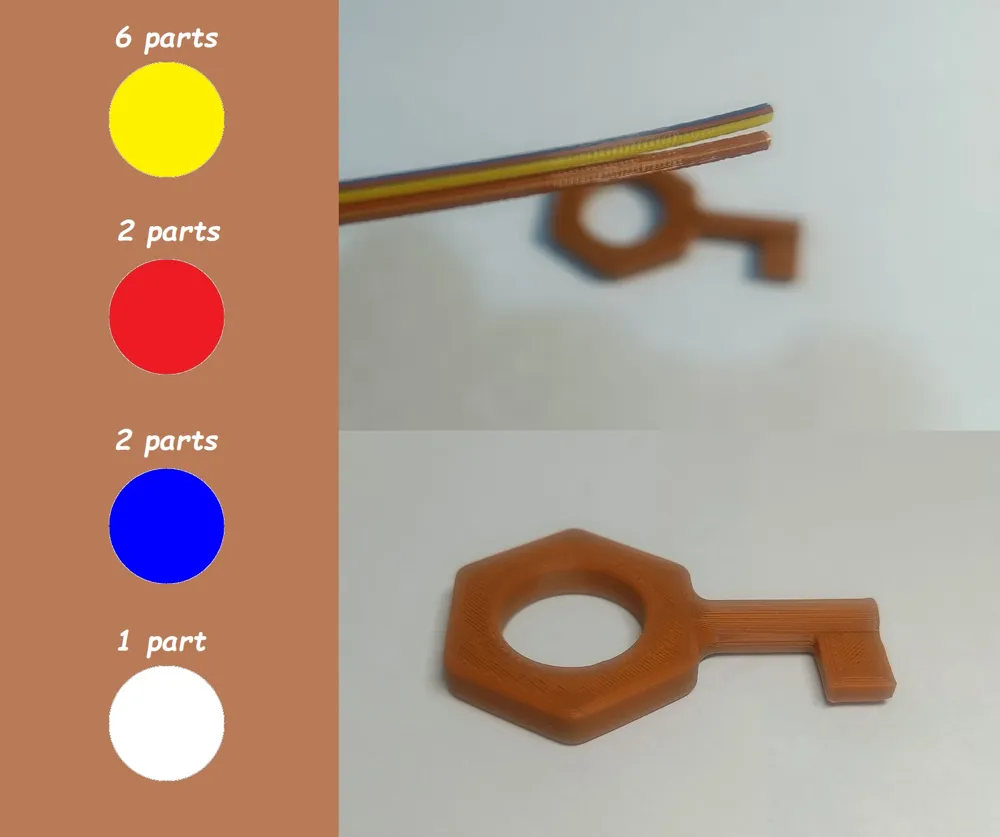

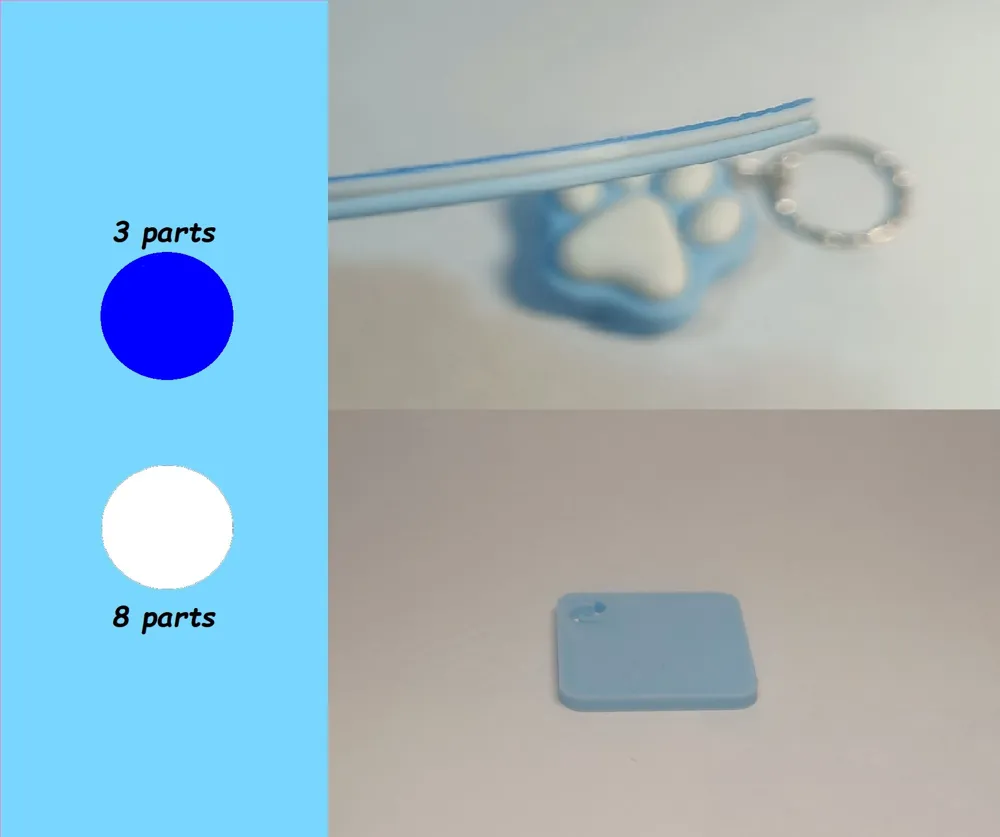

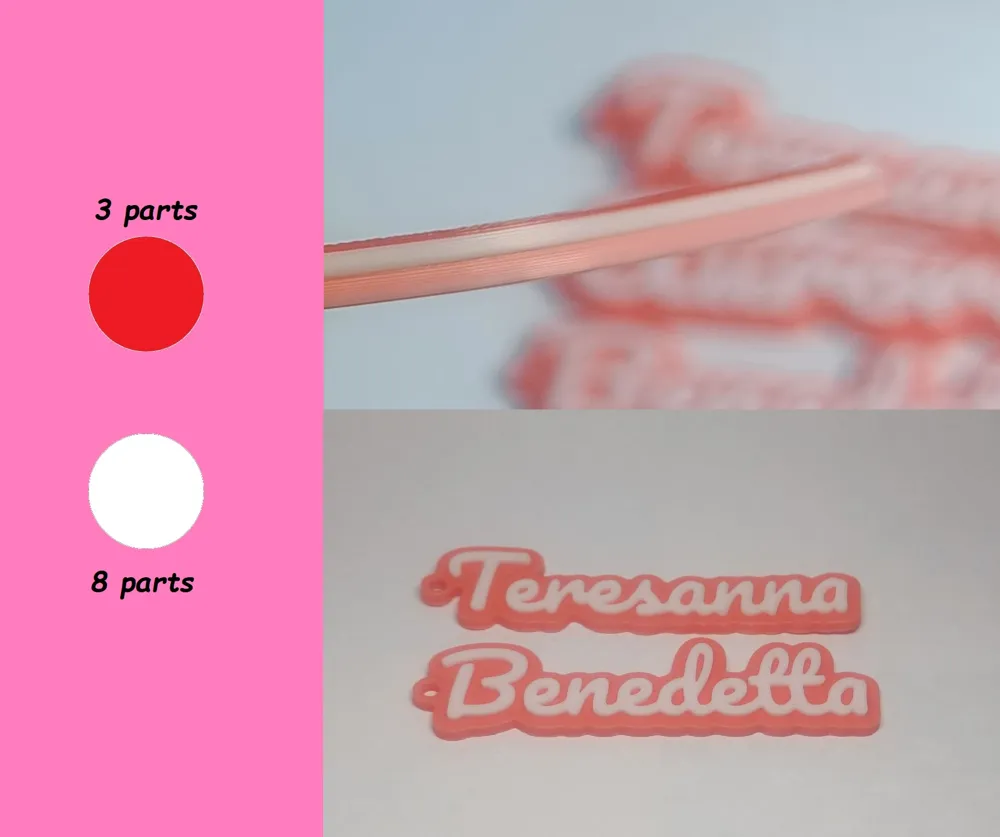

In the photos, I have uploaded some of my mixes and prints made with these filaments



NB For successful printing, thorough cleaning of the plate with water and dish soap is recommended to avoid warping problems during printing



P.S. As material I used PLA but nothing prevents you from using PETG or other materials or a mix between them :)



Update New profile uploaded for A1 printer. The new filament obtained will be approximately 13.5 meters and just over 40 grams
