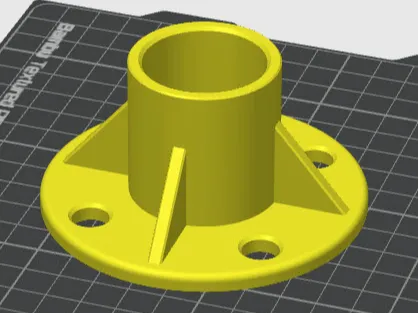

Tent Foot

Overview:

Many of the tent feet on our church’s 10x20 tents are broken and mangled, so I designed these replacements. I used a heat gun and hammer to remove the old ones, and gently pounded these replacements onto the poles using a wooden block.

Unfortunately, I don’t have any pictures of them, and they are packed away for the season, but I can add pictures after the next time we use the tents.

I’ve included my Fusion 360 design, so you customize it how you wish using the included parameters.

Printing:

I recommend printing these in ASA or something similar for outdoor use. No supports required.
