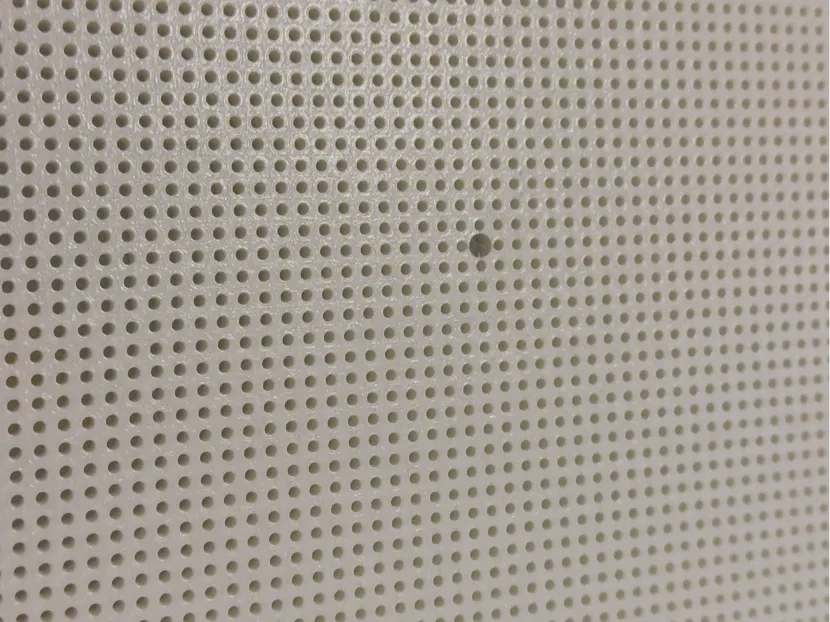

Mechanism breadboard

“Breadboard” for mechanisms from my mechanism series. Will add more info soon.


Slicer settings:

• Make sure to set wall order to outer/inner or inner/outer/inner for dimensional accuracy
• 3 walls, 0% infill works well, but I think 2 walls would work too
• I used 3 top & 3 bottom layers
• I would suggest turning off the side fan if you have one, as it can result in warping (print lifting off the bed)

• Slicing takes ages, so make sure all settings are correct!



Any failures are likely to happen in the first 3-5 layers, so make sure to check often during that time. First layers doesn't have to be perfect, as long as the 2nd and 3rd layers are ok - they can cover a lot of imperfections.
