Description

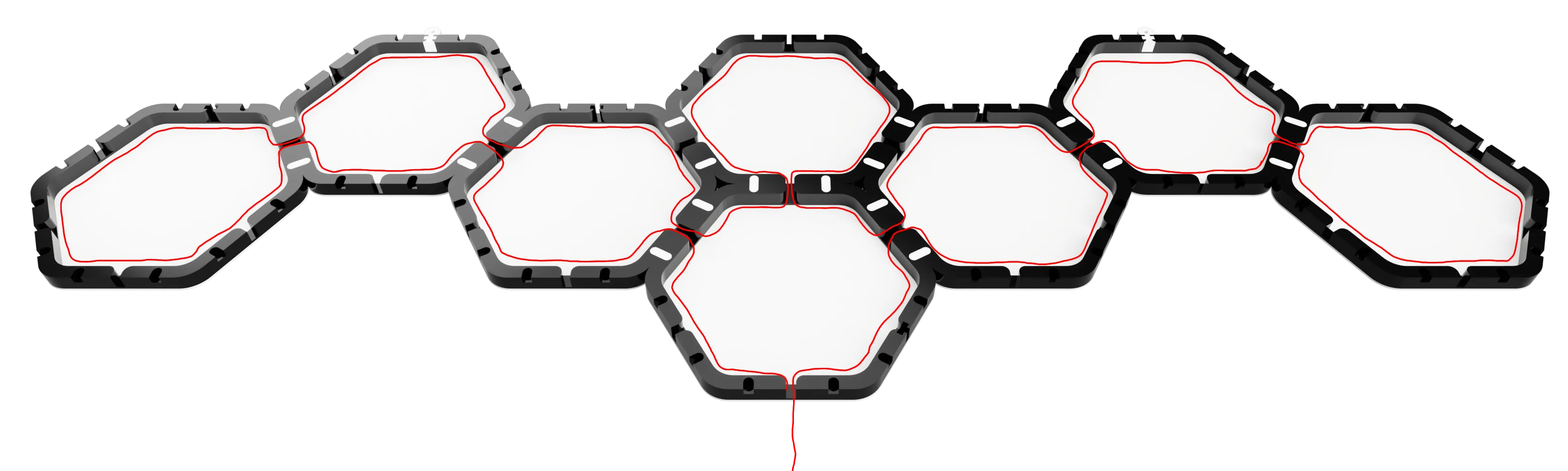

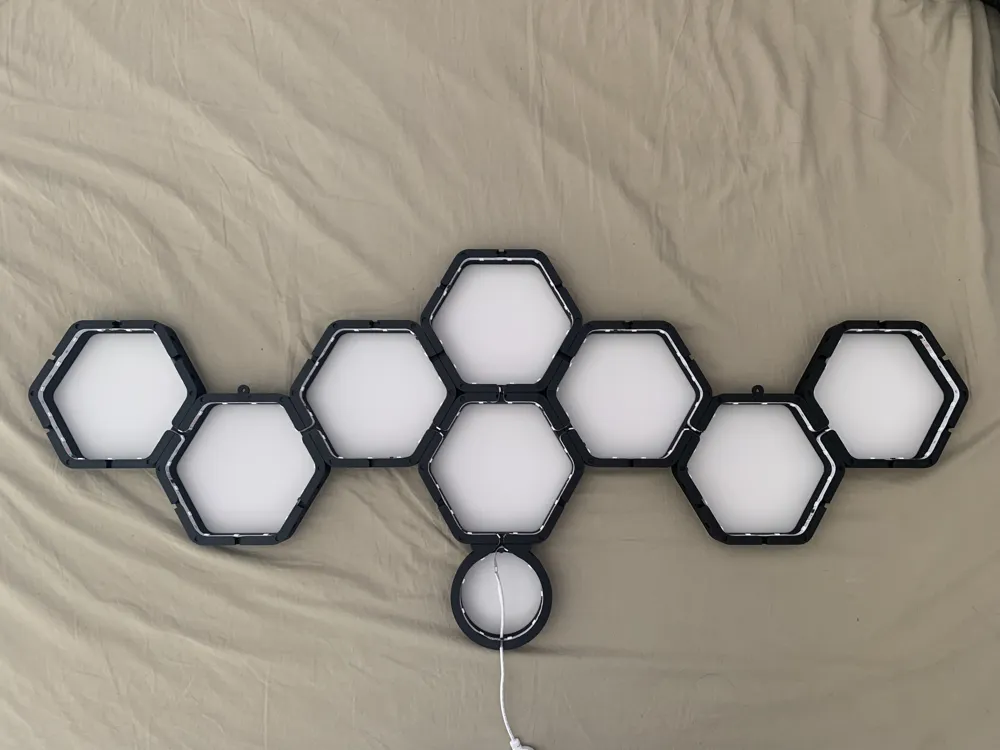

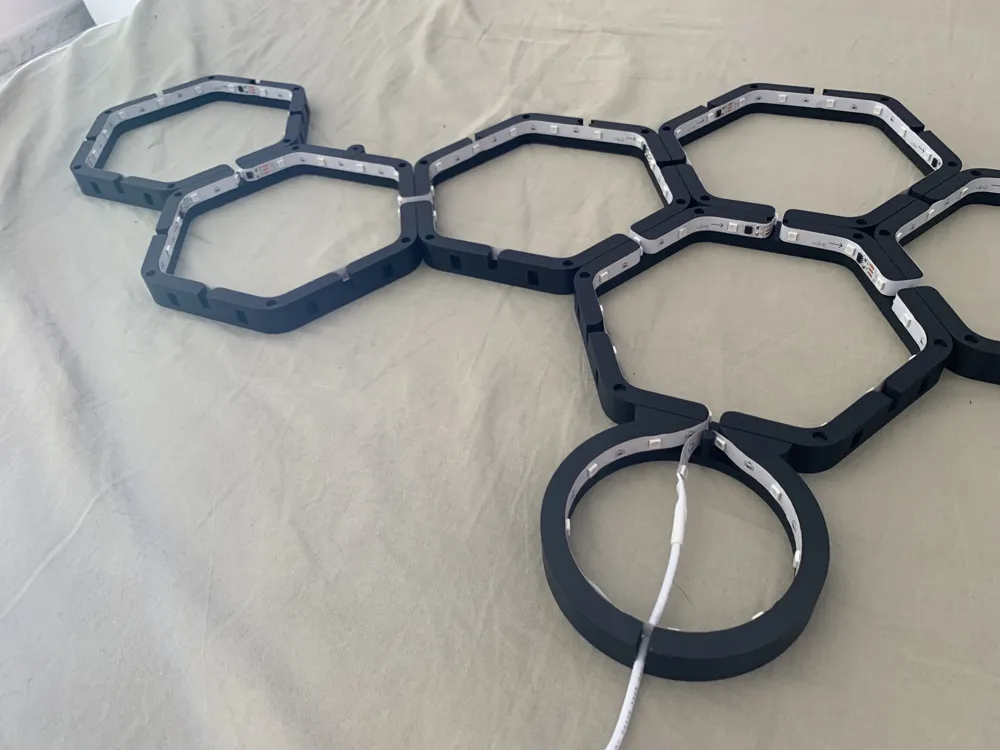

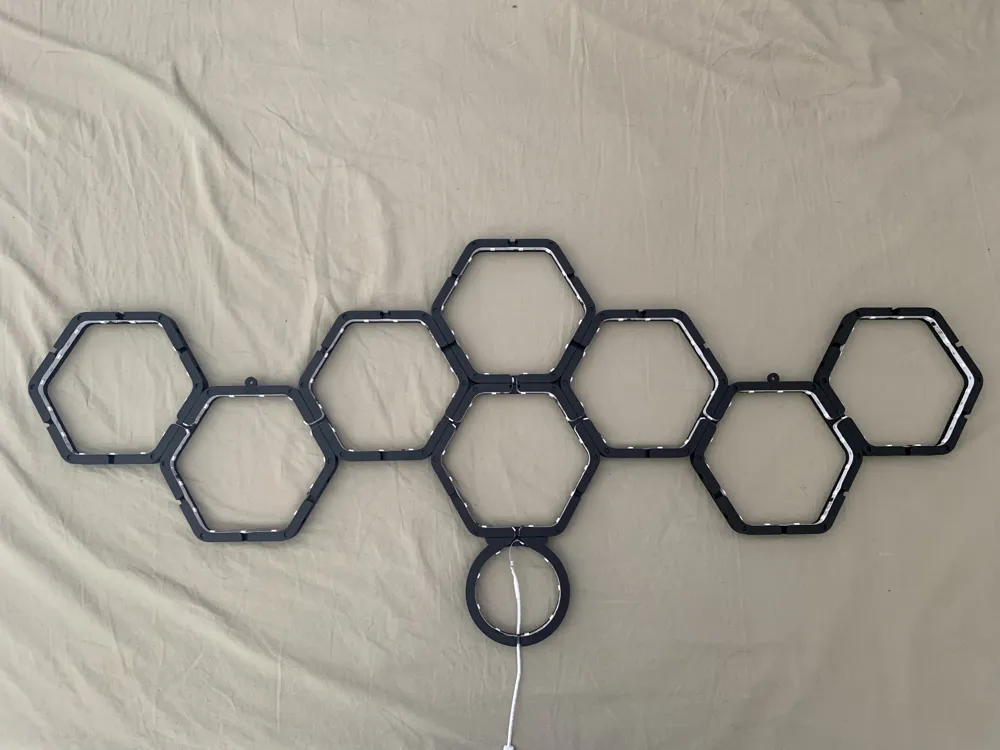

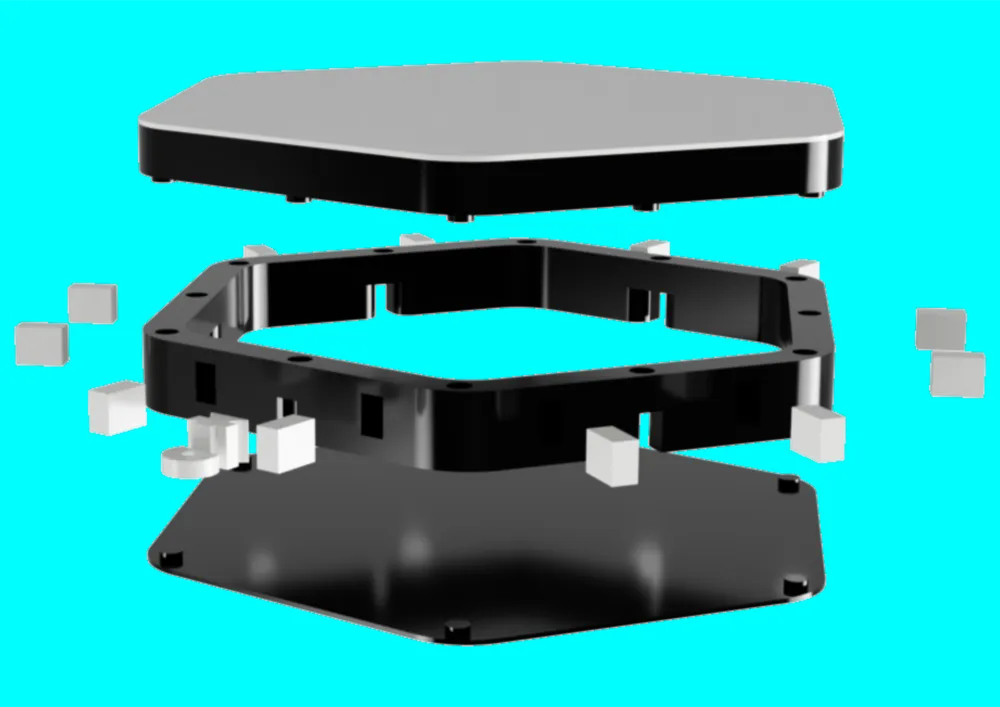

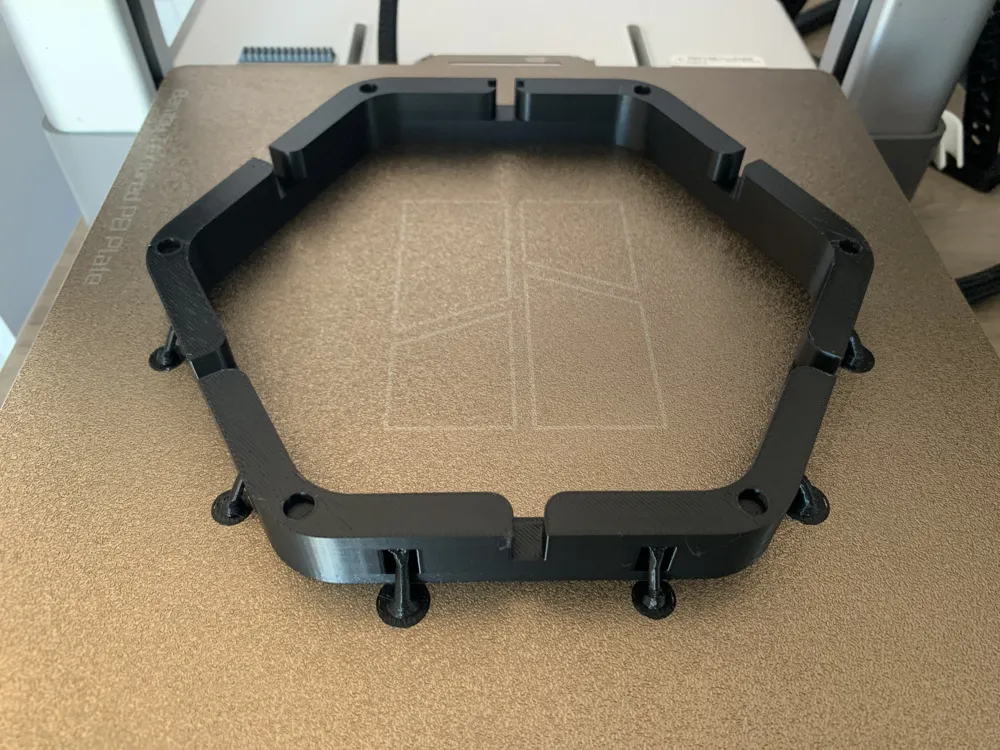

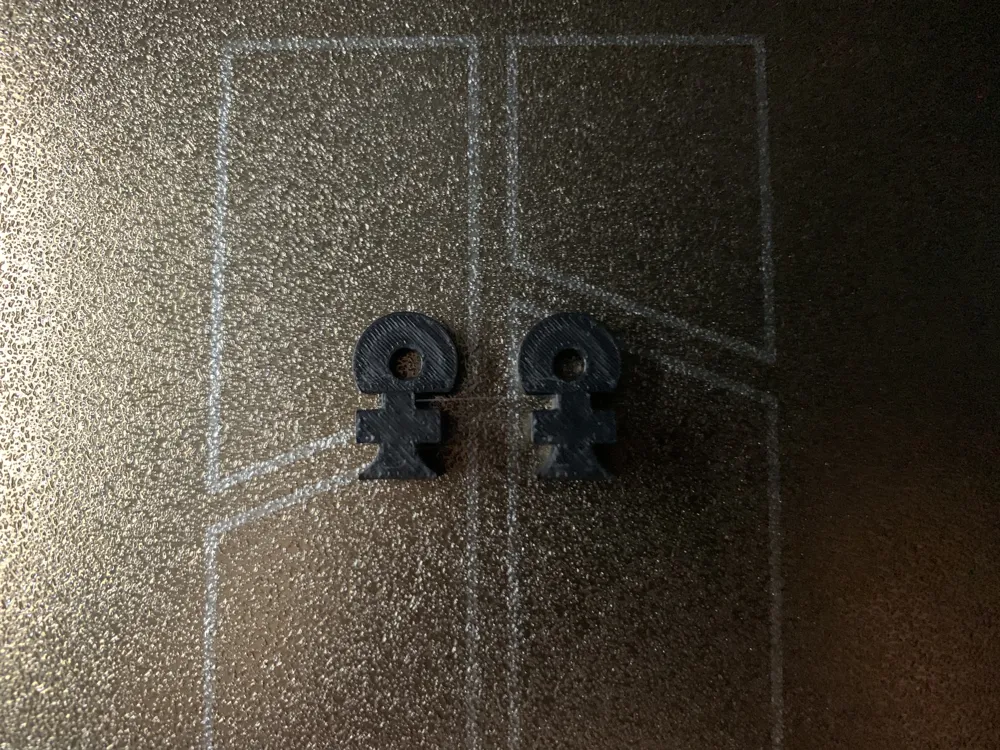

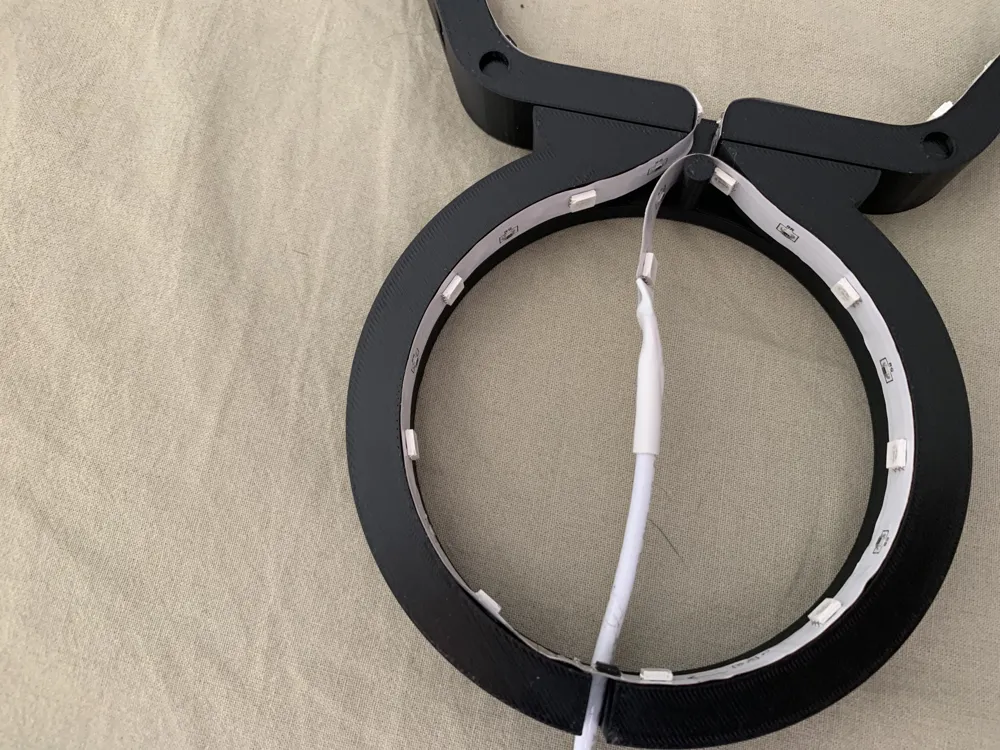

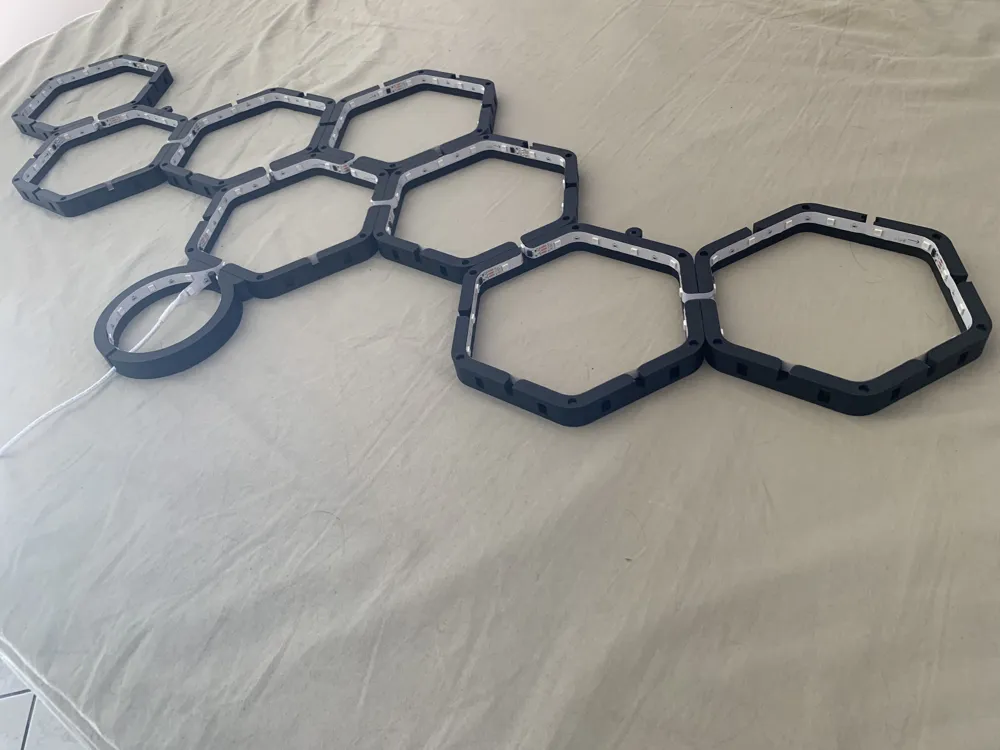

I designed a generic modular hexagon using Fusion 360 that can be connected by printing the same hexagon multiple times using connectors. On one side of the hexagon, I created a shape to insert a hook, so I could hang this decoration on the wall. When assembling the individual hexagons, keep the hook's position in mind. The hexagon is designed to accommodate a 10mm wide LED strip. I assembled it this way to my liking, creating this shape (I've attached an attachment to show the LED strip's routing).

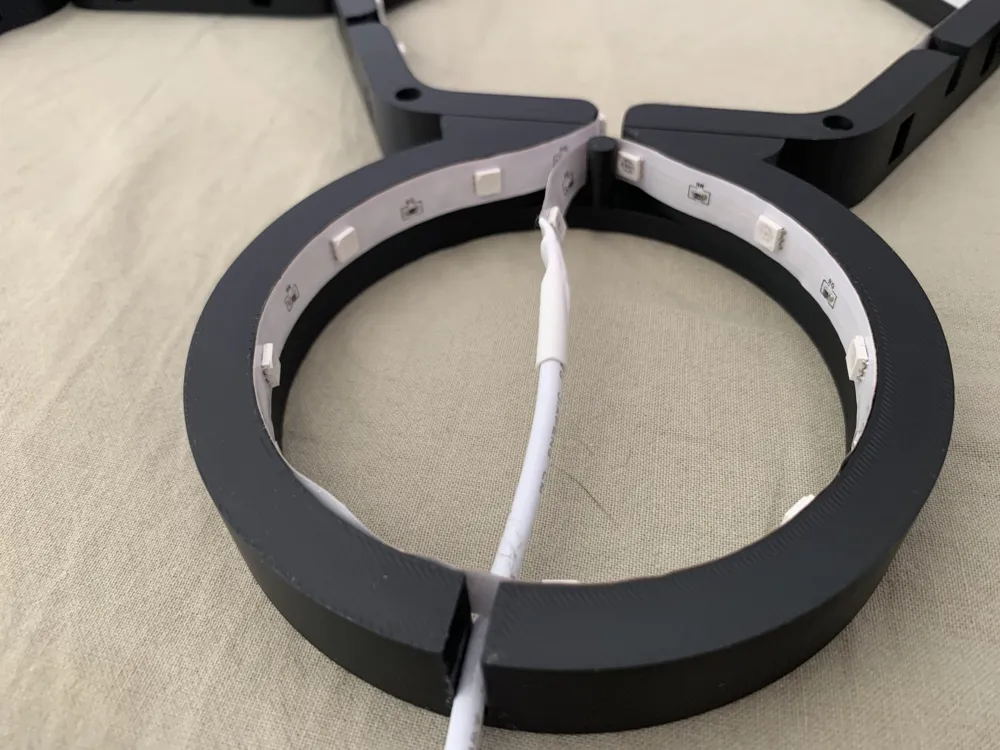

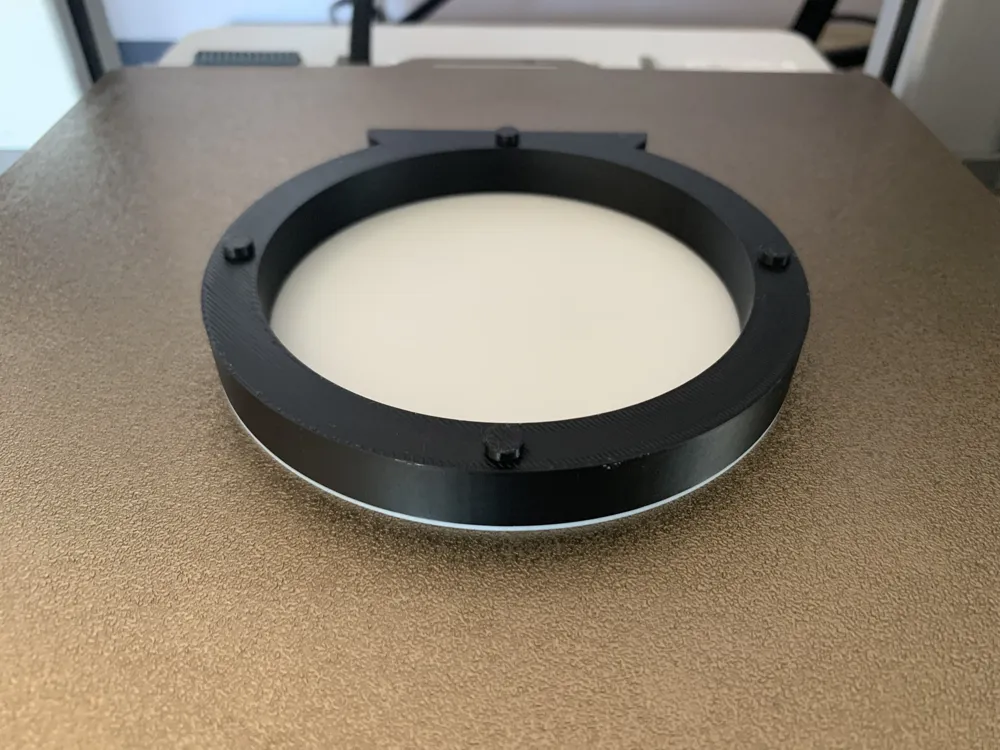

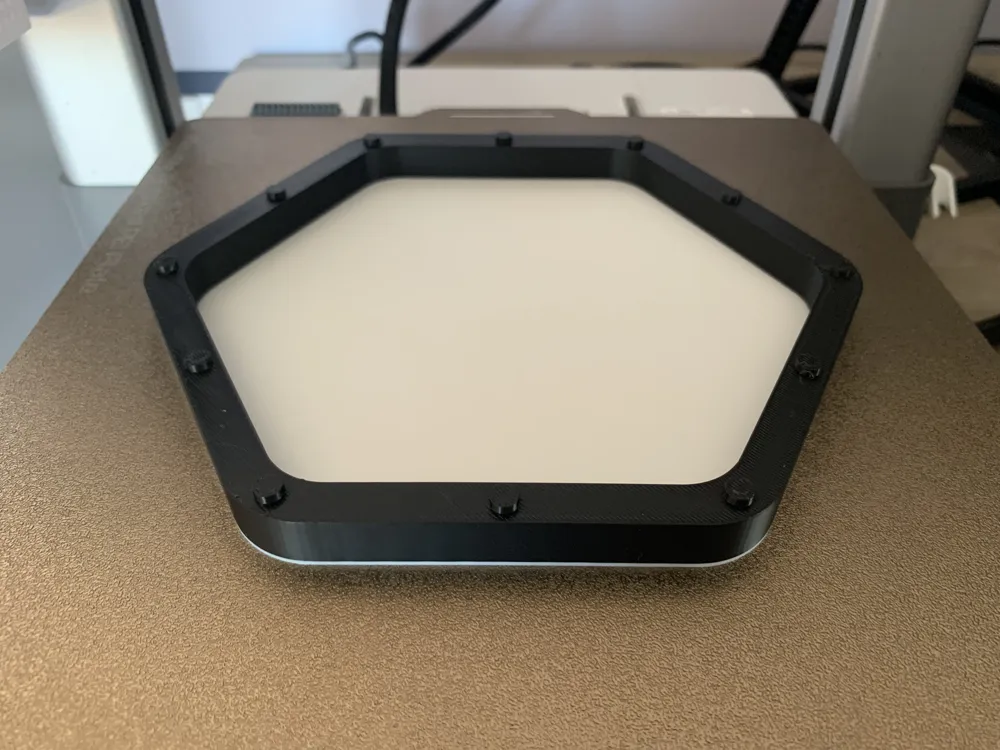

Feel free to create any shape you like. Each hexagon takes up approximately 520 mm of LED strip, so with a 5-meter strip, you can use it all to create 9 hexagons. I made 8 because I liked the shape I created. If you want to be sure before placing the connectors, apply a drop of glue where they will be inserted. I also included an optional groove to hide the excess LED strip at the bottom. I decided to separate the front cover from the LED cover so I could add logos to other projects later. Then, simply print the complete cover with the logo and replace it as you like without having to redo the whole thing. Follow me for more logo covers...
If you like my project, support me by downloading and printing and commenting on the final result with a nice photo and a star rating for the project.
