A1 Front Power Switch Extender - with lock
Print Profile(2)


Description
Membership
Print & sell my models with this small monthly membership payment.
Tired of reaching around or through your printer just to turn it ON or OFF?

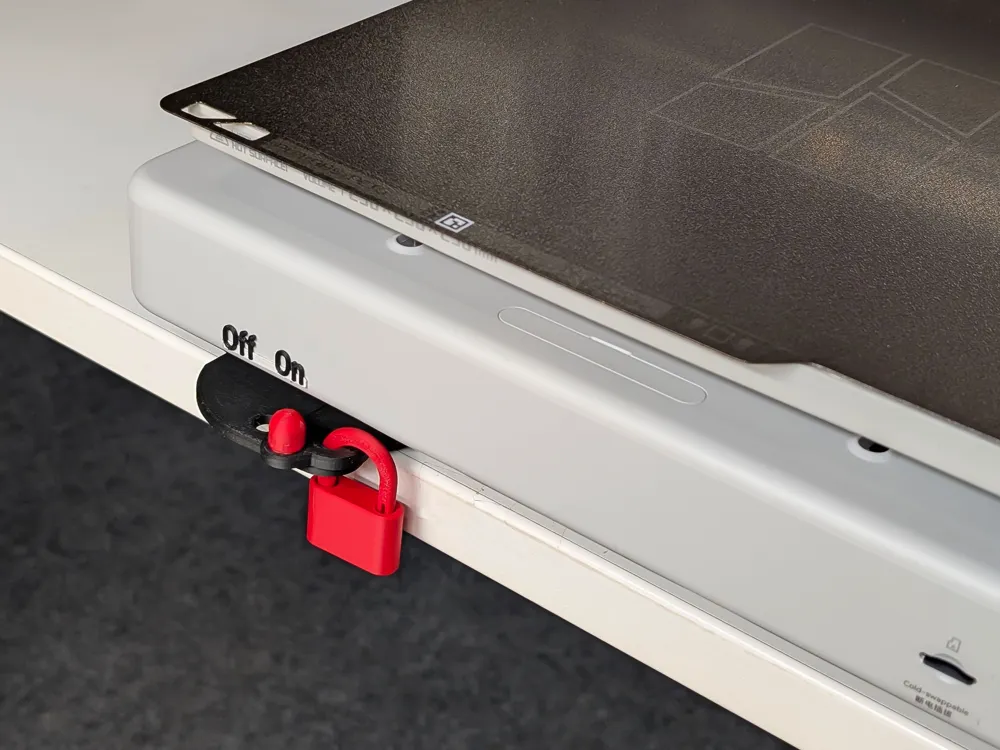

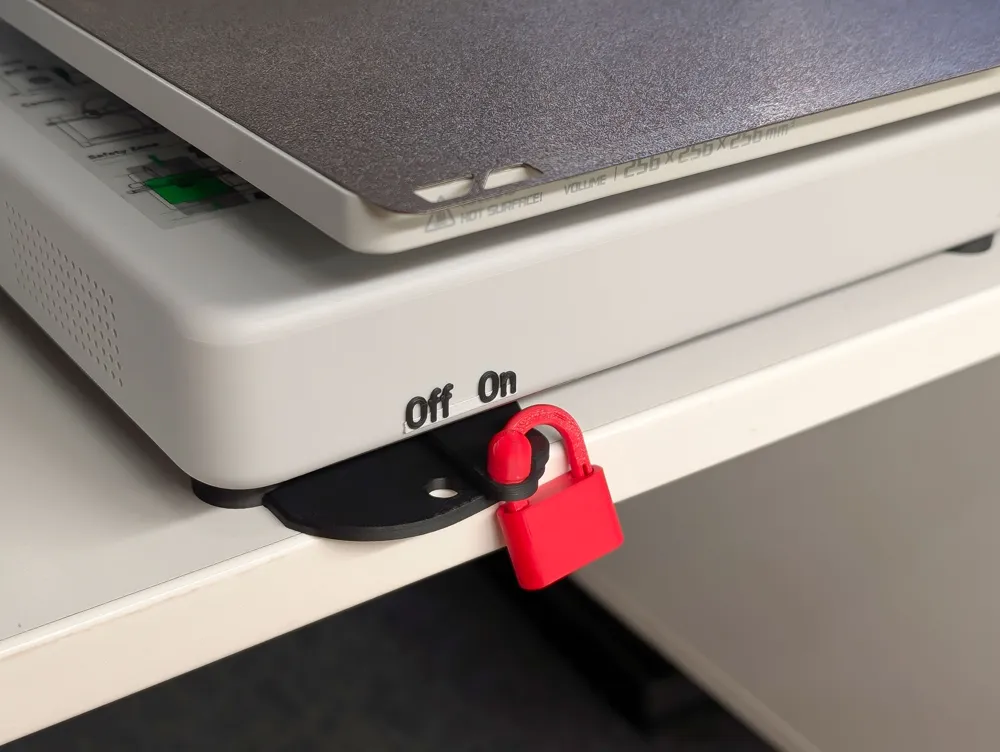

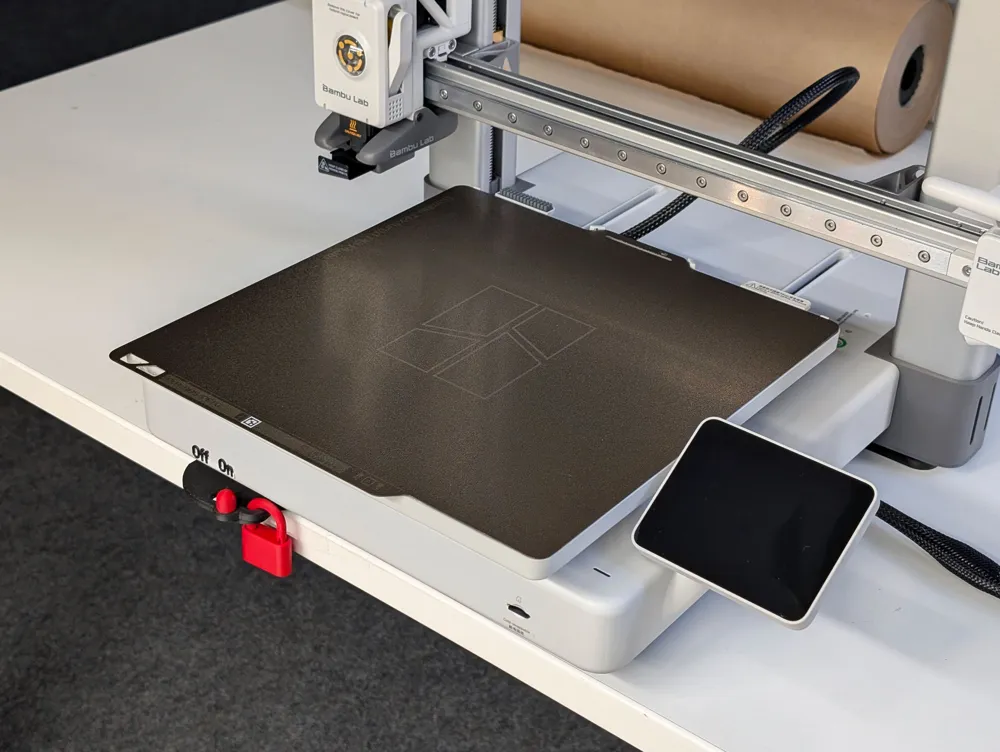

This simple but effective mod brings the power switch to the front of your A1.

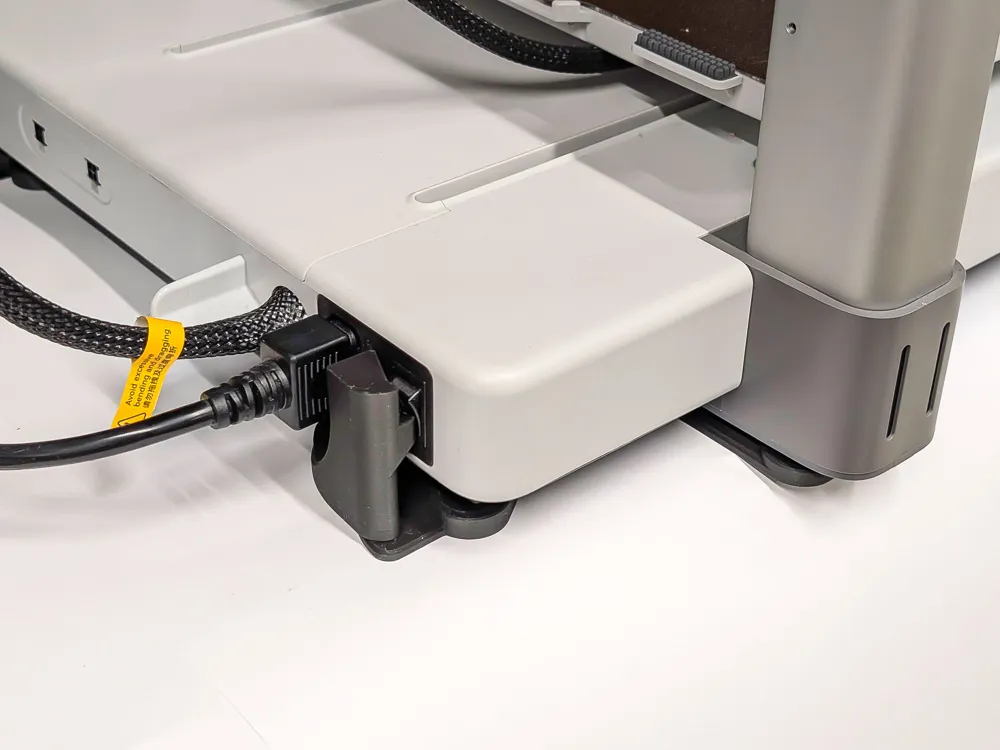

No more awkward stretching, just slide it under your printer and use!
For installing on A1 printer, you need to check that every corner leg is in its place.. start from one corner and go around the printer.
This is a version for A1 printer, other models available:
Any Material – PLA, PETG, ABS… works with whatever filament you have, BUT make sure to select at least 5 walls, 25% infill and 5 top / bottom shells. Because those parts are large and want to bend a little - but we need them to be sturdy!
No Extra Parts or tools needed – no screws or any other hardware needed (in some cases you need superglue)
Space-Saving – no extra clearance needed at the sides or back
Hot-Swap Ready – can be installed even while the power cord is plugged in and printer is on (be careful).

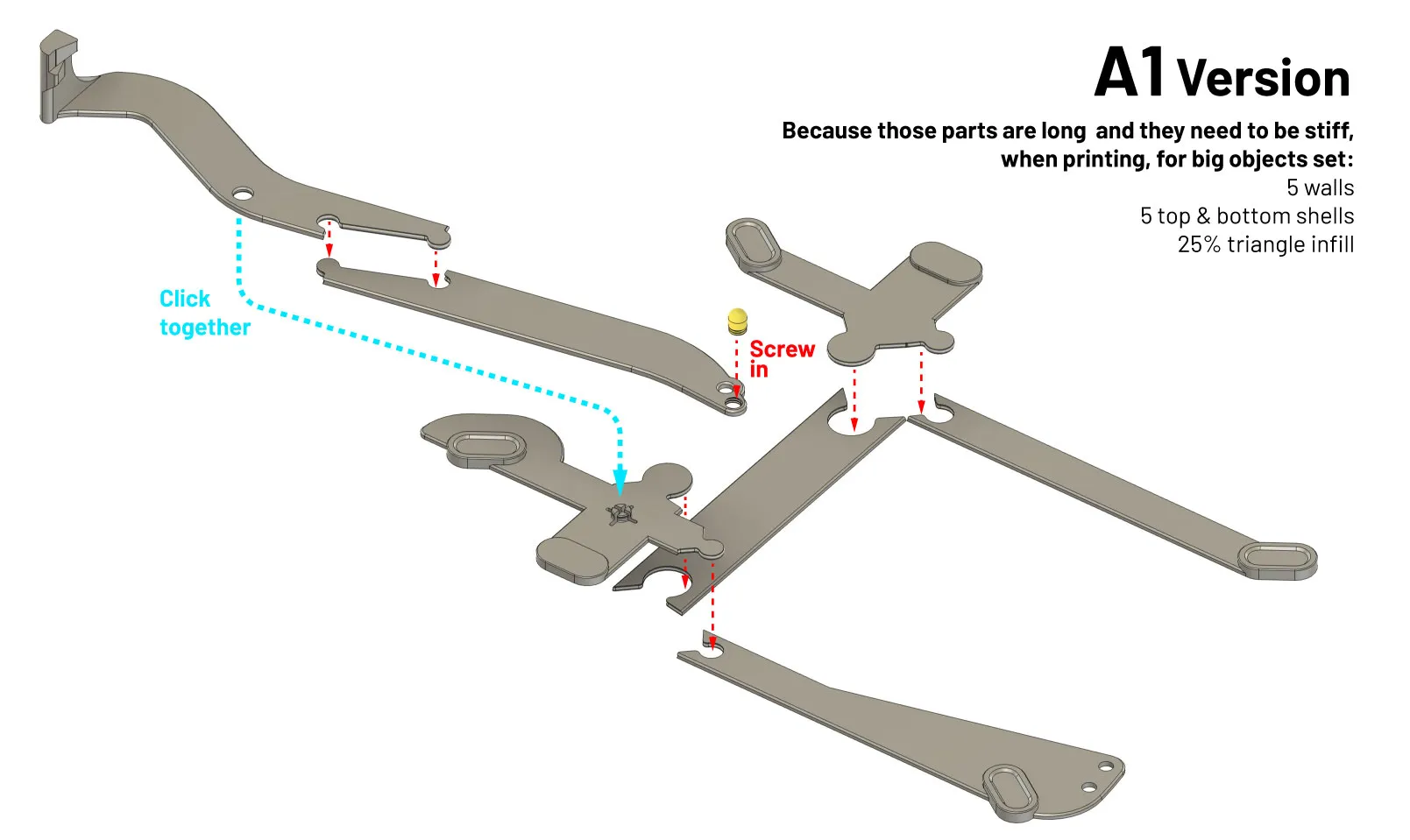

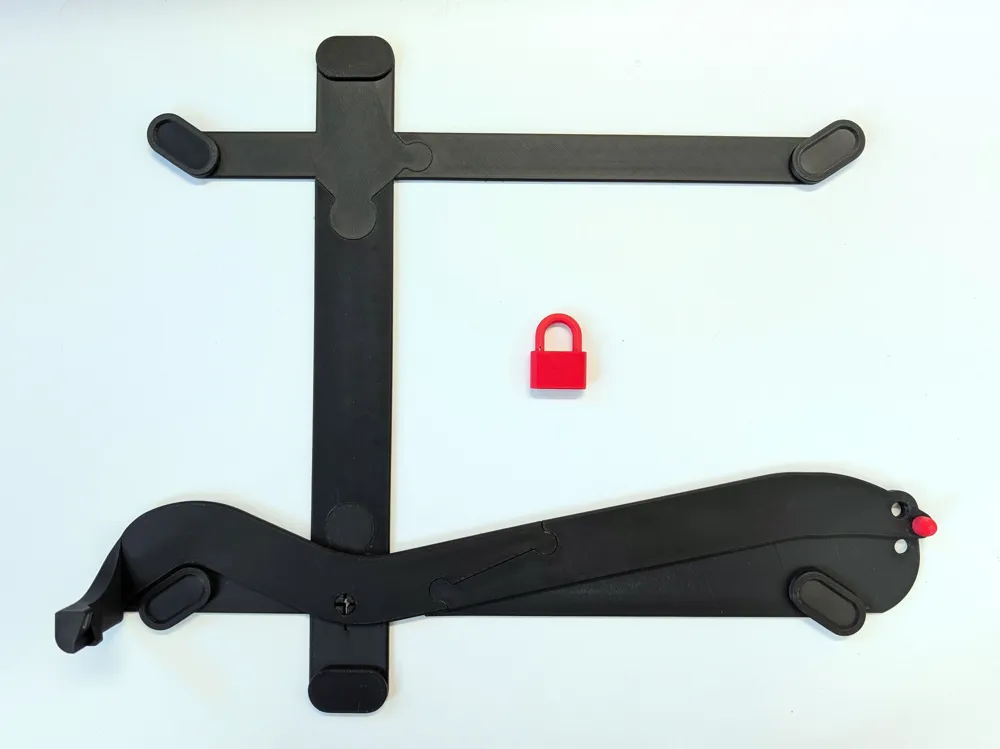

Print and click all together like in this drawing.

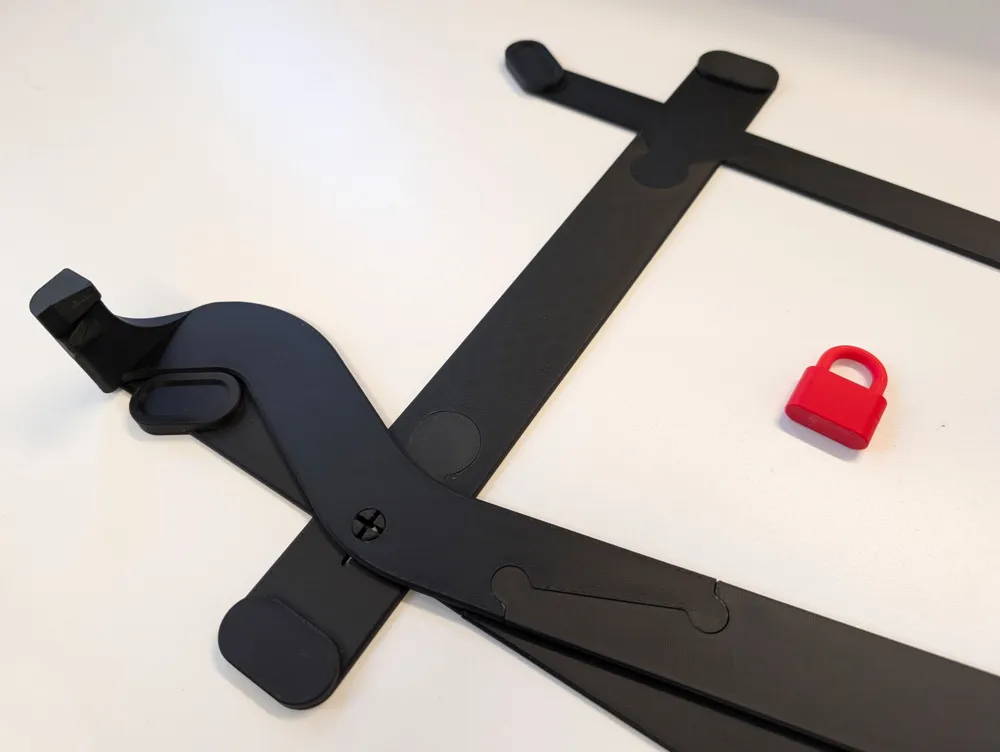

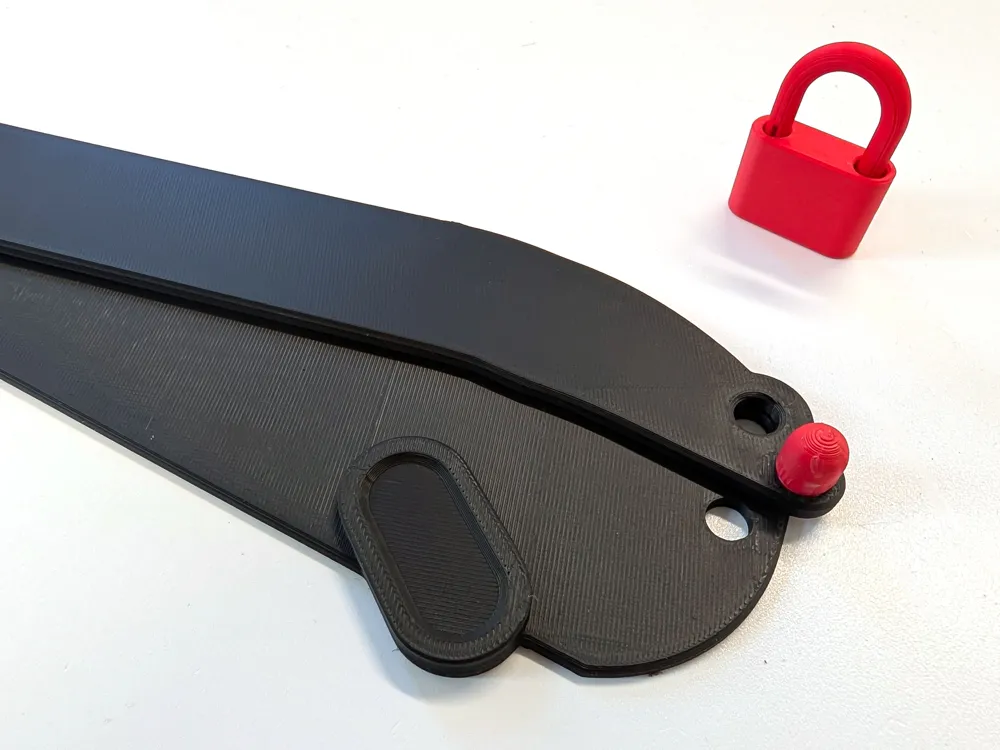

To click it together twist it a little bit.. it should click in place nicely.
When printing full plate objects, it's better to turn on manual plate calibration.

With this extender, you’ll always have fast and convenient access to your power switch — without changing your setup or disassembling your printer. Additionally, if you want, you can print button from other color, and print ON/OFF letters, look for them on the last plate.
Have a look at my other models too!
