Half-Size Gridfinity Baseplate Collection

The half-size Gridfinity collection splits the standard Baseplate square in to four, doubling the number of sections for each full-sized grid. This allows you to create Gridfinity modules of a more granular sizes to hold smaller items, or create custom modules to hold oddly shaped tools. The half-sized modules fit evenly in to a standard sized square, allowing full backwards compatibility with existing baseplates you may have.

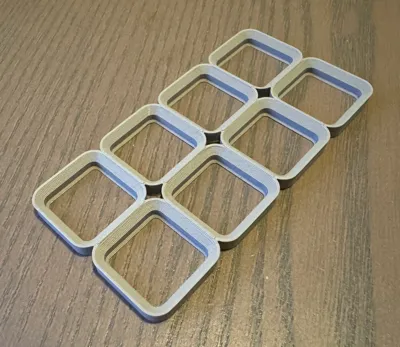

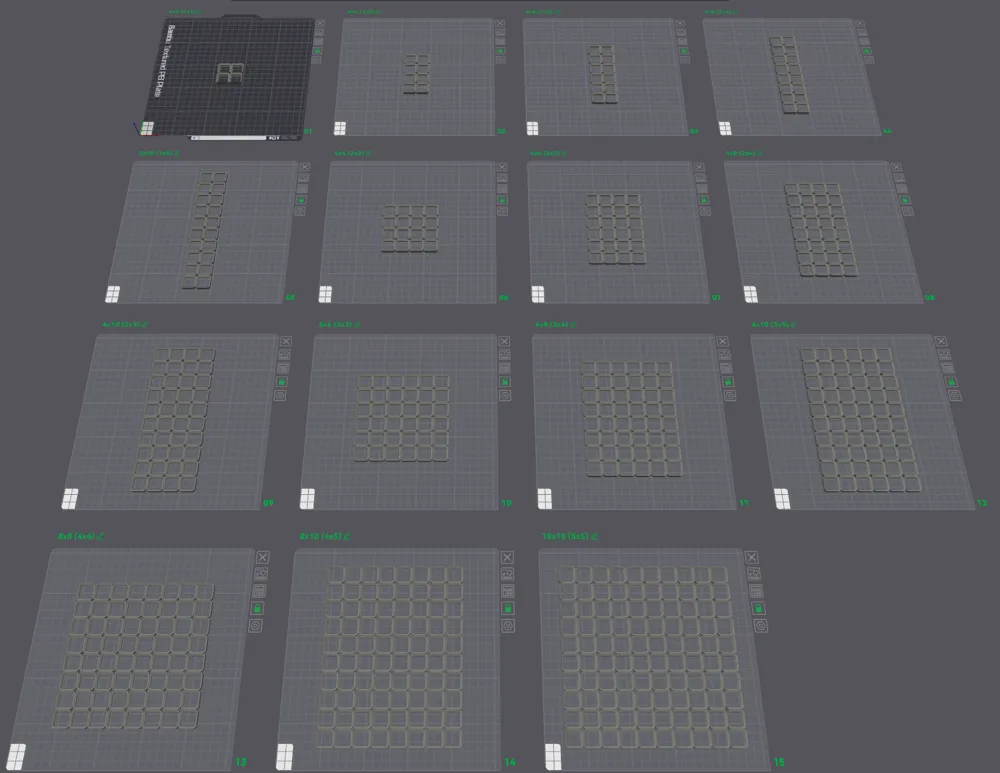

This model contains a collection of half-sized Gridfinity baseplates, from 2x2 (1x1) to 10x10 (5x5). Each Baseplate is listed in an individual print plate to make printing as easy as selecting a plate and slicing from one single project. Each plate is labeled with the half-sized Gridfinity square count in columns and rows, as well as the equivalent standard size count in parenthesis.

All the exported baseplate files have been included in the Raw Files section, as well as the FreeCAD project used to generate them.

---

More Half-Size Gridfinity Projects:

Half-Size Gridfinity Container Collection + FreeCAD Generator

A collection of 0.5xN standard sized half width containers.

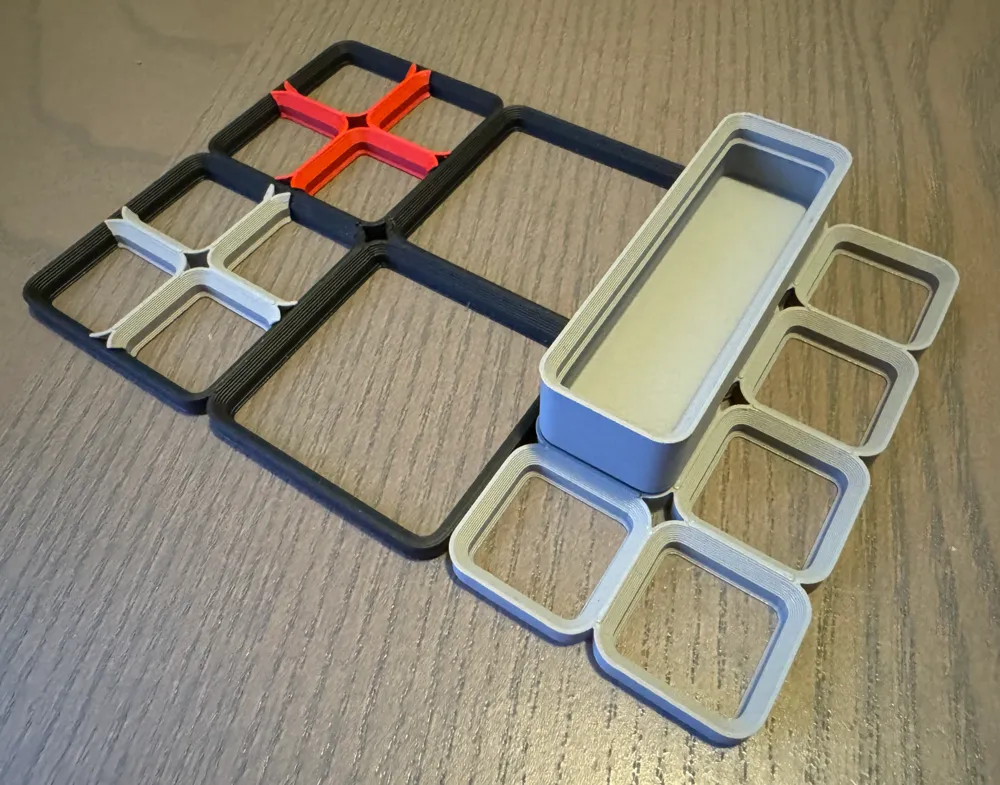

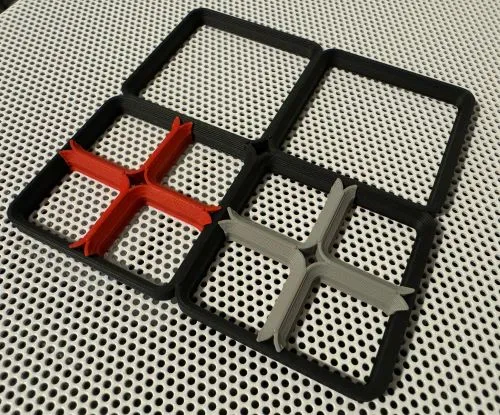

Half-Size Gridfinity Baseplate Divider

An insert for standard sized Gridfinity baseplates, allowing you to divide up an existing baseplate in to half-sized squares. Helpful if you don't want to reprint a whole baseplate setup in order to use a few half-sized containers.

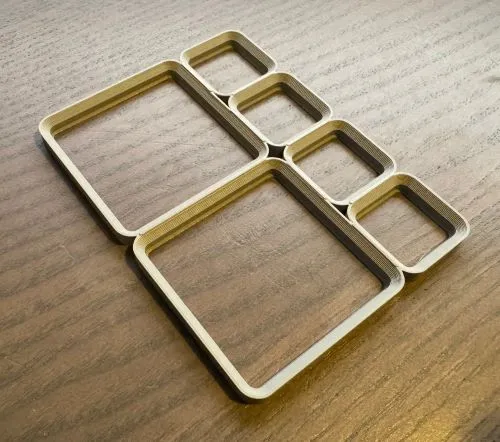

1.5 Width Gridfinity Baseplate Collection

Provides some basic Gridfinity baseplates combining 1 column of standard sized squares, and 1 column of half-width squares. These provide a handy method to squeeze in an extra set of baseplate squares in to a tight space, or to give some half-width squares a bit more support along side some larger Gridfinity modules.
