Customizable Multiboard Hooks

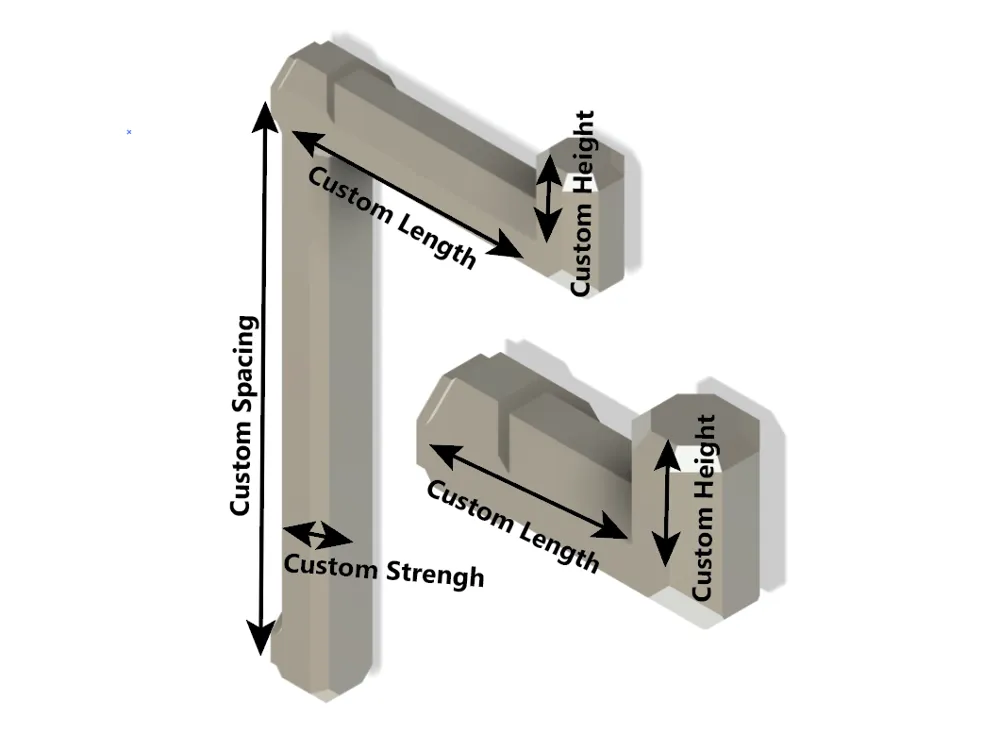

This is a remix of the classic Hook (Bolt-Locked Insert). It allows you to set custom parameter, without needing to modify the hook.

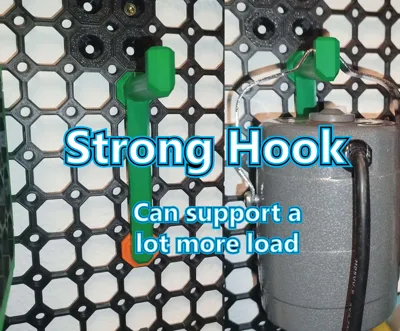

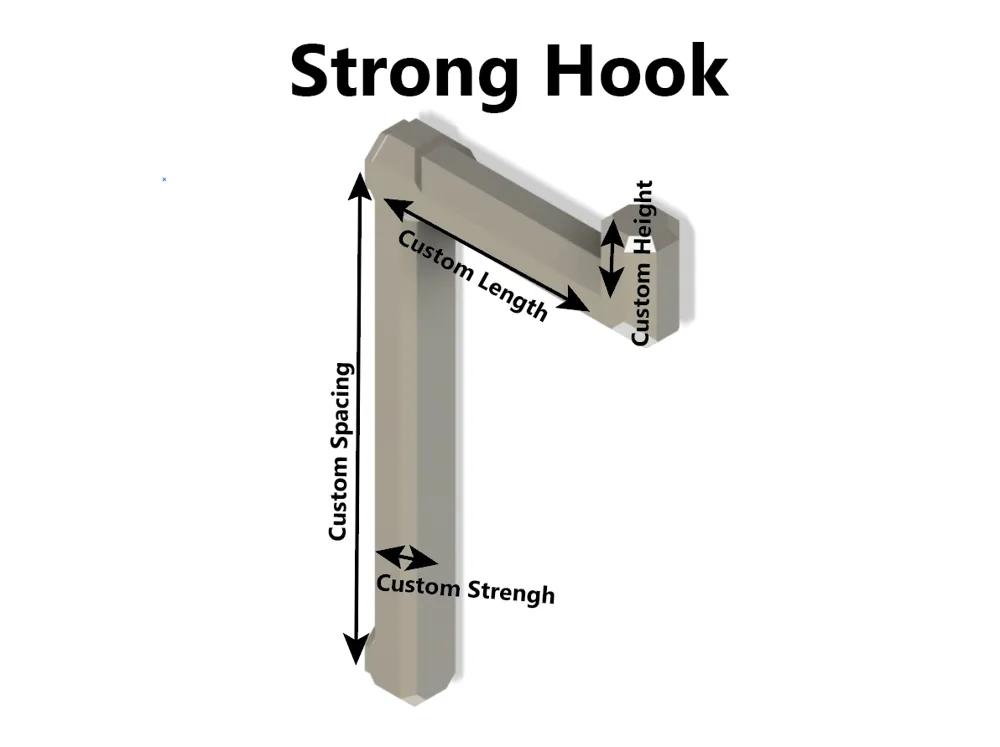

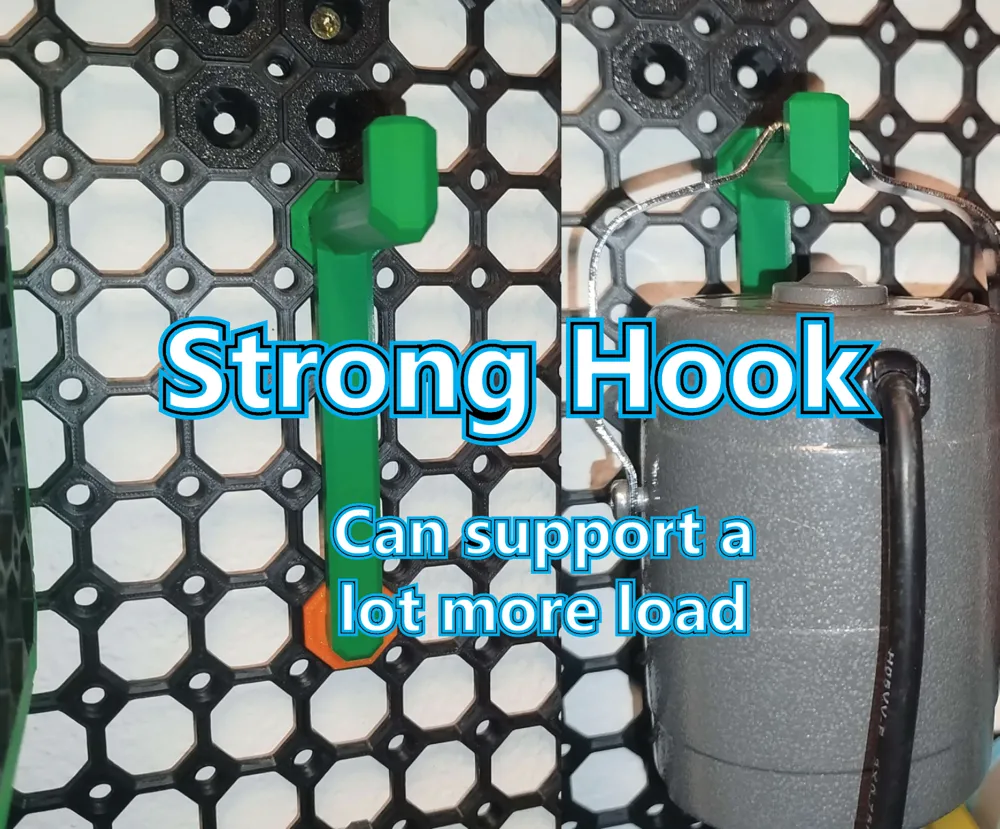

Strong Hook

• For highest Strength, use a Heavy Weight-Bearing Hook Snap at the Top and a Normal Snap at the Bottom.

Here a Pegboard Hooks, if you are interested.

Original Multiboard description:
This hook connects to a Moderate Multiboard Snap or Heavy Hook Snap and is secured using a Locking Bolt.

Keep in mind, Heavy Hook Snaps are stronger than Moderate Snaps but they don't work with flush mounted boards.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
