Dreame A2 Shield and 4 different blade disc models
Print Profile(1)
Bill of Materials
- Threaded M4 inserts x 6:
- Roboticlawn mover blades (35mm) x 6:
- M4 bolts (25 or 35 depending on height choice) x 3:
Description

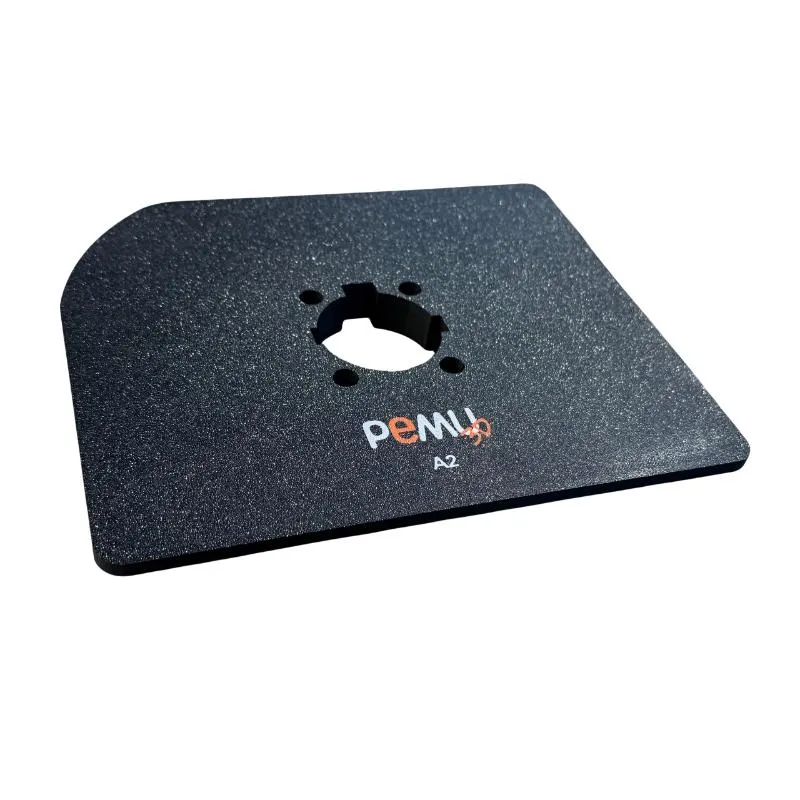

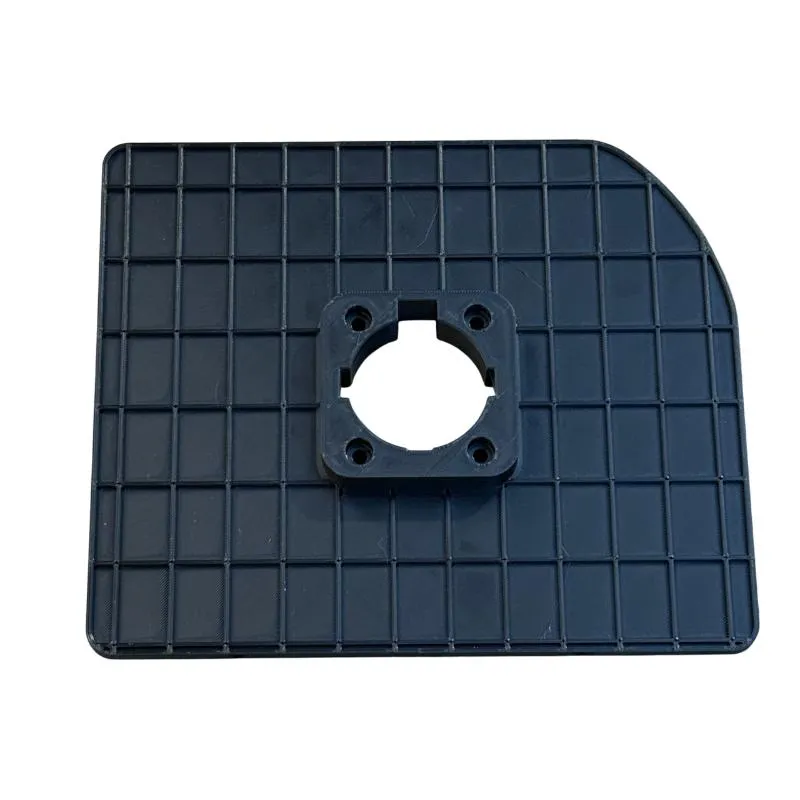

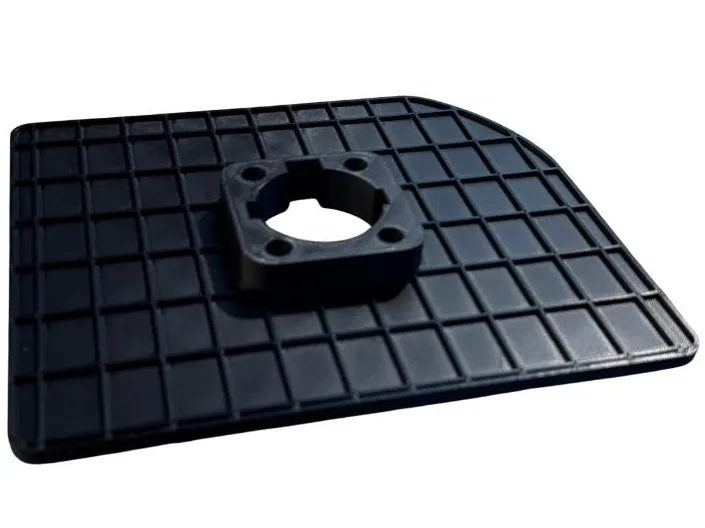

The popular disc shield from my Dreame A1 lawnmover is now remade to fit the Dreame A2!
This model also includes all my different blade disc models also possible to use for your A2.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
A maximized blade disc size for your Dreame A2 lawnmower. Including blades, these discs provides a full 26.5 cm cutting width and comes with 6 blades! Skip the original blades and replace them with better alternatives.

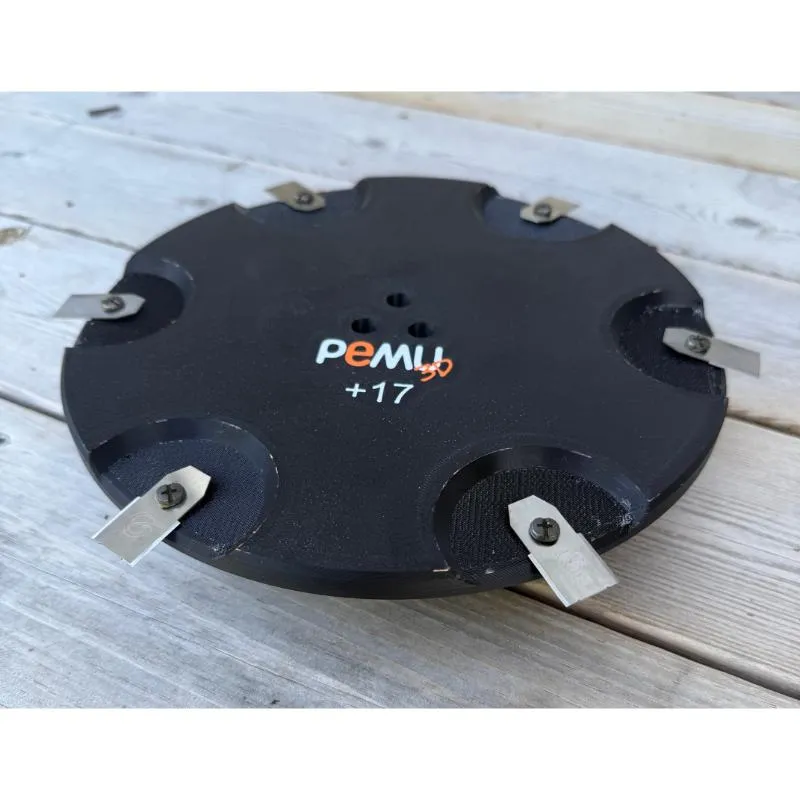

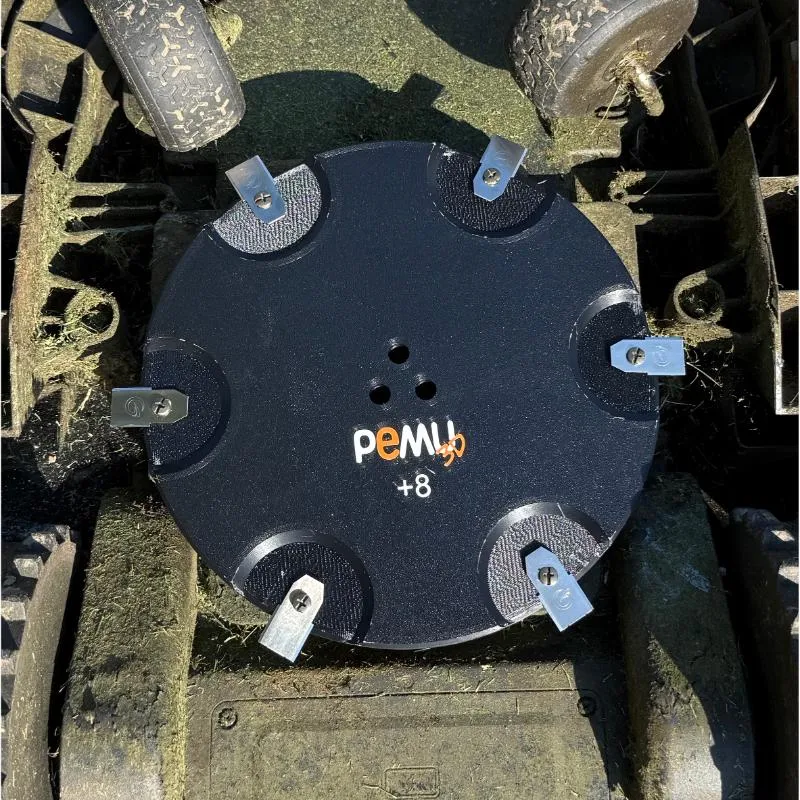

+8 makes the cutting height is lowered by 8mm so when adjusting the cutting height in the lawnmower app, have that in mind. The +17 lowers the cutting height by 17mm.
The advantage of this new v2 is that it has recessed knife slots, which reduces the risk of screw heads hitting anything. It also features a solid skeleton structure that enhances its durability in case of an accident!
Mounted blades: https://pemu3d.se/en/pemu3d/grimsholm-automover-gardena-mfl-36-pack/
Threaded inserts: https://www.amazon.se/dp/B0D477DN3M?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

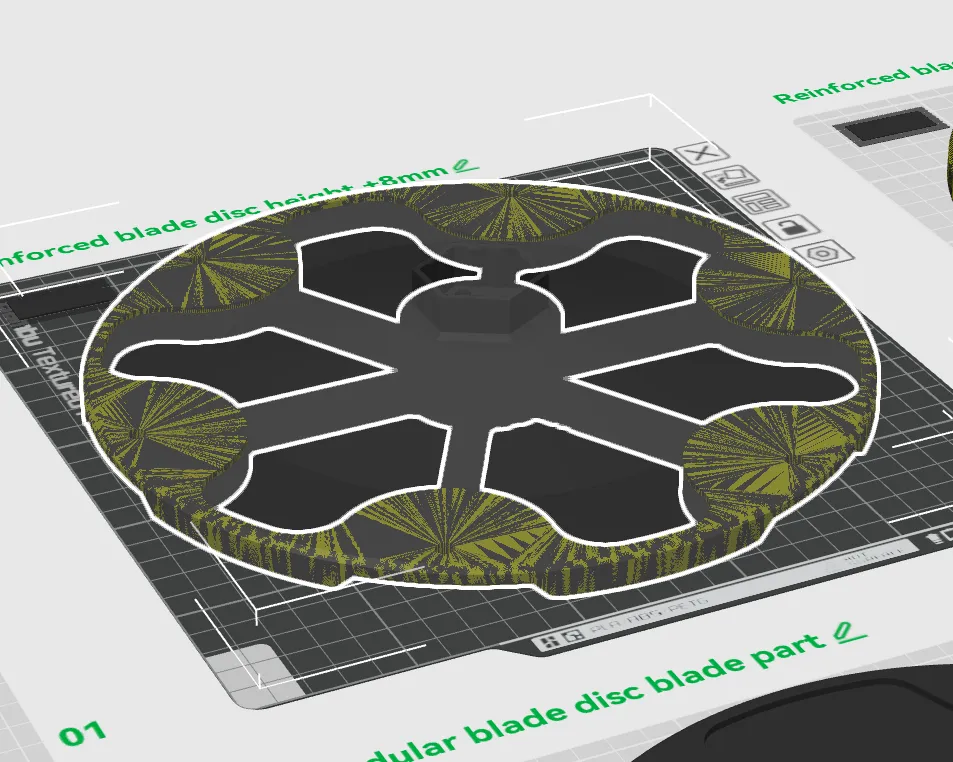

Support is needed in the screwholes and at the blade positions.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

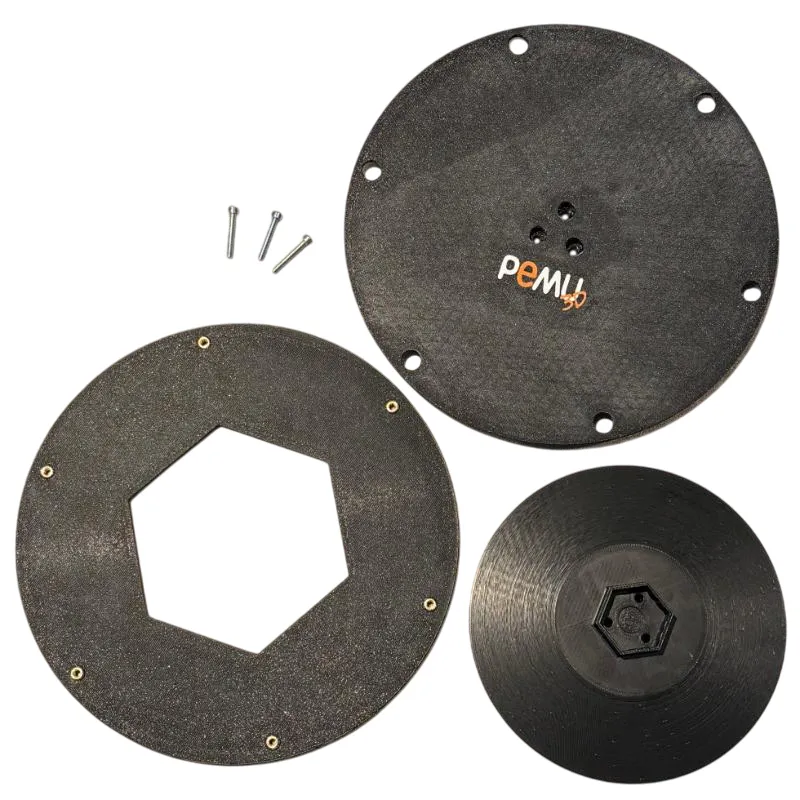

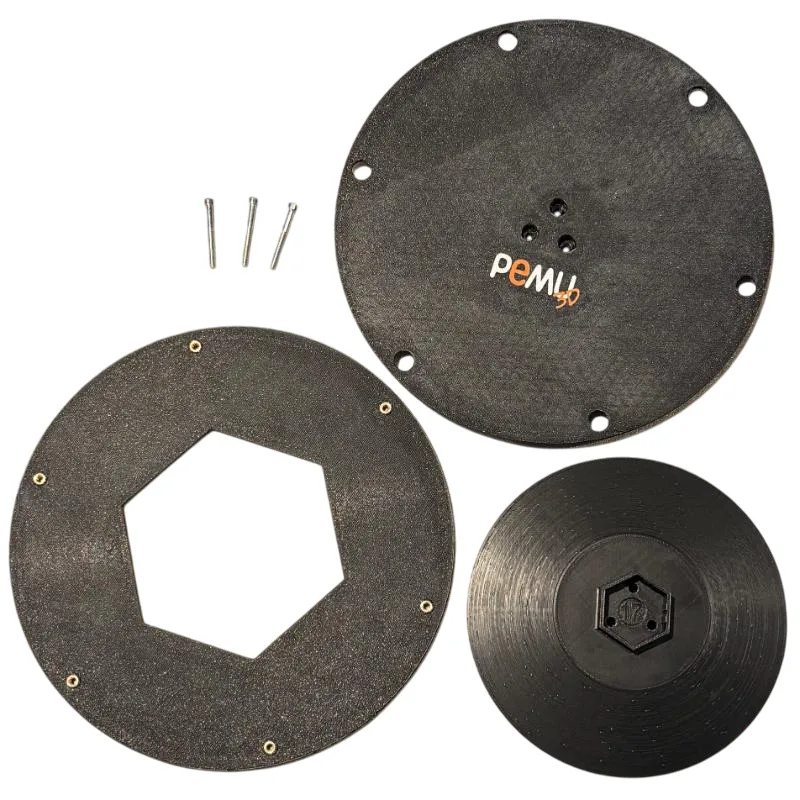

A version you can swap your cutting height and I also added an protective shield so that in case of an accident where hard things hit the screwheads the shield takes the hit and not trashing the whole disc!
Maximize the cutting with of your Dreame A2 mower with this disc.
Cutting width with this is 26,5cm compared to the original 21,5cm and 6 blades instead of 3 and lowers the cutting height by 8mm or 17mm.
Depending on height choice, new bults are needed to attache the disc.
m4x25 for +8
m4x35 for +17
Blades mounted: https://www.amazon.se/dp/B0CX4YNDB9?ref=ppx_yo2ov_dt_b_fed_asin_title
Threaded inserts: https://www.amazon.se/dp/B0D477DN3M?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Support needed
