Framework Card Holder

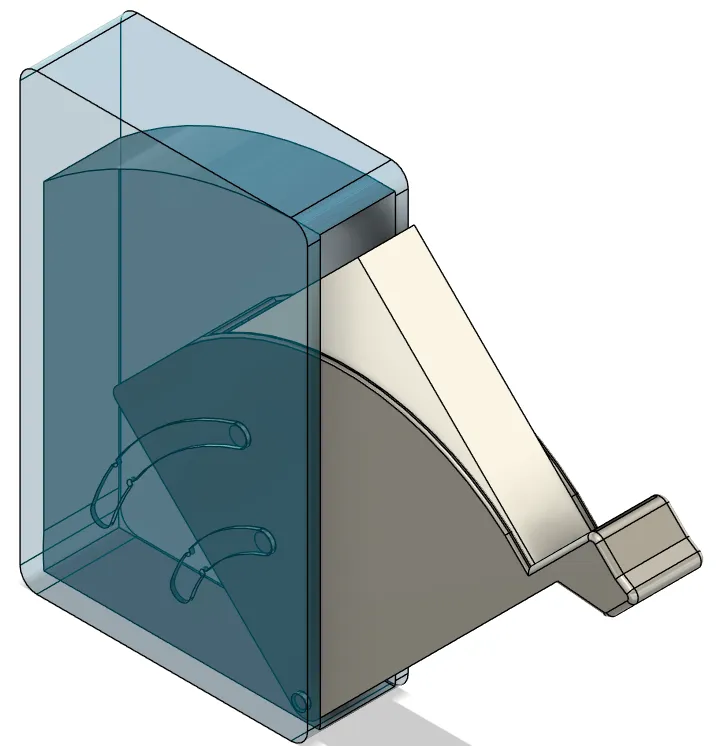

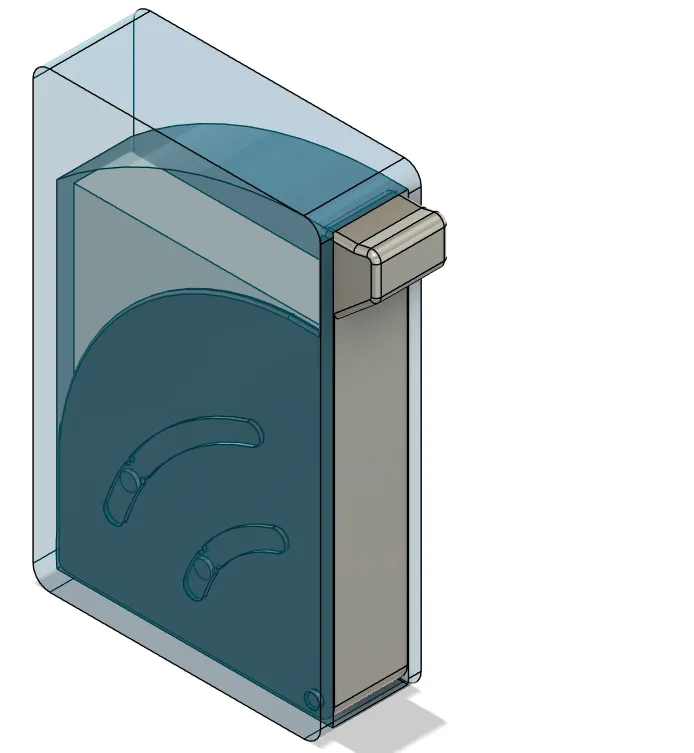

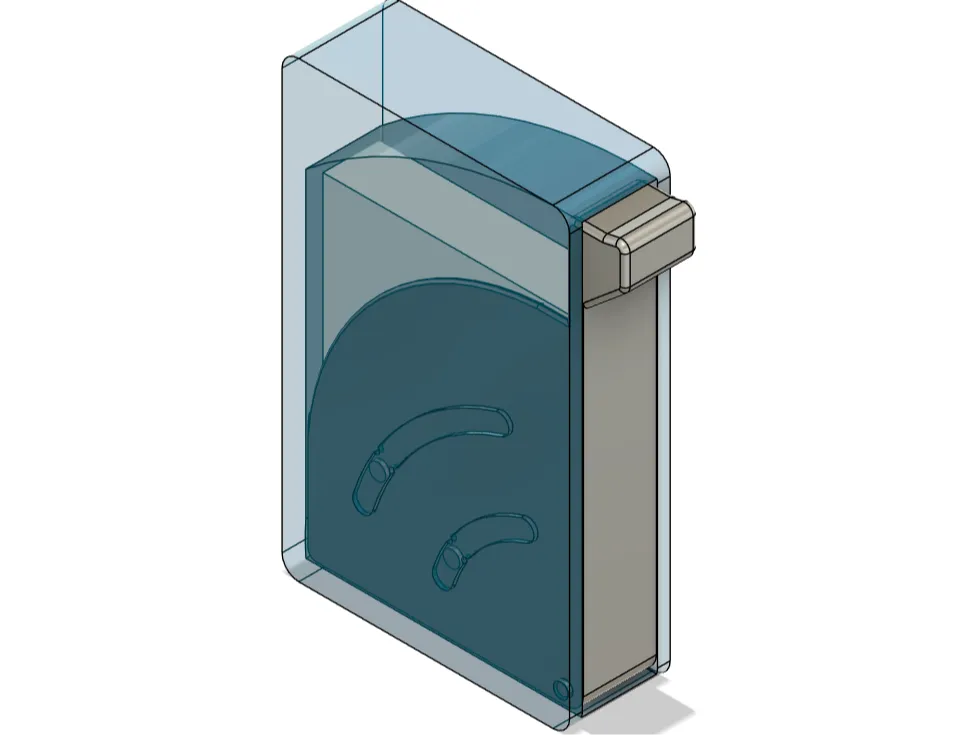

A little card holder for framework cards that rotates outwards and locks into place when rotated back in. Doesn't work for the Ethernet card or any other non standard form factor card (As in when slid into laptop doesn't extend past edges of its slot). Special Thanks to my beta tester that gave me valuable feedback to improve the model <3.

(Edit added reinforced slide so the handle doesn't break as easily i would recommend using this version but other is still available)

As for print settings i would recommend
.2mm layer height
Print thin walls
Having the housing lay flat with hole face up
Having card holder flat hole facing strait up
.4mm nozzle (It works perfect with a .4 mm nozzle might not work for larger sizes but should for smaller haven't tested though)

Assembly
After making sure the pin at bottom lines up with the pin slot in the holder slide the card backwards and then push down a bit and it should click into place. Don't use to much force though.A little card holder for framework cards that rotates outwards and locks into place when rotated back in. Doesn't work for the Ethernet card or any other non standard form factor card (As in when slid into laptop doesn't extend past edges of its slot). Special Thanks to my beta tester that gave me valuable feedback to improve the model <3.

As for print settings i would recommend
.2mm layer height
Print thin walls
Having the housing lay flat with hole face up
Having card holder flat hole facing strait up
.4mm nozzle (It works perfect with a .4 mm nozzle might not work for larger sizes but should for smaller haven't tested though)

  For the reinforced slide i would recommend upping your wall count to 3

Assembly
    Normal slide assembly align the pins on the slide and in the holder and push back (Not on the handle part) until it clicks into place
    Reinforced Slide assembly After making sure the pin at bottom lines up with the pin slot in the holder slide the card backwards and then push down a bit and it should click into place.
