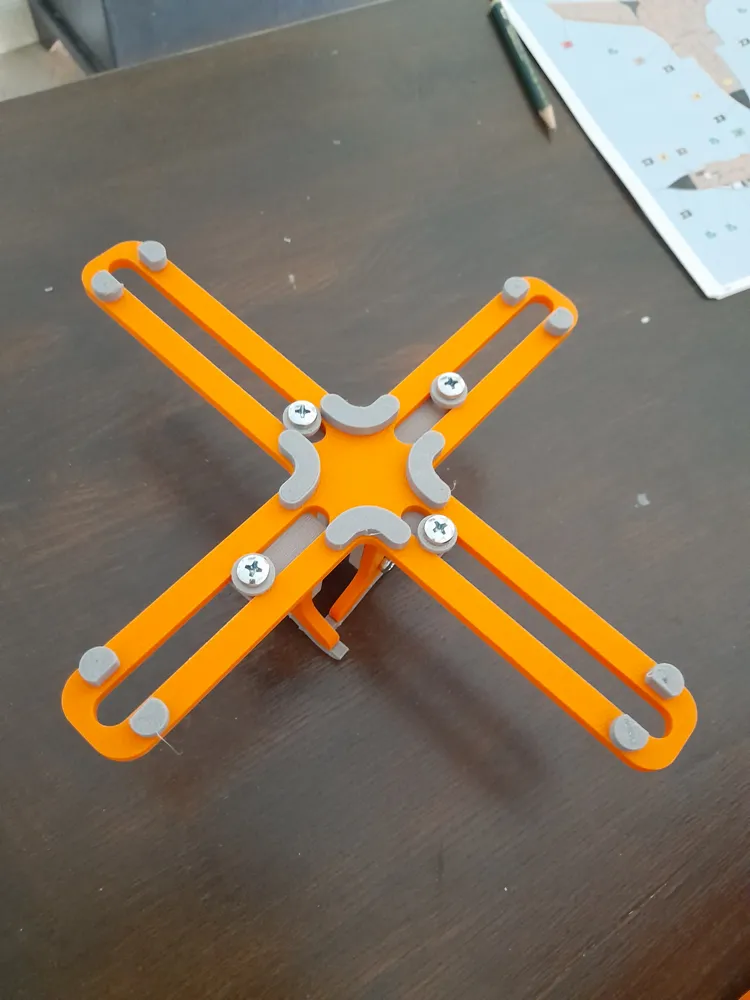

Adjustable stand

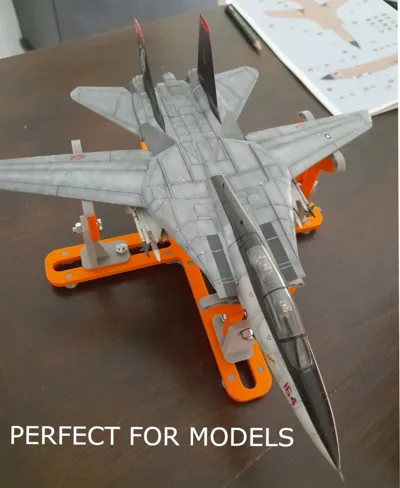

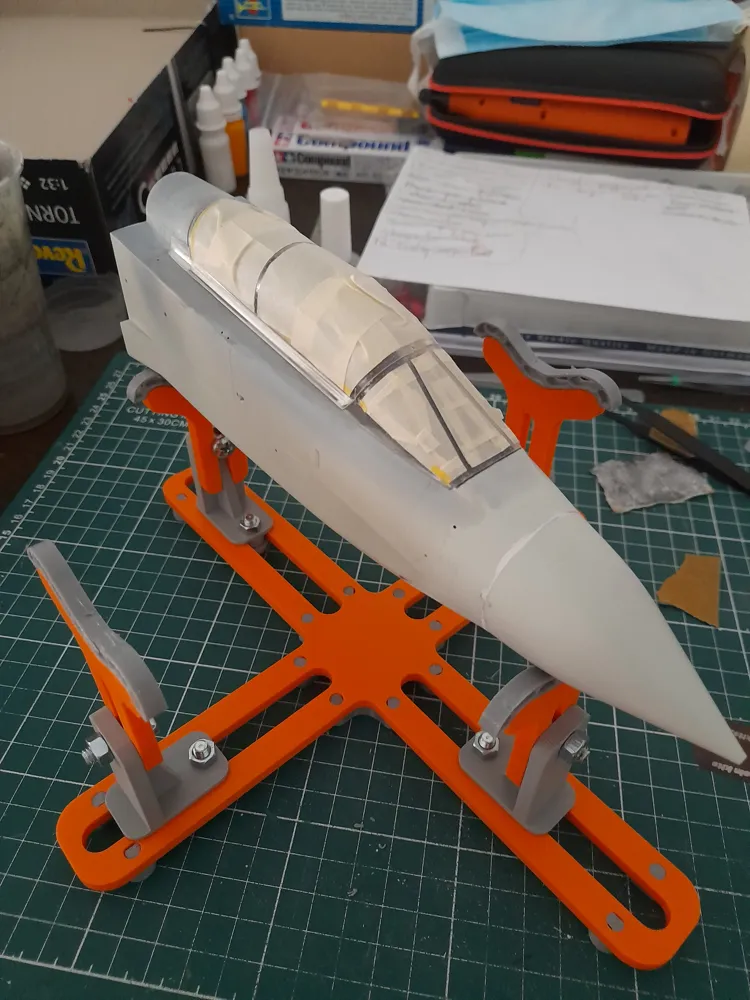

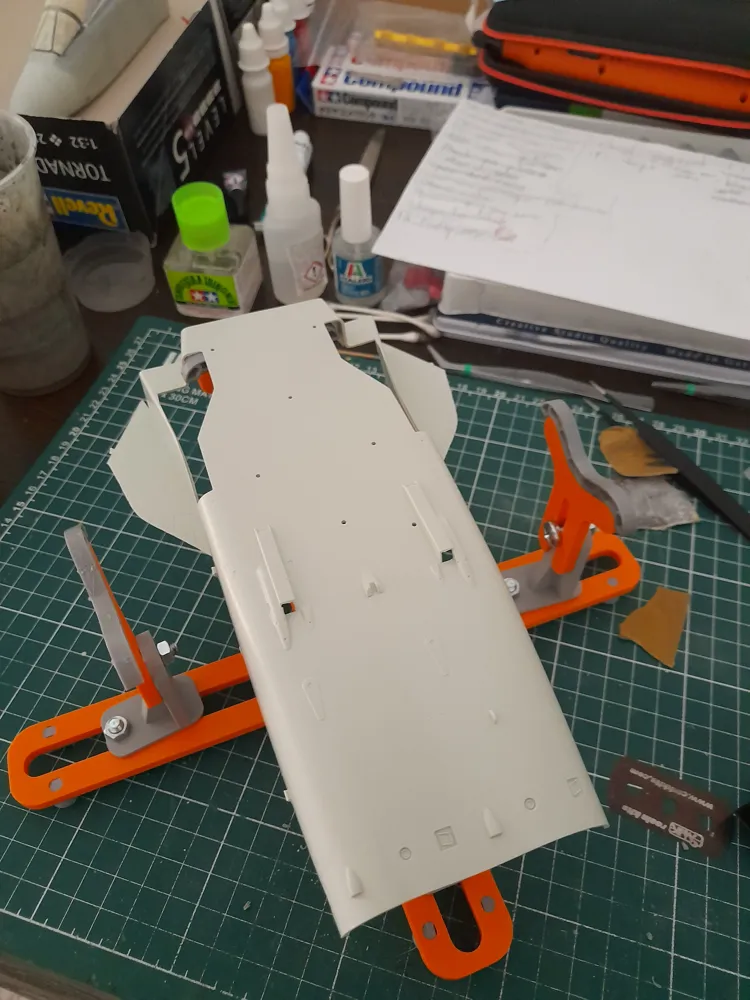

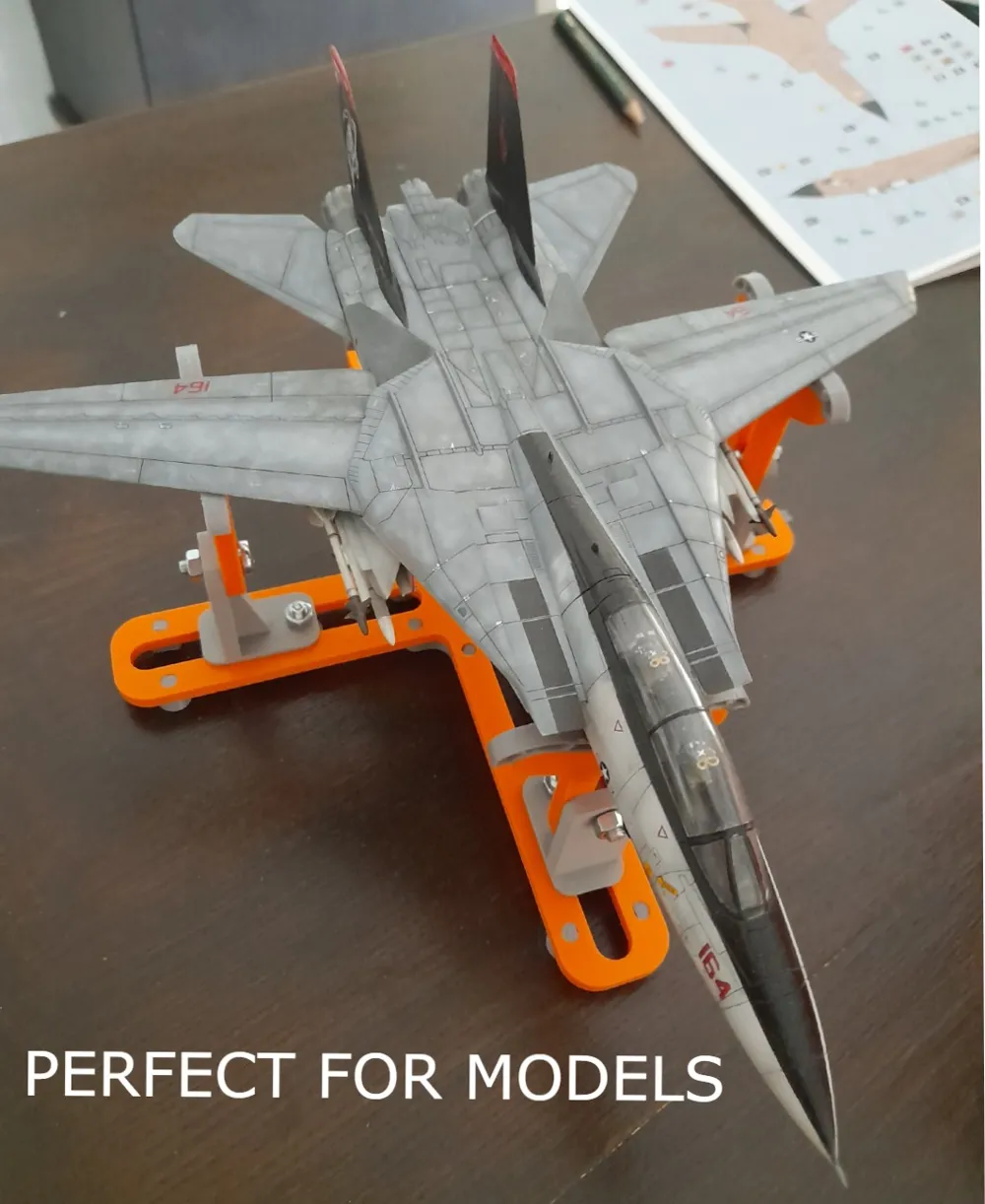

• Designed for building planes model kit

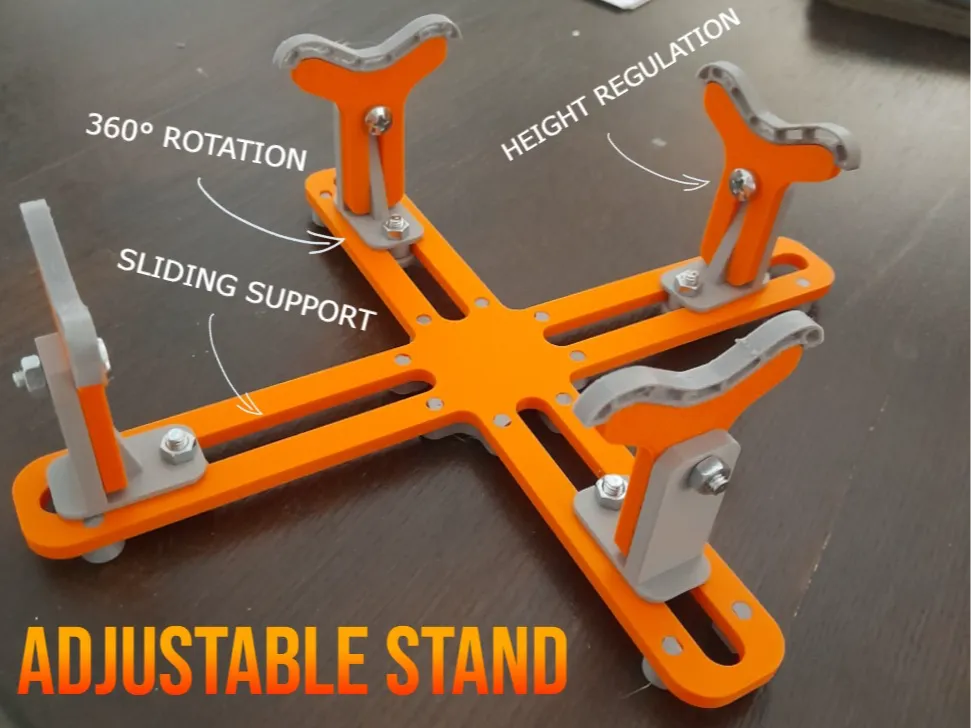

• high adjustability:
  • 360° rotation of the arm

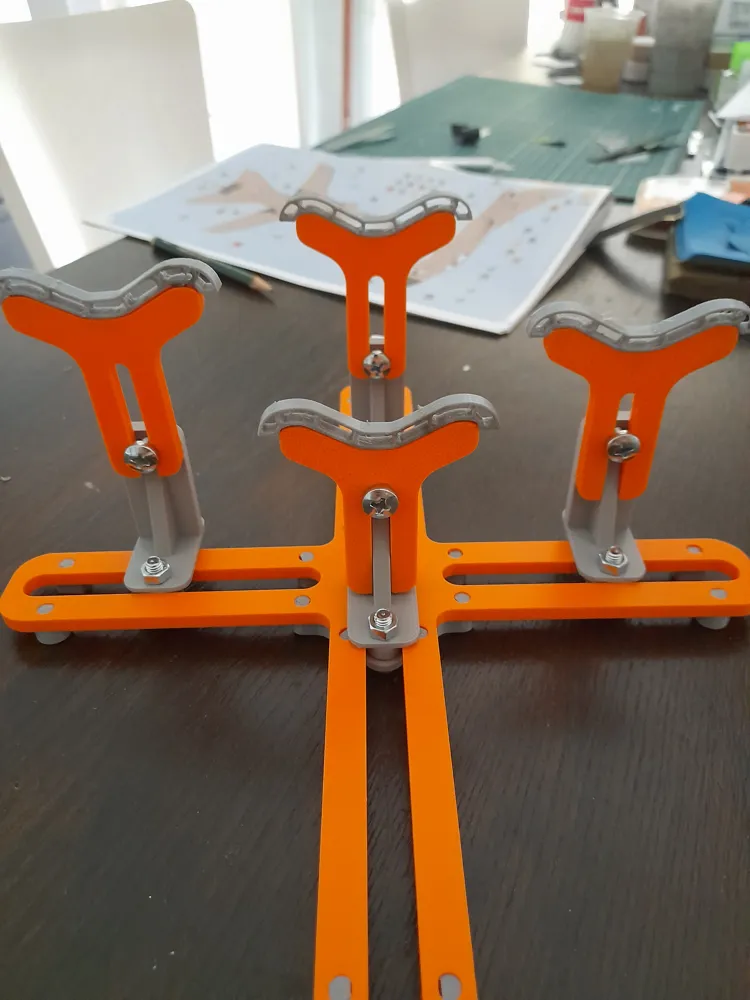

  • Height can be increased or decreased

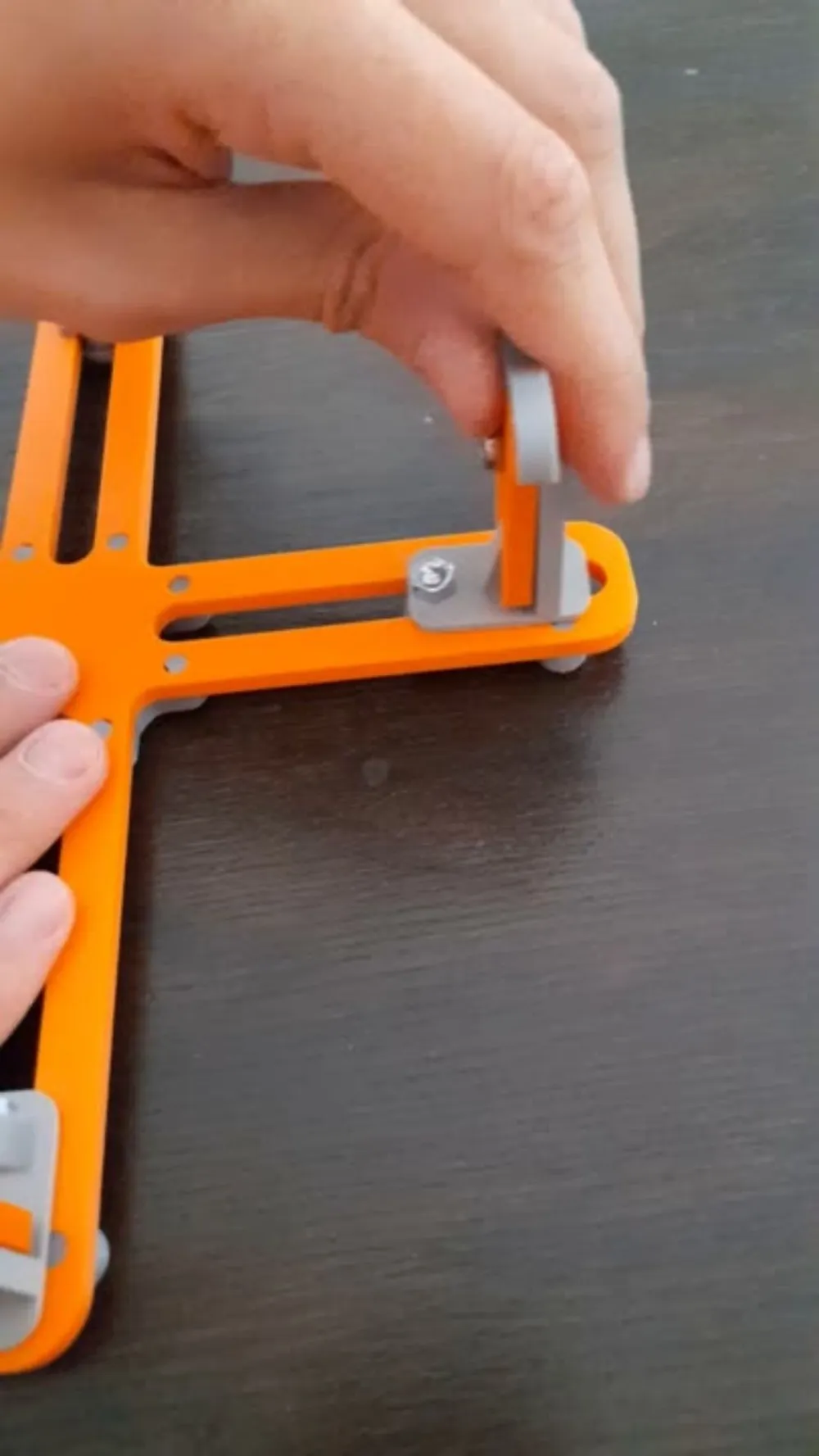

  • Arm can slide inside the rail

• Tpu anti sliding feets and soft anti-scratch arm support



MEASURES

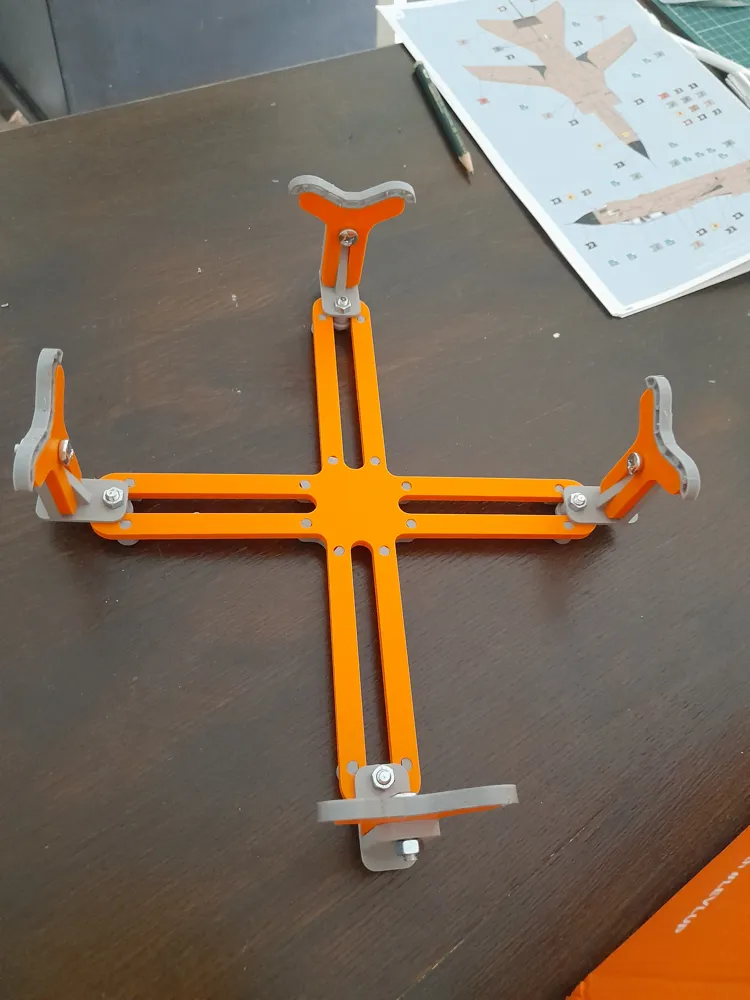

Max 244*280*82mm ( This is the max breadth it can reach with the arms turned outside, it is possible to reach greater heights but with the risk of the arms falling off).

PARTS AND MATERIALS NEEDED

• 8x M5x15 screw
• 8x M5x15  nut     (only if securing the stand is needed)
• Pla  or solid other materials
• TPU 95a is advised      (otherwise the stand will slide)

ASSEMBLY

Attention: the TPU parts might not fit in the holes because of  possible printing errors, to solve this problem try cutting the eccess parts of material in the feets, or with a lighter heat the feets to burn the eccess material.

The screws are in a tight fit so the use of a screwdriver is advised.

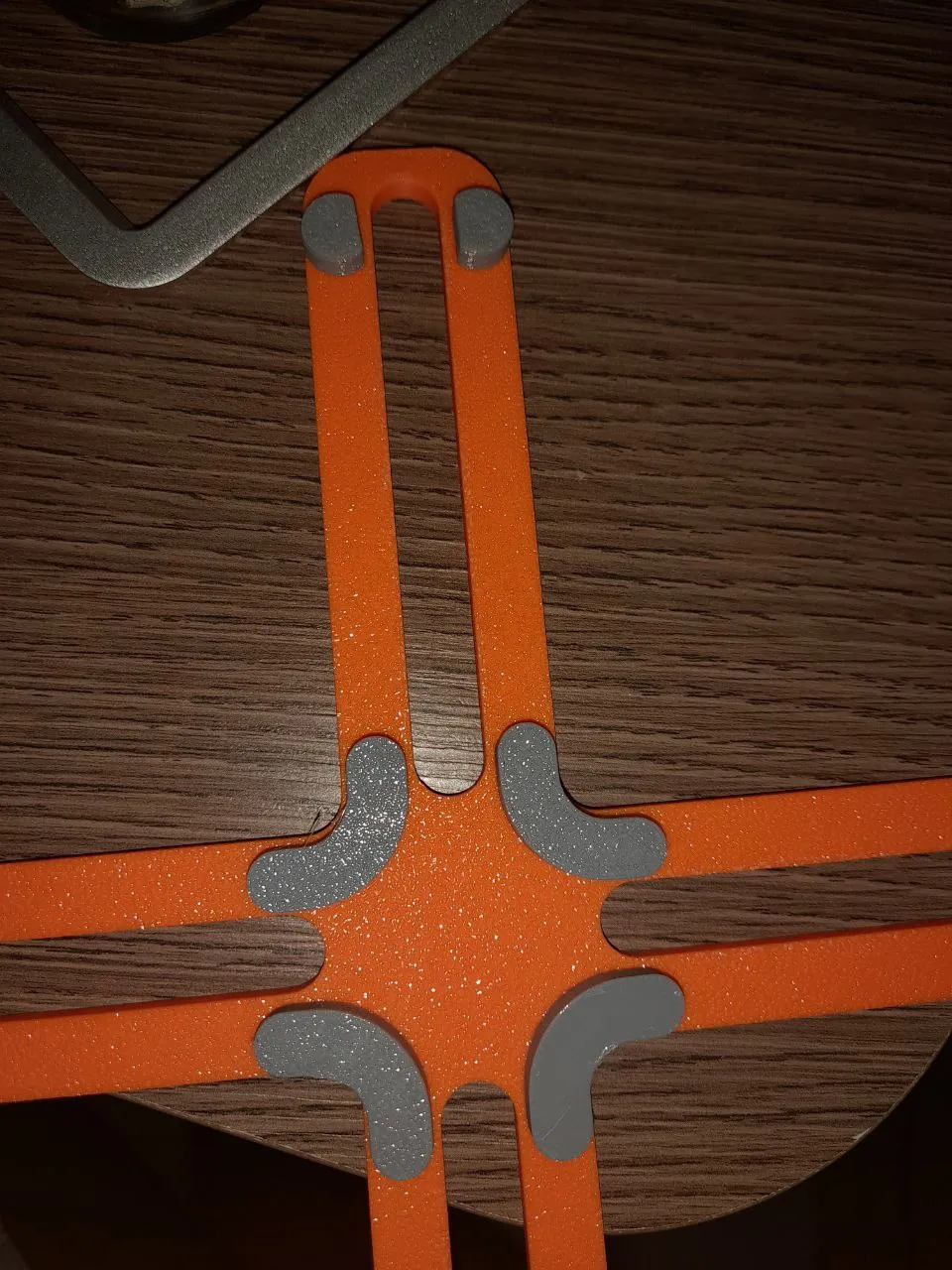

1. Install the TPU feet

2.

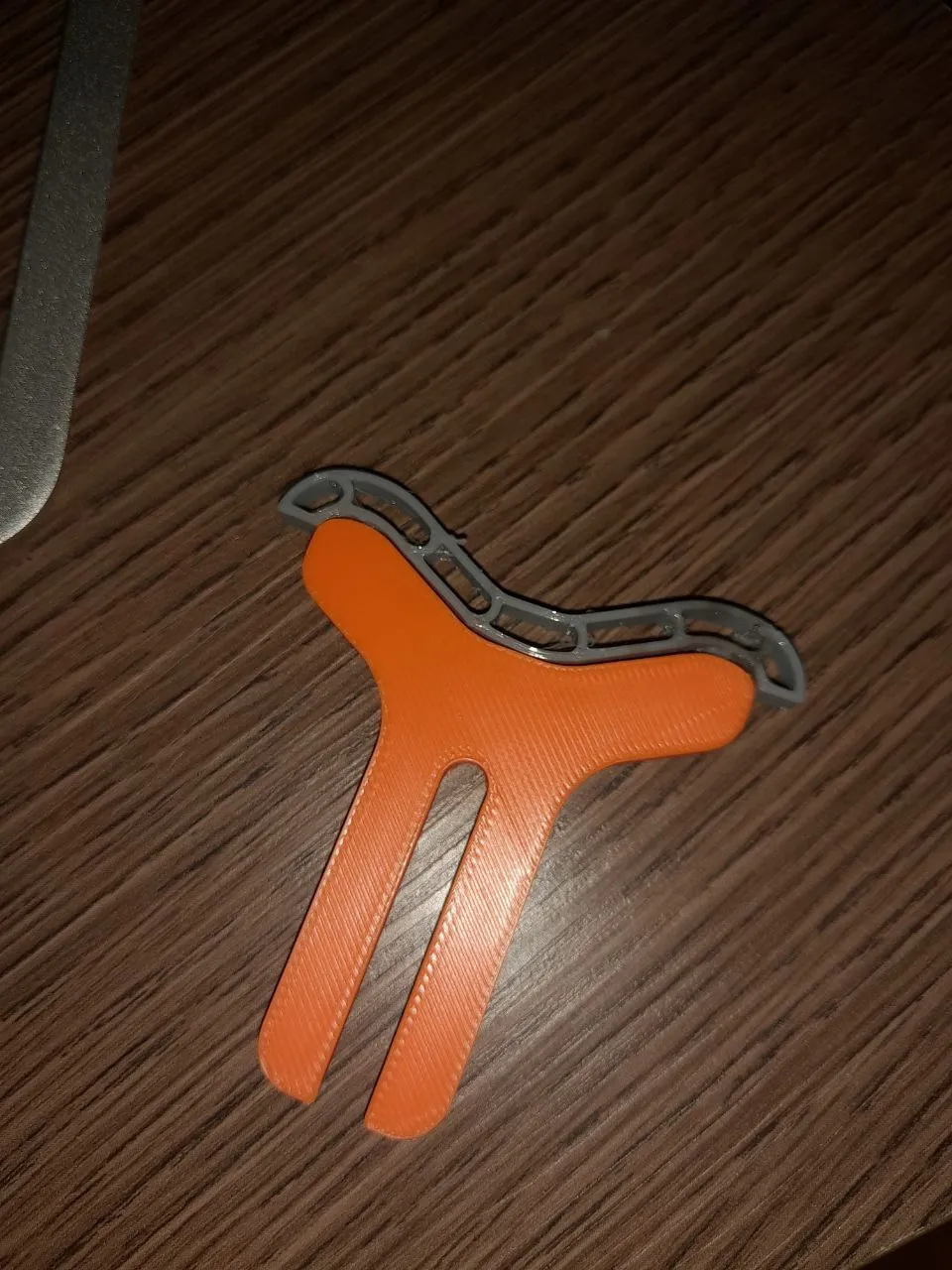

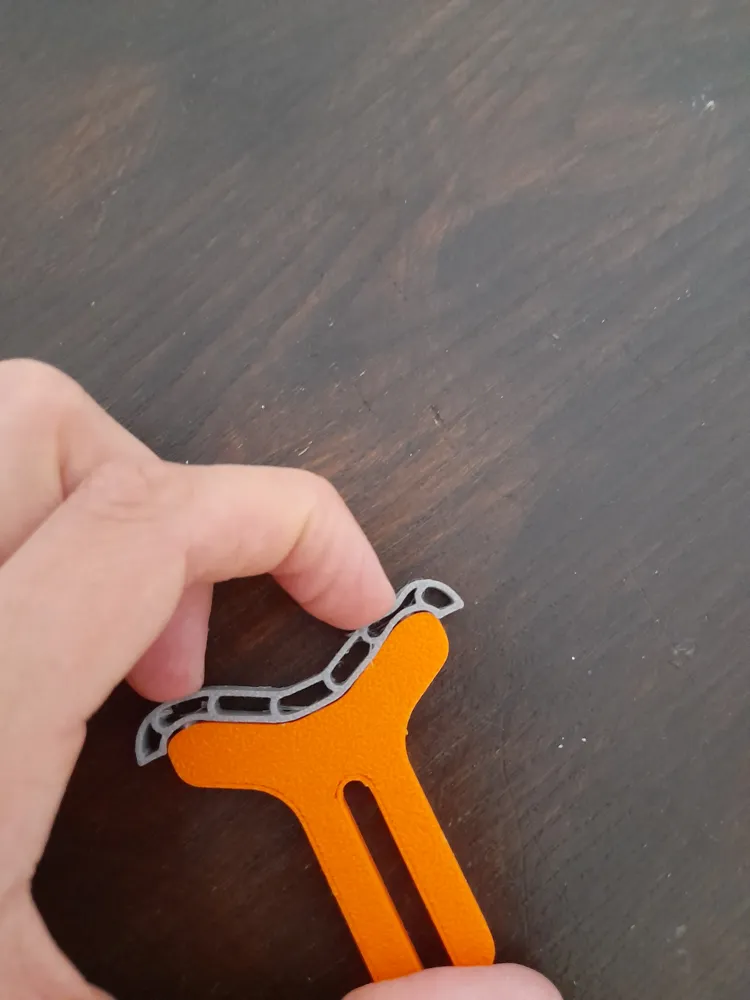

   Install the TPU parts over the upper parto of the arm

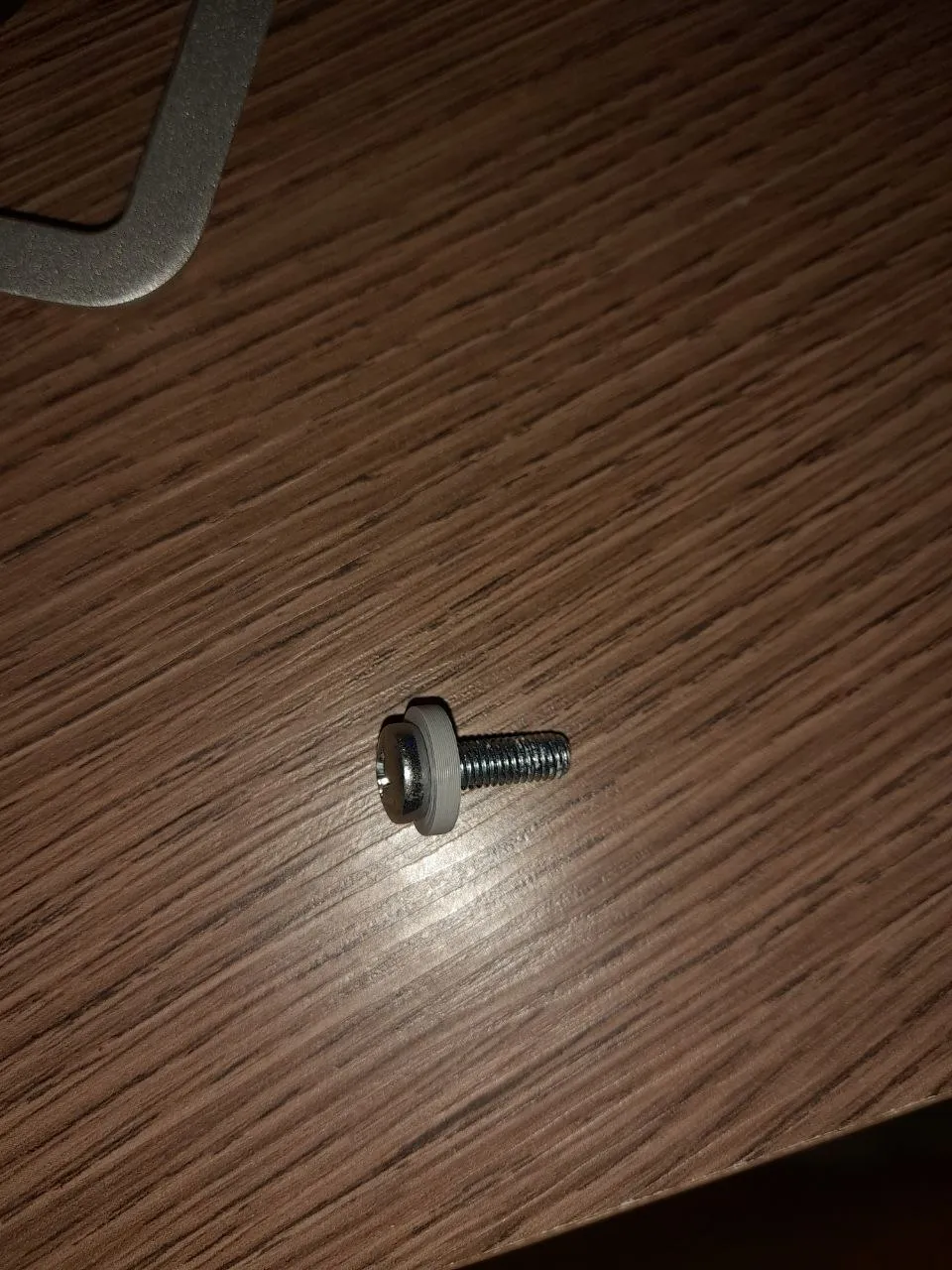

3. Screw the plastic thickness on the M5 screw

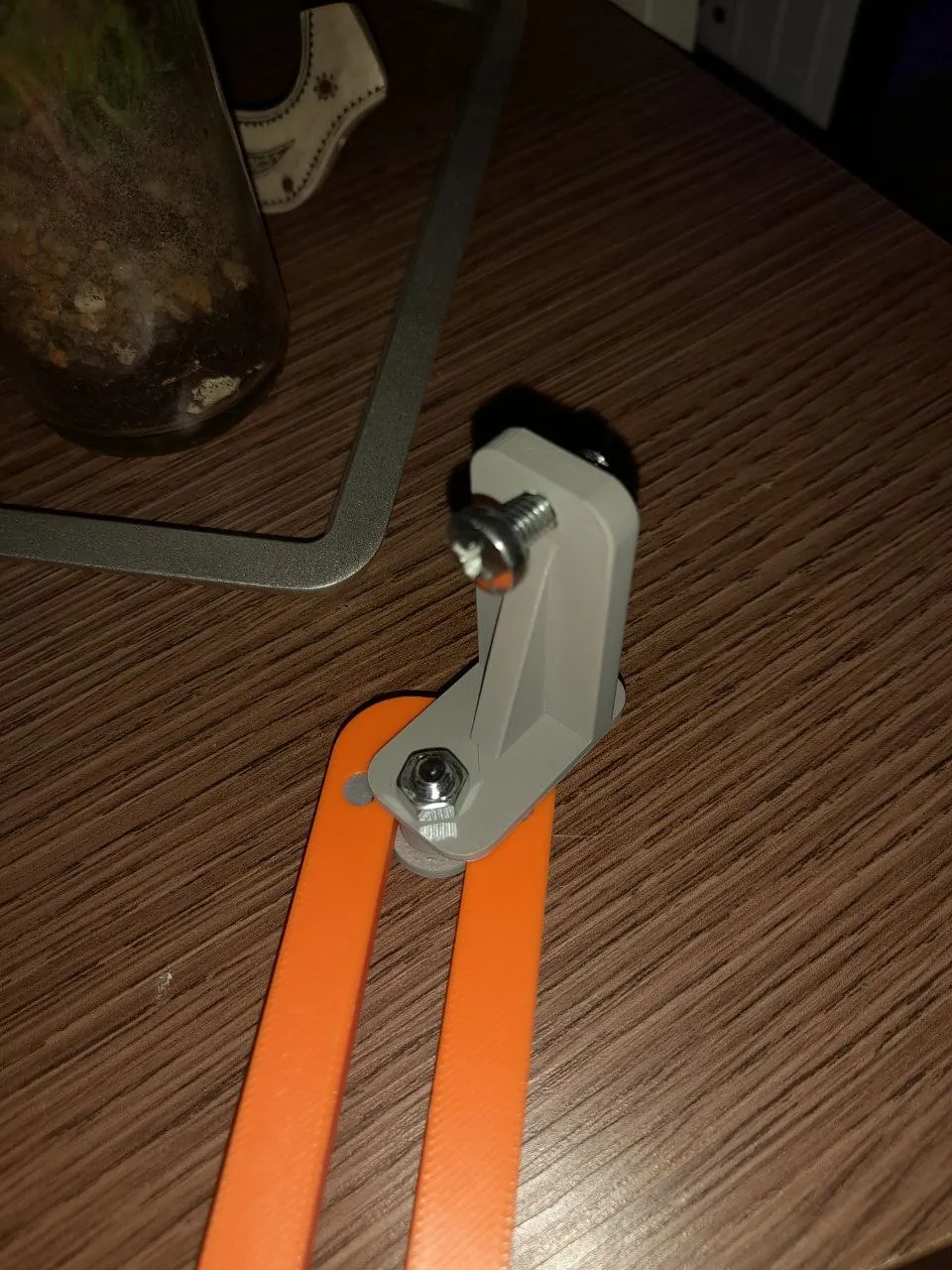

  4. Install the lower arm into the rail ant then  tighten the screv in the apposite hole

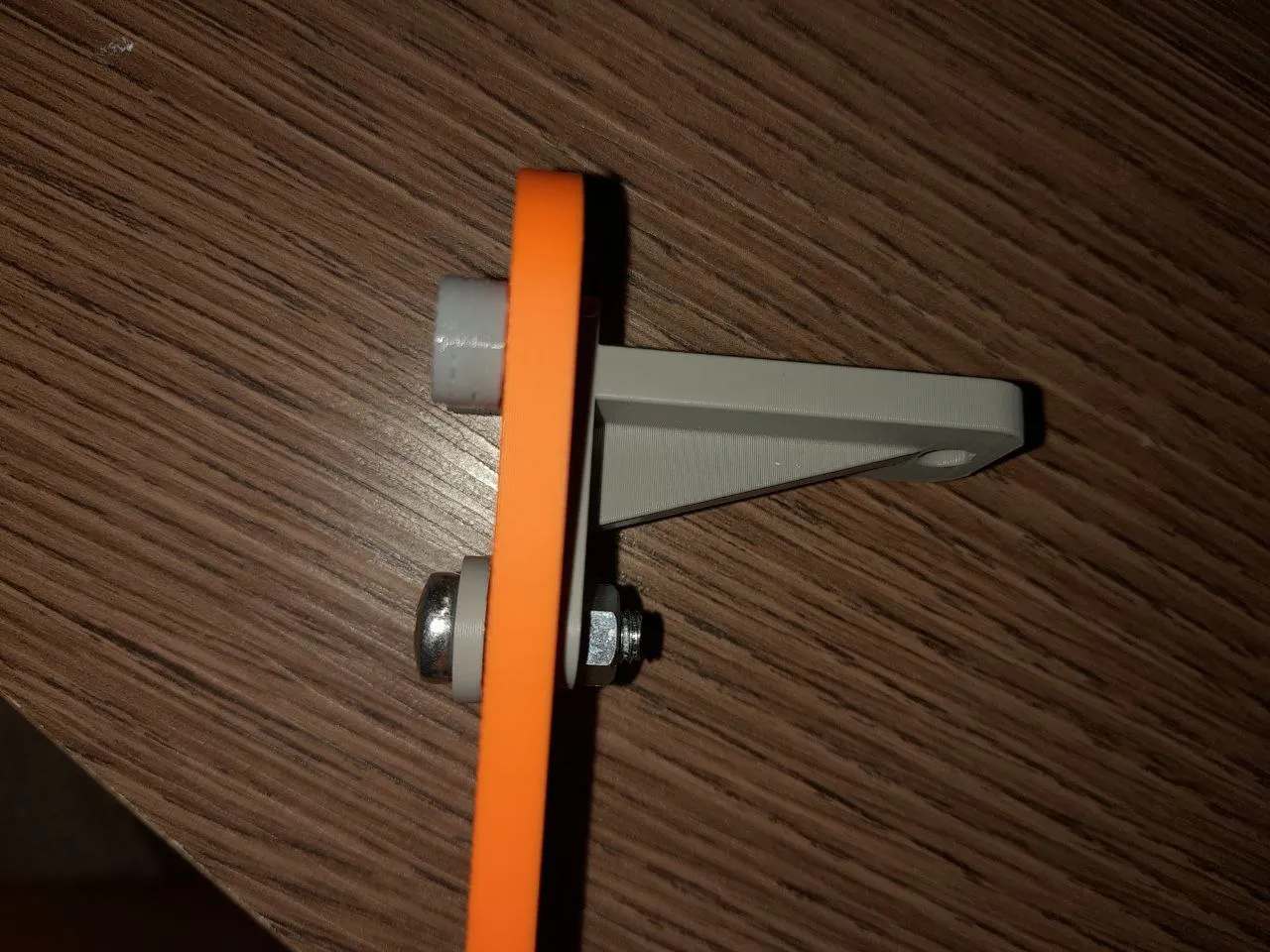

  5. Install the other screw leaving space for the upper arm piece

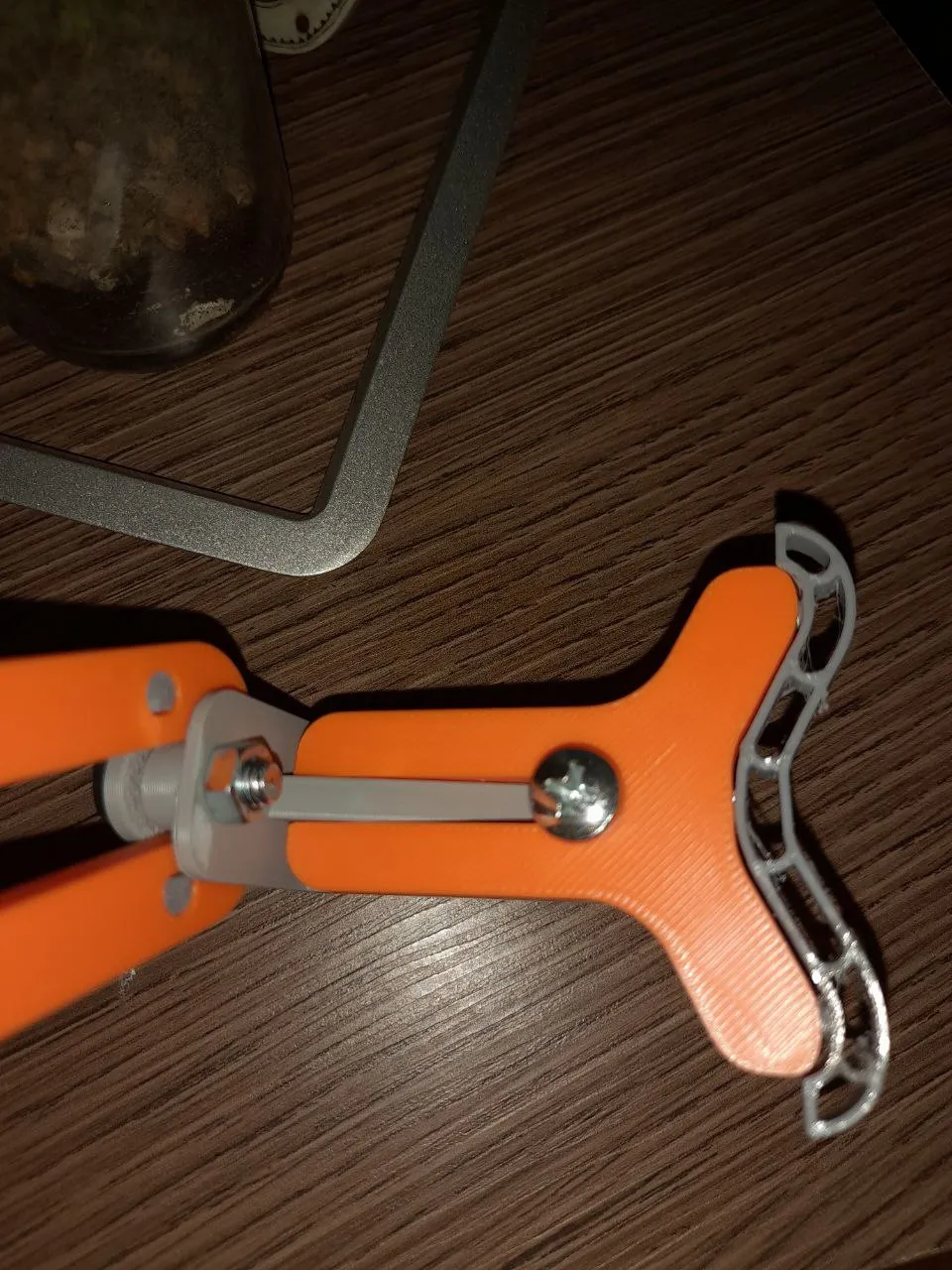

  6. Install the upper arm piece and tighten the screw

  7. Enjoy!
