Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
18.5 h
4 plates
Open in Bambu Studio
Boost
9
45
1
1
20
5
Released
Bill of Materials
List other parts
- Clock mechanism x 1: I used the 16mm mechanism of the link below: https://www.amazon.nl/dp/B0CKSDG7WS?ref=ppx_yo2ov_dt_b_fed_asin_title
Description
Print instructions

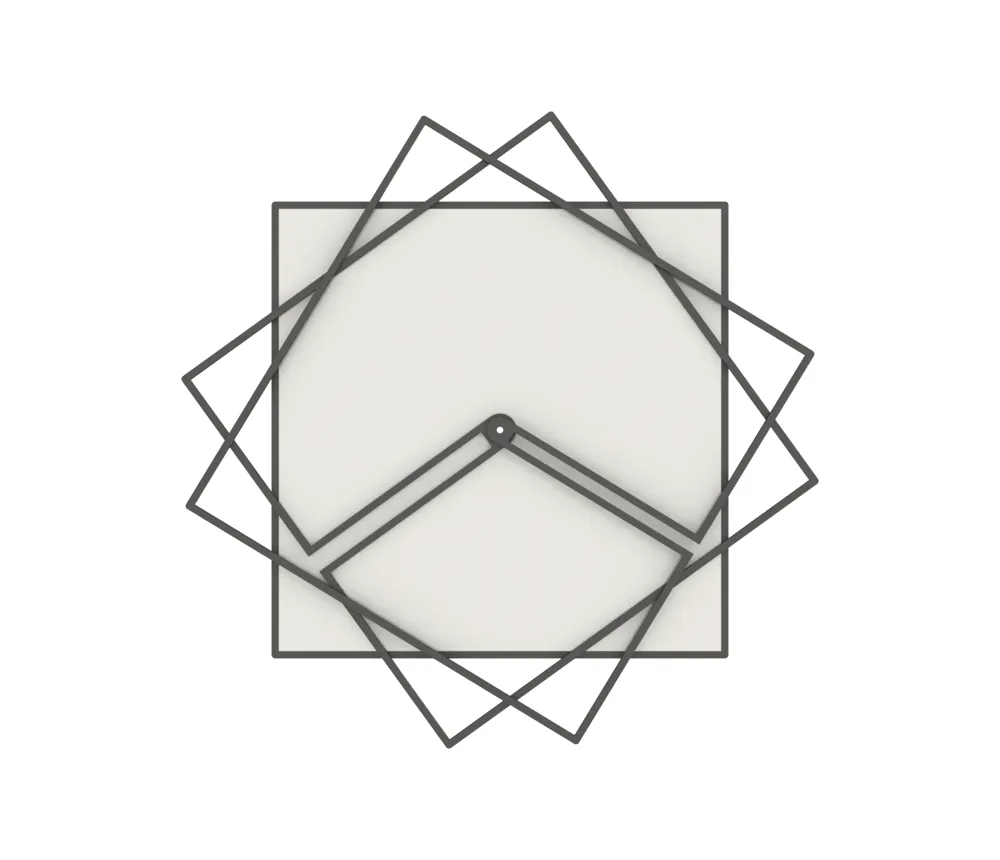

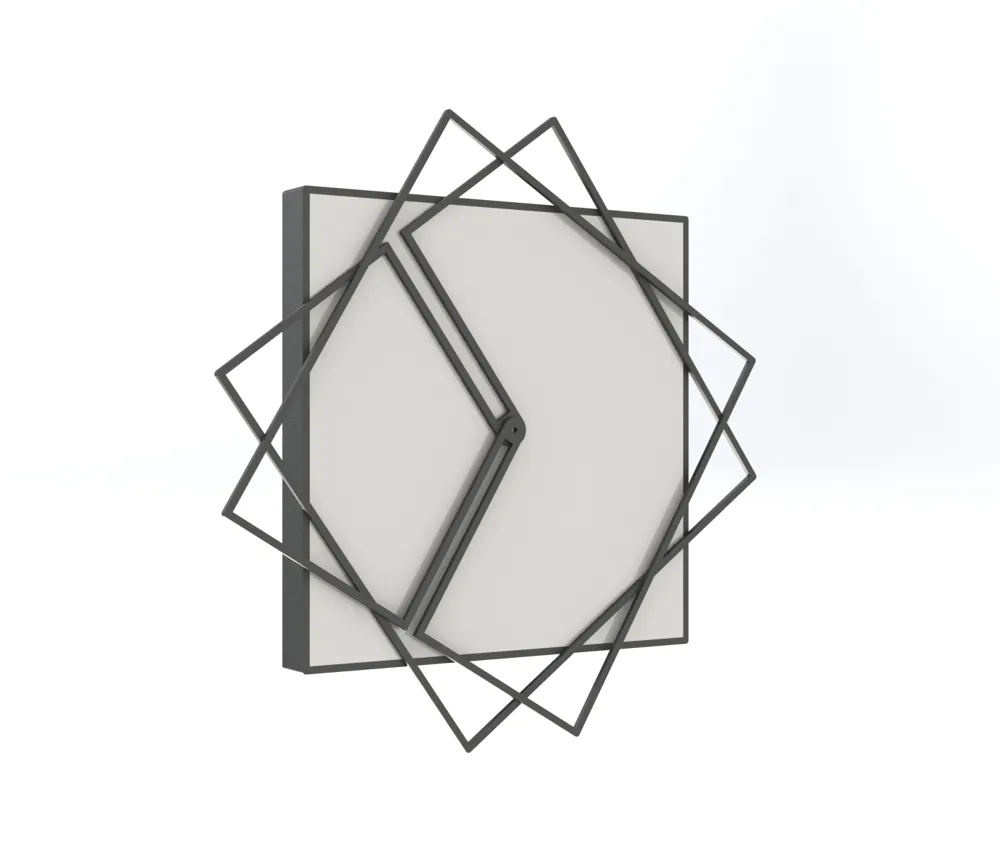

I modified the design so it would fit this specific clock mechanism. I scaled it up to about 25cm, so the clock is a nice addition to to your room without looking small.
It printed fairly easily on my Bambulab A1 however, I definitely needed the brims for the hour and minute prints to get good bed adhesion.
I decided to print with fuzzy skin, and used the paint fuzzy skin tool. I also decided to print with very thin layer lines. This made the quality look good, however, printing will take a while.
Make sure to let the bed cool down before removing everything so all the squares stay square.
Post-Printing
Assemble in this order:
- Screw the movement on to the flat face
- Press the hour hand on
- Press the minute hand on
- Add the metal cap over the shaft, if your movement has one
- Snap the flat face into the frame
