Munro Mini Tree

Munro Mini Tree – Christmas Light Display

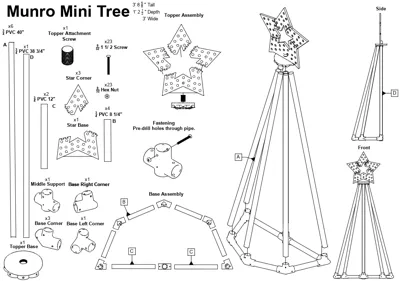

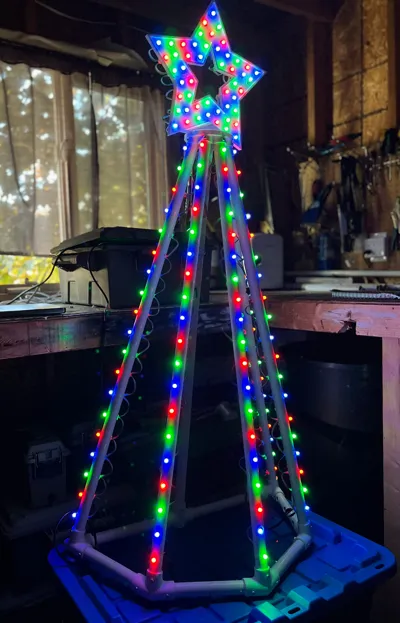

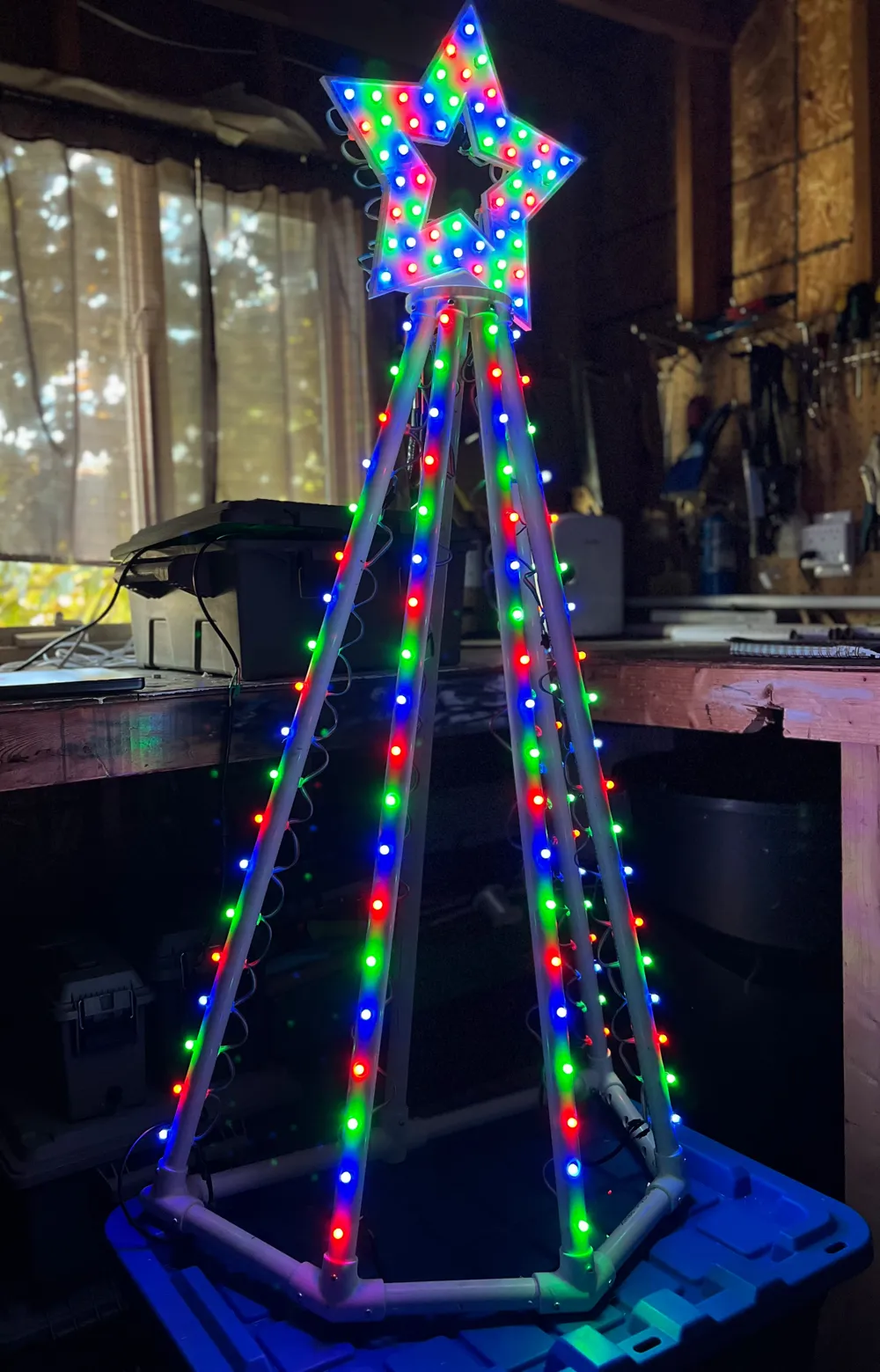

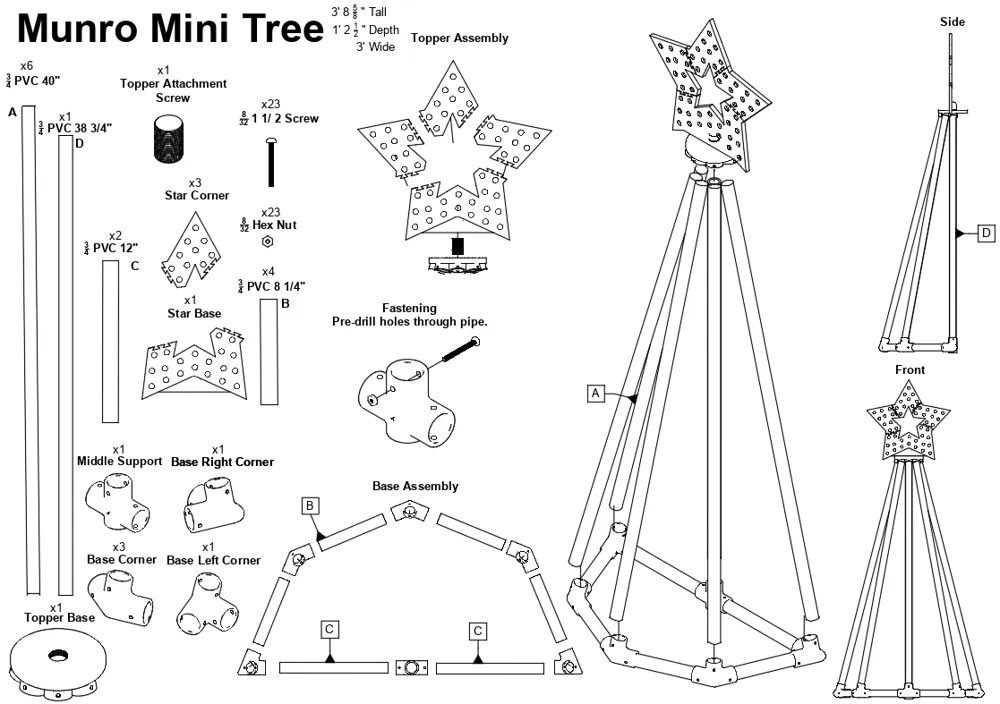

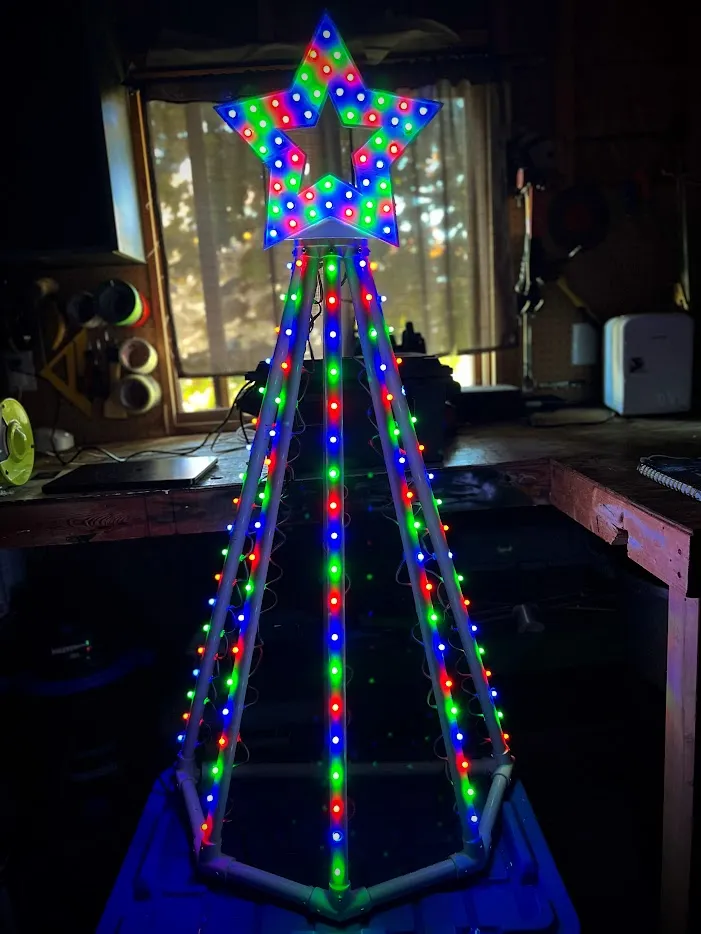

The Munro Mini Tree is designed for WS2811 pixels and stands just shy of four feet tall (3'8"). The frame is constructed from ¾" PVC pipe, with ½" drilled holes spaced approximately 2" apart. This spacing allows for 19 pixels per leg and 50 pixels for the star, totaling 145 pixels.

The design includes a few extra pixels so you can continue the string at the base, avoiding the need for a splice connection across the large jump between legs. Spacing can be adjusted to fit your own layout preferences.

Assembly Tips

• Dry Fit First
  Assemble the entire tree without screws before drilling or finalizing. This ensures alignment and avoids unnecessary rework.
• Tree Support Pipe
  Secure the tree support pipe to the topper base before attaching the legs. Space is tight once the legs are in place, making adjustments difficult later.
• Fasteners
  The design is built around 8/32 x 1½" screws, but tolerance is tight. You may find a slightly longer screw provides a more secure fit.
• Print Tolerance

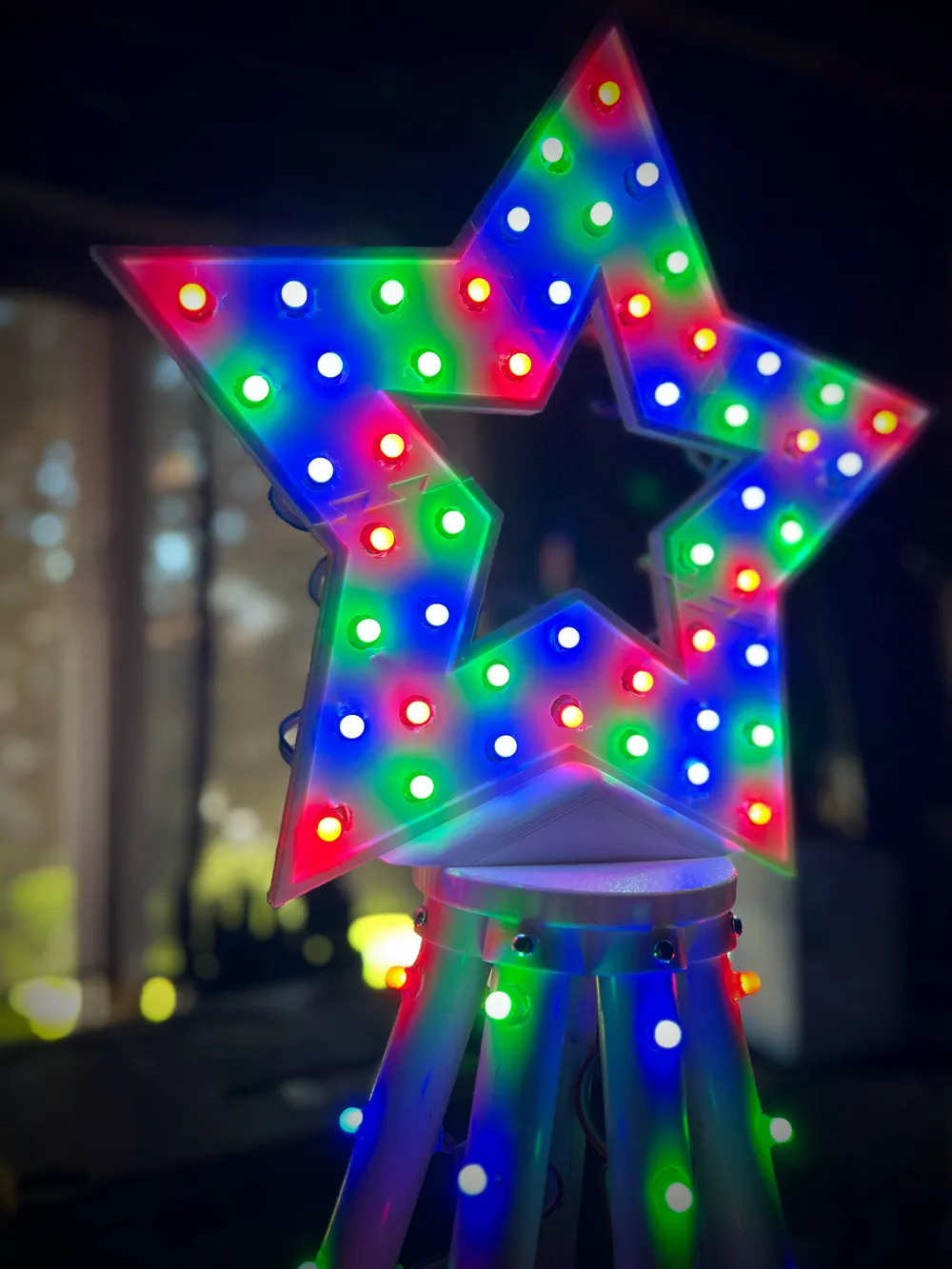

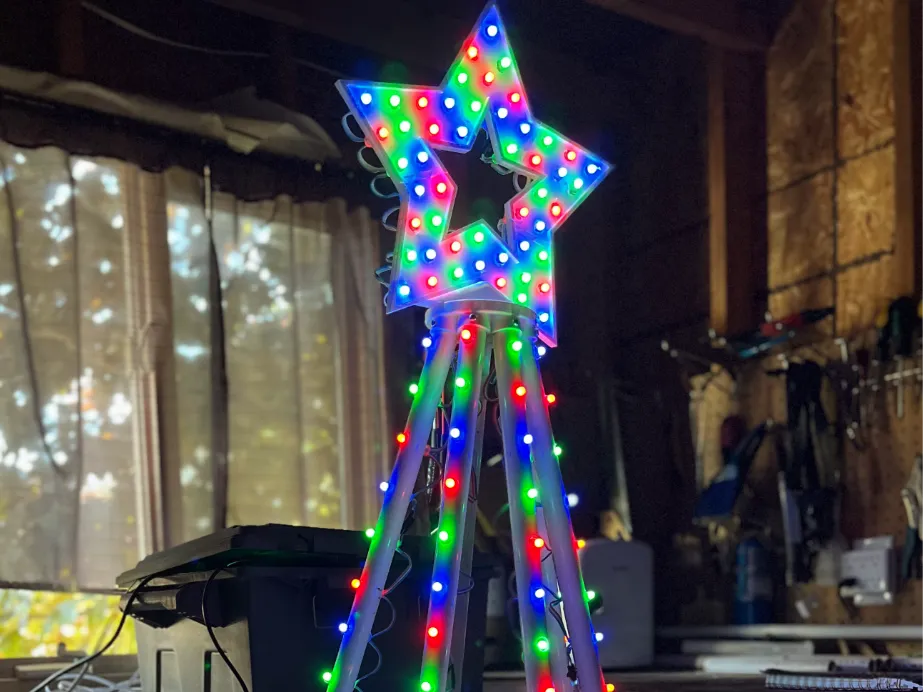

  Tolerance for the Star topper may differ on your printer. I found in some cases that using ½ hole drill bit ensure the tolerance fit perfect for each pixel.

Mounting

The tree is designed to sit on a piece of rebar driven into the ground. For added stability, you can also drill and insert additional fasteners into the base.

Notes

• xLights Model
  An .xmodel file for the base is not included. You’ll need to create your own in xLights.
• Wiring Reference
  A reference photo is included in the files, showing the wiring configuration used in the sample build.
