Description

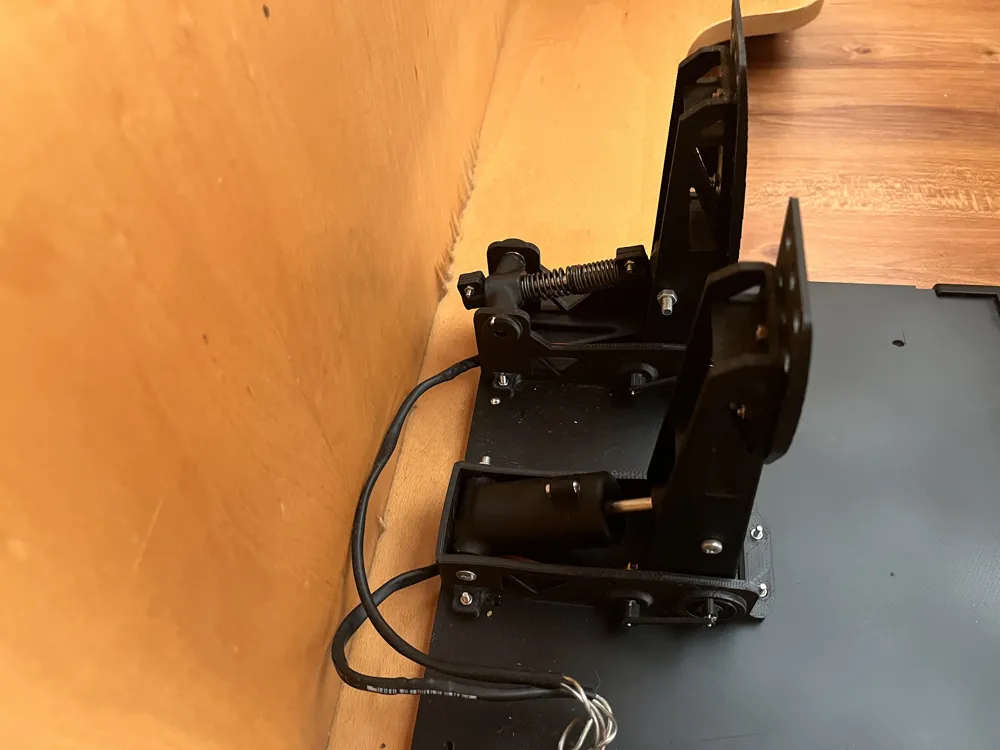

High-Performance DIY Sim Racing Pedals
Take your sim racing setup to the next level with these custom-built, 3D-printed pedals designed for precision, realism, and durability. Perfect for PC-based racing simulators, these pedals are engineered to give you the feel of real racing hardware—without breaking the bank.
🔧 Features:
- Fully 3D printable design
- Compact form factor for small sim rigs
- Designed to work with a rotational potentiometer
- Spring-loaded for return force – can be adjusted or swapped
- Strong mechanical construction for a stable brake feel
🛠️ Requirements:
- Potentiometer (rotational)
- Compression spring for brake pedal (lenght: 3.2cm / width: 2.3cm)
- Compression spring for gas pedal(desired spring with a lenght of 5-6cm)
- M3 bolt and nut
- M5 bolt and nut
- M4 bolt and nut
- Bearing for gas and brake pedal (8x22x7)
- Bearing for gas pedal (4x13x5)
- metal rod 2x (width: 6mm)
🖨️ Print Settings:
- Material: PLA or PETG
- Infill: 20–30% recommended for durability
- Supports: Yes (for certain parts)
📌 Follow this link to access the 3D model and see the full assembly for better build visuals:
GAS PEDAL:
This project is ideal for DIY sim racers who want a responsive and low-cost sim pedal set that feels solid underfoot. Whether you're into drifting, rally, or F1-style racing games, these pedals deliver precise input and are easy to integrate into most setups.

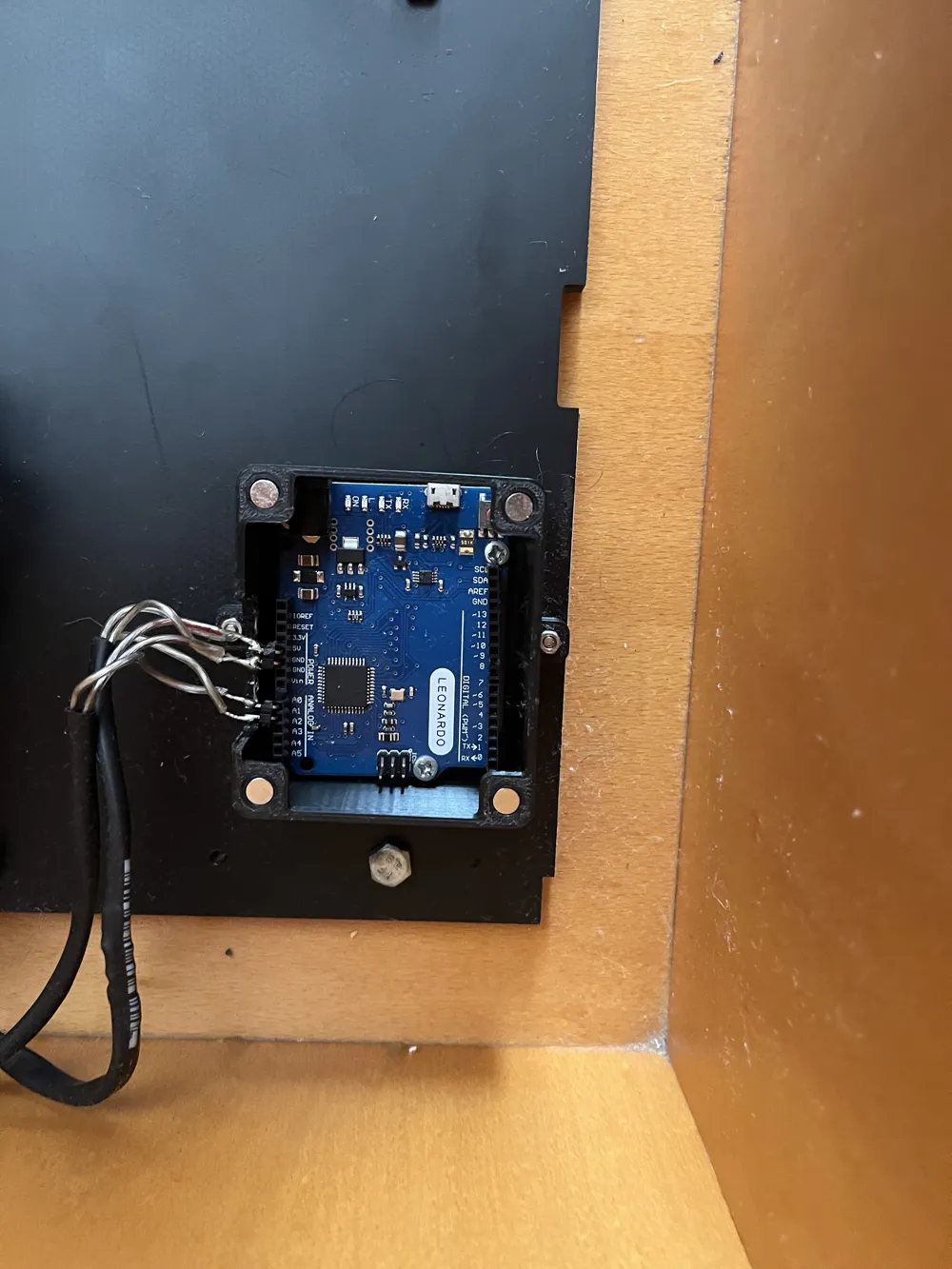

SOFTWARE: For the software i am using EMC lite connected to an arduino leonardo.
