Blast Gate
Print Profile(1)
Bill of Materials
- Senkkopfschrauben x 10: M5x30
- Senkkopfschrauben x 7: M5x20
- Muttern x 17: M5
Description
Hello,

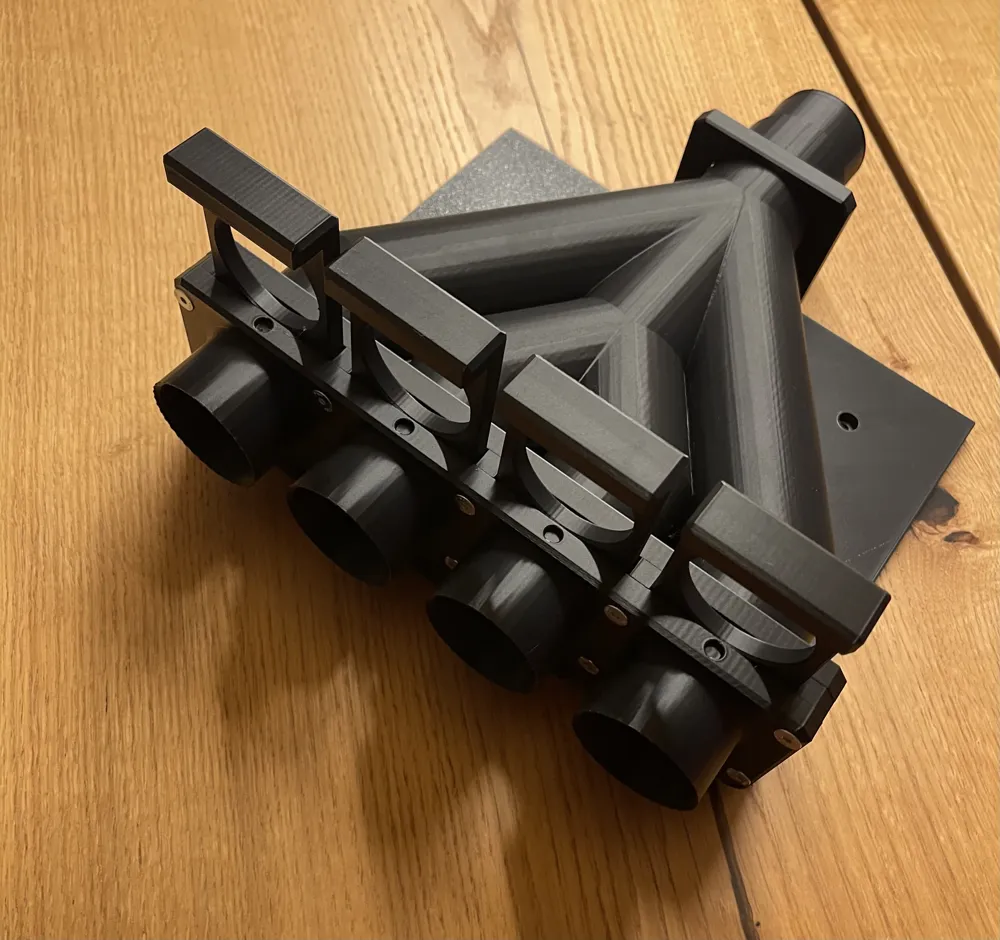

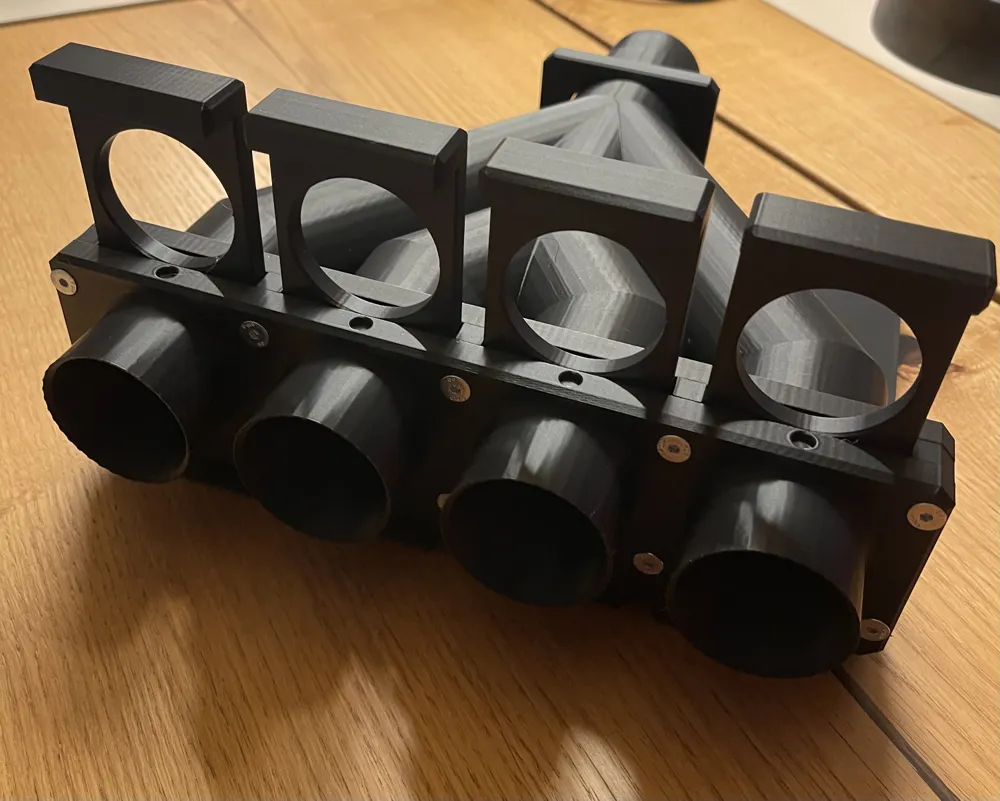

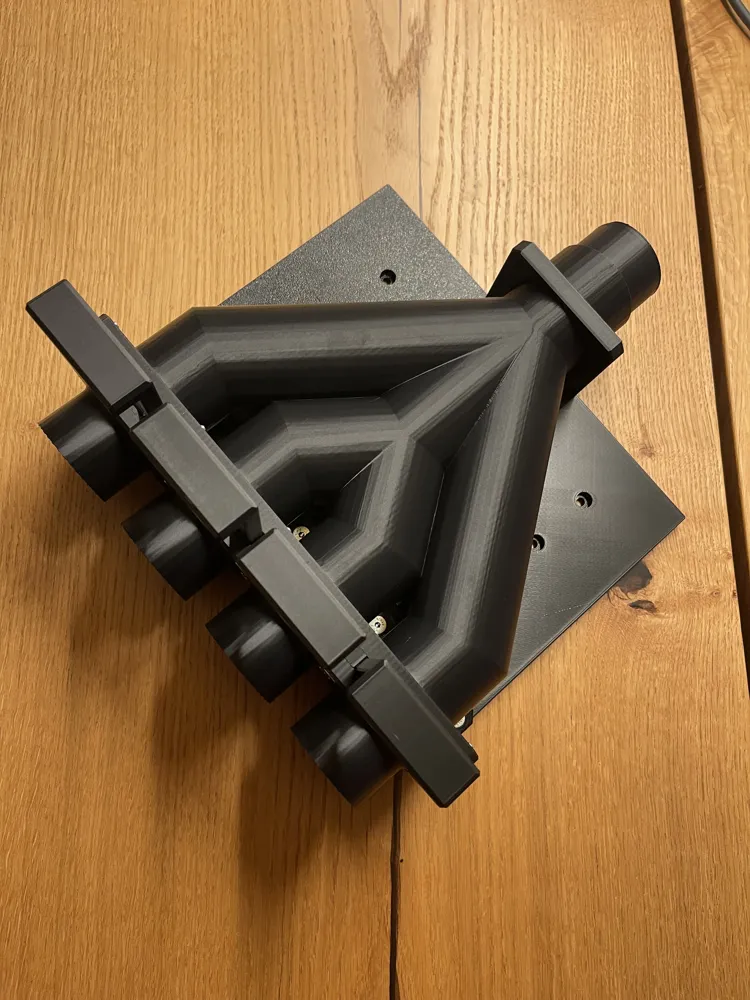

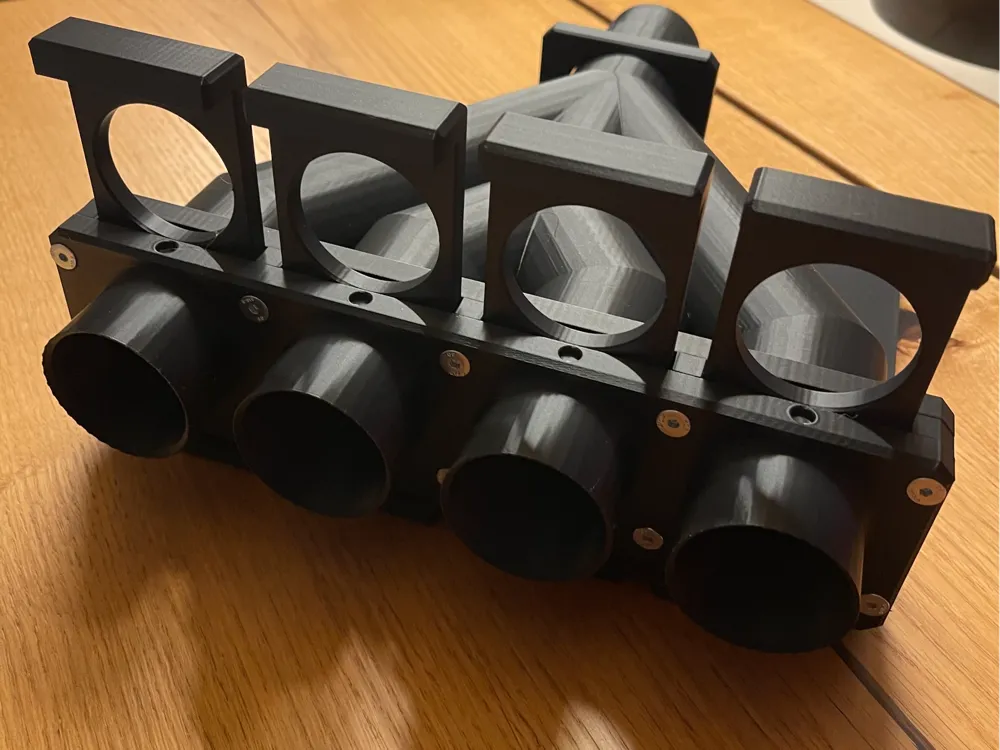

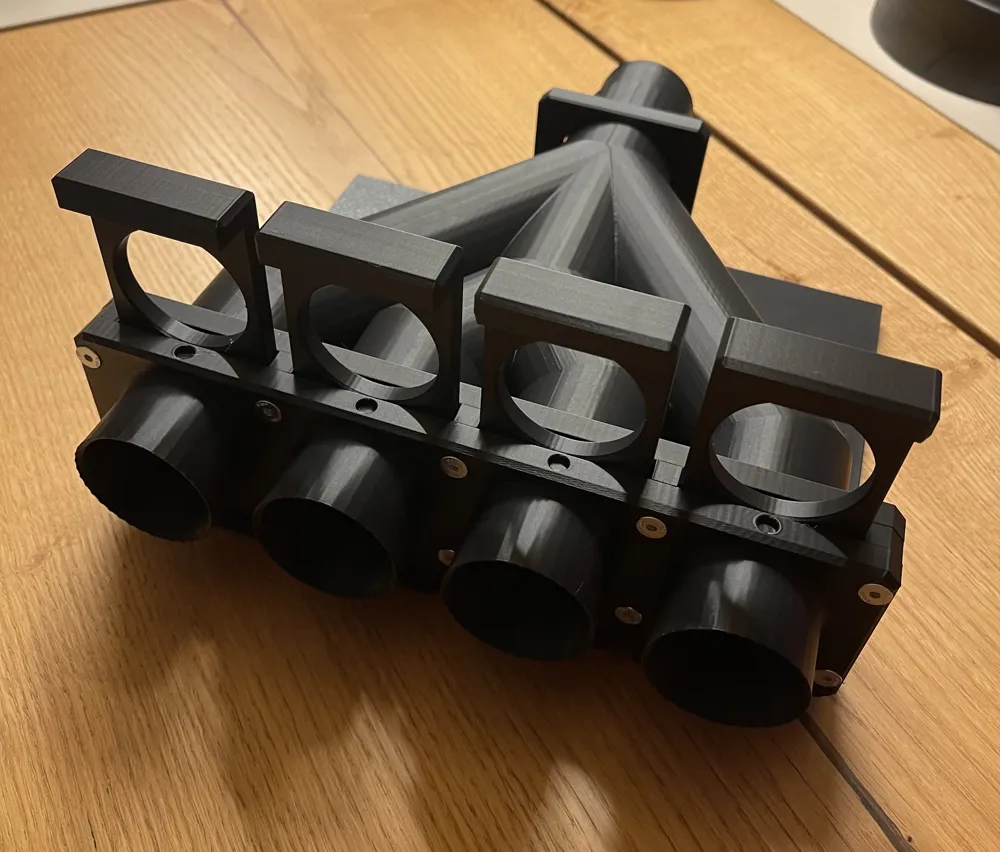

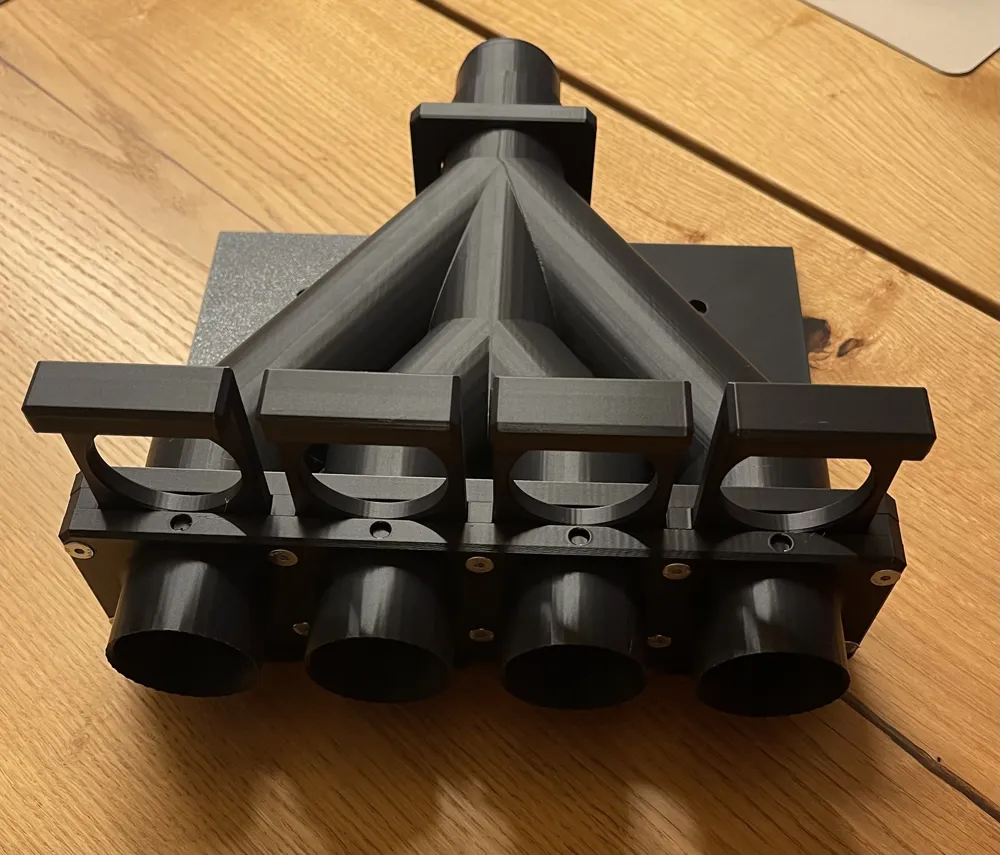

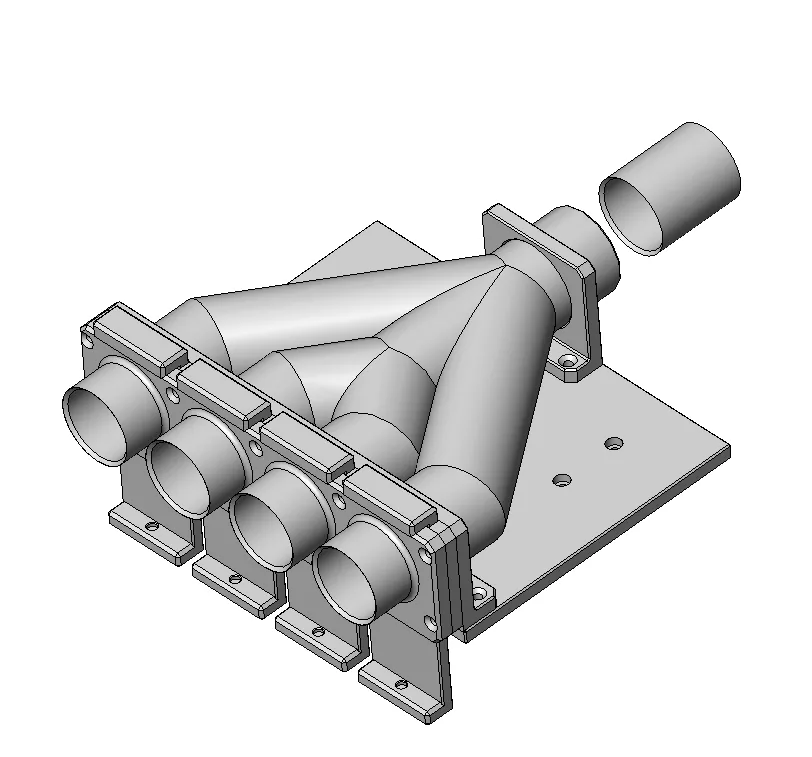

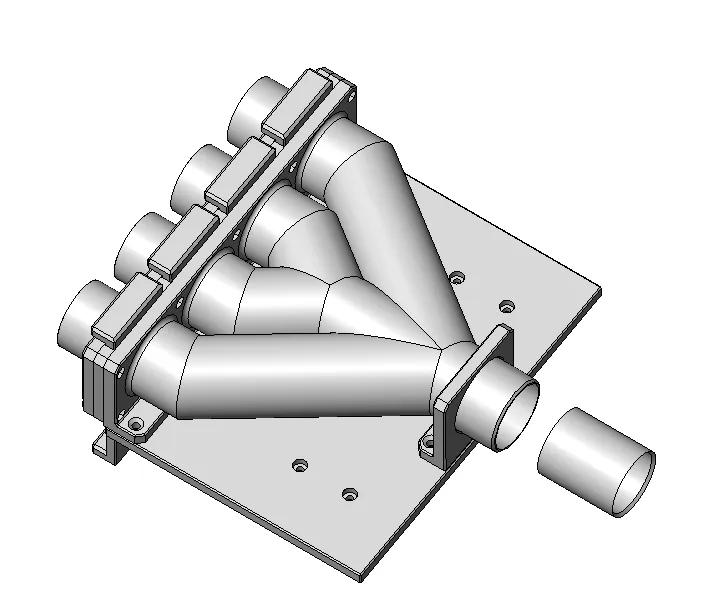

After developing an extraction adapter for three extraction points, I now present the extension with four extraction points. This allows four extraction points to be connected and opened or closed as needed. The sliders are manually adjustable.
- Front connection diameter 50.2mm
- Rear connection diameter 55.2mm
- Adapter sleeve diameter 50mm
I hope you like the model. Unfortunately, I haven't been able to test it on an extraction system yet, so I welcome feedback on modifications or adjustments.
Thank you very much.
Boost Me (for free)
If you like my model, leave a like or boost me. Thank you, and I hope you have fun with the model.
