Micro Junction Box
Print Profile(1)
Description
A minimal junction box designed to protect your repaired / joined cables.

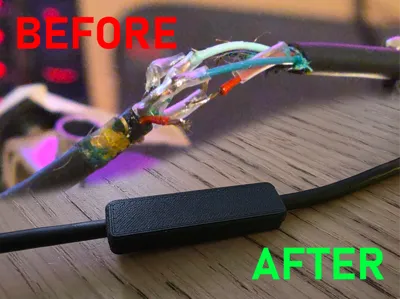

In the picture you see a broken headset cable that was pretty messy to solder.

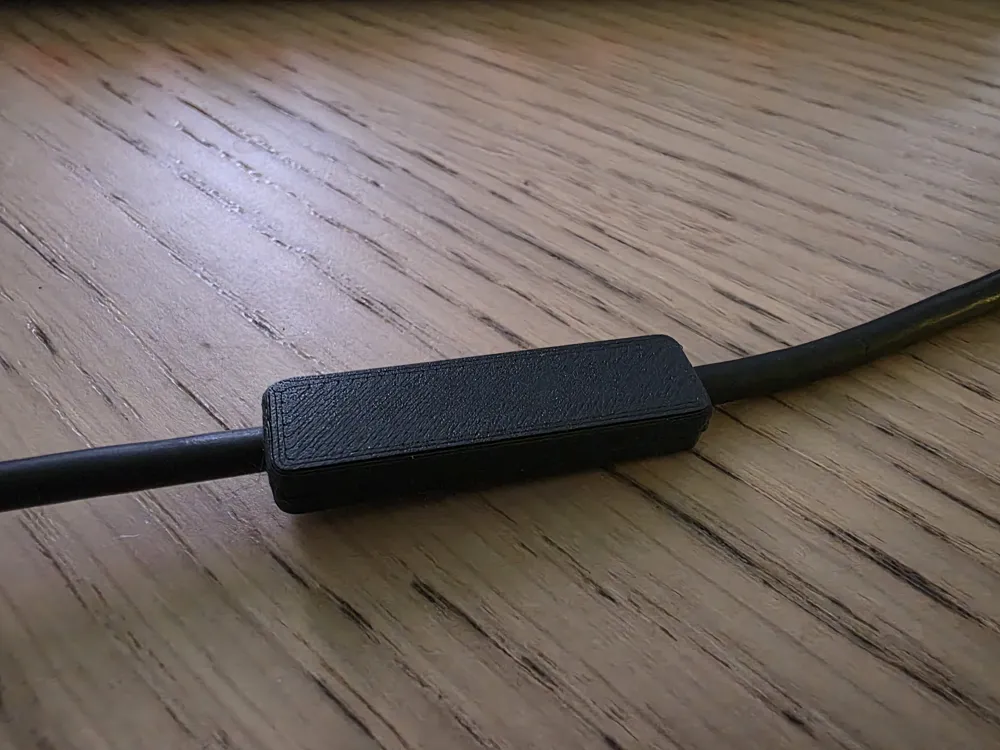

After testing the solder joints, I just glued it into the micro junction box with some super glue (CA glue).

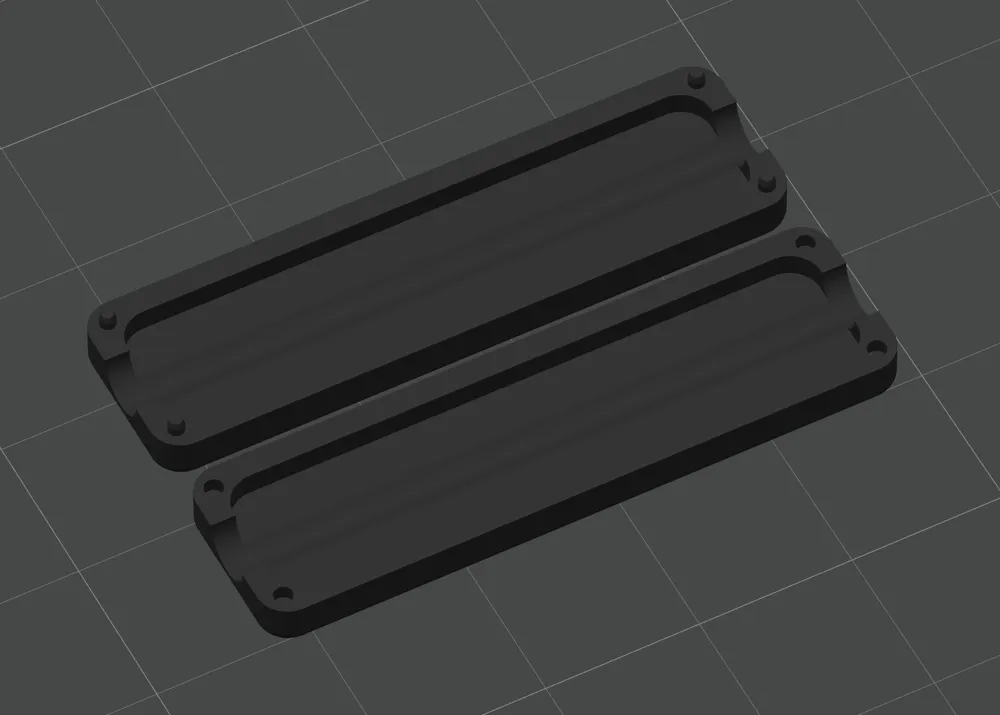

The base model is designed for 4mm cables, but you can easily scale it up to 125% for 5mm, 150% for 6mm or what ever you need.
Instructions:
- Repair your cable, make sure you properly insulated the seperate wires
- Apply some super glue to the lower half of the junction box
- Place your cable inside the lower half
- Add a drop of glue where the cable meets the junction box frame to make sure it wont move
- Press down the top half of the junction box and hold / clamp it down until the glue is dry
Boost Me (for free)
If you liked this model, consider boosting it. Thank you!
