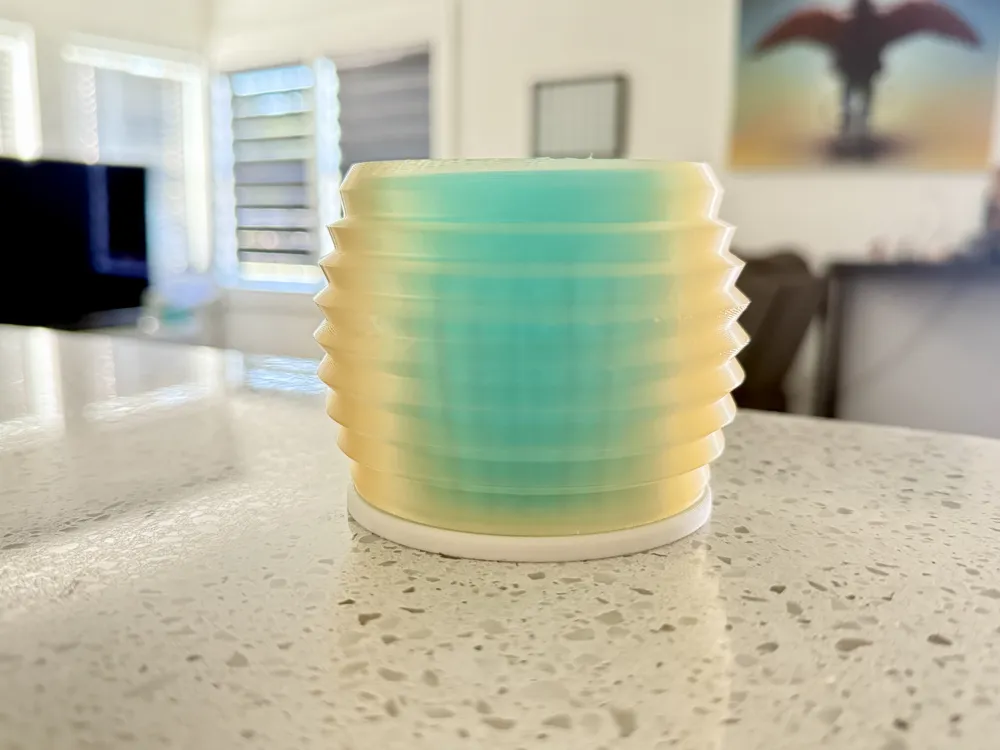

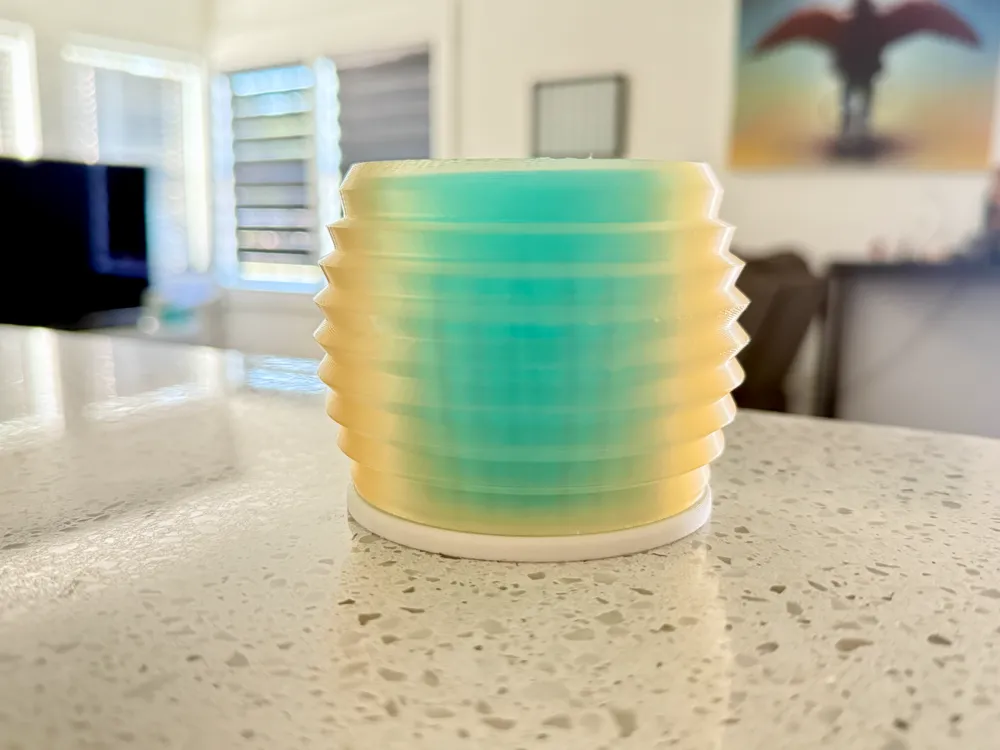

Baccarat Inspired Votive Tealight Candle Holder

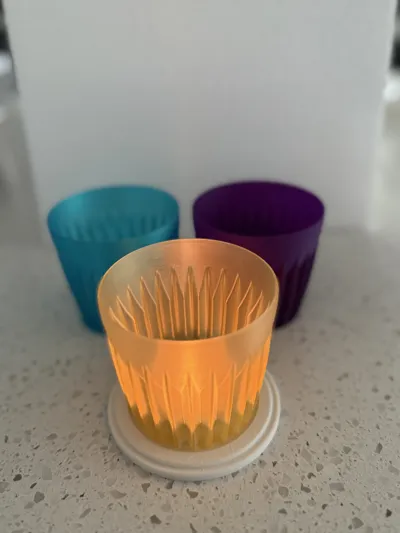

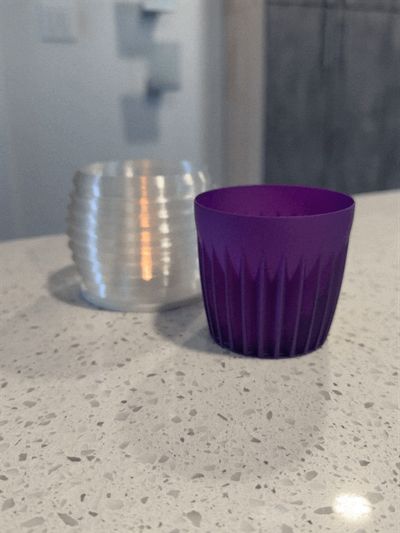

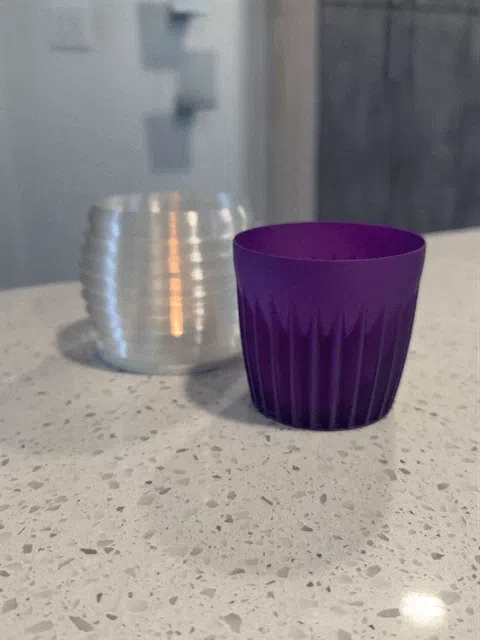

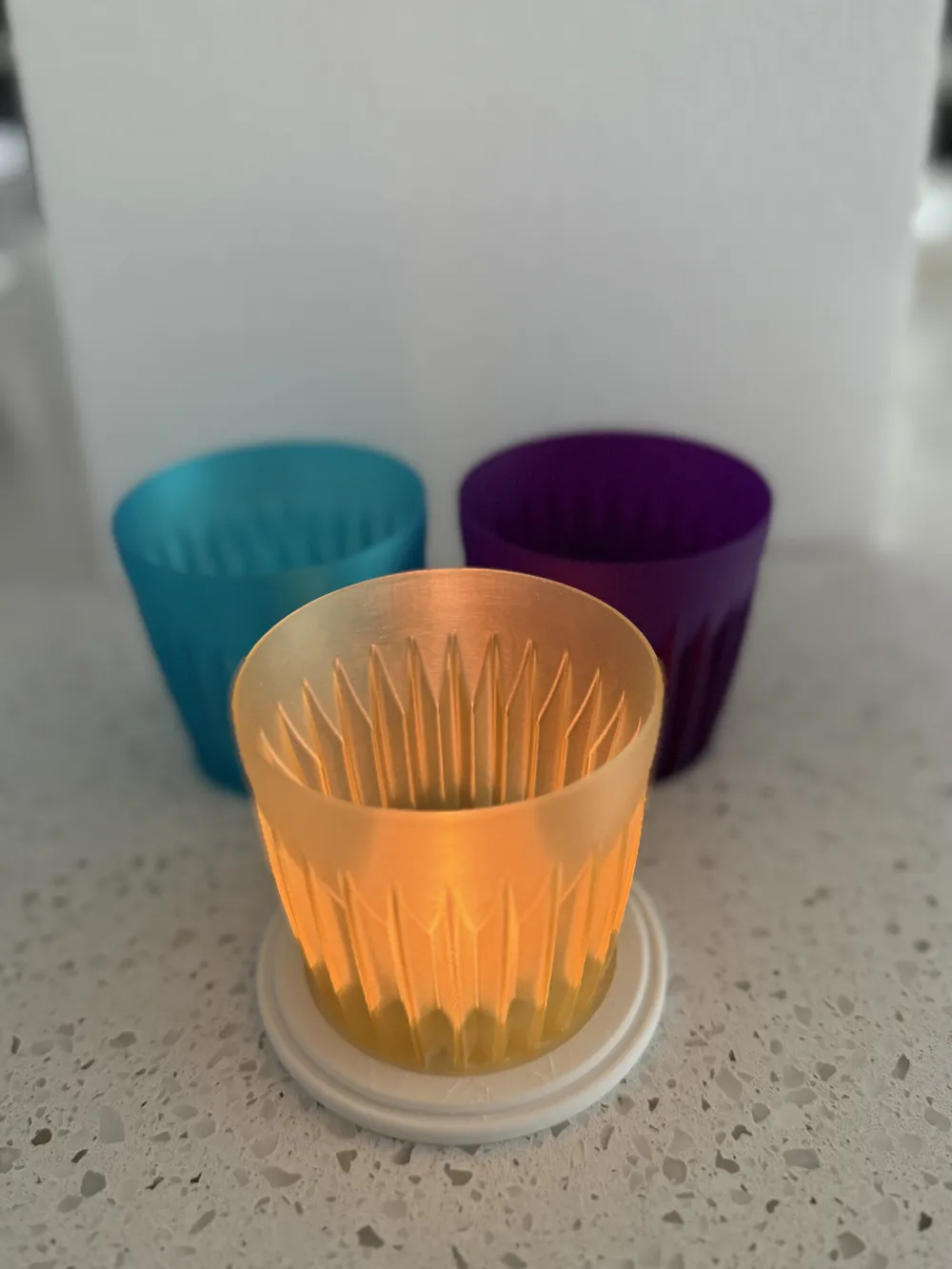

Inspired by Baccarat's classic crystal candle holder.  This is a three part model.

Please use a battery powered LED tealight.

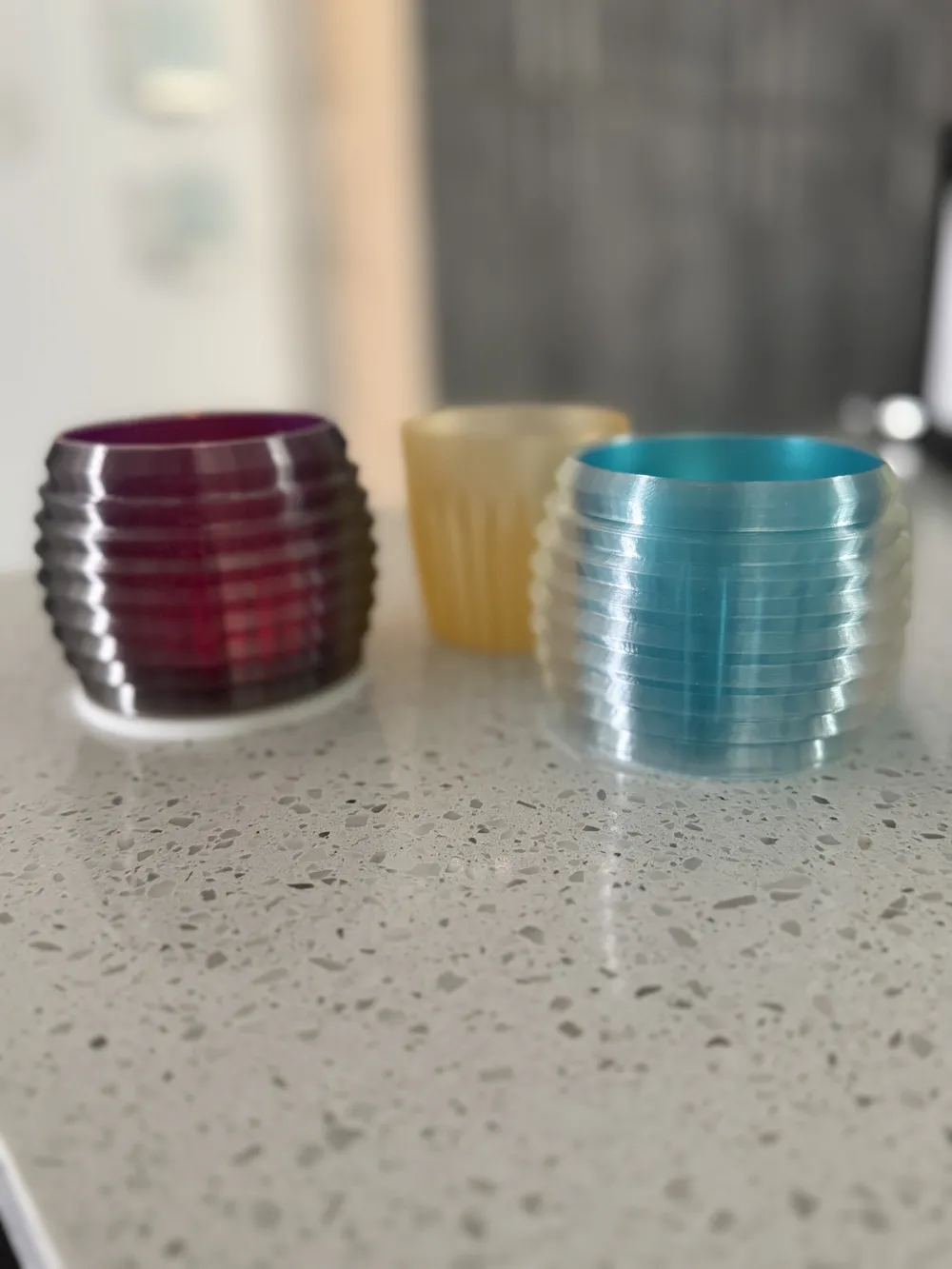

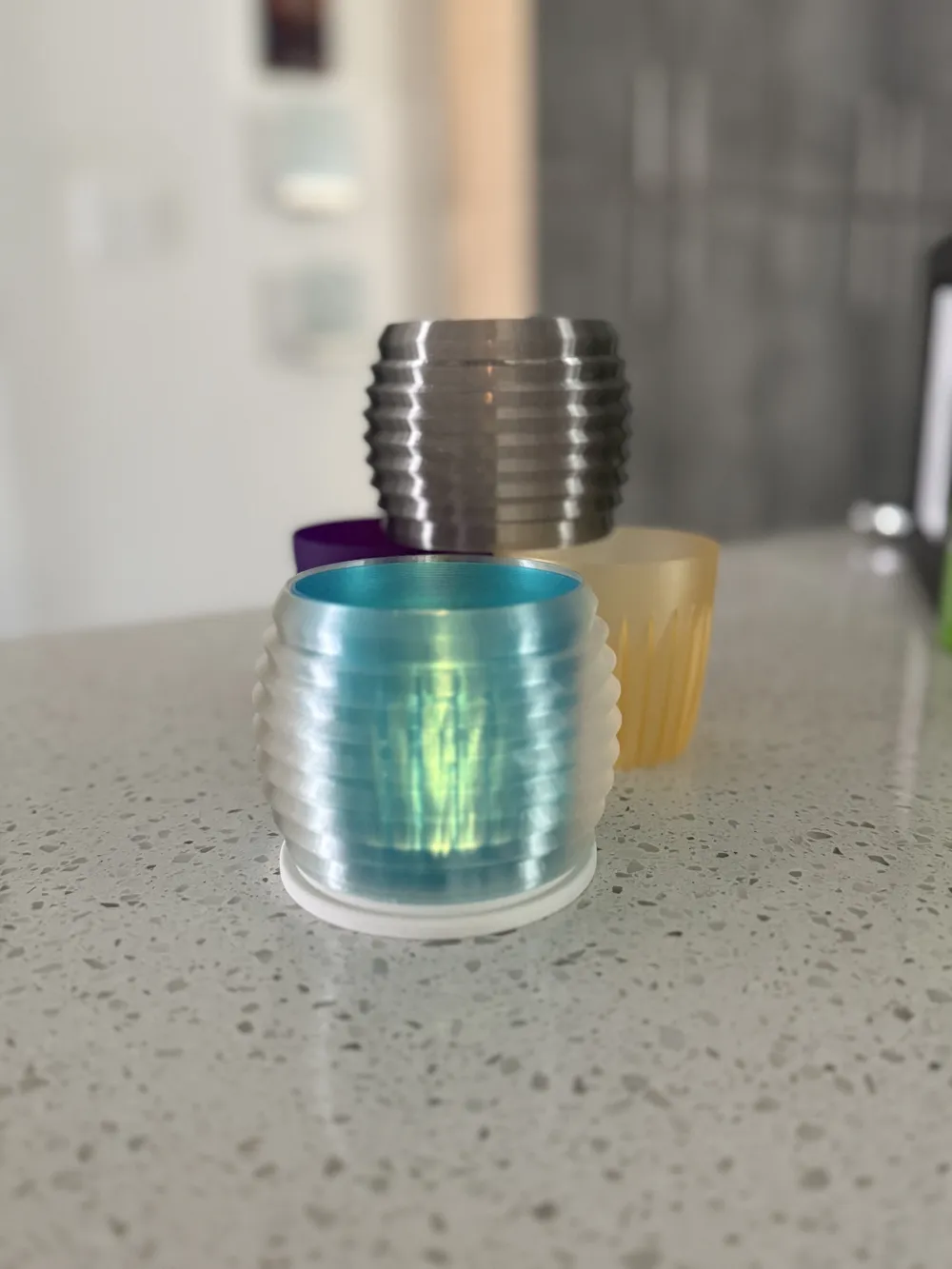

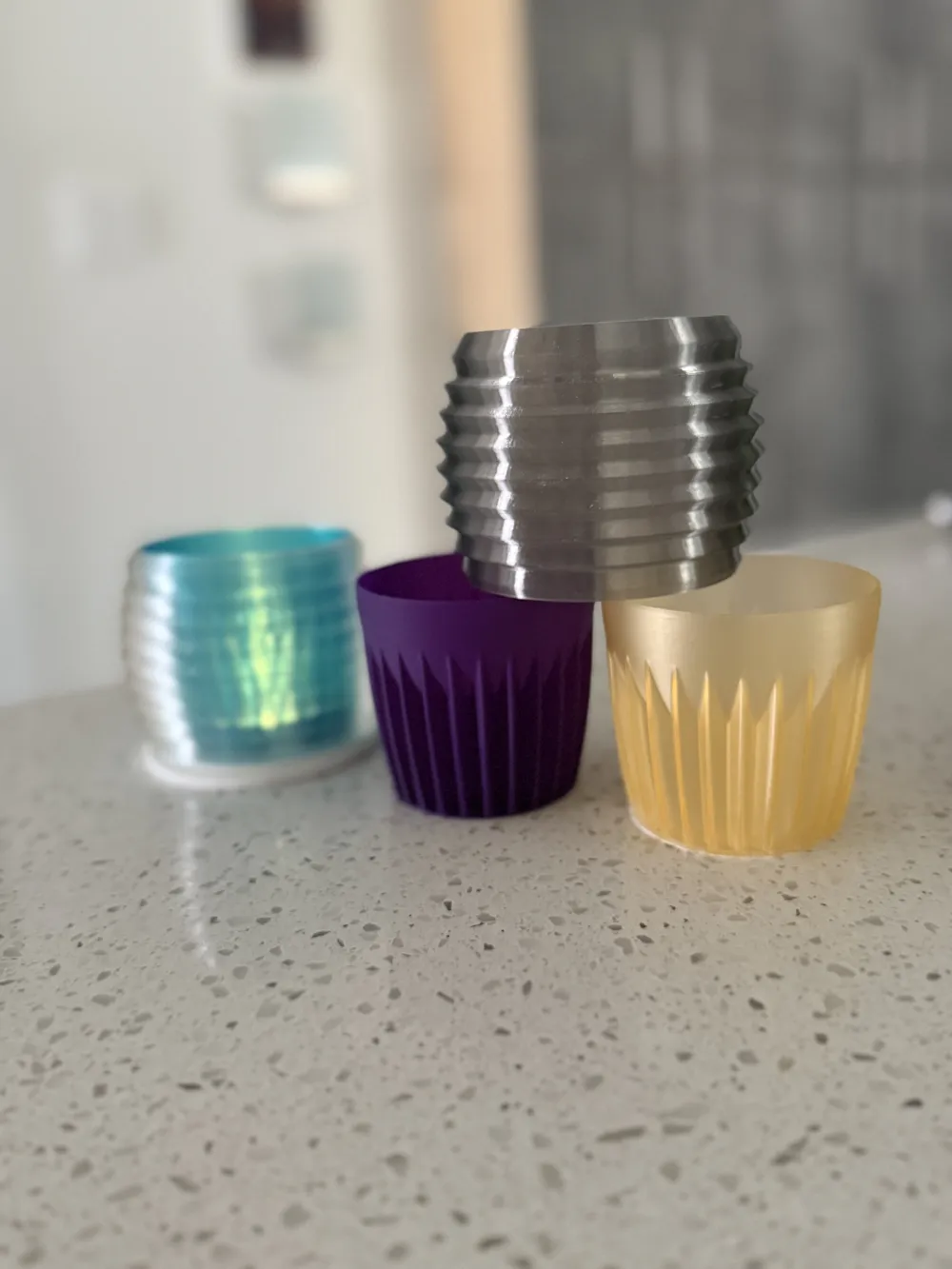

The separate parts make some amazing creative liberties in your designs.   Consider mixing and matching

• translucent,
• transparent, and
• standard opaque filaments, especially for the inner globe and the base.

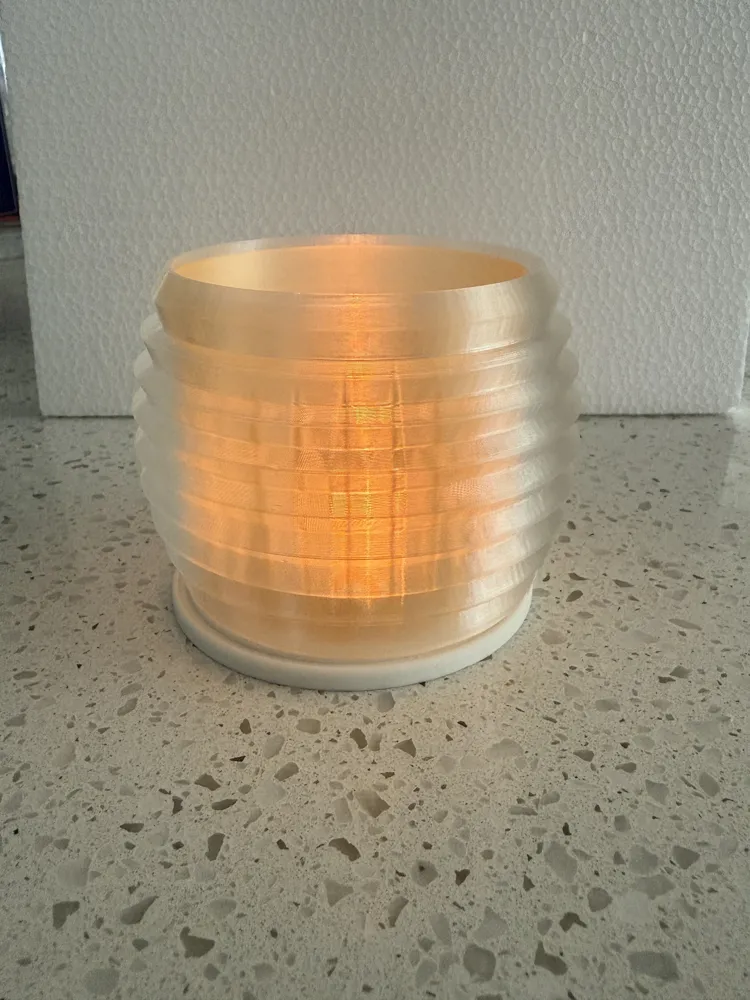

The main profile is highly customized for transparent and translucent filaments.  I print the outer and inner globes on separate plates.

Key Learnings with Transparent and Translucent filaments:

• Dry the filament before using
• Print SLOW SLOW SLOW--- set vase mode at 20 mm/sec with overhang overrides turned off

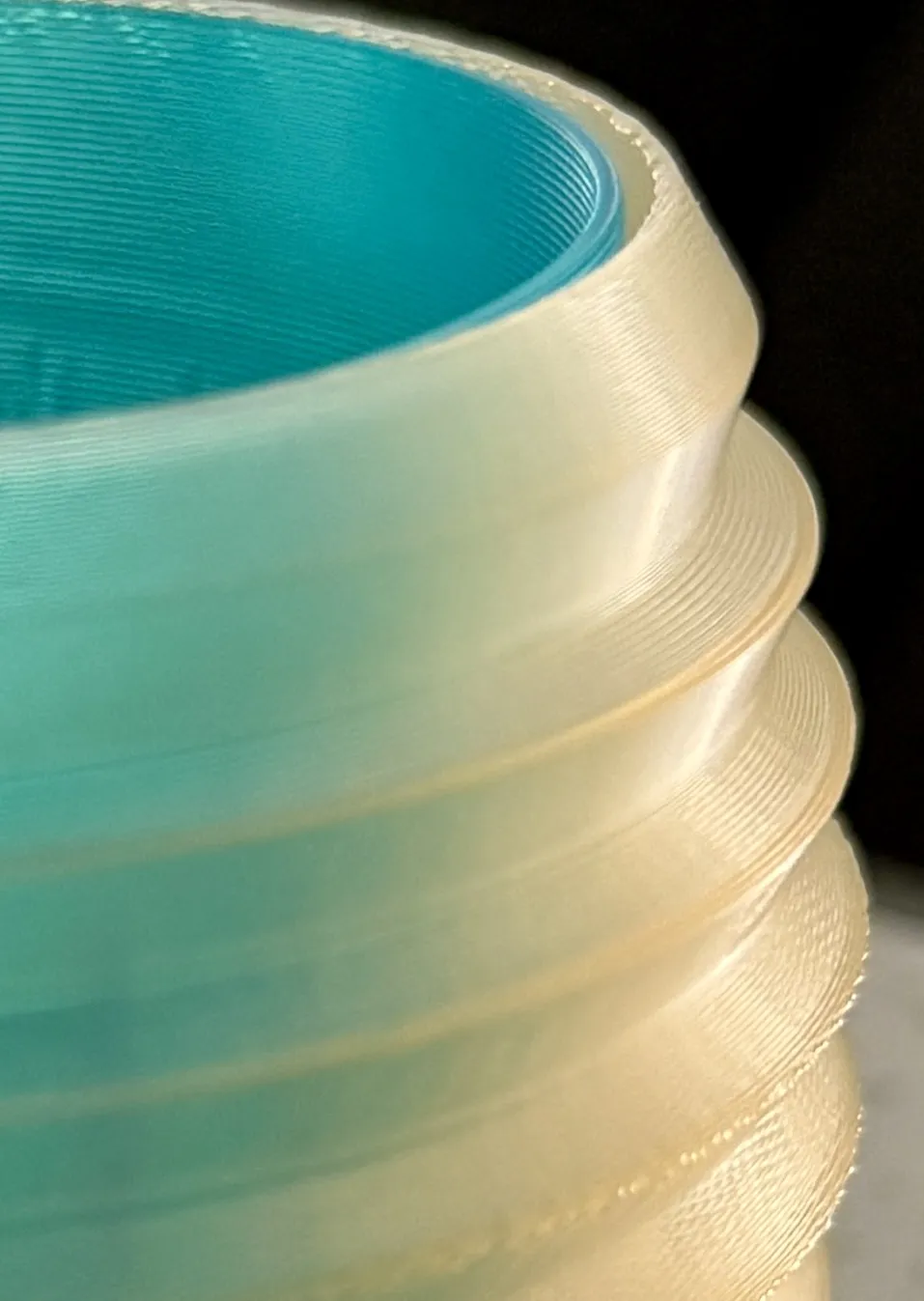

• The wall thickness helps the appearance of translucent and transparent filaments.
• The walls are 1 mm THICK line widths
• The wall layers are THIN, at 0.16 mm in the profile uploaded

Key Settings Are:

• Spiral Vase Mode for the globes
• 20 mm/sec outer wall speed
• Slowdown for overhangs OFF
• Inside brim for the outer globe
• Outer wall line width at 1 mm (standard 0.4 mm nozzle)

• 0.16 mm layer thickness



  If you love this model, consider sending a boost my way.   I'd love to see your photos!!!  Please share them here with your review.



Please never hesitate to  send me a DM.    If you've always thought of a model or concept, but haven't found it yet… I'd love to chat with you.
Sometimes the very best ideas start with a conversation and an idea.   My design platform is commercially licensed Fusion360, by AutoDesk.

I'd love to hear about your successes with the models.   Please do feel free to reach out to give me an update.  Please let me know that you are a subscriber, and as always, please let me know if I can be helpful in any way what so ever.  I have time to assist, and I love what I do.  I so appreciate all of you.  –  Lee                                    let's DO this
