Pinball Controller

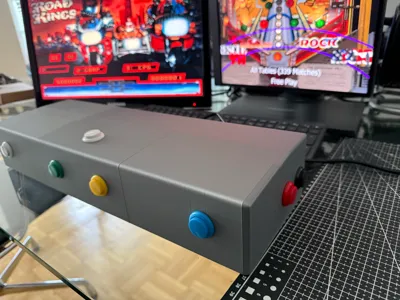

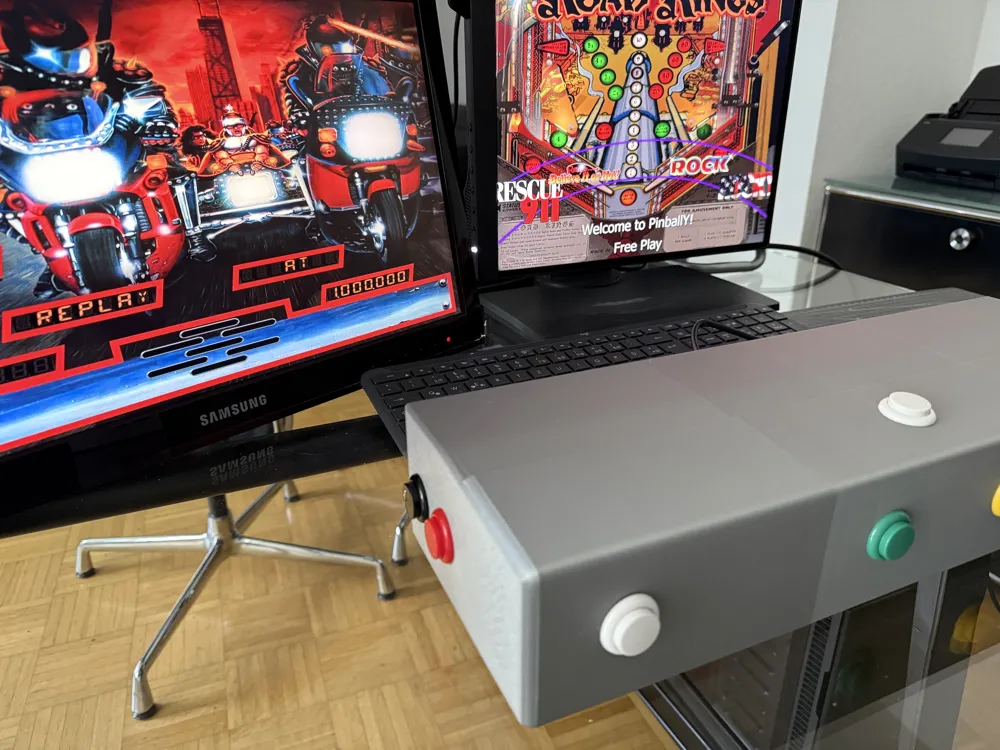

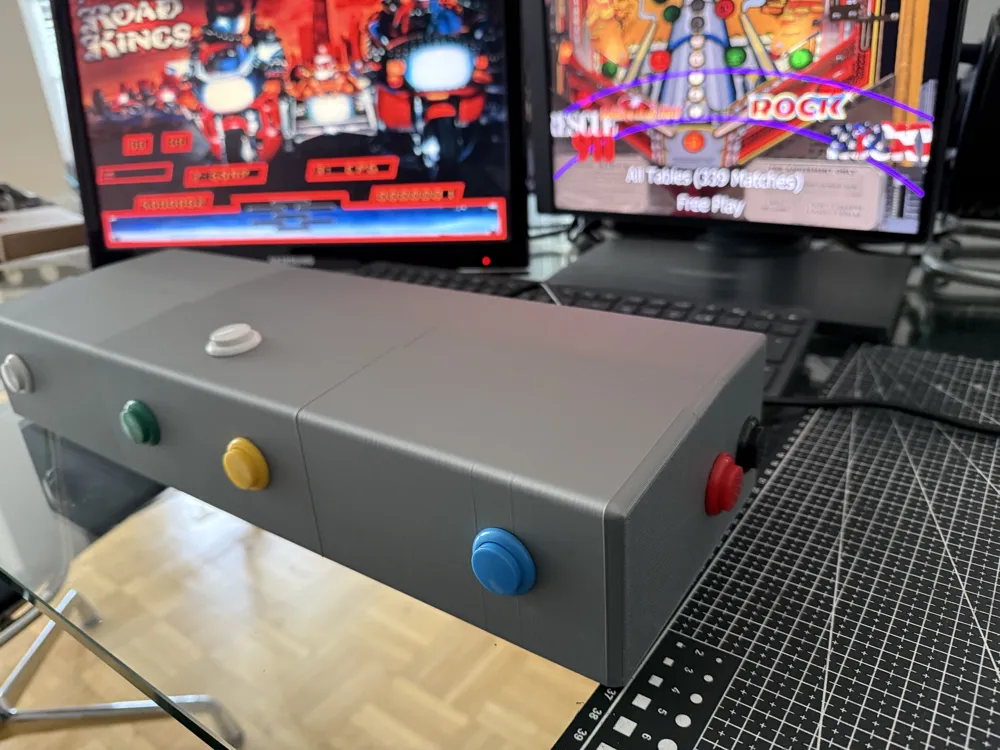

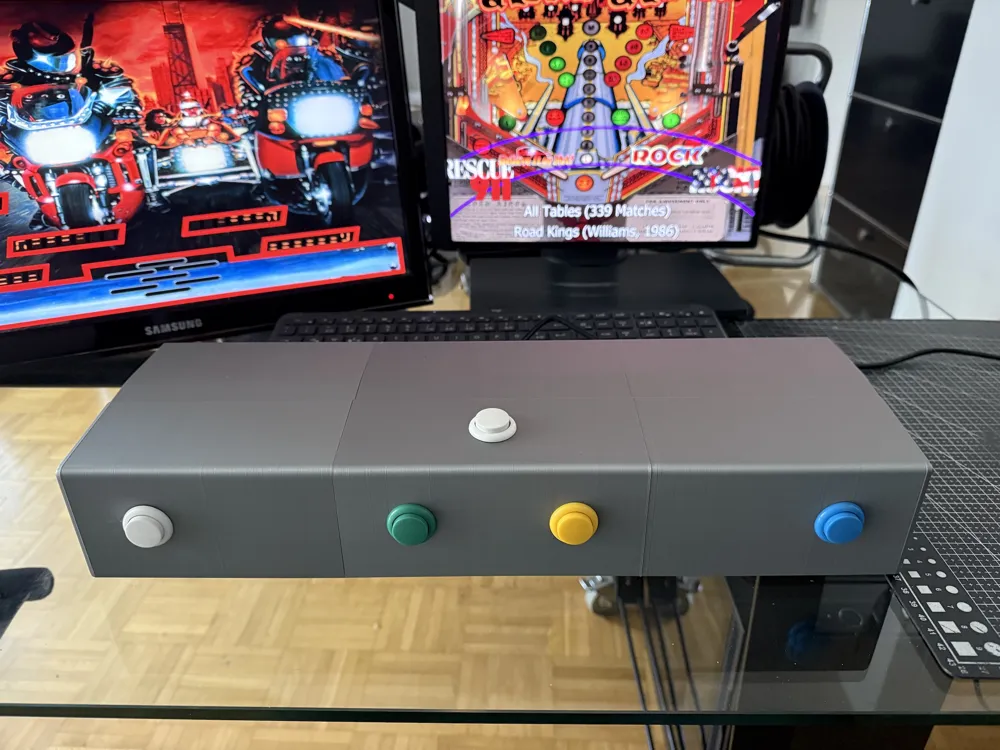

Playing visual pinball isn't much fun when using a PC keyboard. So I made my own controller.

When I play real pinball, I like to place my thumbs on the lockbar, so I added that to my design. I took the measurements for the flipper button locations from an old Bally machine, so it gives a realistic feeling. It's not required to glue or screw the main parts together, it's a tight fit and works fine (at least with the print of my XC1 printer). The controller is a little more narrow than a standard pinball, if someone wants to have a different width, just let me know. I also added the .step files, so you adjust some features on your own.

I would recommend to activate supports for the print.

I used the following additional parts:

Switches - https://www.amazon.de/dp/B075DCB7LT?ref=ppx_yo2ov_dt_b_fed_asin_title

USB Controller - https://www.amazon.de/dp/B01N94HGNG?ref=ppx_yo2ov_dt_b_fed_asin_title

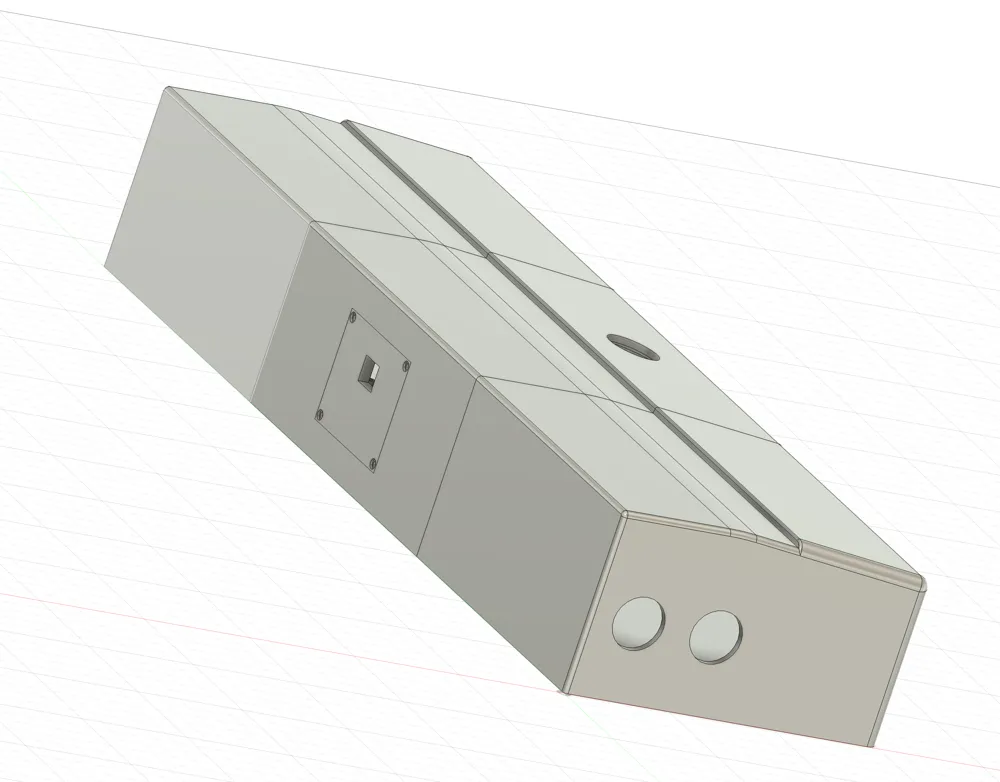

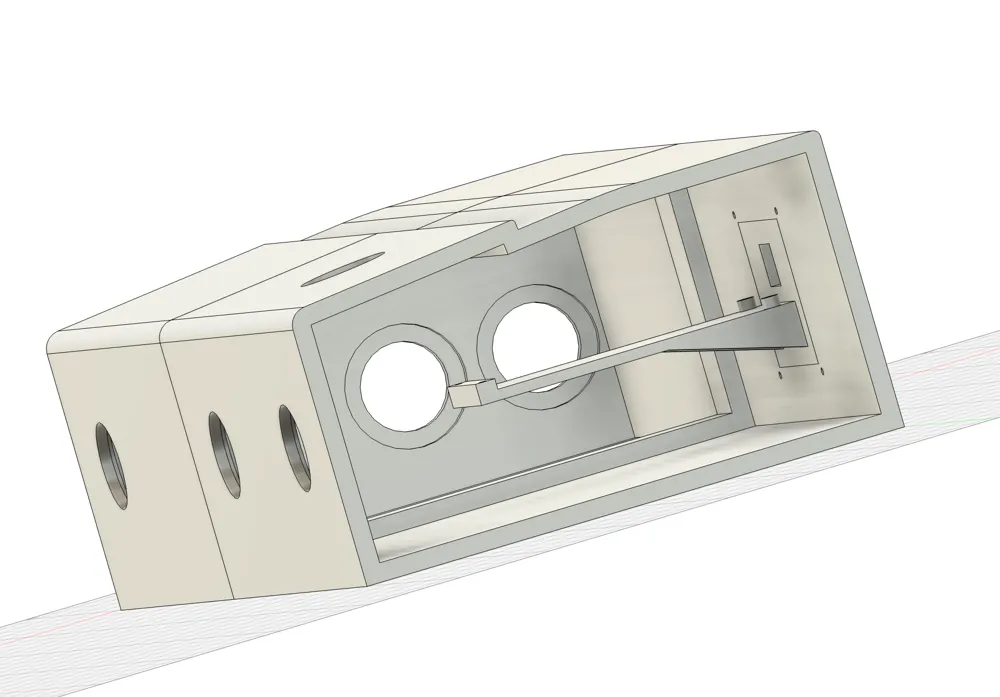

I've added parametric models for the main parts. You can change the width of the middle part to get your preferred total width of the controller ((width middle part) +2 x 150 (width of the sideparts -fixed-). You can also change the diameter of all button holes and the location of the Flipper/MagnaSave buttons.
