Storage Set

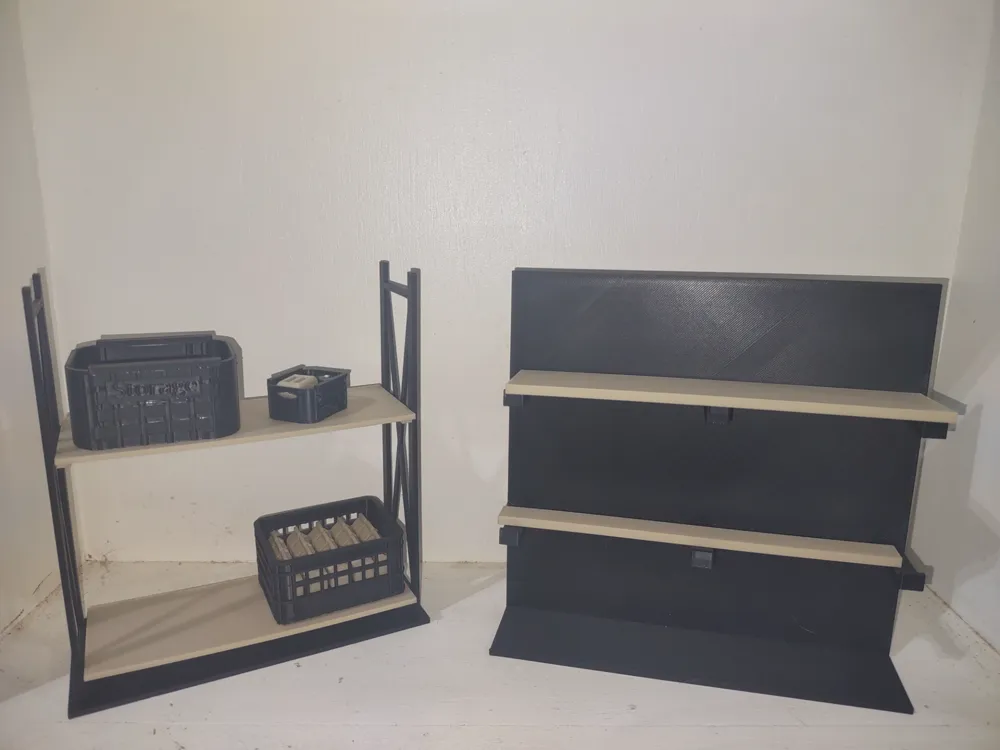

This Storage set comes with two types of shelves, planks, and little storage boxes. One type of shelf is your generic shelf for all kinds of storage while the other is a shelf designed especially for tiny wood planks. (Each shelf at 100% scale is about the size of a dummy 13 at 150% scale or a general phone. (my phone))

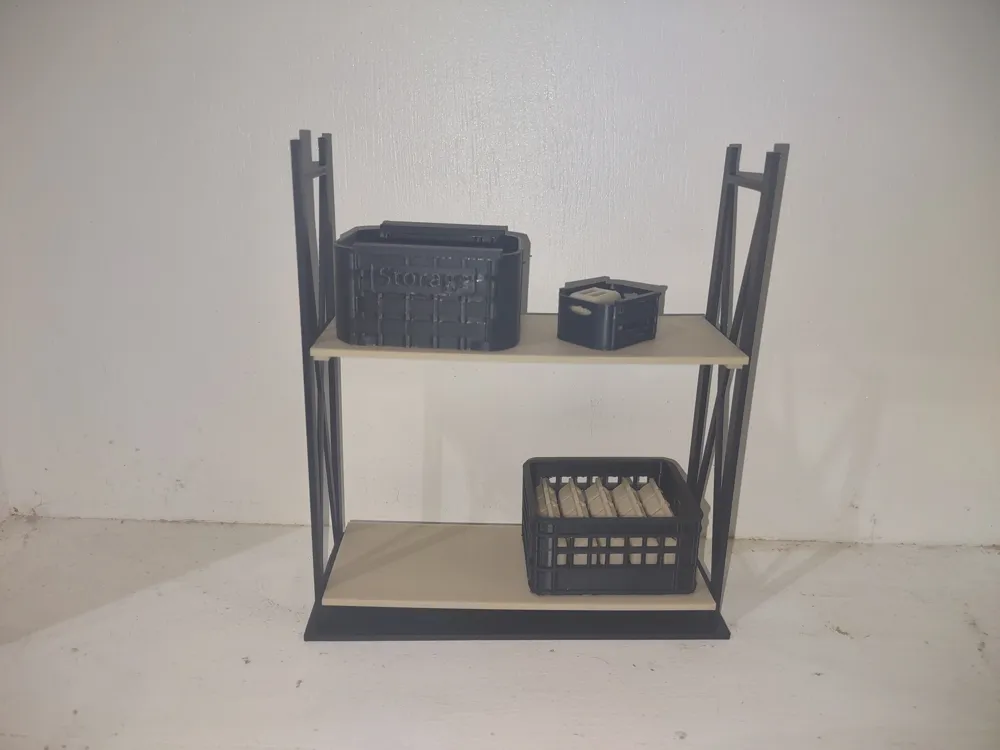

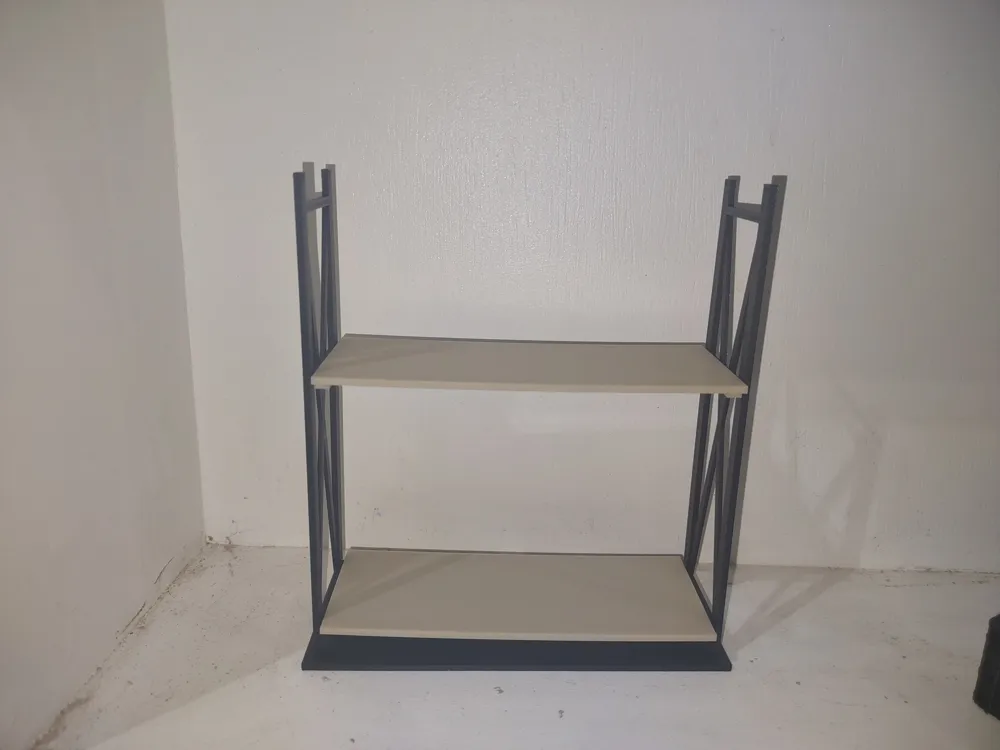

To assemble the generic storage shelf, you need 2 end pieces and atleast 1 shelf piece. You grab one end piece and then one shelf piece, looking at the end piece, you can see up to 4 parts sticking out, all markings for shelves. once you've chosen your desired placements for you shelves, you grab your shelf piece(s). on the short side of the shelf you can also see a hole, with the shelf piece you instert it into one of four parts sticking out of your edge piece. (you may need to sand down either pieces) after you insert all of your shelf pieces into one edge piece, insert the other edge piece to secure it. There is also a base made to further prevent the shelf from falling backwards or forwards.

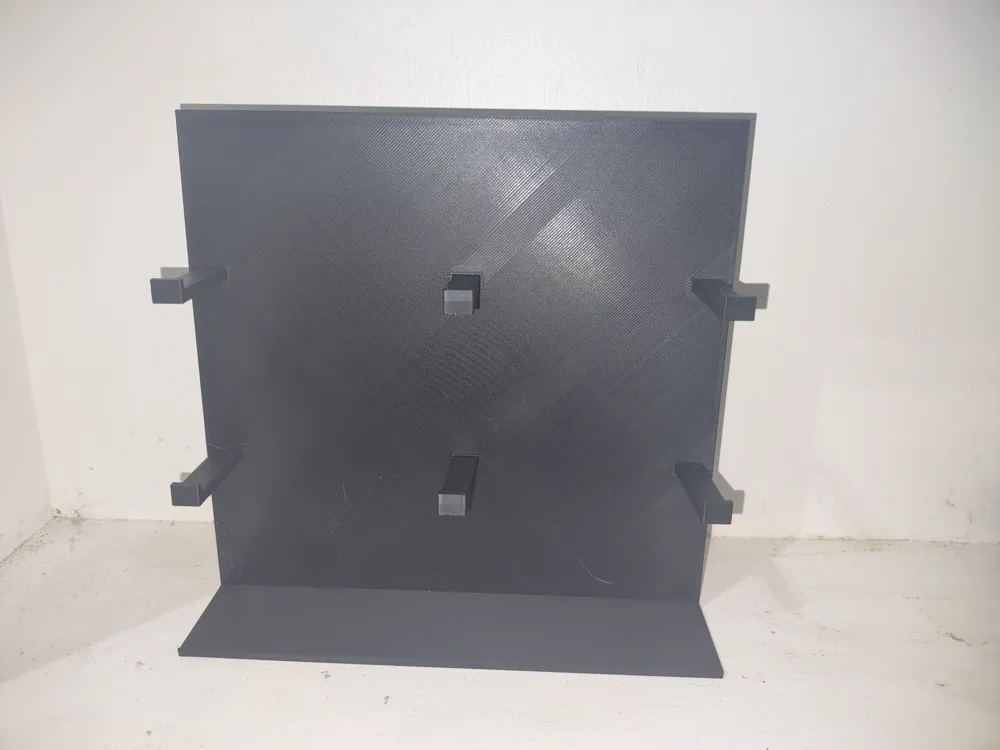

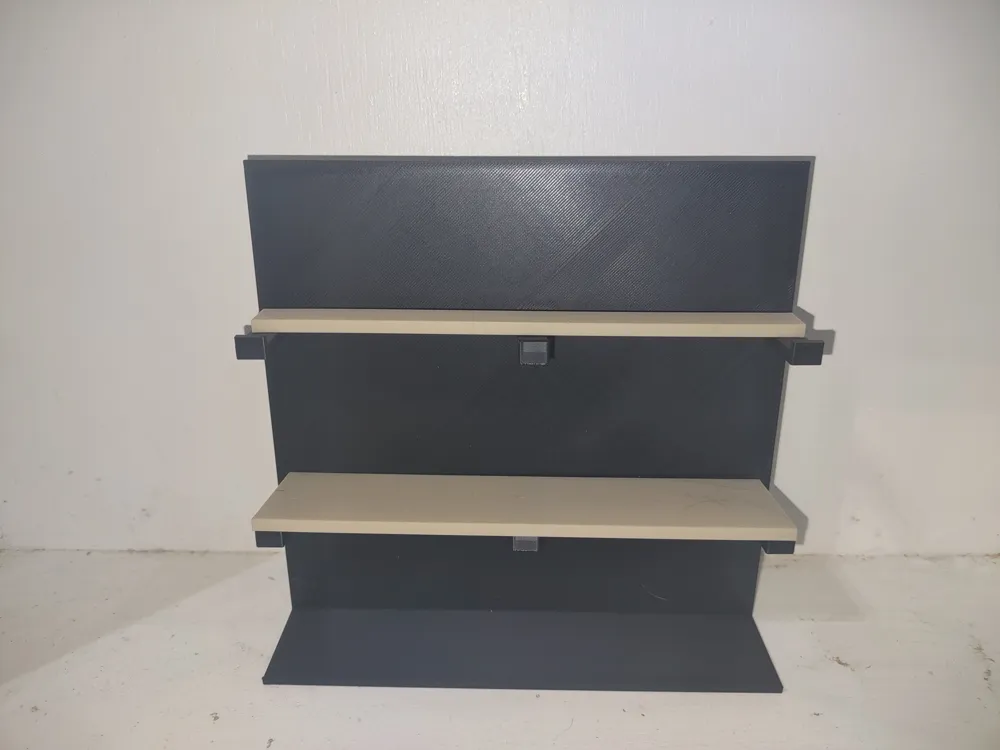

To assemble the shelf designed for wood planks, you need one shelf piece and 2-6 hook pieces. place your shelf piece flat on a surface with the bottom platform sticking up. (in the position it was printed in.) On that side, you should see 6 holes in the shelf piece. using your hooks, insert the pieces into the shelf. (Once again may need to sand hooks and/or shelf holes down.) If you only printed 2 hooks, i would reccommend you place one hook on the far right and the other on the far left for the best balance. The platform on the bottom is used to balance the shelf and prevent it from falling, if there are any problems, you are free to leave a review.

For anyone using a printer with a smaller build platform, there is a 50% scale option, while it is a lot smaller, it saves you filament and still gives the best results possible. (The box in the 50% scale option may not have a wall on the front and i am actively attempting to fix it.)

If you want a thicker generic storage shelf, there is another option that uses more filament and more time, but is less fragile and less likely to break. (There is no current base for the thicker storage shelf so you are open to make your own until i make my own.)

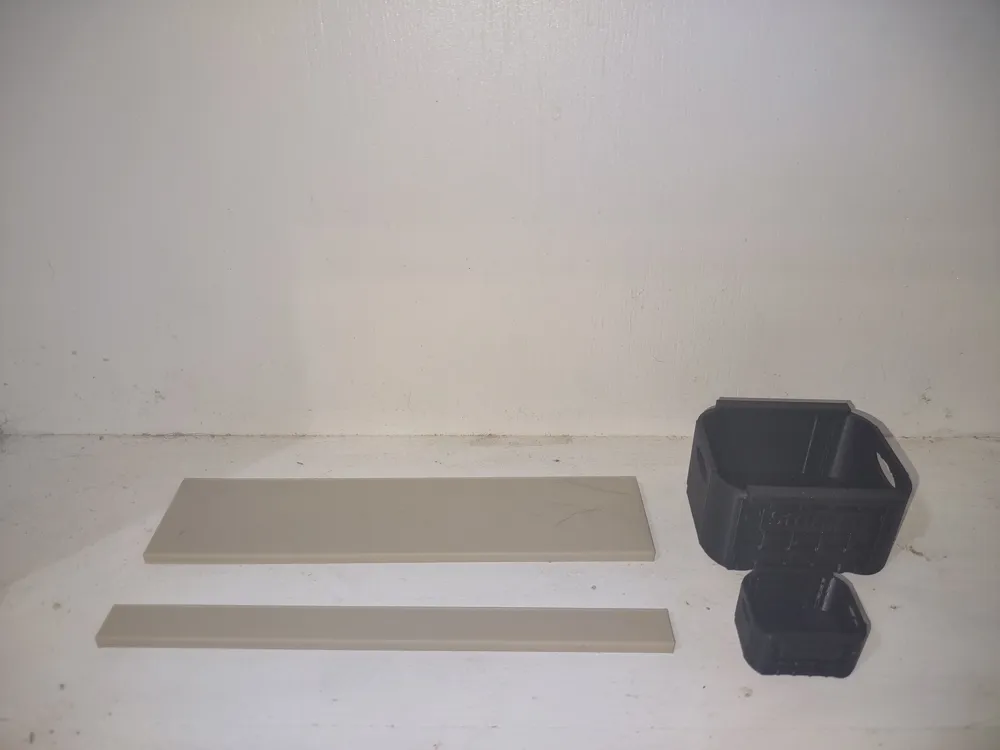

There is also a crate and planks available to print to decorate your shelves and the generic storage shelf is compatible with the Cyberbrick MilkCrate by @SaTL <3
