Generic Parametric Hook

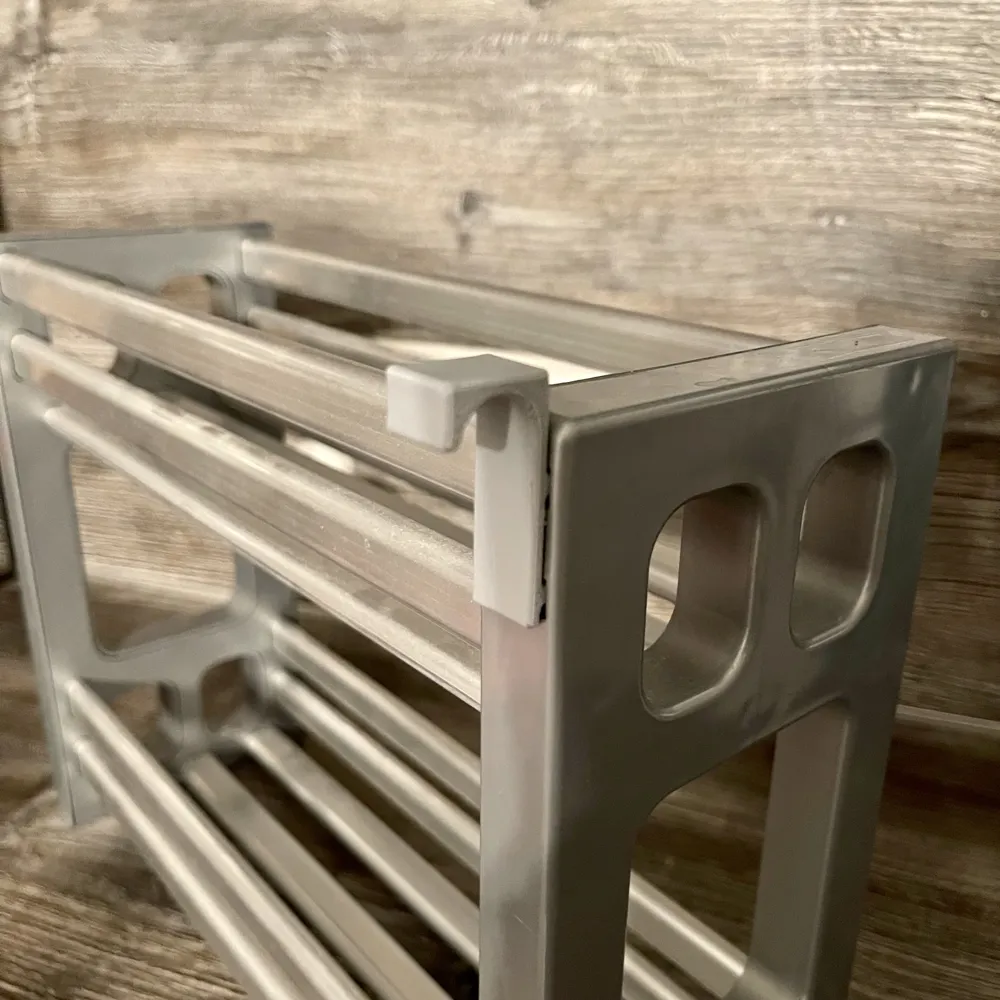

I created this generic hook to replace a broken one for a hangable kitchen shelf.

After I created this hooks I had the idea to make it configurable so that other people can easily create the own hooks for a similar use case.

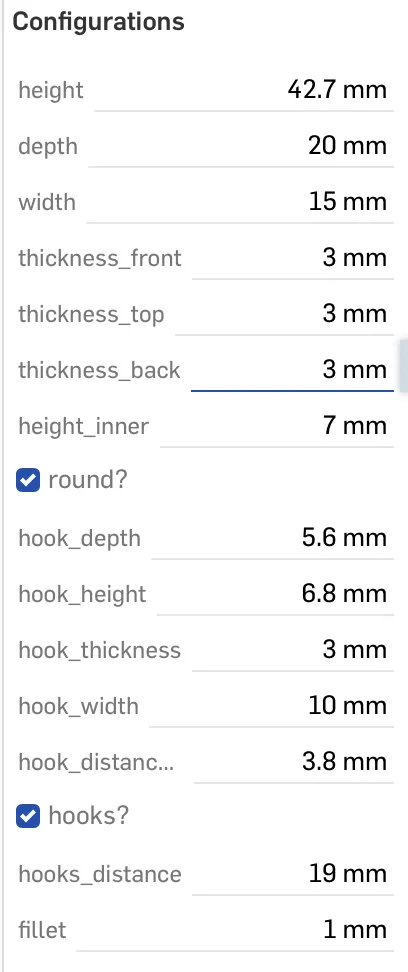

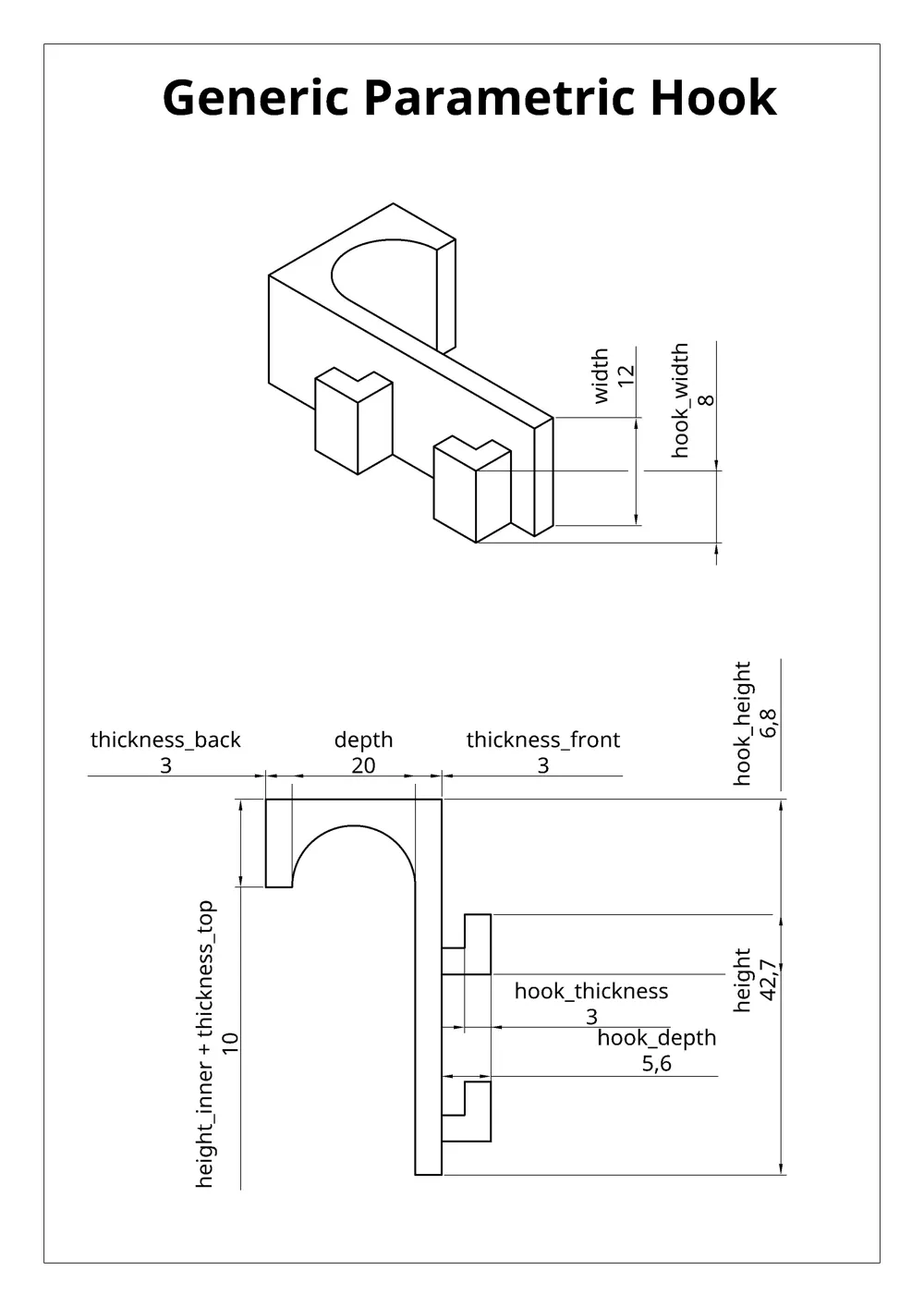

You can find the project on onshape. From there you can start playing around with the configurable options to create your own personal hook. The attached drawing helps you to find out wich option will change what part of the hook.

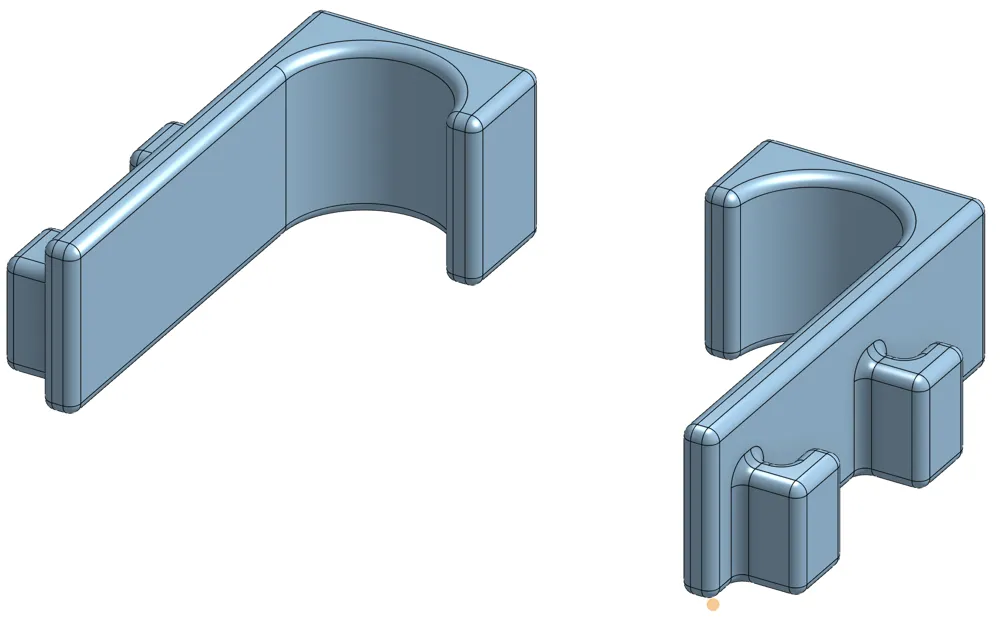

The files I uploaded are only the default hooks I created to repair my shelf!

Print Settings:

• 3-4 walls
• 20%-30% infill
• 0.2-0.24 layer height
• ABS, ASA, PETG, maybe PLA
• no supports!

Thanks for your feedback and please share your created hooks.
