Dust separator adapter
IP Report
Print Profile(2)

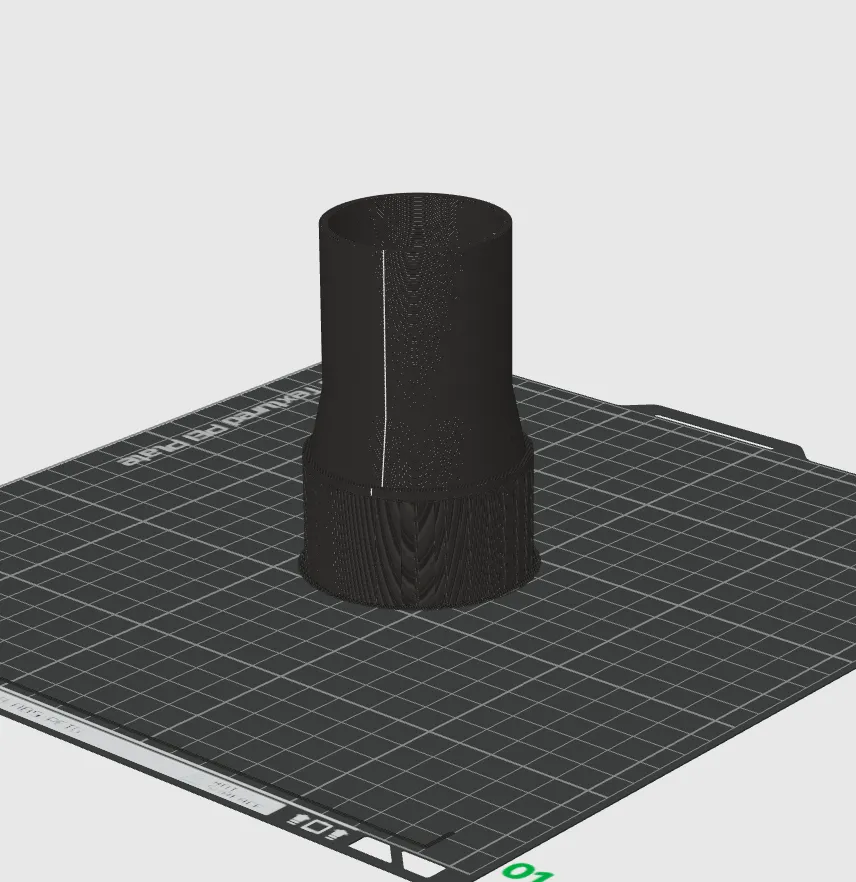

0.16mm layer, 4 walls, 50% infill PLA - Cold Plate
Designer
1.3 h
1 plate
0.16mm layer, 4 walls, 50% infill
Designer
2.4 h
1 plate
Open in Bambu Studio
Boost
1
2
0
0
3
2
Released
Description

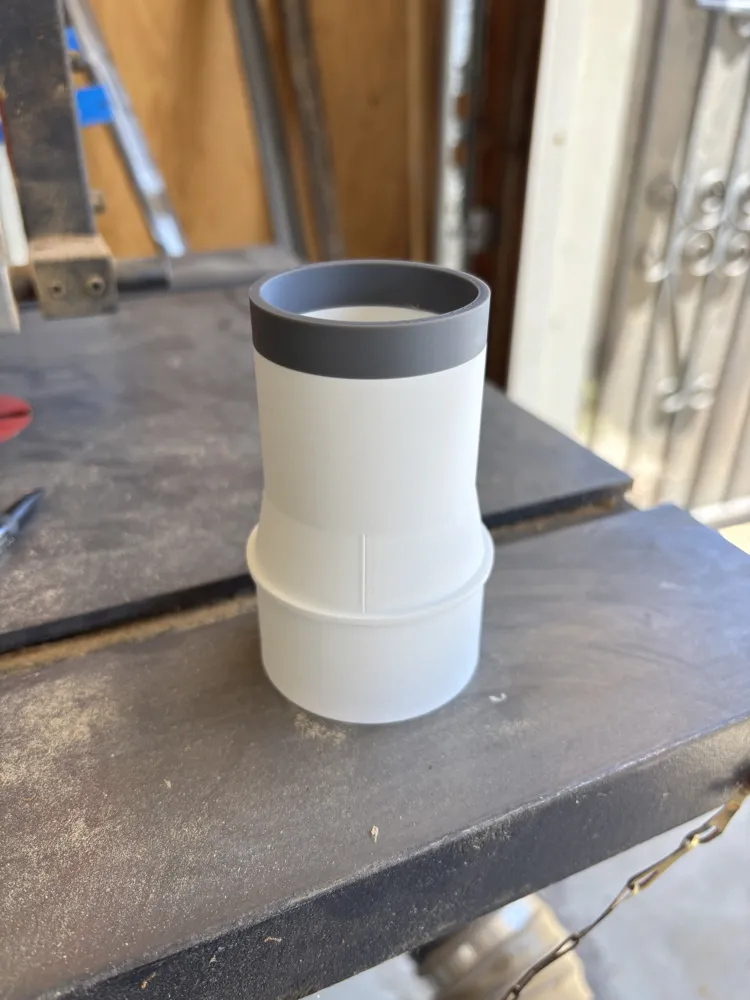

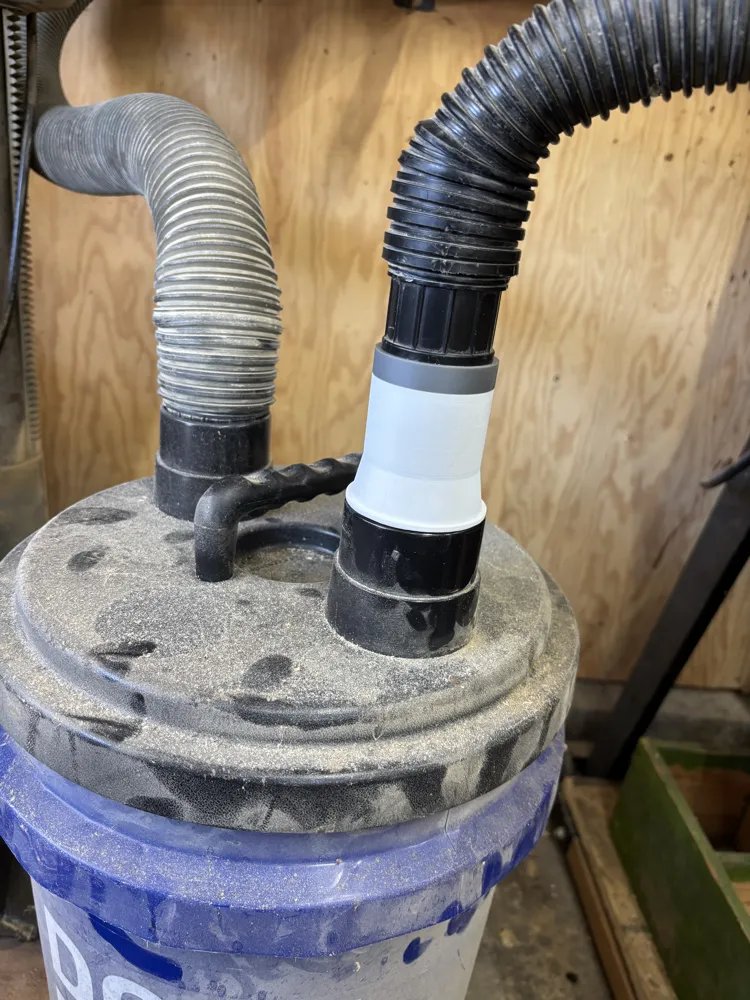

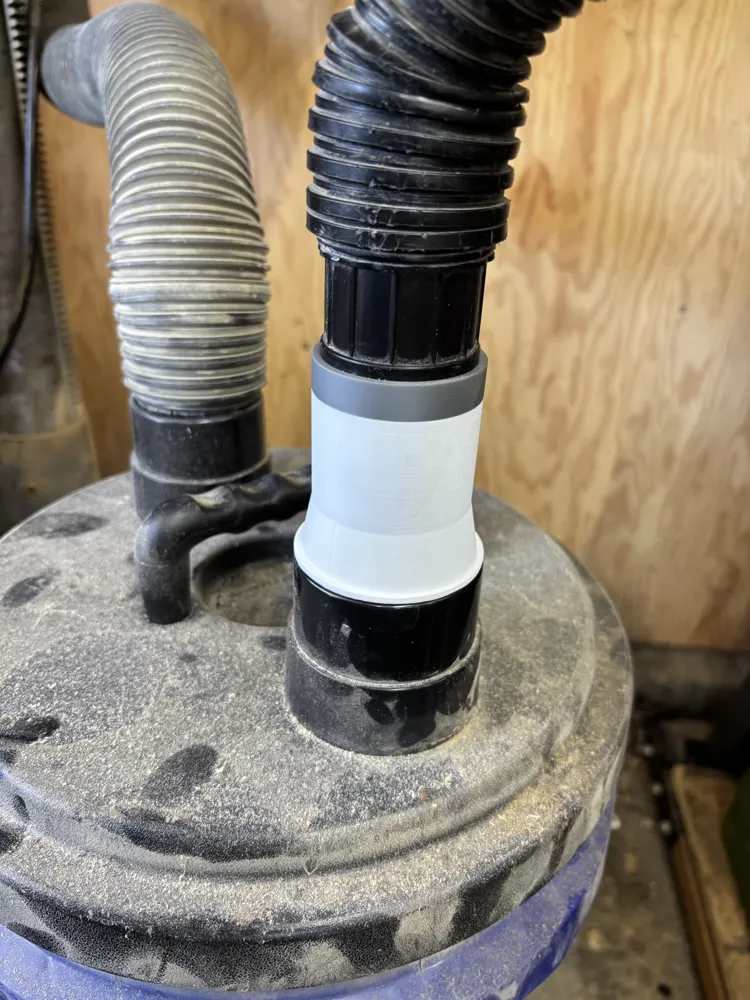

This is an adapter for Ridgid shop vac hose to go into a dust separator lid in the style of the WoodRiver Mini Dust Collection Separator. I believe it would also work with the WEN lid available on Amazon and at Home Depot. It's printed with pretty much solid walls for strength and it has minimal supports for the brims used to keep the adapter in place. I made mine in PLA and it seems to be working fine. I prefer cold plates for prints of this style to avoid the need for brims (I've had tube shaped objects fall over after the 75% mark before), but you do you.
Bottom interface measures 58.6 mm

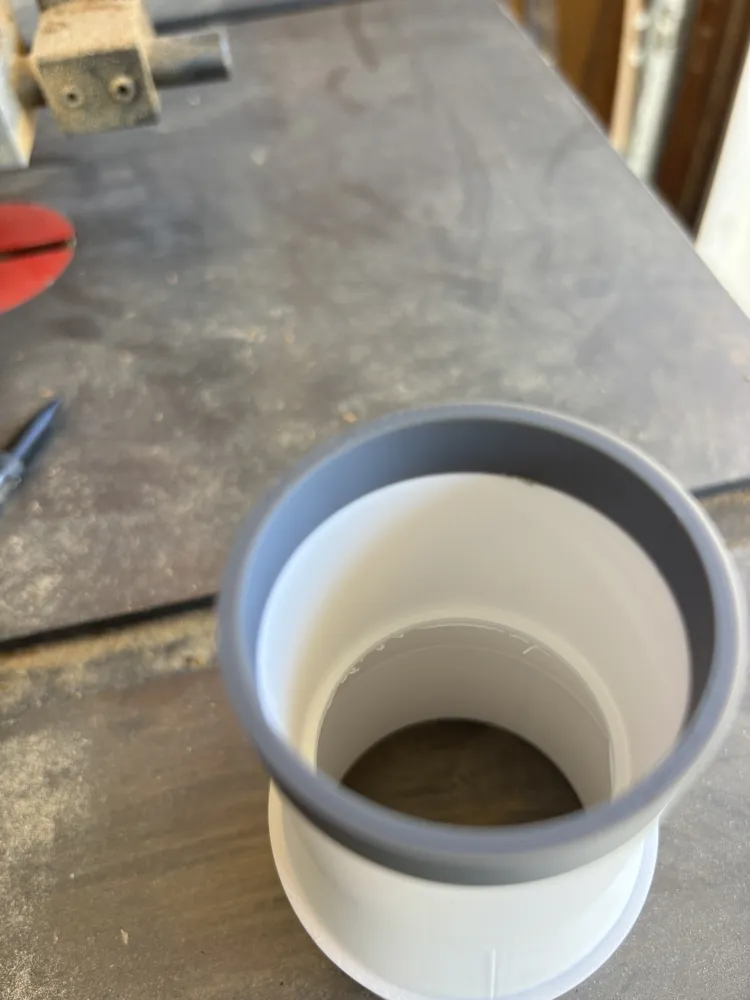

Top interface is 45.54mm internal (hose slips inside)

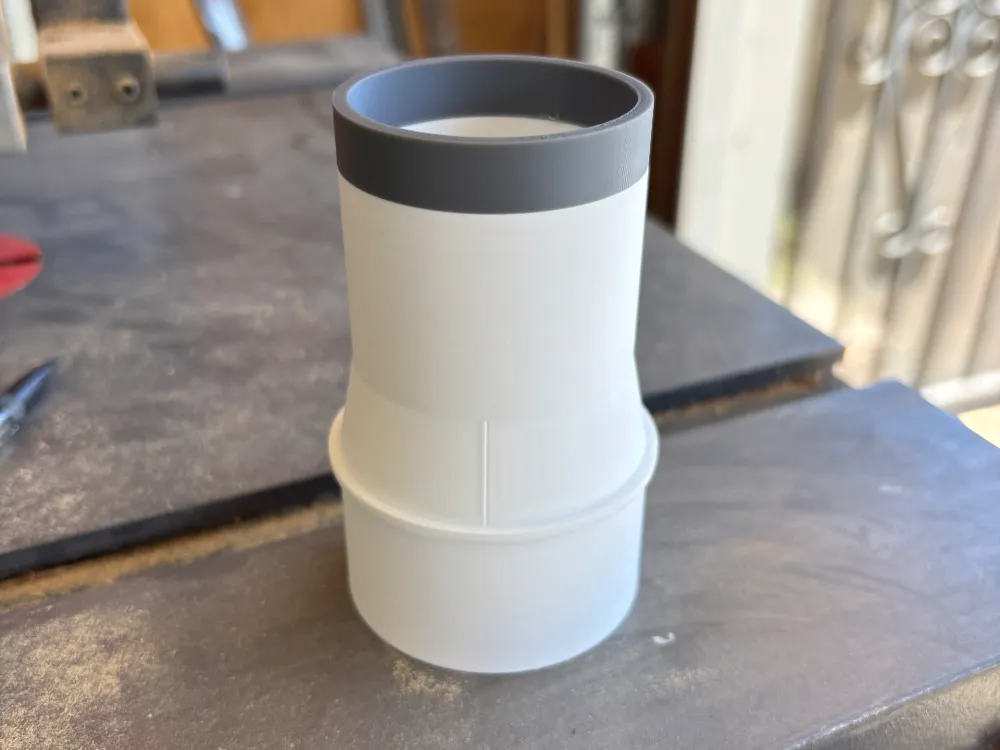

(multicolor in my print means nothing….I ran out of filament and didn't care about matching)
