AMS Stacking Stand Remix

Remixed by

Print Profile(3)

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
X1 Carbon, P1S, P1P, X1, X1E, A124 h
4.8
0.2mm layer, 3 walls, 15% cubic infill for large components, 50% gyroid infill 4 wall on pins/spacer
0.2mm layer, 3 walls, 15% cubic infill for large components, 50% gyroid infill 4 wall on pins/spacer
P1S, P1P, X1, X1 Carbon, X1E, A120.7 h
4.8
0.6mm CHT Nozzle | 8hr Total Time | 35mm³/s Flowrate
0.6mm CHT Nozzle | 8hr Total Time | 35mm³/s Flowrate
P1S, P1P, X1, X1 Carbon, X1E, A17.3 h
4.0

413
746
286
2.3 k
4 k
Released
Copyright Claim
Model
Comment & Rating
Remixes
Related Models

Description

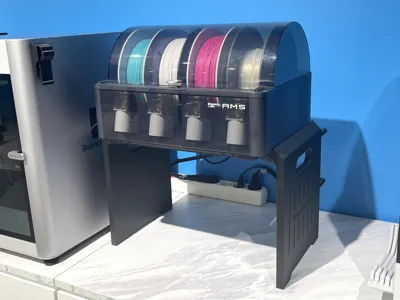

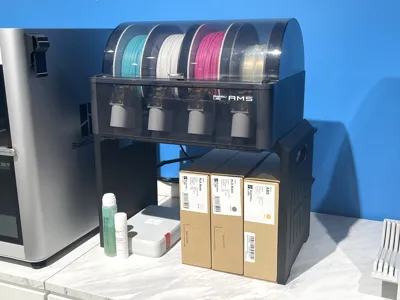

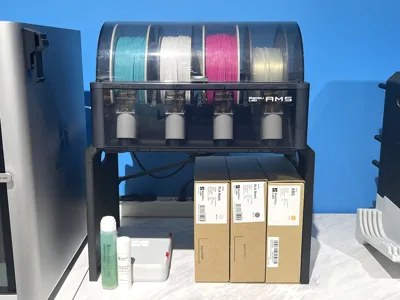

I like MihaiDesigns' idea and the P1P Armor Modplate. This is a remix of Bambu Lab AMS Stacking Stand with Armor Modplate style.

All gaps for assembly are intentionally very small. If it's difficult, please use a tool like a rubber mallet.



Updated on Jan. 7th, 2004

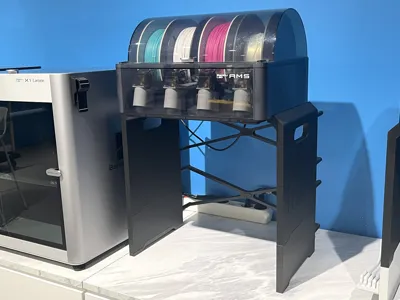

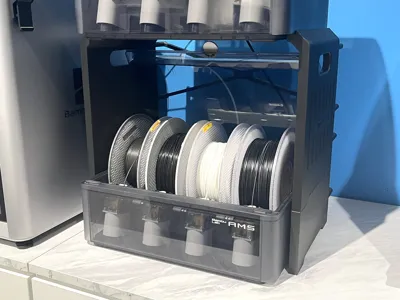

- The wall extension(Riser) is 20mm taller than the previous one, so the lower AMS top lid can fully open without the need to hold it.

- Also, you can add one more bracing when you use the wall extension for more rigidity.



Pins are separate parts because they need more strength, so at least 50% infill and 4 wall loops are recommended.

* If you want to push the lower AMS further back, please use Pin4 v2 & Pin4-Spacer instead of Pin3 v2.

* All pins are redesigned for better strength. Thanks for the great idea! @djwhouse Now, pins can be printed horizontally.

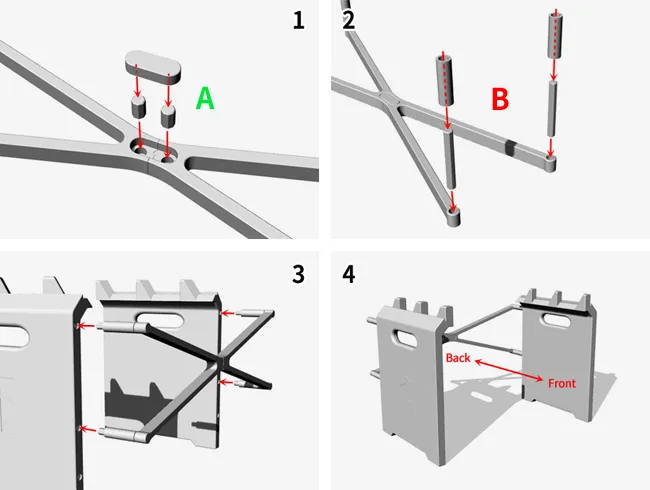

  • Pin1 v2(13mm) & Lock : for assembling bracing parts.
  • Pin2 v2(40mm) : for adding side wall extensions.
  • *Pin3 v2(20mm) : for joining bracing assembly and side walls.
  • *Pin4 v2(50mm) & *Pin4-Spacer : (Deeper) for joining bracing assembly and side walls.



If you need a build plate holder version, please check the link below.

https://makerworld.com/en/models/62232#profileId-64745




This remix is based on

AMS stacking stand for P1P and X1

License

Comment & Rating (286)

Please fill in your opinion
0/5000

Print Profile
0.2mm layer, 2 walls, 15% infill
This is an exceptionally well designed model that works exactly as intended. I used a mallet to connect the pieces to ensure they are rigid. Both AMS's fit perfectly and it works well with my AMS (newest version). I will also attempt to answer questions asked by others. Question: Can you fully open the AMS lid at the bottom level. Answer: Yes, Print the V4 connecting plugs only. Question Can this sit on top of the X1C Printer? Answer: Yes it will (just) fit however my advice would be to either add a small lip to the inner edge of the side walls sits between the glass lid of the printer and the outer wall. If enough people request it I will remix this design to include a base plate to prevent slippage or side lips. Summary: Printer: X1C AMS: Single filament only Filament: PLA+ Black Brand: eSun Slicer Plates: 3 Total Print Time: 12-13 Hours Standard Speed Filament Used: 906g Cost of Print: £11.46 Changes: None Supports: No Supports Type: N/A Supports Ease of Removal: N/A Recommendation: Yes 5*.
(Edited)
9
Reply
Did you end up doing a remix of this, it's exactly what I am after.
0
Reply
You know what would be awesome nd add a lot of support and stability would be add the hooks to the bottom of the legs to sit the bottom of the AMS and give more surface area along the edges.
0
Reply
can you remix this to stack on top of the printer please? this is amazing.
(Edited)
2
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
good remix stand i’m waithing my other ams to see how its fit, thanks a lot
(Edited)
3
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Tolle STL, habe im unteren Bereich noch eine Strebe entworfen. Danke
0
Reply
Hi, könntest du mir vielleicht die Stl für die Strebe zukommen lassen? Wäre wirklich super.
0
Reply
über die STL der Strebe wäre ich auch super dankbar
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Very Nice
1
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
super bien 👍🏻 mais j'ai juste refait les tétons pour l'assemblage car trop gros et trop long mais sinon nickel
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
It was my first big project, and it printed fine. i just had a small problem, that the pins ( 5 walls, 55% infill) and the extention tubes were a really thight fit and i had to scale the tubes up by 0,2 mm. that worked well. thank you for this great stand. my ams fits really well.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
printed great. I mixed up colors cause I was running low. you do need to hammer in the pegs. but it's a great fit for me.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
nice design
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
thank!!
0
Reply
It works. Because a lack of space i had to use extended version. It works, however there are few issues. 1. You can't fully open the bottom AMS 2. All thing is very wobbly and as a result not very stable/prone to twist. In my opinion if you add another crossbar at the bottom it'll be good. Apart from that im quite happy with it.
(Edited)
0
Reply
