Description

**** NEW AND BIGGER VERION MADE FOR M3 FASTENERS IS NOW AVAILABLE ****

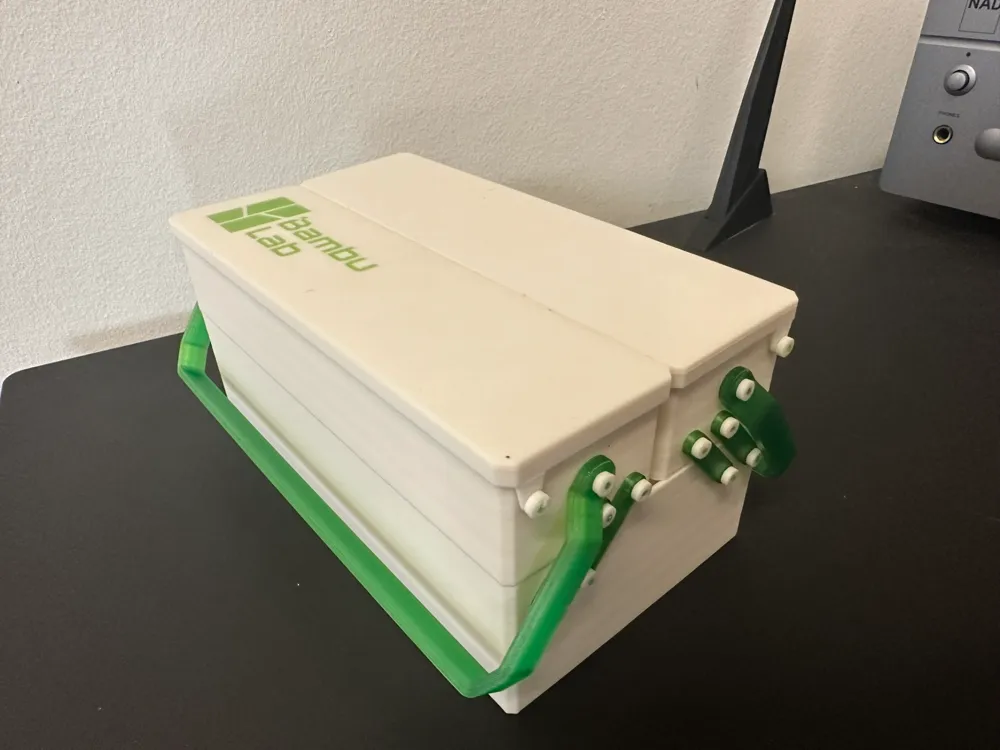

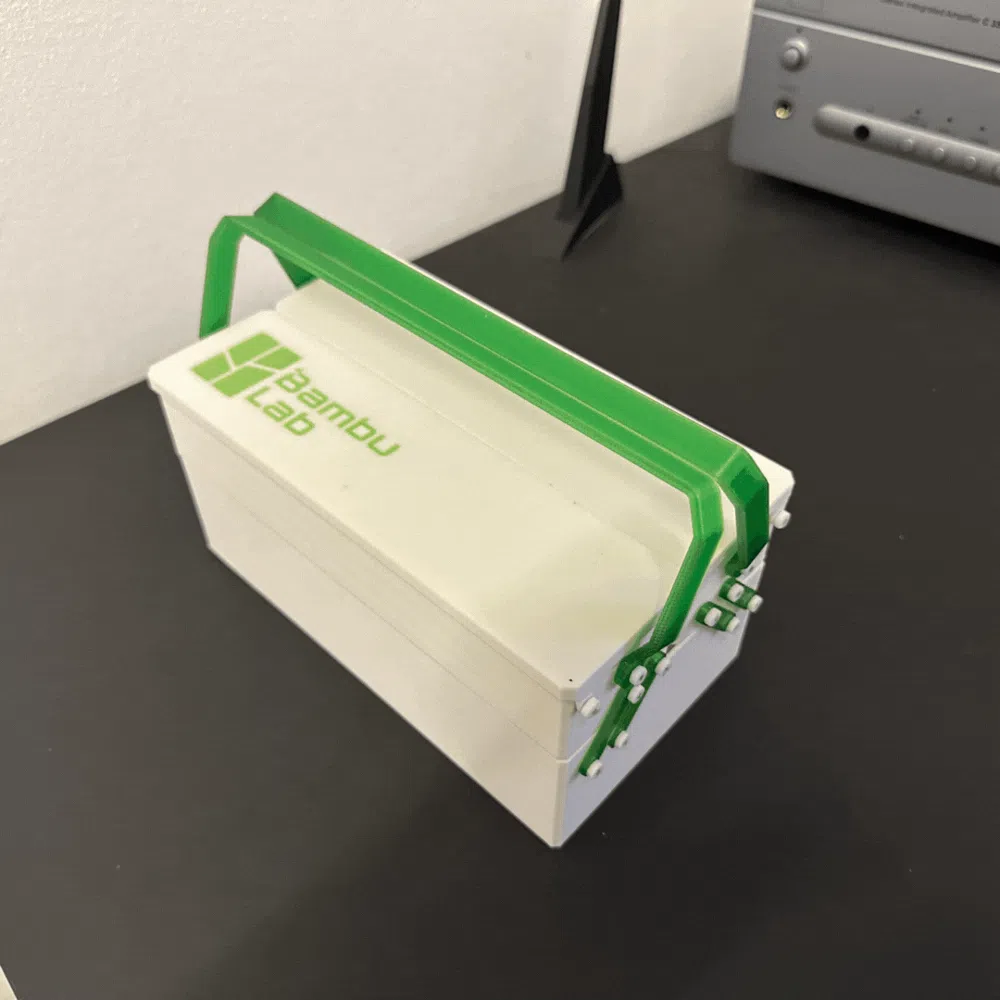

Bambu Lab ToolBox



- The Trusty Companion for Every Task! -



No additional hardware is needed aside from the printed parts.



This small yet mighty toolbox is the perfect place to store all your 3d printer related tools.



Its compact size makes it easy to carry and store, making it an essential addition to your home, office, or workshop.



Featuring a sturdy handle for comfortable grip, this toolbox opens to reveal a well-organized interior with designated compartments for various tools. Whether you're a DIY enthusiast, a hobbyist, or someone who appreciates having essential tools at their fingertips, this toolbox has you covered.

The thoughtfully designed layout ensures easy access to all compartments, so you can get the job done without any hassle.



From minor repairs to creative projects, this small toolbox is your go-to companion. Its versatility makes it suitable for a range of tasks, and its compact design means you can take it wherever your projects lead you.





Assembly guide



What you need:

1 Big compartment
2 Small compartments
2 Lids (with or without logo)
2 Handles
8 support arms
24 Small end caps
24 Big end caps
1 meter of filament

Super glue



Step 1:

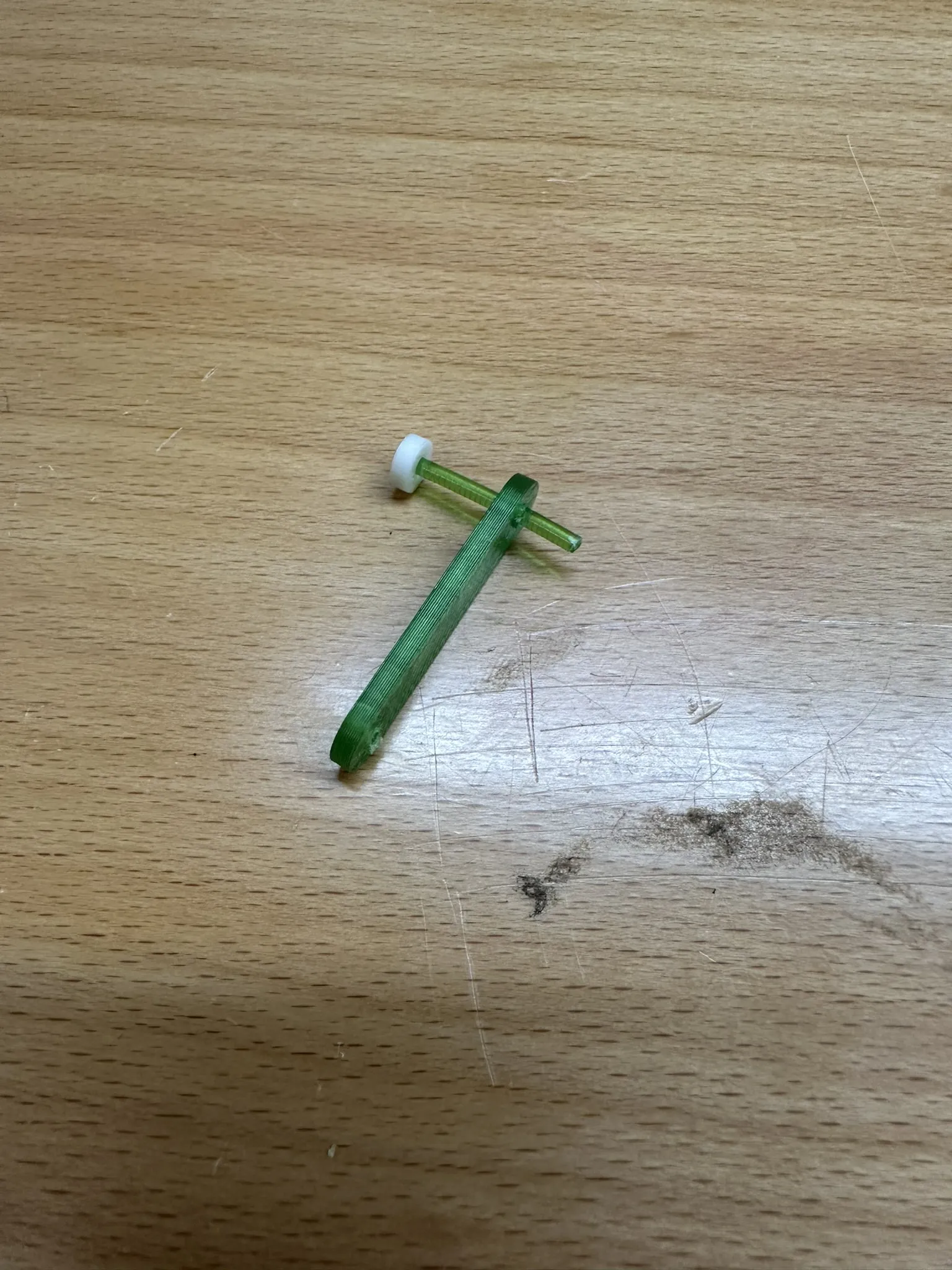

Press about 2cm of filament through the small end cap and one of the support arms



Step 2:

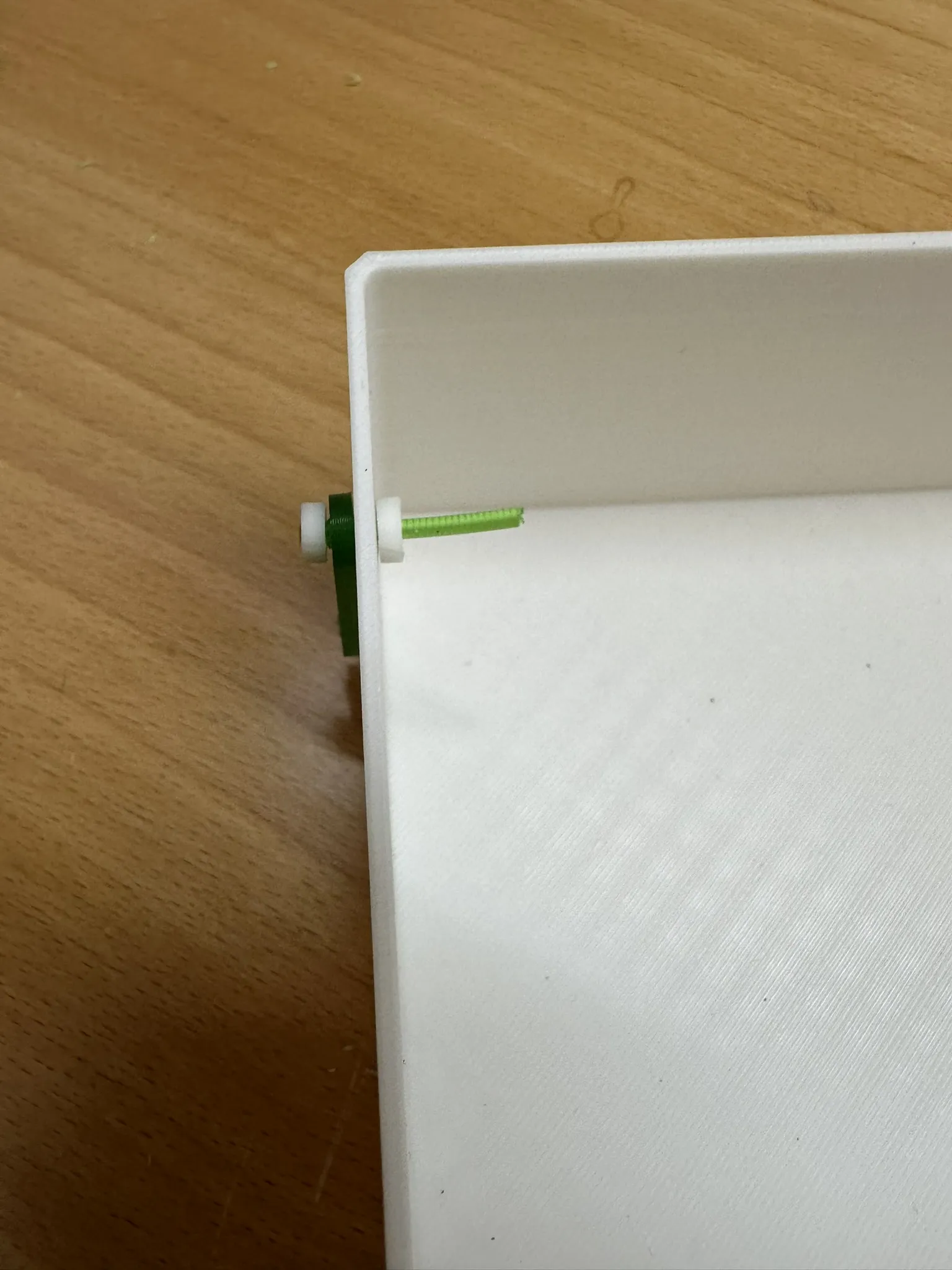

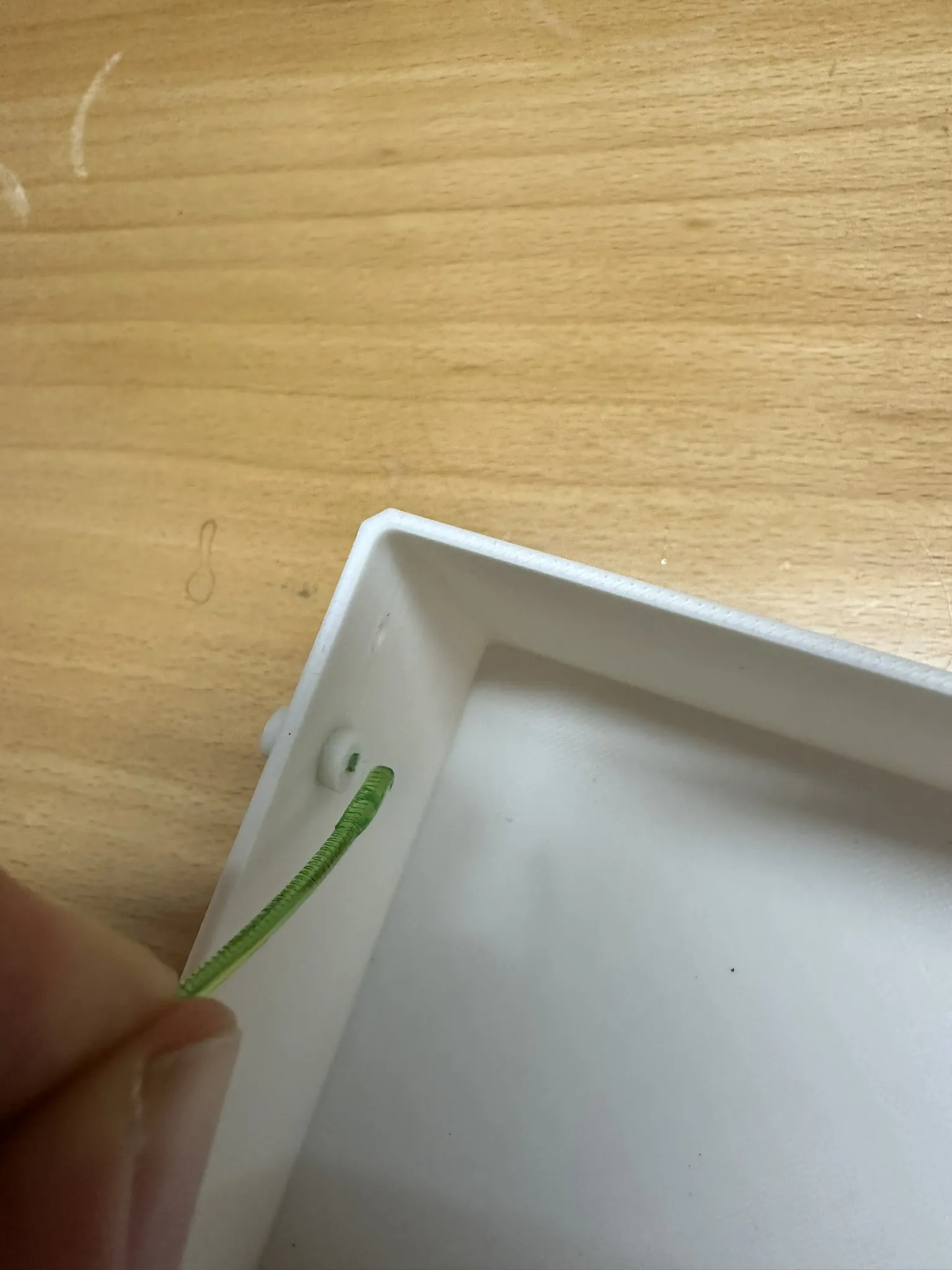

Fit the small assembly into on of the holes in the big compartment



Step 3:

Put one of the big end caps on to the filament



Step 4:

Cut off the excess material



Step 5:

Add a dab of super glue



Do this 24 times and the toolbox is ready for use :)
