Webradio

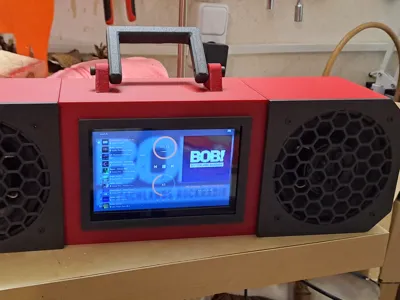

I present you my design of an internet radio that uses a Raspberry Pi  with MoOde-Audio inside. It was designed using Fusion 360. Supports are only required for the case.

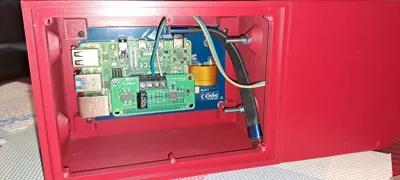

The following components were used:

• Raspberry-Pi 4 (surely version 3 or 5 would work too)
• Waveshare 5 inch touchscren (https://www.waveshare.com/5inch-dsi-lcd.htm)
• HiFiBerry MiniAmp (e.g. https://www.amazon.de/dp/B01NBAY8B0)
• 100mm speakers (like these for example https://www.amazon.de/dp/B07CRSJ7BG)
• USB-Socket in the rear cover of the casing (https://www.amazon.de/dp/B0D95L8855)
• USB-Cable for the internal power connection (https://www.amazon.de/dp/B0FD3N6FKY)
• Mostly M3 screws are used. Only the handle and the speaker enclosures are connected to the casing via M4 screws and nuts.
• Cable to connect the speakers to the amp

For information regarding installation and usage of MoOde-Audio please refer to https://moodeaudio.org.

Any questions feel free to ask.

Have fun!
