CreationSpace Pro Case

August 11, 2023 Update: I have an updated enclosure using an existing (better) pre-made enclosure that is significantly more rugged: CreationSpace Pro Frog Box

---

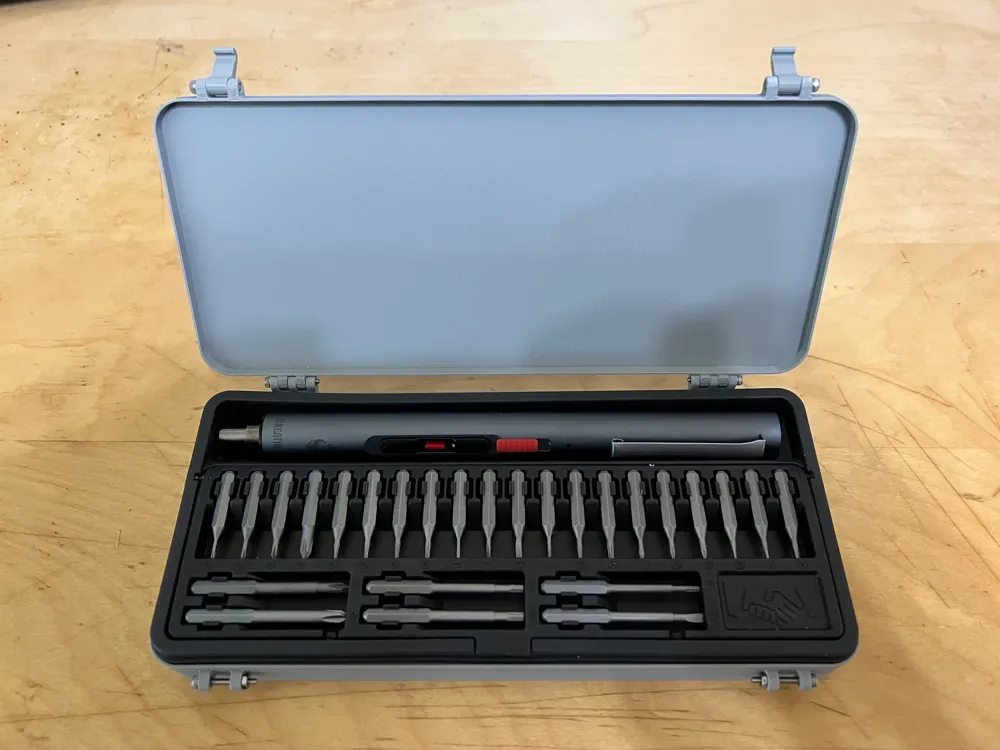

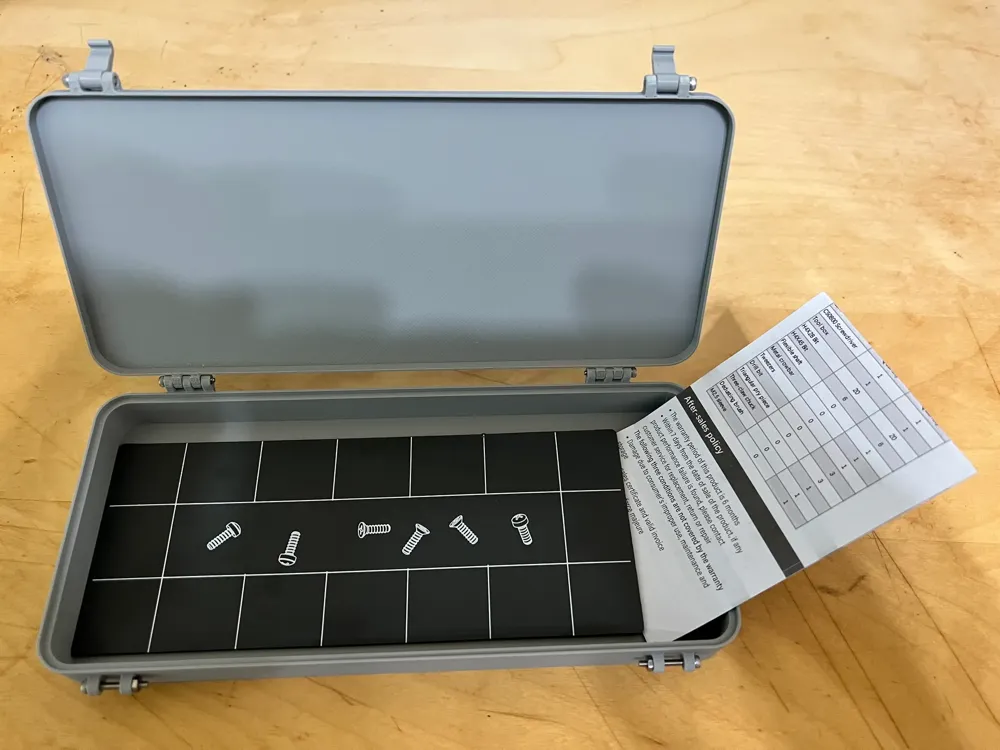

Everybody who has received a CreationSpace Pro lately is familiar with the hinges on the case… The screwdriver is great, but those hinges will fail long before anything else. I set about to redesign the case as a result! It turns out that the insert in the case is fantastic, so rather than reinvent that wheel, it's reused here.

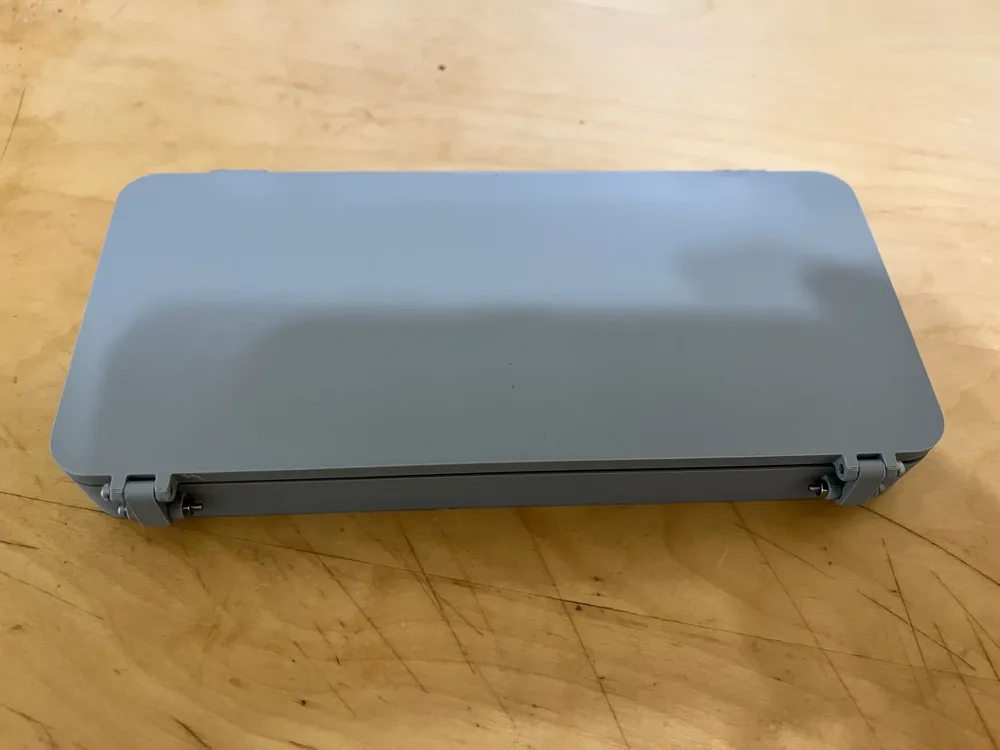

Print one top shell, one bottom shell, and two latches. Assemble with M2 hardware. I used M2x16 for the rear hinges, M2x12 for the top of the latch, and M2x16 with M2 nuts for the bottom of the latch.

V2 Update: Support no longer required on bottom shell!

Improvements coming soon:

• Improved screw clearances.
• Improved hinge clasp design.

Bill of Materials

1. 1x Top Shell (printed)
2. 1x Bottom Shell (printed)
3. 2x Hinge (printed)
4. 4x M2x16 screw
5. 2x M2x12 screw
6. 2x M2 nut

Changelog

Version 2: Removed support requirement on lower shell.
