Gear Wheel Function Generic Spools

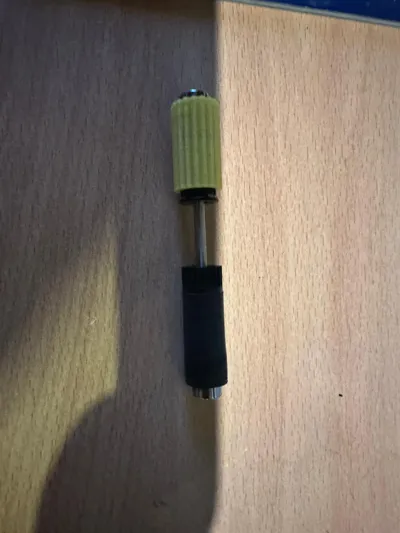

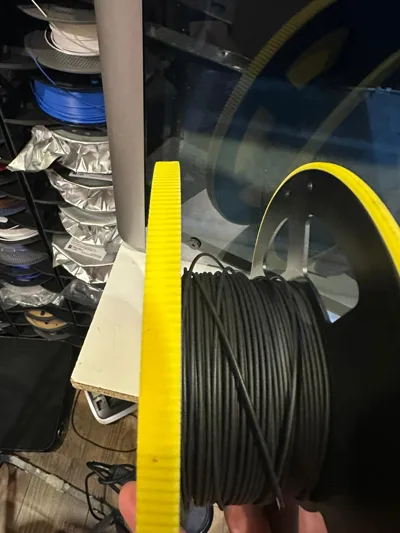

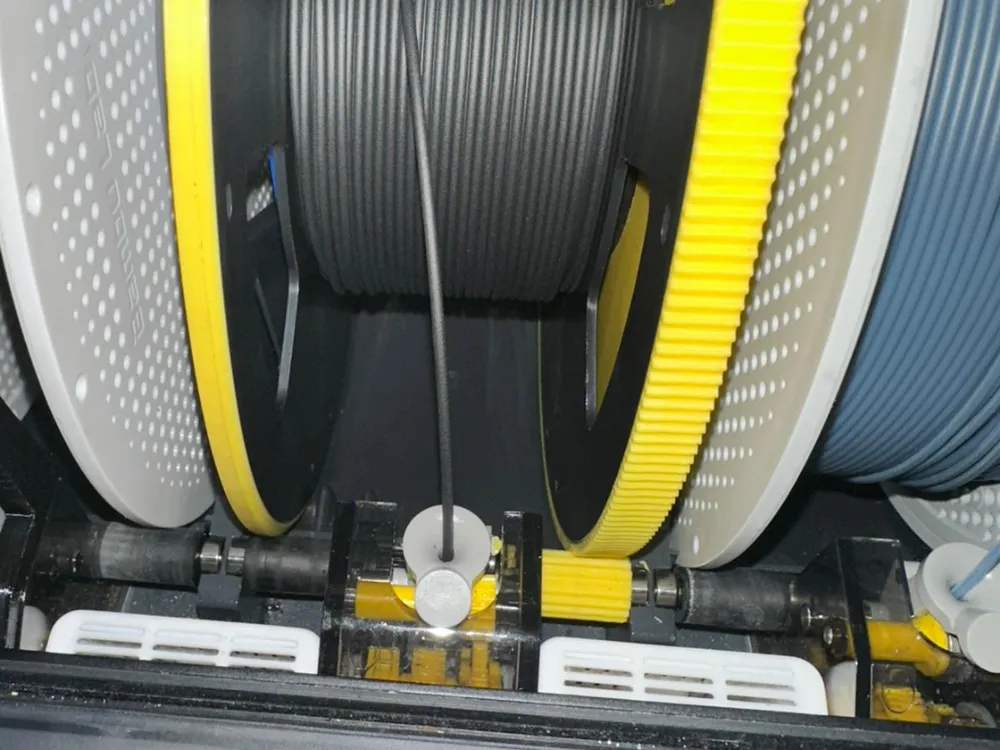

For now this is a spool adapter with gearwheel function. I have the Python System printed, and I loved the power of the gearwheel spool. So I was thinking, “how can I use this in regular AMS?”. So I did the adapter for the AMS Active Support Shaft Assembly with smaller gear size. In addition I designed for now the Jayo plastic spool. The right side (when you insert the spool in the AMS) is the much wider than the left without gear. This needs to be to have the spool running without shaking up. The gear function makes the transport much more powerful as I wanted it. On the pictures you can see also how to adjust the AMS Active Support Shaft. Next Spool sizes will be Geeetech, Giantarm and Sunlu (new).

Update: Replaced the broken file (Thanks Splash) and added a flat version of the right side adapter, as I think this is useful on these bad rolls too

Update: eSun 200mm role included, also I uploaded a new print profile for the original Bambu Spools to use one side with the gear adapter. Profile you can find here

https://makerworld.com/en/models/1712930-bambu-spool-gear-version-long-short#profileId-1817779

Hi all! So I got a lot of requests for different brands of spools. I would really like to add those brands to the print profile, but as you can imagine, I don't have all brands here in my filament stock. So my I clearly define my way, if you want them included.

1. Measure the spool
2. Send me diameter and width of the spool via message in Makerlab
3. Send me information for which role it is (i.e. esun, cardboard)
4. I keep the max. amount of brands to 2 per person, so really decide which one you need.
5. As soon as I have the update I will inform you by answering the message

Cheers

Thomas
