Tea rack, customizable
Print Profile(1)
Bill of Materials
- Aluminium Tube 10x1x1000 x 3: 10mm outer, 8mm inner diameter, length as needed
Description

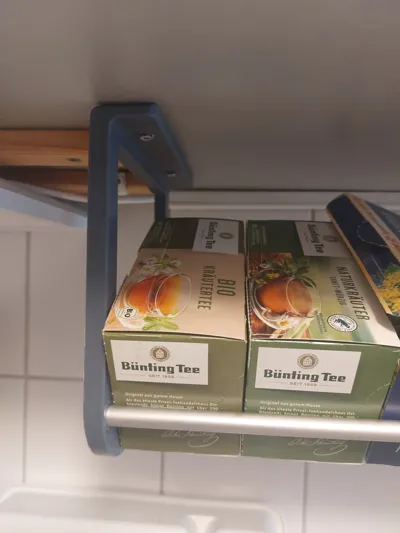

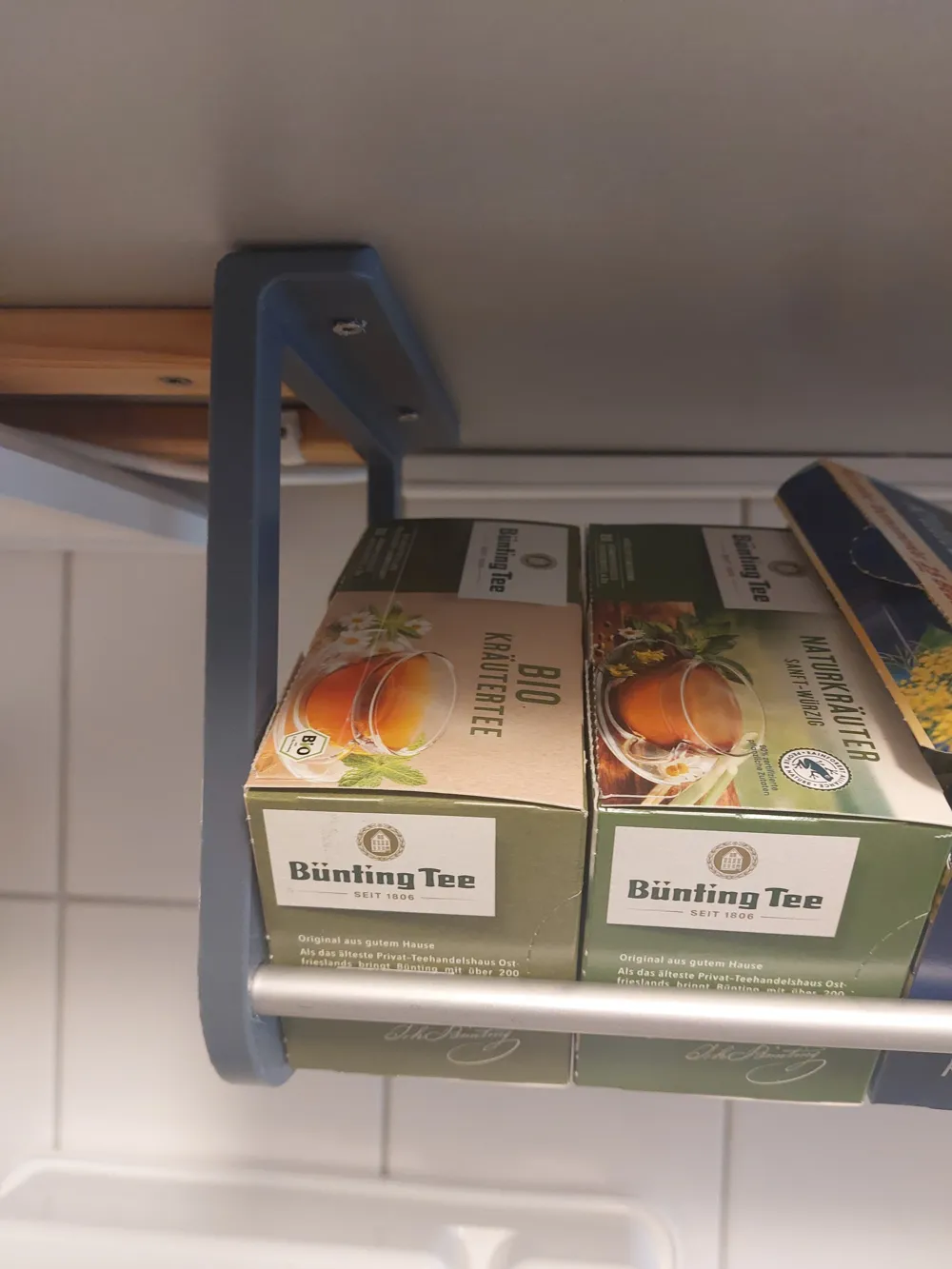

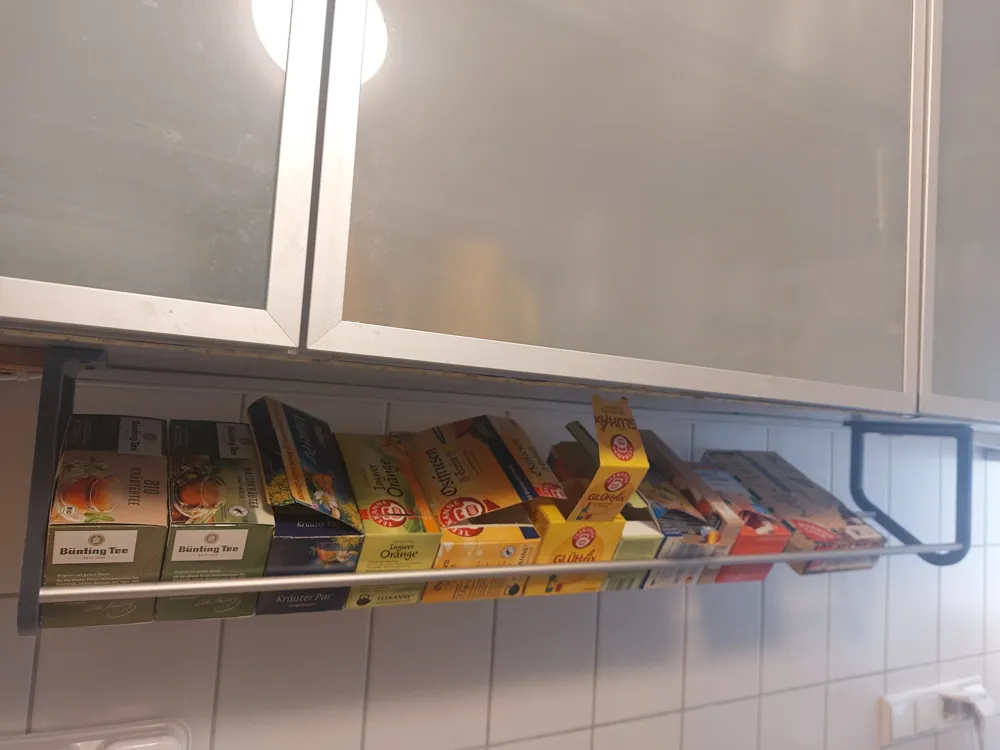

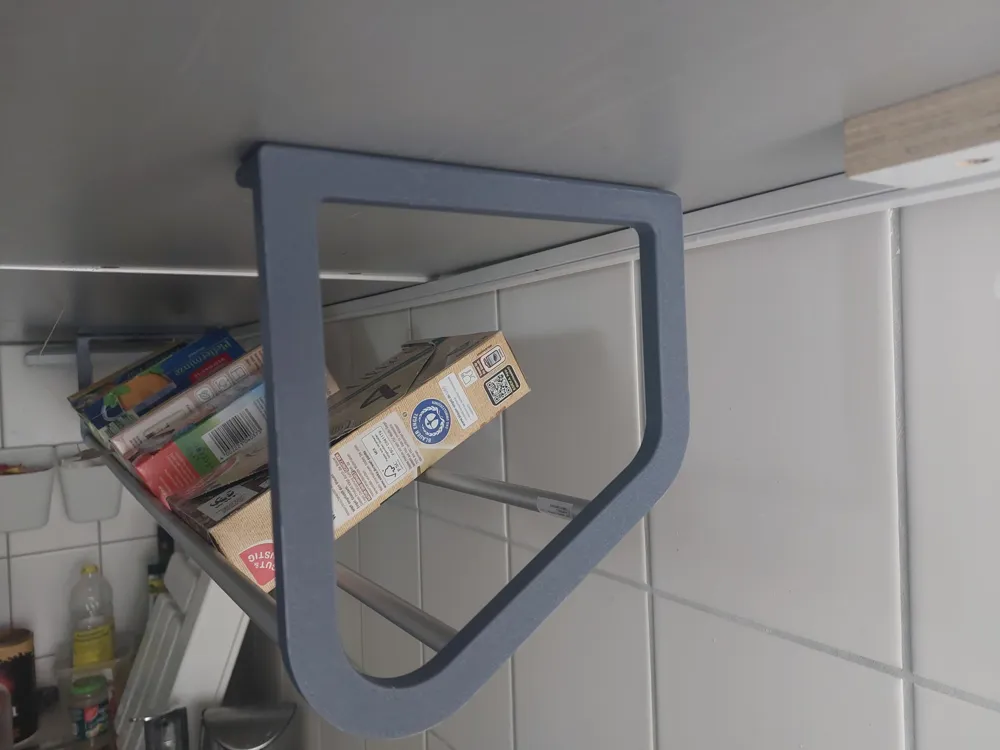

Here I have designed a tea rack that can be screwed onto cabinets from below. The distances are chosen so that commercially available tea bags and coffee filter packs can be stored on it without slipping through.

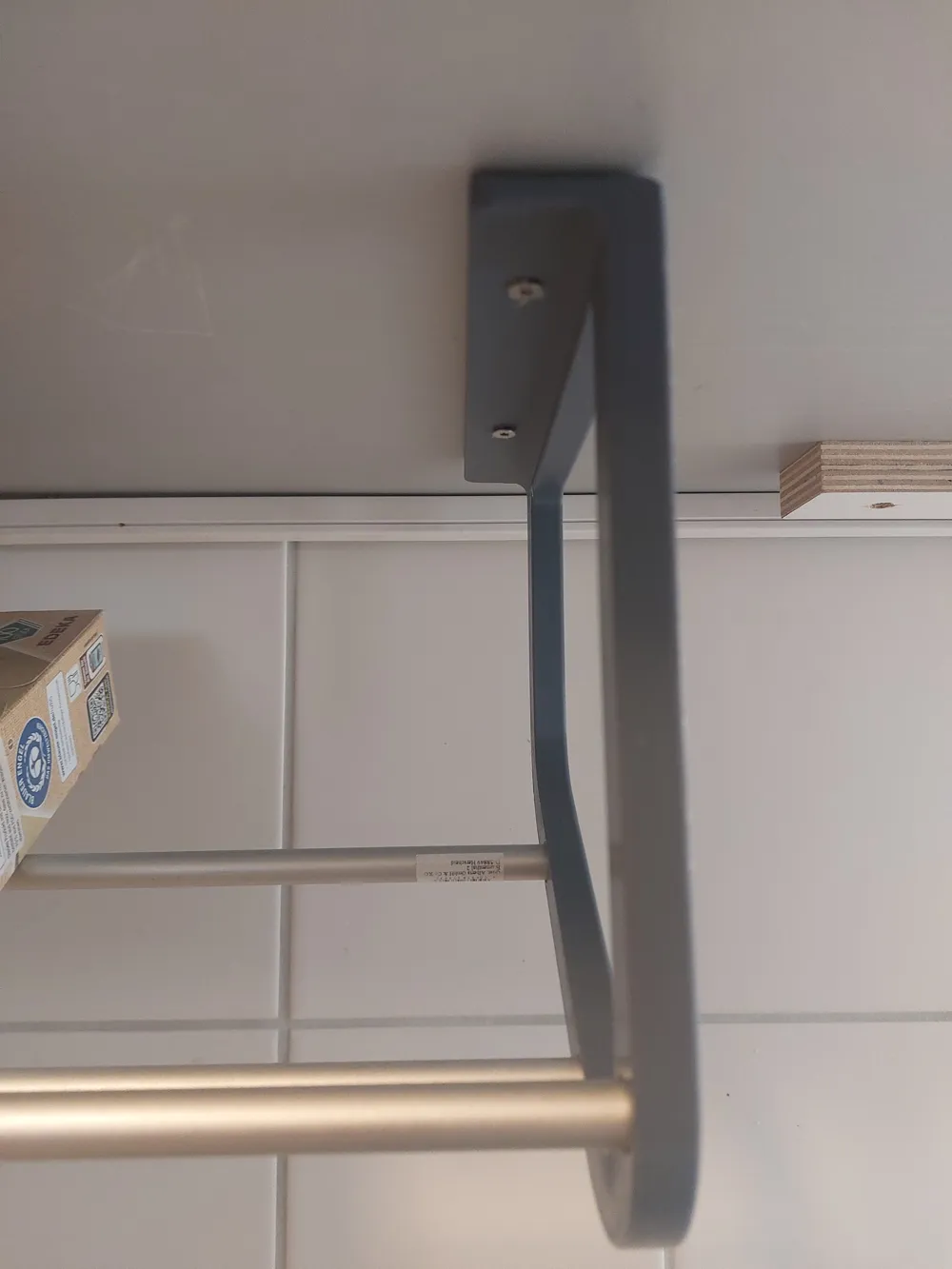

I used an aluminum tube with an outer diameter of 10mm and an inner diameter of 8mm as a rod. For assembly, it is best to press the tubes into the provided holes with some force. I screwed the holders into a wooden rack with simple, short screws.
When tightening the screws, ensure that the screws are not too long (otherwise they will come out through the rack again), not too thick (otherwise the print may be damaged), and not tightened too firmly.
If you guys have any idea to improve the file and model. please let me know.
And if you have any suggestion on what to design next please let me know or have a look at my other models.
Boost Me (for free)
I would really appreciate a boost, as it helps me to understand what models and design you guys want. Thanks a lot :)
