<p>This is the default model.<br>Highly suggest customizing to your needs though.<br><br>// Main platform dimensions<br>platform_length = 100;     // Length of the basking platform (mm)<br>platform_width = 150;       // Width of the basking platform (mm)<br>platform_thickness = 5;    // Thickness of the platform (mm)</p><p>// Wall dimensions<br>wall_height = 20;          // Height of the back wall (mm)<br>wall_thickness = 5;        // Thickness of the wall (mm)<br>upper_wall_height = 50;    // Height of the upper wall above the hook (mm)</p><p>// Glass hook dimensions<br>hook_drop = 20;            // How far the hook drops down behind the glass (mm)<br>hook_thickness = 5;        // Thickness of the hook (mm)<br>glass_thickness = 4;       // Thickness of aquarium glass (mm)</p><p>// Ramp/stairs dimensions<br>ramp_width = 100;           // Width of the ramp (mm)<br>ramp_height = 85;         // Total depth of the ramp (how far down from platform) (mm)<br>ramp_length = 100;        // Total length of the steps area (mm)</p><p>// Ridge dimensions for better grip<br>ridge_height = 2;          // Height of ridges above step surface (mm)<br>ridge_width = 1;           // Width/thickness of each ridge (mm)</p>

0.28mm layer, 2 walls, 15% infill

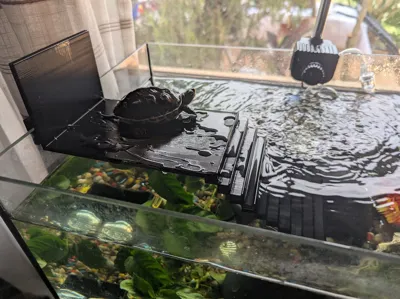

<h2>Turtle Basking Spot for Aquarium</h2><p>A 3D printed platform that hooks over your aquarium glass to give turtles a dry place to bask.</p><h2>What it does</h2><p>Hangs securely on the rim of your aquarium and provides a stable platform above water level. The L-shaped hook distributes weight so it won&#39;t tip or fall in. Includes stairs with ridges so turtles can easily climb up, and an upper-wall so it doesn&#39;t climb and throw itself from a 1.5m height lol.</p><h2>Customizable</h2><p>The OpenSCAD file lets you adjust all the dimensions:</p><ul><li>Platform size to fit your tank</li><li>Ramp depth and length</li><li>All other parameters to fit in your aquarium</li></ul><h2>Printing</h2><p>Print with PLA or PETG.</p><h2>Works with</h2><p>Probably only good for smaller turtles.<br>The whole thing prints in one piece - no assembly needed. Just hook it on your tank and you&#39;re done.<br><br><br><a target="_blank" rel="noopener noreferrer ugc" href="https://github.com/GabrielAgrela/TurtleBaskingSpotScad">GabrielAgrela/TurtleBaskingSpotScad</a></p>

Print Profile(1)

Description

Turtle Basking Spot for Aquarium

What it does

Customizable

Printing

Works with
