PCB Storage Box [Customizable]

Introducing the Ultimate Parametric Slot Storage Box – the most versatile and fully customizable solution for organizing your delicate components.

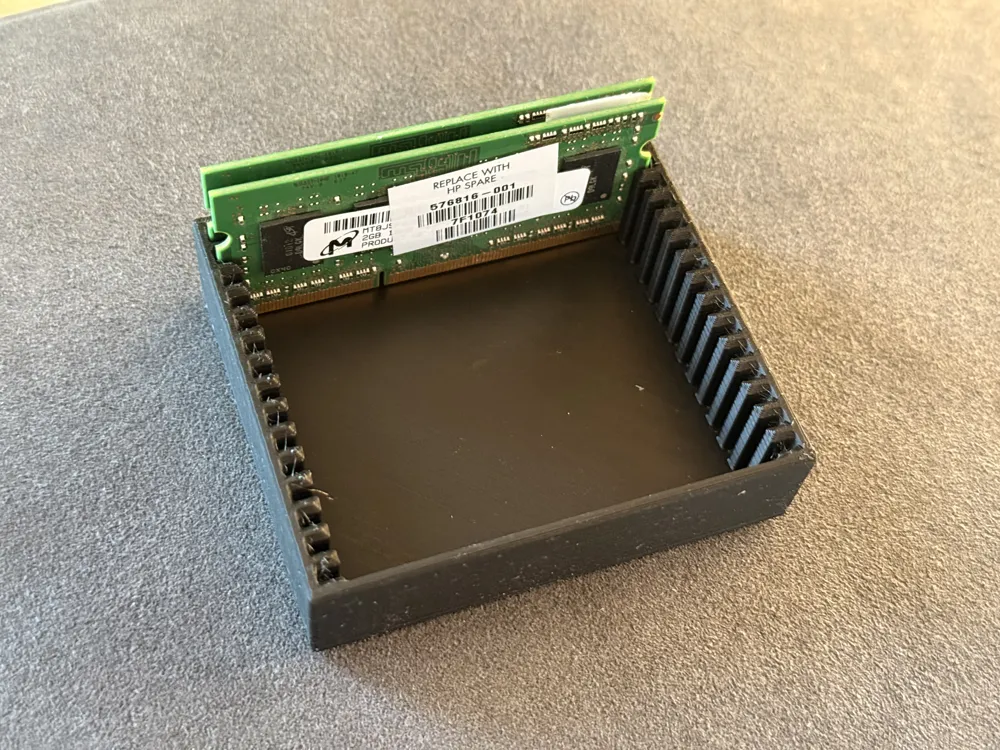

Originally designed to neatly store RAM modules (DIMM, SODIMM, DDR3, DDR4), this parametric Fusion 360 model can effortlessly adapt to fit a broad range of components, including M.2 NVMe drives, PCBs, and virtually any other item that requires careful storage in precise slots.

Every single dimension within this model is parametric, allowing complete flexibility to suit your exact specifications. Adjust slot widths, lengths, heights, spacing, and even overall dimensions with just a few clicks. Whether you're managing electronic parts, hardware prototypes, or precious PCBs, this storage box can be tailored exactly to your needs.

Perfect for makers, technicians, enthusiasts, and professionals looking for an efficient, clean, and adaptable storage solution. Customize it yourself directly on Maker World and ensure your components are stored safely and organized flawlessly.

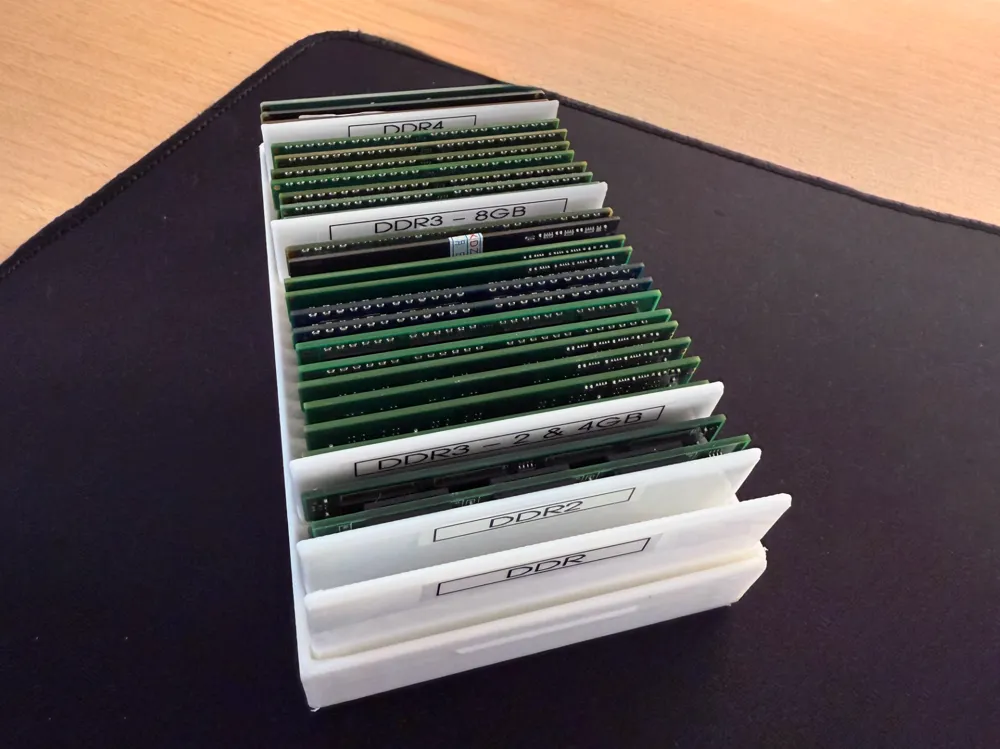

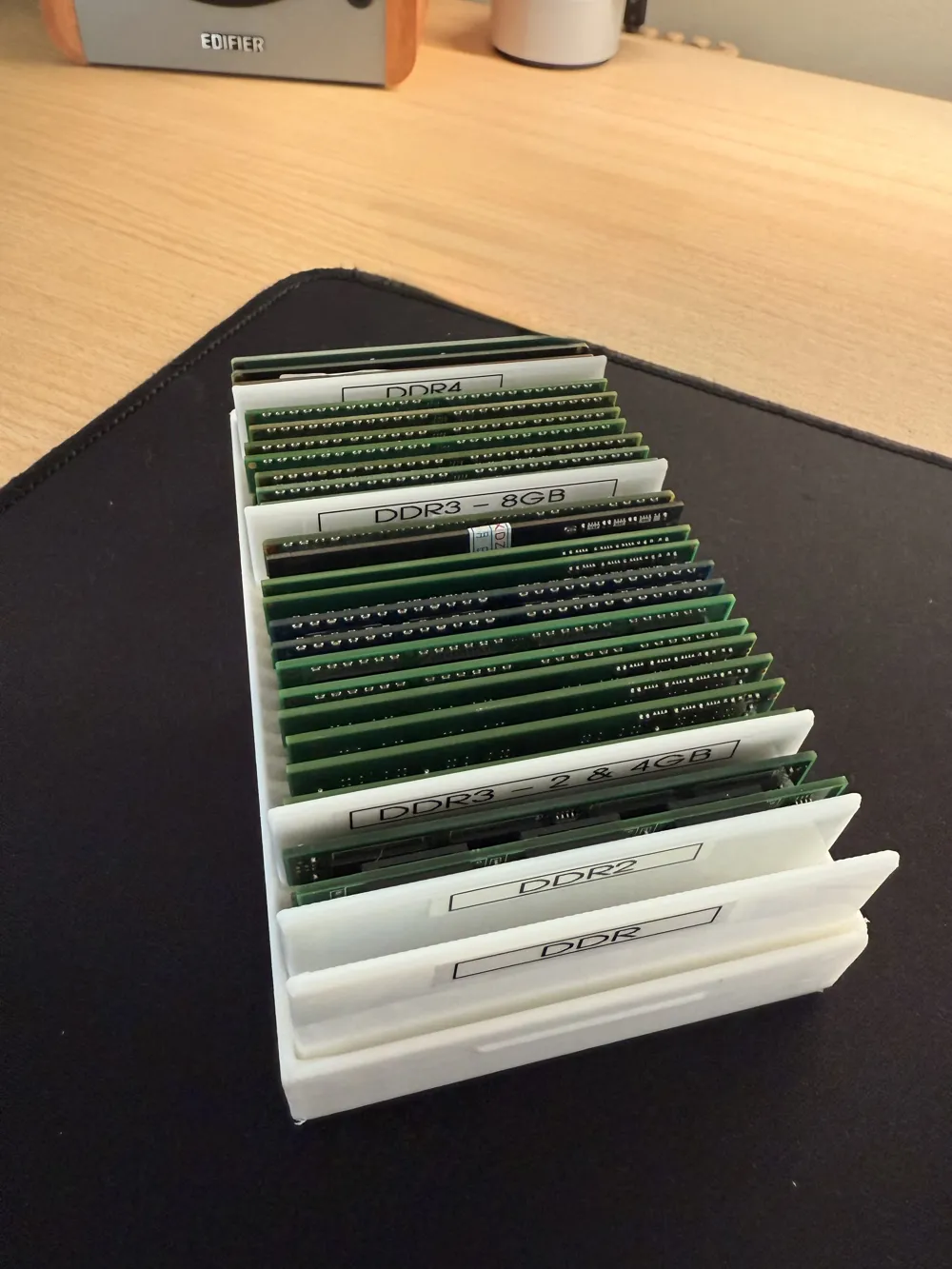

Includes optional divider, for labelling & separating different items.

Settings for common sizes:

SODIMM

Can handle all types (including DDR4) due to the greater overhang value.

• SlotWidth: 136mm
• SlotDepth: 2.3mm
• SlotOverhang: 5.0mm
• SlotHeight: 32mm
• SlotGap: 1.7mm

DIMM

• SlotWidth: 71mm
• SlotDepth: 2.3mm
• SlotOverhang: 4.0mm
• SlotHeight: 33mm
• SlotGap: 1.7mm

M.2 SSD

• SlotWidth: 82mm
• SlotDepth: 2.1mm
• SlotOverhang: 5.0mm
• SlotHeight: 24mm
• SlotGap: 1.7mm

mSATA

• SlotWidth: 53mm
• SlotHeight: 32mm
• SlotDepth: 2.1mm
• SlotOverhang: 3.0mm
• SlotGap: 1.7mm
