Description

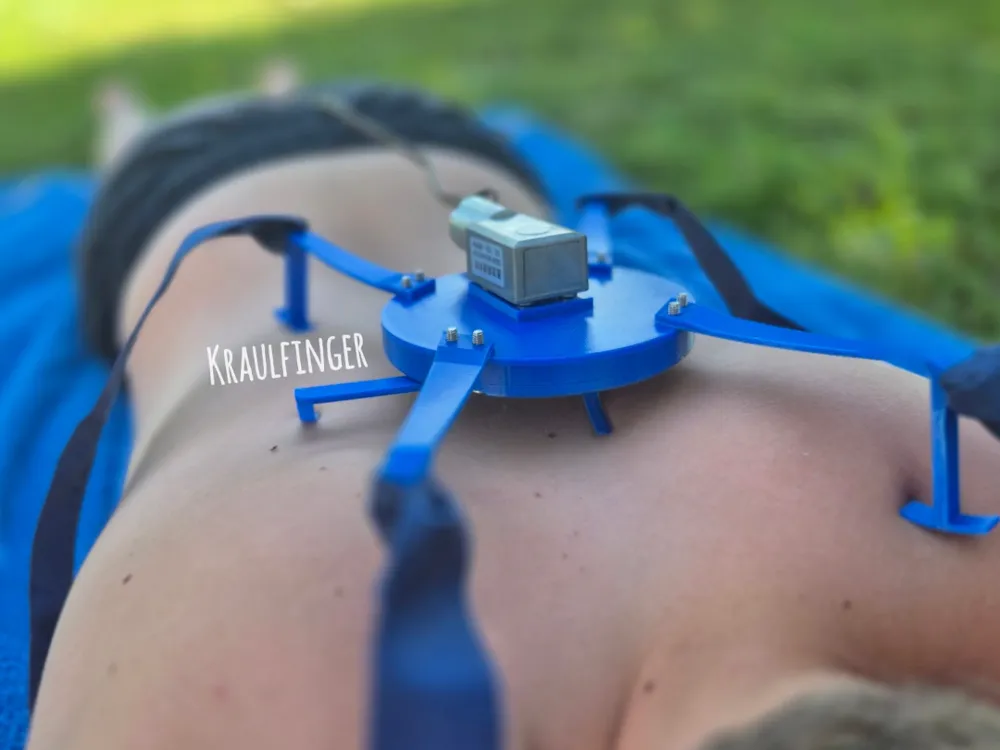

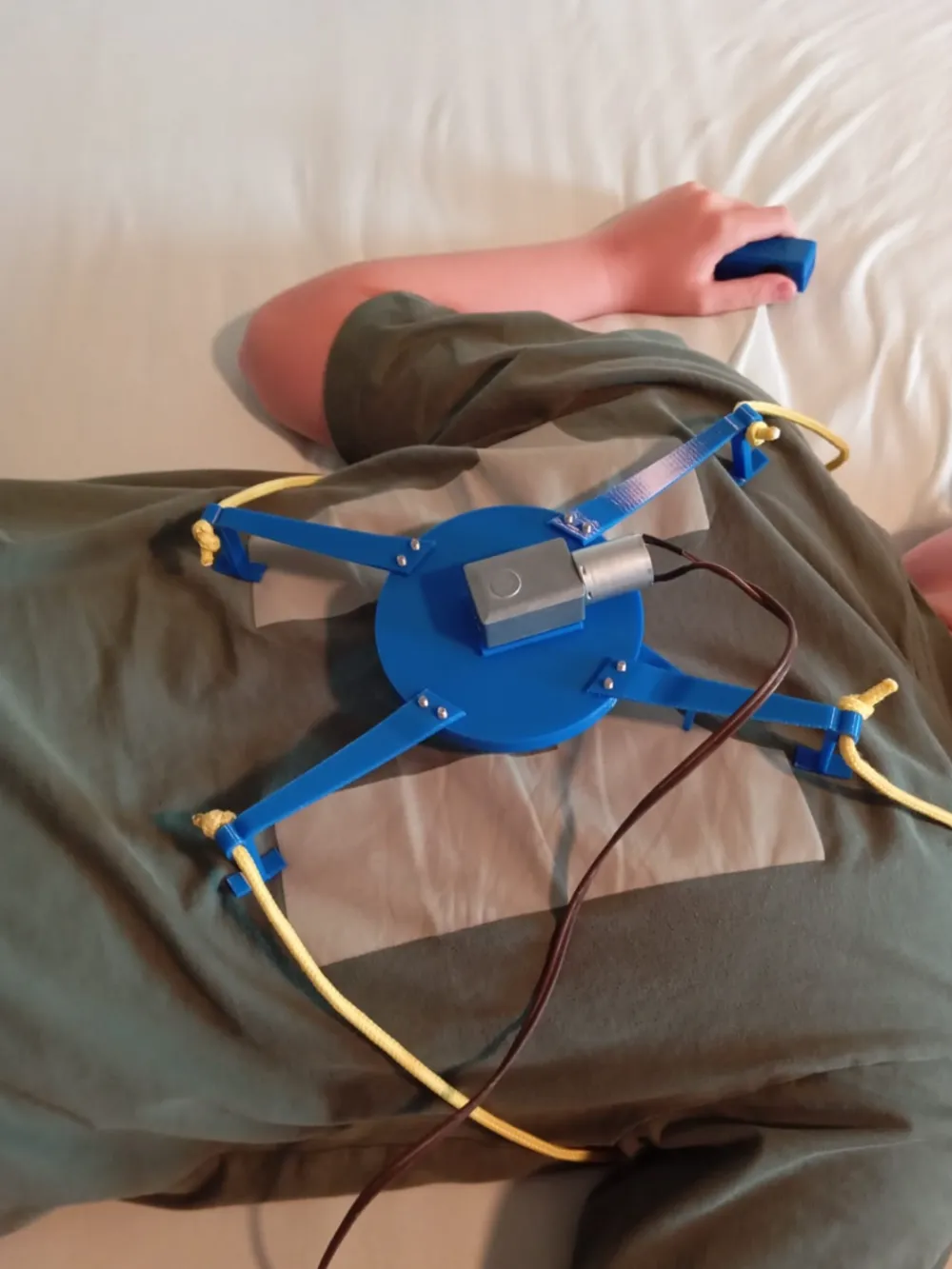

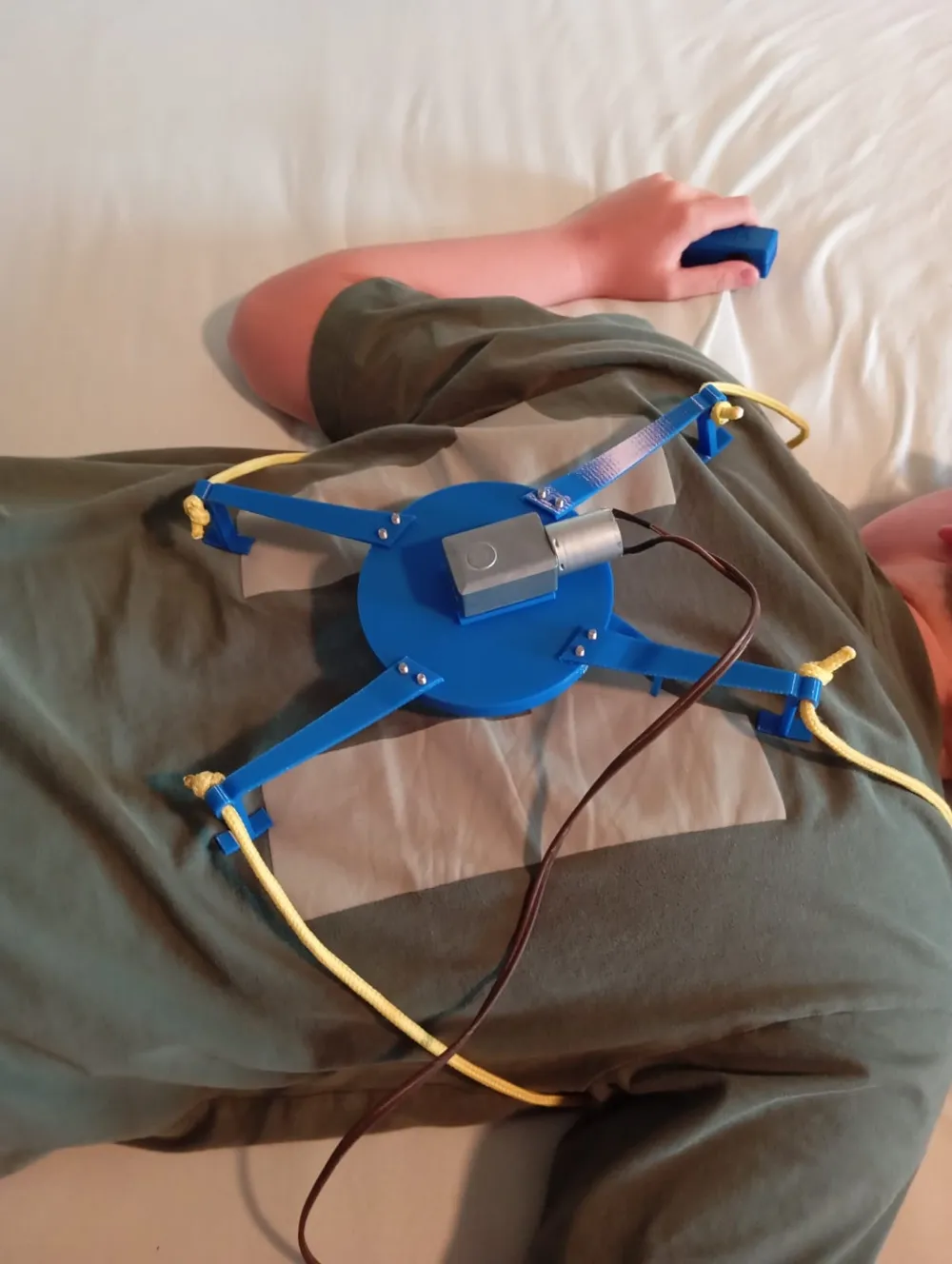

The massage machine – relaxation through rotating massage
Experience pure relaxation with our self-built massage machine! Through a gentle rotating movement, it simulates the feeling of a stroking hand massage – thanks to the yielding feet, the device adapts perfectly to your body – ideal for loosening tense muscles, calming the nervous system, and for an all-round soothing massage experience. Perfect for your back or shoulders – simply lie down and enjoy.
Please only print with PETG or NYLON to ensure flexibility.
The M5 thread on the planetary gear must be re-cut.
If necessary, the massage fingers can be warmed with a hairdryer and slightly bent.

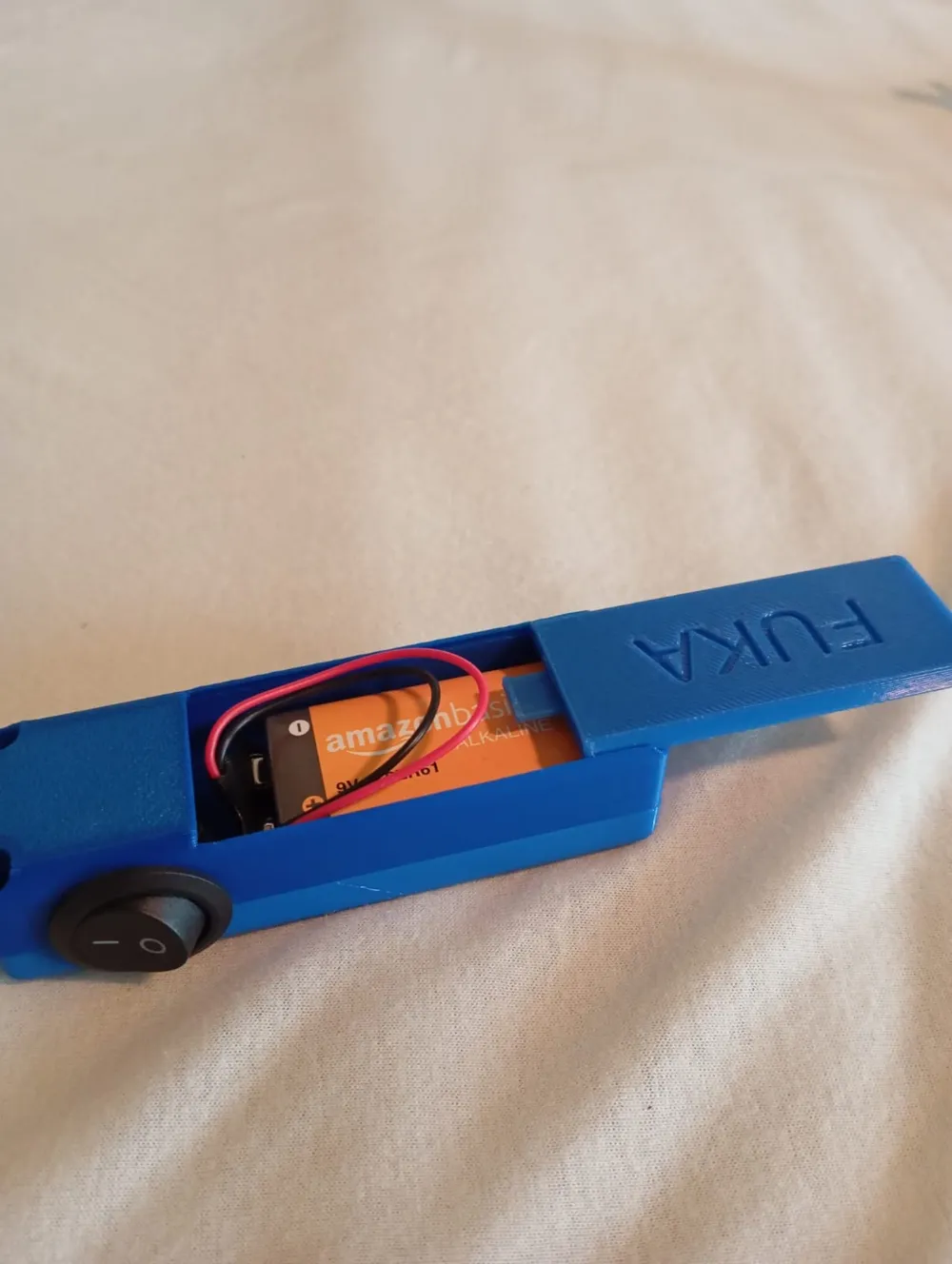

A 9V block battery is required.
Amazon Basics Alkaline Batteries, 9 V, 9 V/6LR61
A DC geared motor with 20RPM or 40RPM.
DC 12V Reversible High-Torque Turbo Worm Gear DC Motor Speed Reduction Electric Motor (40RPM)
On/Off switch
5-piece switch 12v, toggle switch 230v, push button switch 12v, 12 Volt switch push button switch
Battery clip
1m 2-core cable
4 pieces 3x10 universal screws (operating element)
4 pieces M3x8mm screws (geared motor)
1 piece M5x10mm screw (planetary gear)
8 pieces M4x20mm screws (feet)
8 pieces M4 nut (feet)
Soldering iron
as well as any rope for hanging the massage machine.
