Infinity Interlocking Tiles System v1

Update (2025.Apr.04): Version 2 of the Infinity Interlock Tile System has been launched.

https://makerworld.com/en/models/1286026-infinity-wall-interlocking-tile-system-v2-3x3-6x6#profileId-1315145

In v2 3"x3" tiles can be combined with 6"x6" tiles seamlessly.

Original Description:

Note: The profile contains solid and honeycomb tiles. Use whichever you need for your project.

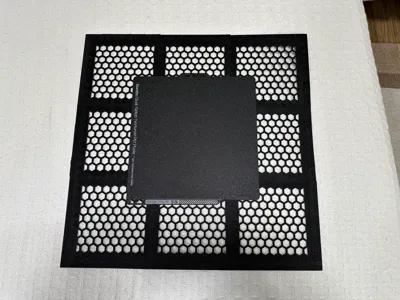

How can you exceed the limits of your build plate? One way is creating interlocking tiles that cannot be taken apart in normal use!

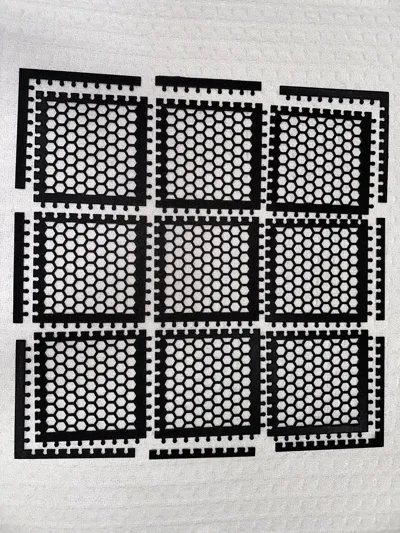

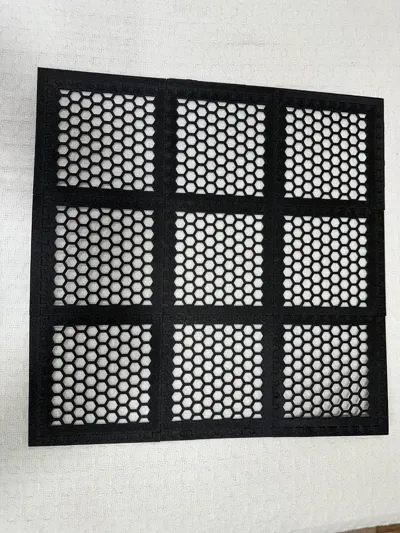

You can build any rectangular or square configuration, as large as you want, with these tiles.

Do you need 10x10 ft or 10x10 m? What about 1 square kilometer? You can do that - just print enough tiles. :)

Assembly Instructions:

Do your own testing:

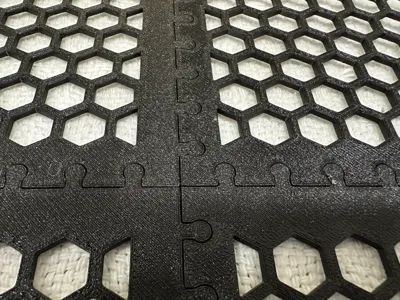

The secret is the special geometry of the zipper joint.

If you want to do your own experiment with different filaments or layer thickness, feel free to download the R&D files containing different draft angles for the zipper joint. Find the minimal draft angle that would hold the tiles together in all three directions for your specific use cases.

https://makerworld.com/en/models/160732#profileId-176413

Plate 1:

Contains the Solid tile. Print as many as you need.

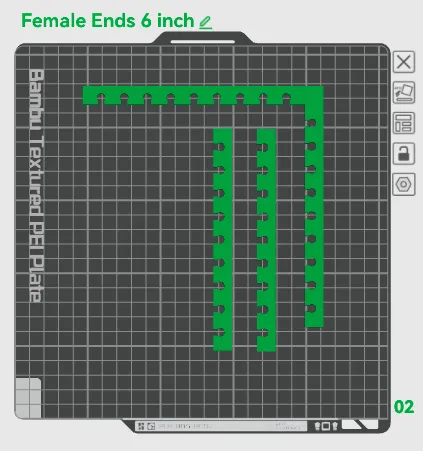

Plate 2:

Contains the Female Ends. Print as many as you need.

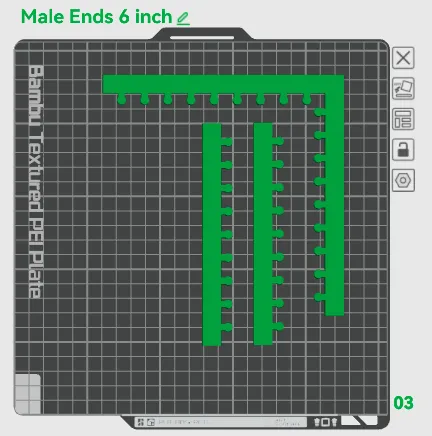

Plate 3:

Contains the Male Ends. Print as many as you need.

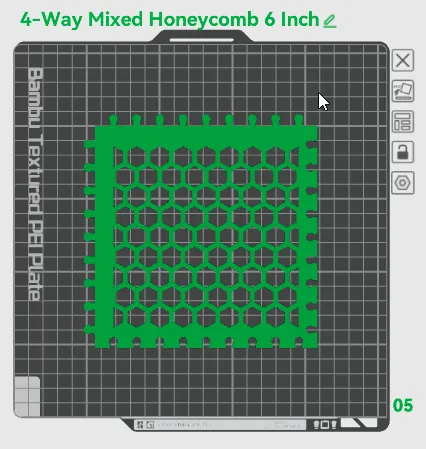

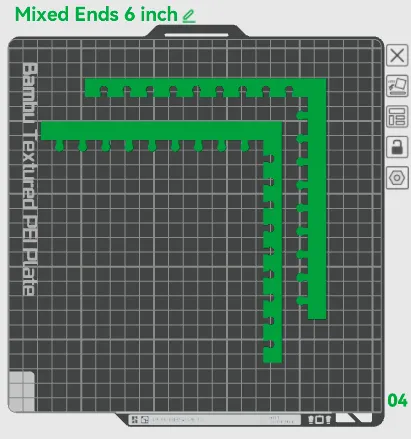

Plate 4:

Contains the Mixed Ends. Print as many as you need.

Plate 5:

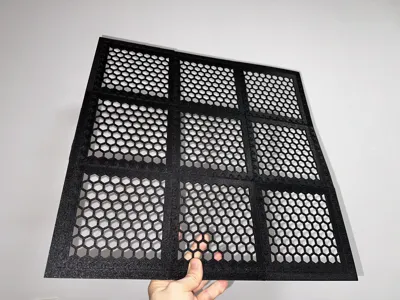

Contains the Honeycomb tile (in case you want to save filament). Print as many as you need.

For a rabbit barrier, use this link:
Rabbit Intra-Fence Barrier (8" Modular Wall) by SWElite MakerWorld: Download Free 3D Models
