Center marker V2 AMS 16 cm - 12 inc.

Designer

4.1 h

2 plates

4.8(63)

Center marker V2 no AMS 16 cm - 12 inc.

Designer

3.7 h

2 plates

4.6(11)

Open in Bambu Studio

Boost

696

2029

1 k

514

Released

Description

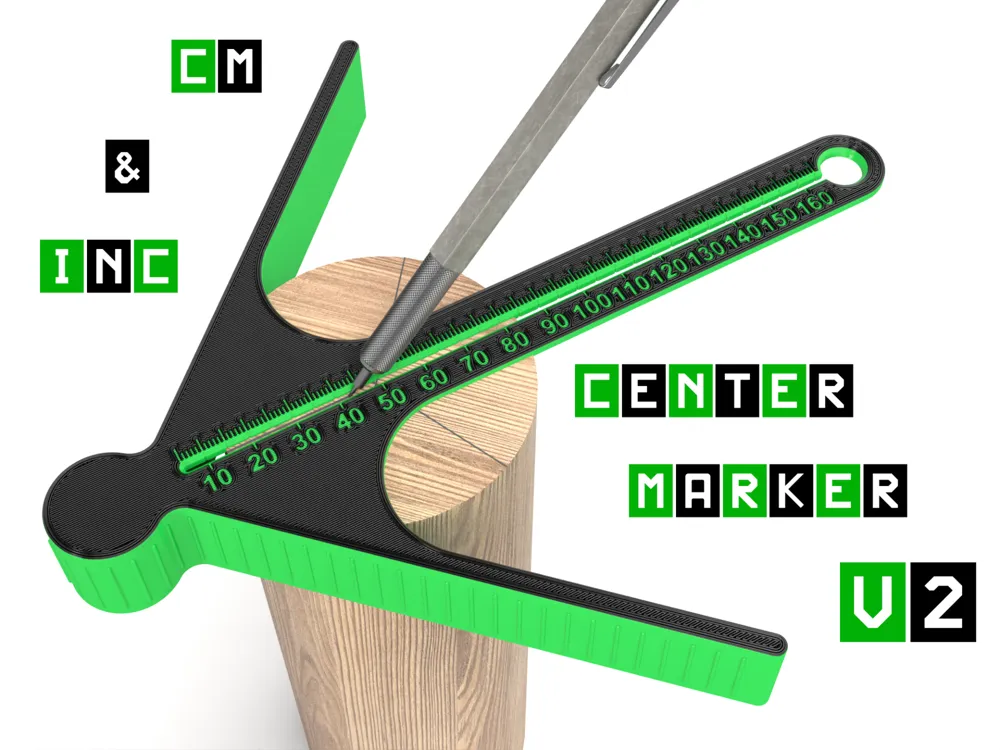

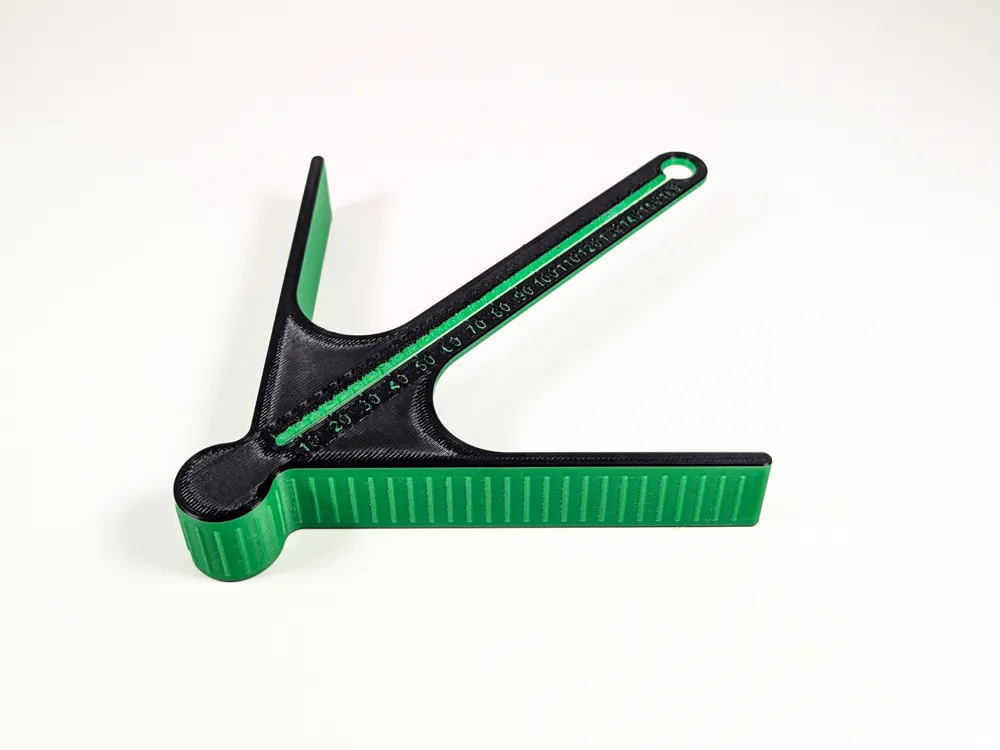

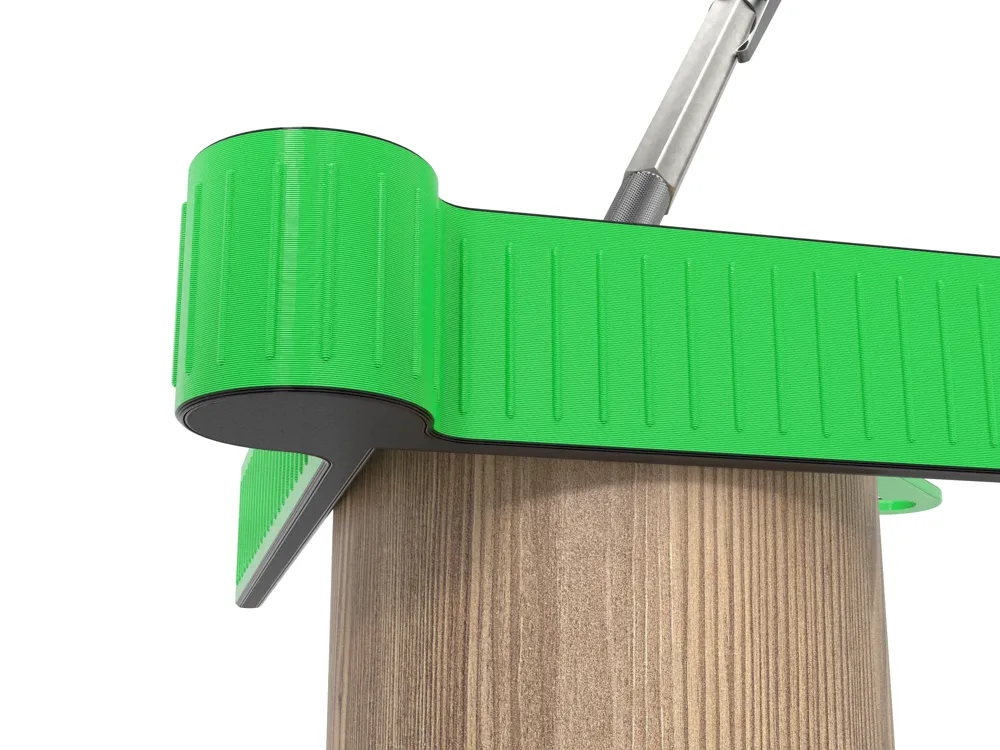

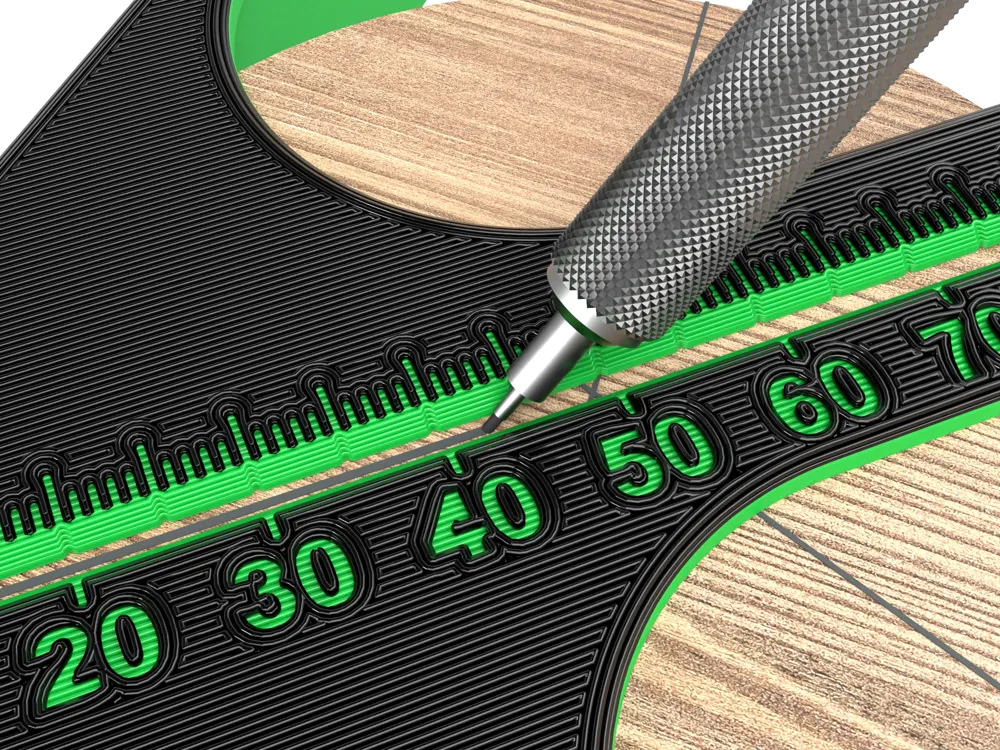

I've perfected this simple yet effective tool for finding the center of any cylinder, now extending up to 320 mm in diameter. Thanks to the new ergonomic protrusion, it's more maneuverable and easier to grip during use. Additionally, I found it useful to add a longer ruler and a practical hole at the end so you can conveniently hang the tool.

It's recommended to reduce the first layer's speed and apply hairspray to the print bed to ensure good adhesion of lines and numbers.

To achieve two colors, you need to change the filament at layer number 3 and 3 layers before concluding the print.

Happy printing!

Boost Me (for free)

Help me keep creating! If you use my models, a small BOOST is a great help. Thank you from the bottom of my heart for your support!

Comment & Rating (82)

@mods.by.anu

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

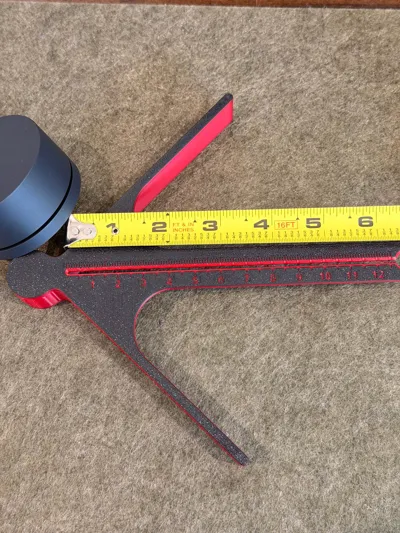

Print quality and model are amazing. Have to remove 1 star because the imperial measurements plate seems to be marked at almost exactly half its real length (attached photo). I'd have loved to avoid the imperial system entirely, but unfortunately, I live in a (the?) country where that's not an option. Happy to update my rating if the model is updated. Thanks for the awesome design!

@Thorh13

I think that is so when you find the center radius the numbers is the Diameter of the circle you are centering

(Edited)

@mehrglueckals

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

Very cool tool! It prints easily on my A1, all parts came out clean and fit perfectly without any post-processing. In black and gold, the part looks incredibly elegant and gives a sturdy, high-quality impression. Although I haven't used it in a real project yet, the feel and craftsmanship are spot on – it will definitely be put to use in my next DIY wood project. A clear recommendation and 5 stars from me, thanks for the design! 🙌

The profile uploader has replied

Show original

@AK_3D

Thank you very much 🙌🏼

@user_3183513229

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

This was a very good idea and I will use this in my projects! The quality is top notch!

@arturb

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

👍

@Kakri76

Boosted

Print Profile

Center marker V2 no AMS 16 cm - 12 inc.

Thank you!

@user_2173181066

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

looks good

@zielakart

Boosted

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

very nice

@Lcatch

can we get an inch version??

The designer has replied

@AK_3D

Hi, yes I still have to insert it as a variant.

@AK_3D

Hi, I've just added the inch version - I hope you like it! 😉

@user_4283949364

Boosted

Thank you for your design and effort, ths will be a very usefull item

The designer has replied

@AK_3D

Thank you so much, I'm glad you appreciate my work.

@Letorion

Print Profile

Center marker V2 AMS 16 cm - 12 inc.

Printed perfectly.
