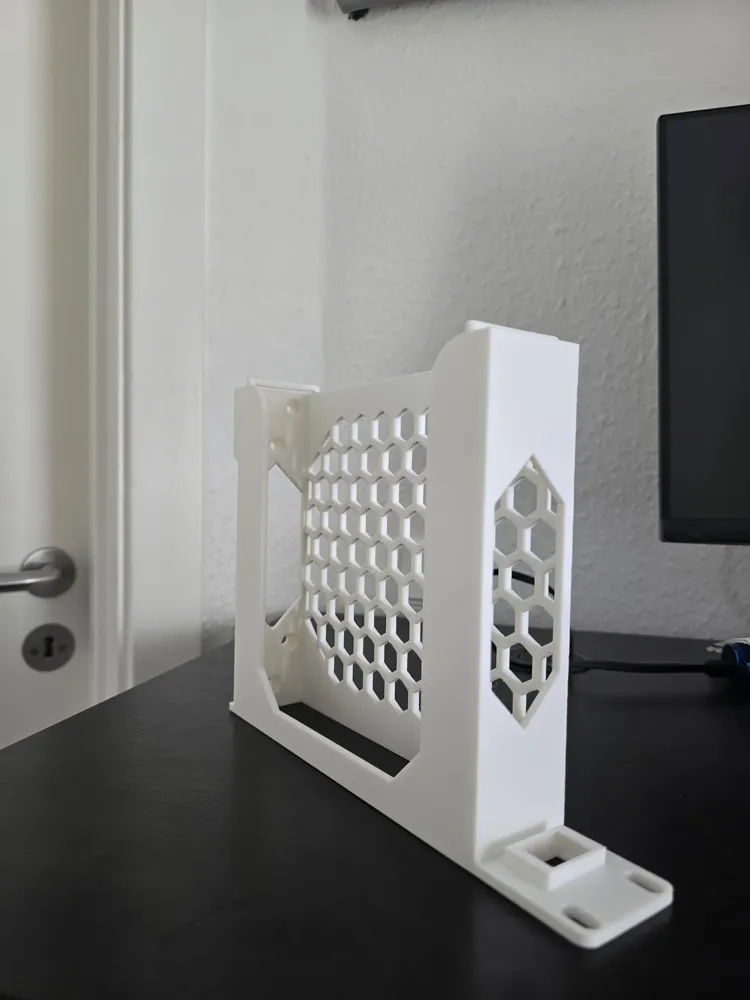

Dell OptiPlex 7020 19 - Inch Rack mount

A 19" Rackmount for dell optiplex micro 7020, might fit others to.

Update 12/5 2026 A version without keystone.

The screw and hex connectors is adapted from Mauker's systems, That way you can use most of his Modular/blanks if you only need on side.

There are 2 visions

1. Dell OptiPlex 7020 19 - Inch Rack mount w keystone

2. Dell OptiPlex 7020 19 - Inch Rack mount B-S = Back support w keystone

3. Dell OptiPlex 7020 19 - Inch Rack mount No keystone

4. Dell OptiPlex 7020 19 - Inch Rack mount B-S = Back support No keystone

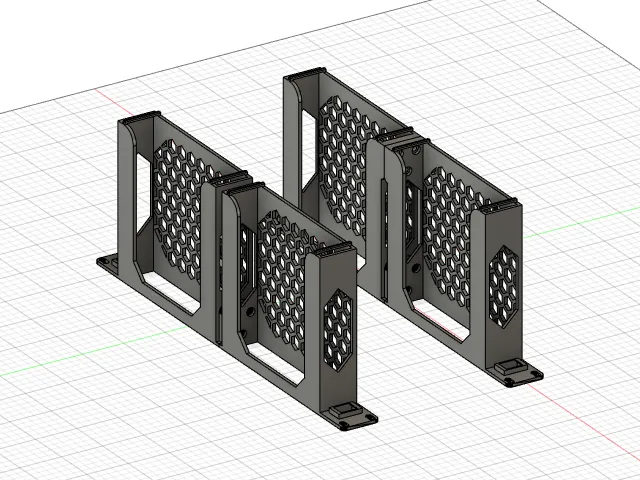

If you need more strength/support when using 2 side by side, Then Dell OptiPlex 7020 19 - Inch Rack mount B-S can be assembled in the back, using hex nut and screws.

You need to remove the rubber feet.

Parts

3x M5 screws

3x M5 hex nuts

Walls = 3 ore 4

Infill = min 30%

Support = No

happy printing.

Thx

@Mauker
