Milwaukee Packout bin mount for Multiboard
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
31 min
1 plate
Open in Bambu Studio
Boost
21
105
3
3
52
29
Released
Bill of Materials
List other parts
- 9 mm Big Thread, Flat Head, Shank Bolt x 2: needed to attach to Multiboard
Description

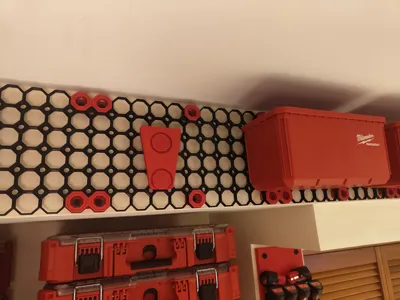

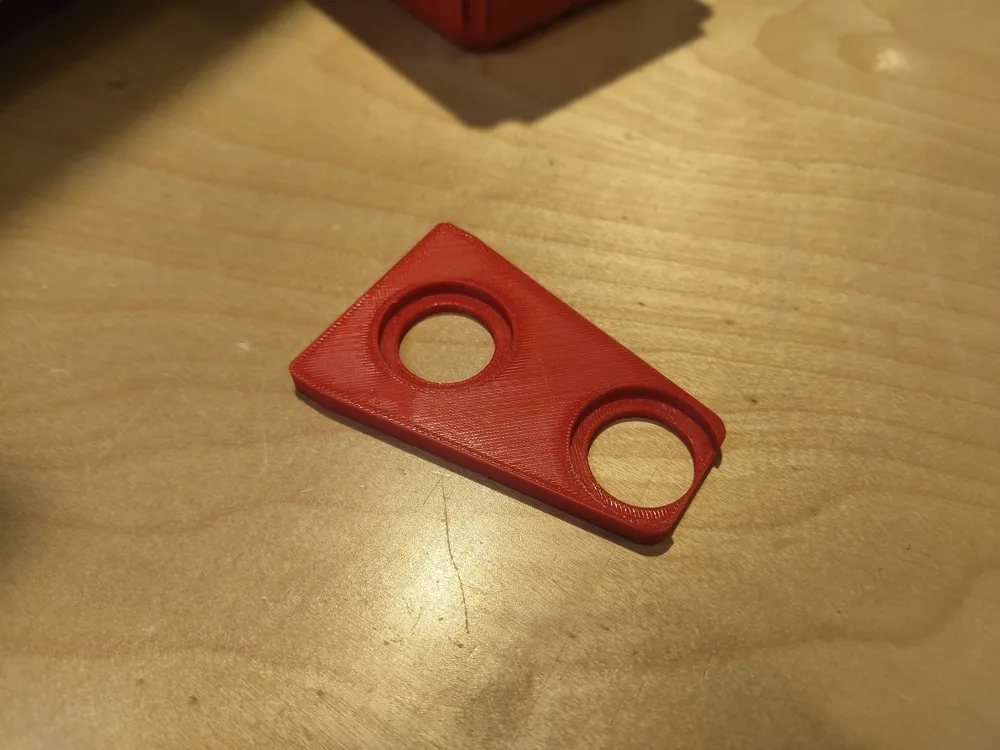

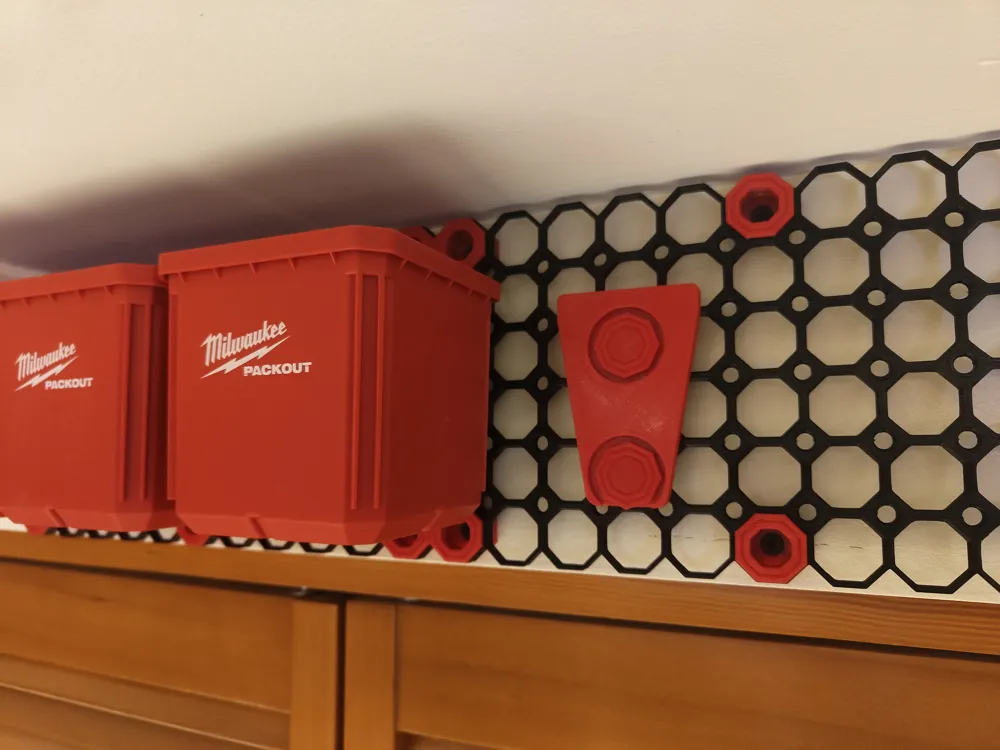

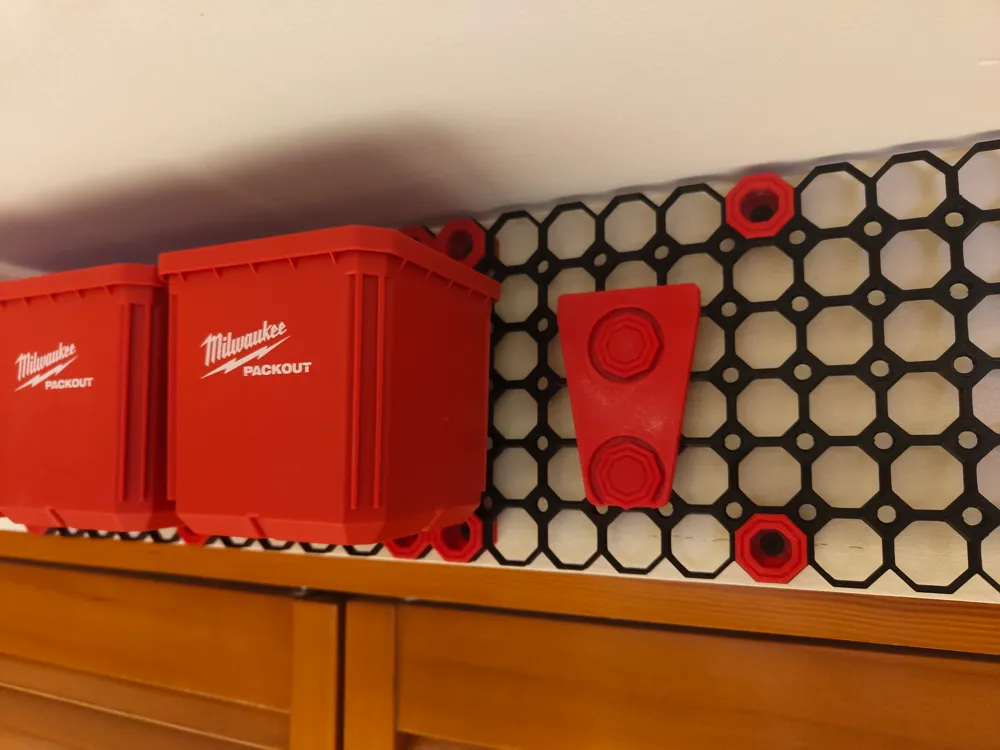

This is a Multiboard compatible Milwaukee Packout bin mount. It uses, quantity 2, 9 mm Big Thread, Flat Head, Shank Bolts.
It is compatible with both 1 wide and 2 wide (large) Packout bins.
The bins that come in the following kits seem to work:
- PACKOUT 11-Compartment Impact Resistant Portable Small Parts Organizer
- PACKOUT 5-Compartments Small Parts Organizer
- PACKOUT Large Bin Set (2,4, and 4-Pack)
- PACKOUT Bin Set (2,4,8, and 12-Pack)

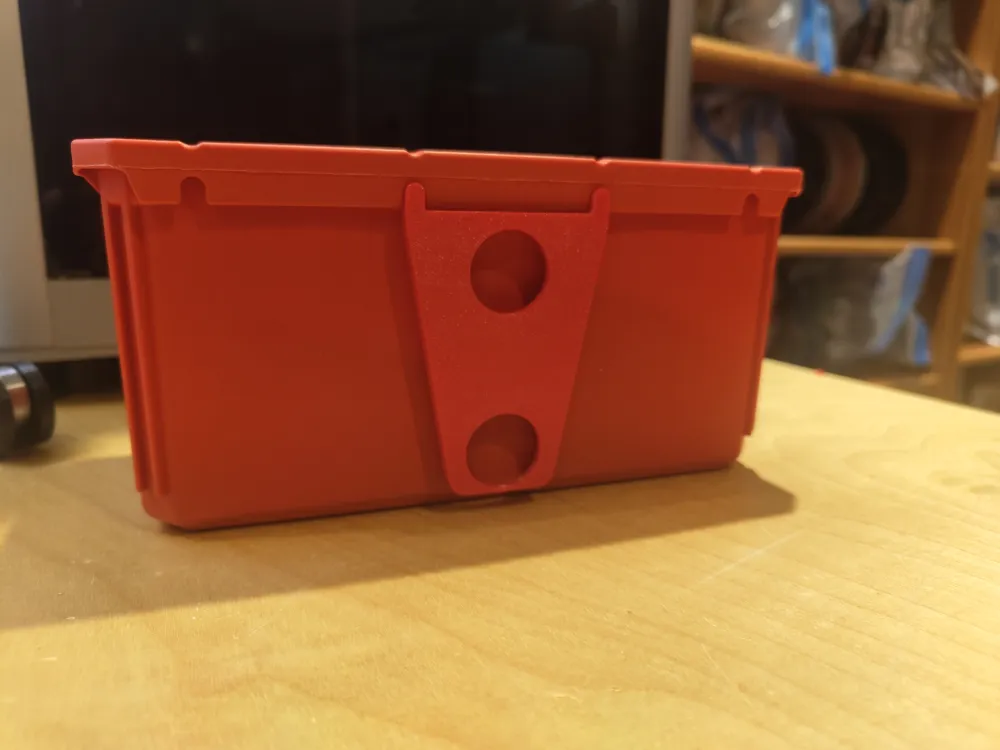

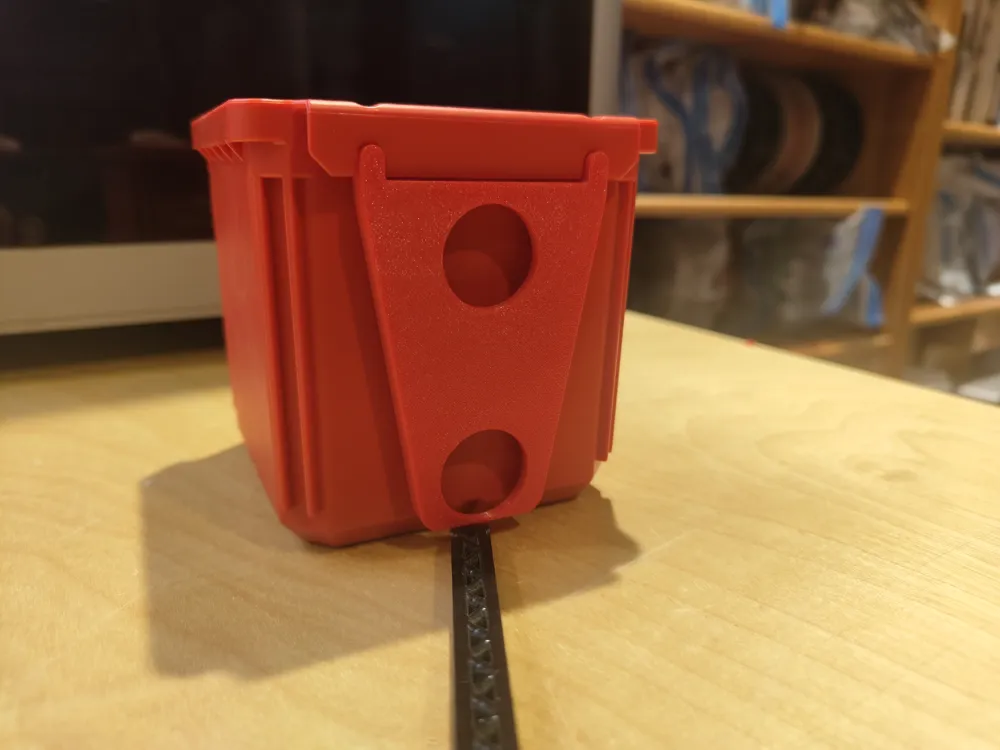

This mount uses the hook feature found on only one side of the Packout bins however this feature only seems to be present on the deep bin, listed above, not the ones found in the Low-Profile Compact Organizer.
